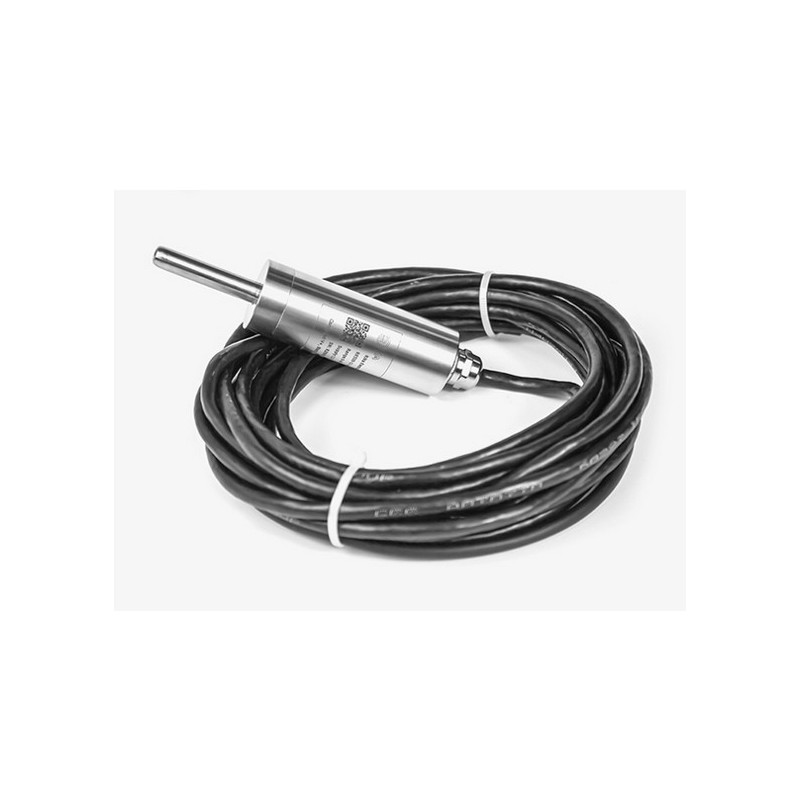

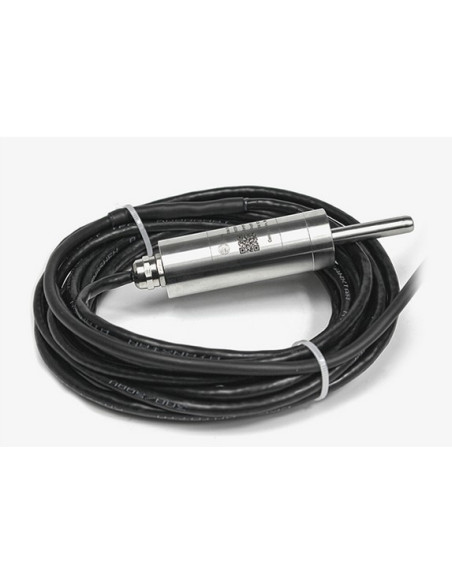

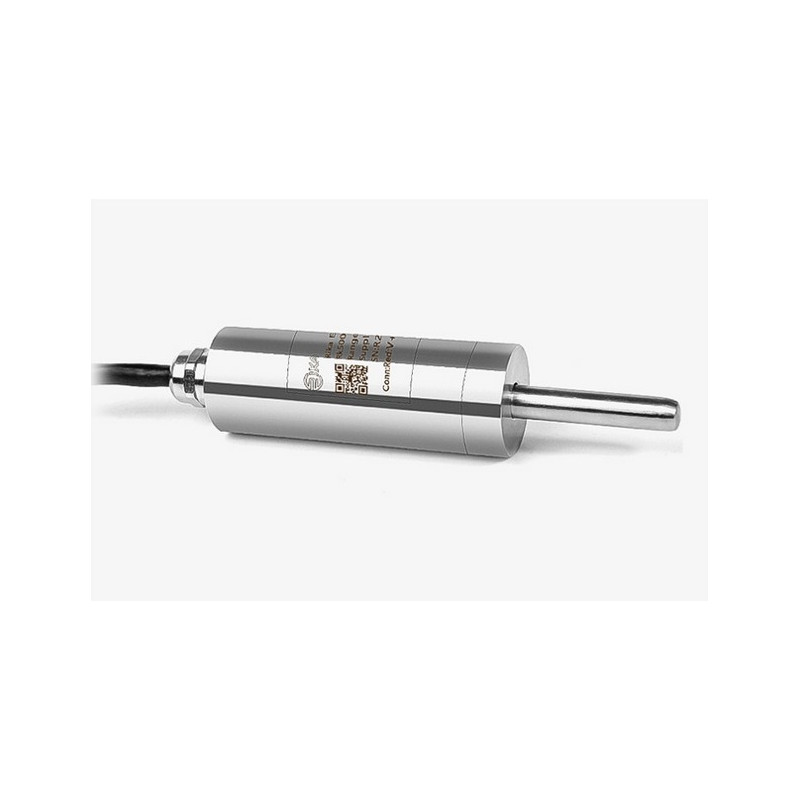

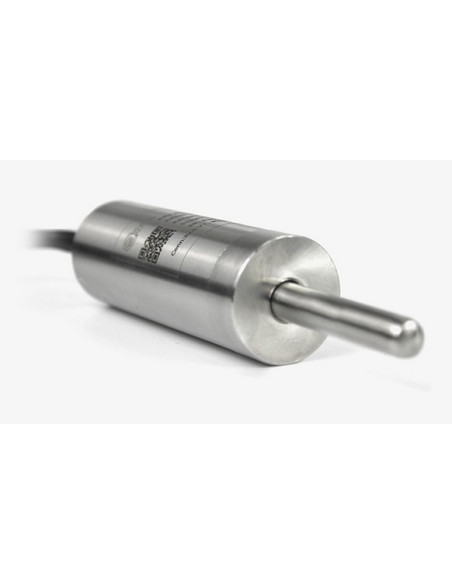

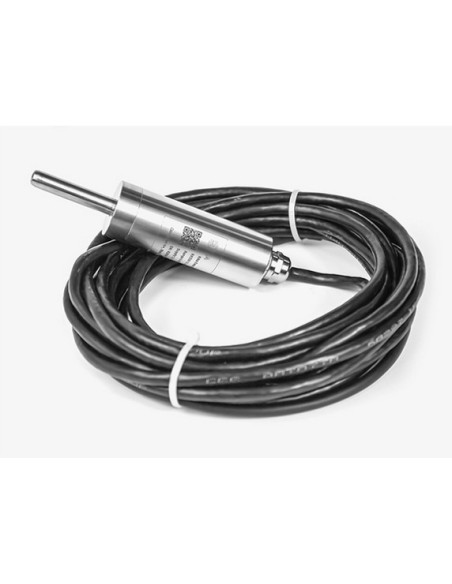

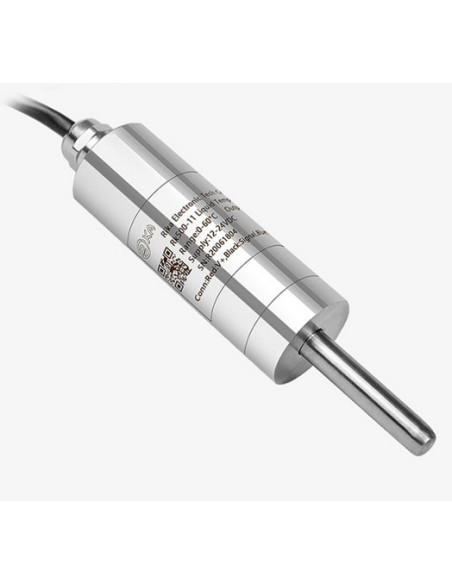

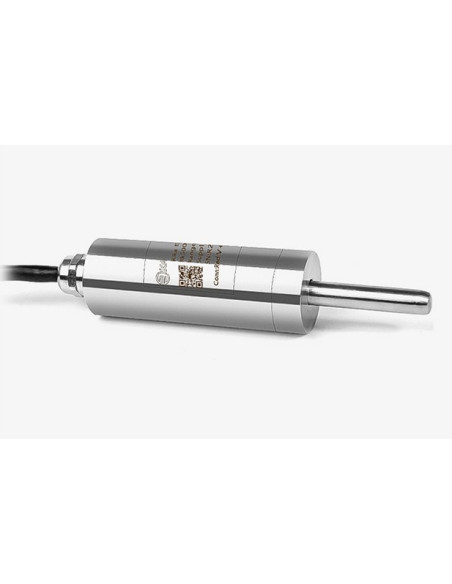

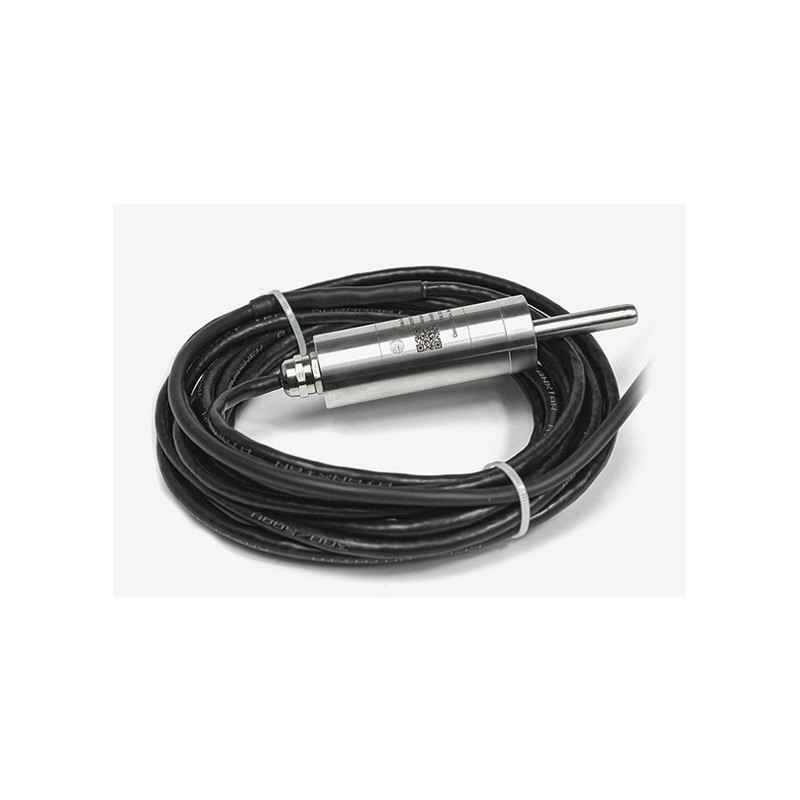

Liquid temperature sensor RK500-11
FEATURES
- Real-time temperature measurement
- Good corrosion resistance, suitable for all kind of soil and water.
- High accuracy
- Good linearity
- All stainless steel probe
RK500-11 Liquid Temperature Sensor is used to measure the temperature of the liquid medium, applied to the automatic meteorological station, pond or reservoir water temperature detection and other fields.Sensor with precision thermal resistance as a sensing component, built-in signal sampling and amplification, zero drift and temperature compensation function, has the characteristics of high measuring precision and good stability.
| Item | Technical Specification |
| Range | -40-+80℃ |
| Supply | 12-24VDC |
| Accuracy | ±0.5℃ |
| Response time | <1s |
| Output Signal | 4-20mA,0-5V,RS485 |
| Operating Temperature | -40℃-+80℃ |
| Housing material | 316L |
| Probe weight(unpacked) | 145g |
| Ingress Protection | IP68 |
| Storage | 10-60℃@20%-90%RH |
- Environmental monitoring
- Weather station
- Aquaculture
- Ground temperature detection
- Water conservancy
- Agriculture
- The Sensor measures:
- Air/water/soil temperature
- Output Signal:
- 4-20mA,0-5V,RS485
- Cable Length:
- 5 meters
- Power Supply:
- 12-24 Vdc
- Sensor IP Rating
- IP68
- Sensor for use in:
- Outdoor & Underwater
