BIOFUEL MOISTURE METER BIO-1

Reference BIO-1

Manufacturer: TANEL

Condition: New

BIOMASS MOISTURE METER

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS

Biofuel moisture meter BIO-1 is a state-of-the-art electronic device for measuring of moisture contents in:

sawdust, scobs, wood shavings,
hay and straw,
dried fruit waste,
fragmented waste paper,
sunflower hull,
buckwheat hull, bran, chaff,
sunflower and corn stem,
ground grain,
rape and soy oilseed cake.

The Moisture Meter is primarily designed for evaluation of moisture contents of materials used for production of briquettes and pellets. It can also be used for approximate measurement of readymade pellets (crumbled). The device is equipped with a temperature compensation and is delivered in an aesthetic black case.

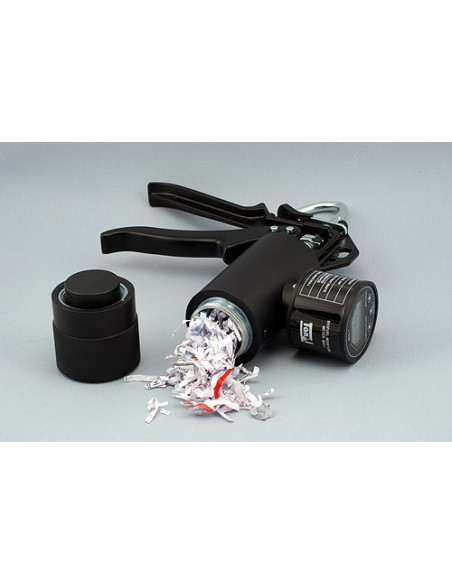

The Moisture meter measures the resistance of a compressed sample of sawdust. The measurement is done in two stages:

first - the sample is compressed always to the same pressure of approx. 0.2 MPa,
second - the resistance of the sample is measured and converted into moisture contents.

Technical data
Range sawdust, scobs, wood shavings hay, straw dried fruit waste fragmented waste paper sunflower hull buckwheat hull, bran, chaff sunflower and corn stem ground grain rape and soy oilseed cake	8 % - 30 % 8 % - 25 % 8 % - 25 % 6 % - 20 % 8 % - 25 % 8 % - 25 % 8 % - 25 % 8 % - 25 % 8 % - 25 %
Resolution	0.1 %
Temperature range	0°C - 50°C
Sample volume	120 cm³
Measuring pressure	approx. 0.2 MPa

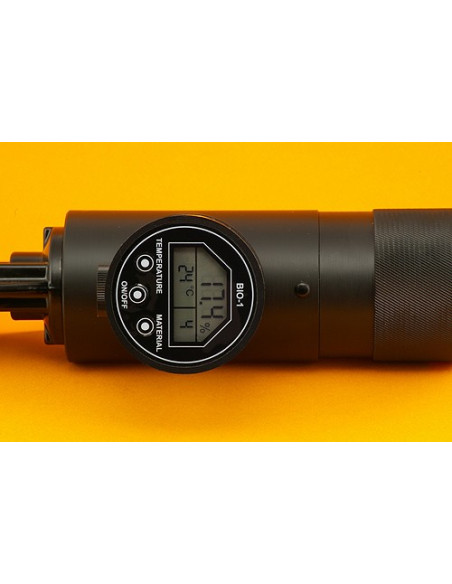

Display	LCD
Power	1 * 12V (battery 23A)
Battery life	10'000 measurements
Low battery warning	yes
Auto power off	yes, after 5 min.
Size device case	300x220x65 mm 340x280x85 mm
Weight	approx. 1 kG
