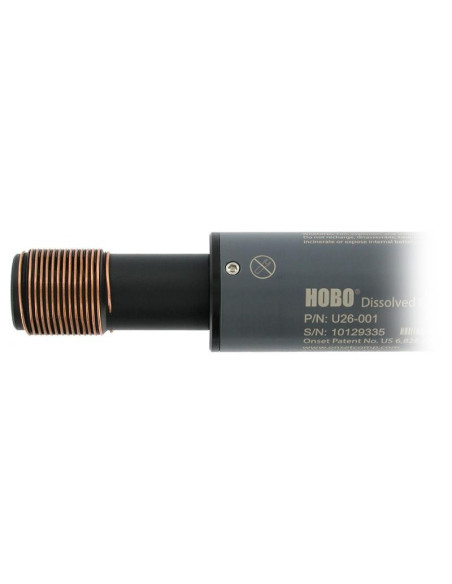

U26-001 HOBO Dissolved Oxygen Data Logger

U26-001

Onset

New

1 450,00 €

tax excl.

Add to wishlist

Measure oxygen concentrations in lakes, streams, rivers, estuaries, and coastal waters with the HOBO U26 Dissolved Oxygen Data Logger. This affordable and precise data logger is recommended for aquatic biology and hydrology research projects. The HOBO U26 uses RDO® Basic (Rugged Dissolved Oxygen) optical DO sensor technology and is easy to maintain.

Includes:

  • U26-001 data logger
  • DO sensor cap
  • Protective Guard
  • Calibration Boot with sponge

Our HOBO U26 Dissolved Oxygen logger has been part of a multi-year evaluation of DO loggers and sensors by the Alliance for Coastal Technologies (ACT), and the results have just been published online. This provides an un-biased report of how our U26 performs in lab and field conditions. Note that our response letter with our added recommendations is attached at the end of this report on pages 58 and 59.  Click here to read.

Highlighted Features

  • Affordable, high performance dissolved oxygen (DO) monitoring with 0.2 mg/L accuracy
  • Optical DO sensor technology for long-lasting calibration with less maintenance
  • HOBOware Pro's Dissolved Oxygen Assistant software corrects for measurement drift from fouling; provides salinity-adjusted DO concentrations and percent saturation
  • Optical USB interface for high-speed, reliable data offload
  • Easy-to-replace DO sensor cap lasts six months

NOTE: For DO measurements in saltwater, an adjustment for salinity is required. For waters with small changes in salinity (<2 ppt), a salinity meter reading typically provides enough accuracy. For environments with greater salinity changes, we generally recommend the HOBO U24-002-C conductivity logger. If you need DO in Percent Saturation, barometric pressure data is required, which can be logged with a HOBO Water Level Data Logger (U20-001-04).

In what environment does this data logger operate?

This data logger operates in an underwater environment.

What measurements does this data logger support?

The U26-001 data logger supports the following measurements: Dissolved Oxygen and Temperature

Dissolved Oxygen
  Sensor Type: Optical
  Measurement Range: 0 to 30 mg/L
  Calibrated Range: 0 to 20 mg/L; 0 to 35°C (32 to 95°F)
  Accuracy: ± 0.2 mg/L up to 8 mg/L; ± 0.5 mg/L from 8 to 20 mg/L
  Resolution: 0.02 mg/L
  Response Time: To 90% in less than 2 minutes
  DO Sensor Cap Life: 6 months, cap expires 7 months after initialization
Temperature
  Temperature Measurement/Operating Range: -5 to 40°C (23 to 104°F); non-Freezing
  Temperature Accuracy: 0.2°C (0.36°F)
  Temperature Resolution: 0.02°C (0.04°F)
  Response Time: To 90% in less than 30 minutes
Logger
  Memory: 21,700 sets of DO and temperature measurements (64 KB total memory)
  Logging Rate: 1 minute to 18 hours
  Time Accuracy: ±1 minute per month at 0 to 50°C (32 to 122°F)
  Battery: 3.6 V lithium battery; factory replaceable
  Battery Life: 3 years (at 5 minute logging)
  Download Type: Optical
  Depth Rating: 100 m (328 ft)
  Wetted Materials: Black Delrin®, PVC, EPDM o-rings, silicone bronze screws; rated for saltwater use
  Size: 39.6 mm diameter x 266.7 mm length (1.56 x 10.5 inches)
  Weight: 464 g (16.37 oz)
