3141 Waltron Silica Analyzer
Waltron 3141 silica analyzer for online dissolved-silica monitoring in ultrapure water, with touchscreen interface, automatic calibration and fast-loop reservoir.
3141 silica analyzer

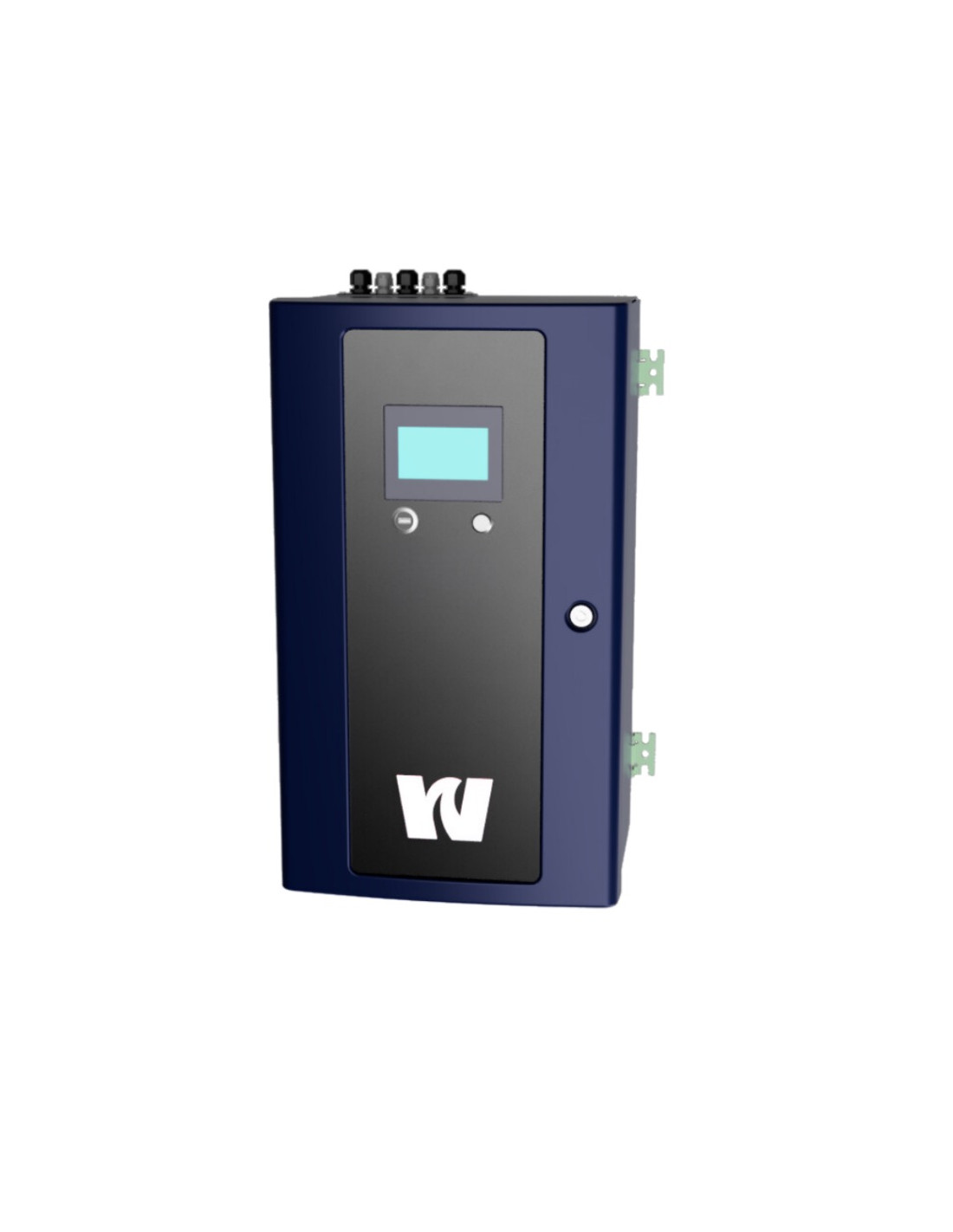

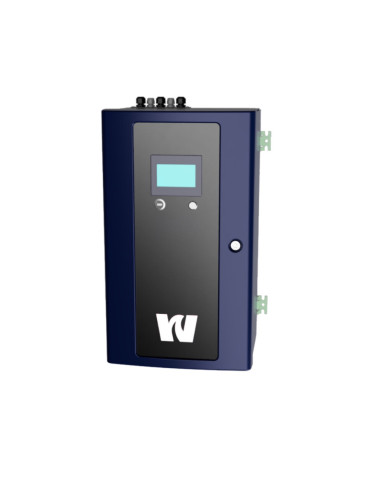

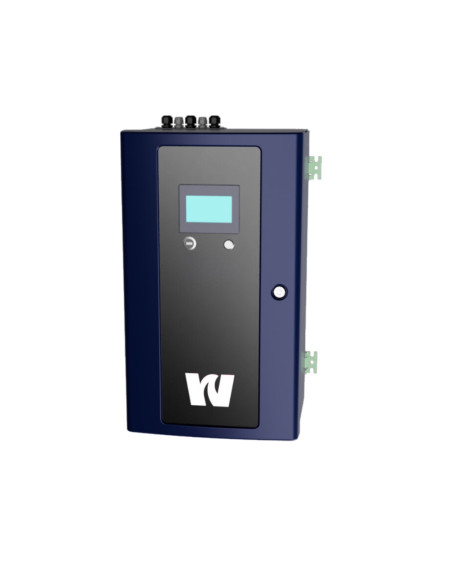

Waltron 3141 Silica Analyzer is an online analyzer for dissolved-silica measurement in ultrapure water. The official product page positions it for make-up water, condensate, boiler feedwater and steam applications, with an architecture designed for reliable analysis and easy maintenance.
The instrument combines a color touchscreen interface, fast-loop reservoir for accurate flow-independent measurement, automatic QA/QC calibration and validation, grab-sample capability, internal datalogger with door-mounted USB port and color active alarm indicators. Its 100 % toolless wet section and pre-assembled pump/sample heads reduce changeout and maintenance time.
The 3141 covers PPB and PPM silica ranges, supports one or two sample streams and provides 4-20 mA or 0-5 V analog outputs, together with configurable alarms for result, loss of sample or fault. The IP65/NEMA 4X corrosion-resistant stainless-steel enclosure supports panel or wall mounting for industrial service.
| Reference | 3141. |
| Product | Online silica analyzer for ultrapure water. |
| Parameter | Dissolved silica. |
| Technology | Colorimetric. |
| Ranges | 0-1000 ppb, 0-5 ppm and 0-150 ppm. |
| Accuracy | +/-1 ppb or +/-2 % of reading, whichever is greater. |
| Sample streams | 1 to 2. |
| Response time | Approx. 12 minutes, batch process. |
| Cycle time | 20 minutes, adjustable. |
| Analog outputs | 4-20 mA with galvanic isolator option or 0-5 V. |
| Alarms | 2 or 4 configurable alarms for result, loss of sample or fault. |
| Calibration | Automatic, with QA/QC validation; one reading every 20 minutes, adjustable. |
| Ambient conditions | 50-115 F / 10-45 C. |
| Sample temperature | 40-130 F / 5-55 C. |
| Sample flow/pressure | 100-500 ml/min; atmospheric pressure. |
| Power | 110-220 VAC. |
| IP rating | IP65 / NEMA 4X. |
| Dimensions | 24 x 15 x 8.5 in / 60 x 38 x 21 cm. |
| Weight | 17 kg / 38 lb. |
| Mounting | Panel or wall. |
| Materials | Corrosion-resistant stainless steel. |
| Sample connection | 1/4 in / 0.635 cm OD Swagelok. |
| Maintenance | Monthly reagents and quarterly tubing. |
