XT 60% Platinum on Vulcan XC-72R Grade S

Name: XT 60% Platinum on Vulcan XC-72R Grade S
Brand: Fuel Cells ETC
SKU: XC-72R

Reference: XC-72R - Manufacturer: Fuel Cells ETC

Fuel Cells ETC XT 60% platinum on Vulcan XC-72R Grade S catalyst, fine porous powder for electrochemical and catalytic applications.

Ask for Quote

XT 60% platinum on Vulcan XC-72R

XT 60% Platinum on Vulcan XC-72R Grade S by Fuel Cells ETC is a Pt/C catalyst supplied as a fine porous powder, with approximately 60 wt% platinum and 40 wt% Vulcan XC-72R carbon support.

The official source positions it for electrochemical devices such as PEM fuel cells, PEM electrolyzers, alkaline/AEM fuel cells, direct methanol and direct ethanol fuel cells, electrochemical sensors and modified electrodes for benchmark testing. It can also be used as a heterogeneous catalyst for hydrogenation, nitroaromatic reduction, dehalogenation, hydrogen release and continuous-flow processes.

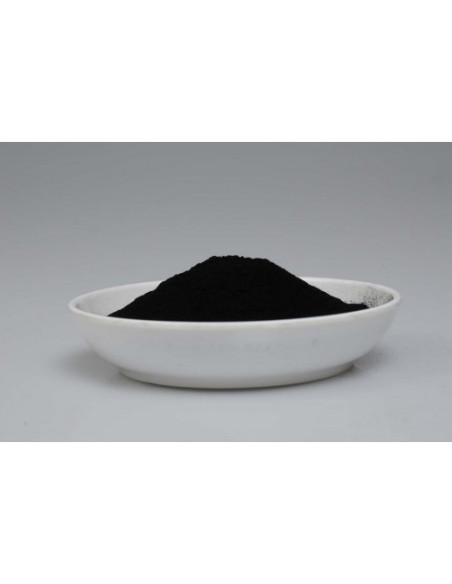

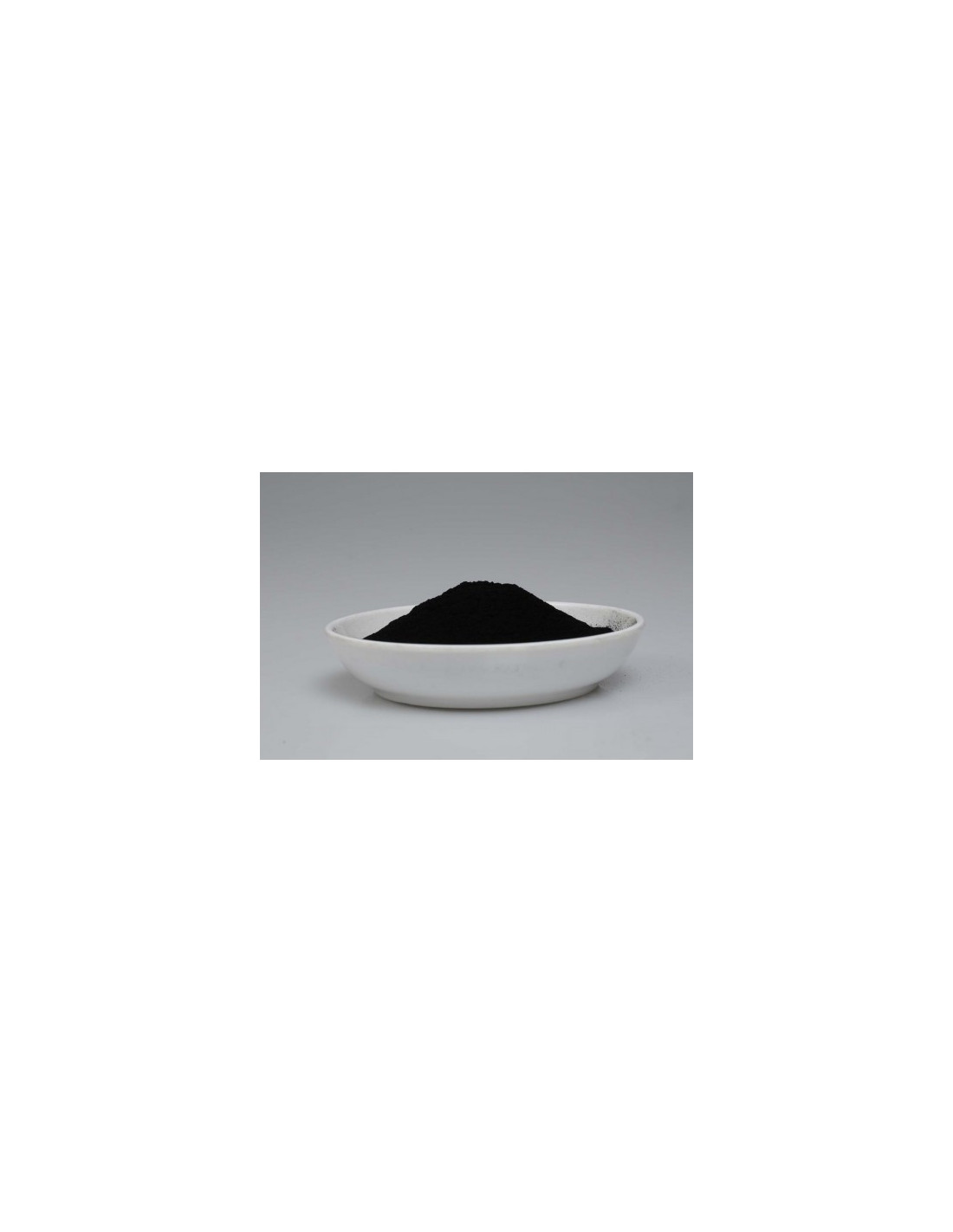

The material combines 115-135 m2/g BET surface area, nanocrystalline platinum particles dispersed on carbon and face-centered cubic platinum (0) structure. It is supplied as a black porous powder for electrode preparation, catalyst inks and electrochemistry research or development work.

Reference	11080035.
Product	XT 60% Platinum on Vulcan XC-72R Grade S.
Brand	Fuel Cells ETC.
Type	Platinum-on-carbon catalyst supplied as a fine porous powder.
Composition	Approx. 60 wt% Pt and 40 wt% Vulcan XC-72R carbon support.
Purity	>99.9% (3N).
Morphology	Nanocrystalline Pt clusters uniformly dispersed on high-surface-area carbon.
Pt crystallite size	Approx. 5.47 nm.
Average particle size	Approx. 26.06 micrometres D50 by laser diffraction.
Particle size range	0 to 100 micrometres.
BET surface area	Approx. 115-135 m2/g.
Bulk density	Approx. 0.25-0.35 g/cm3.

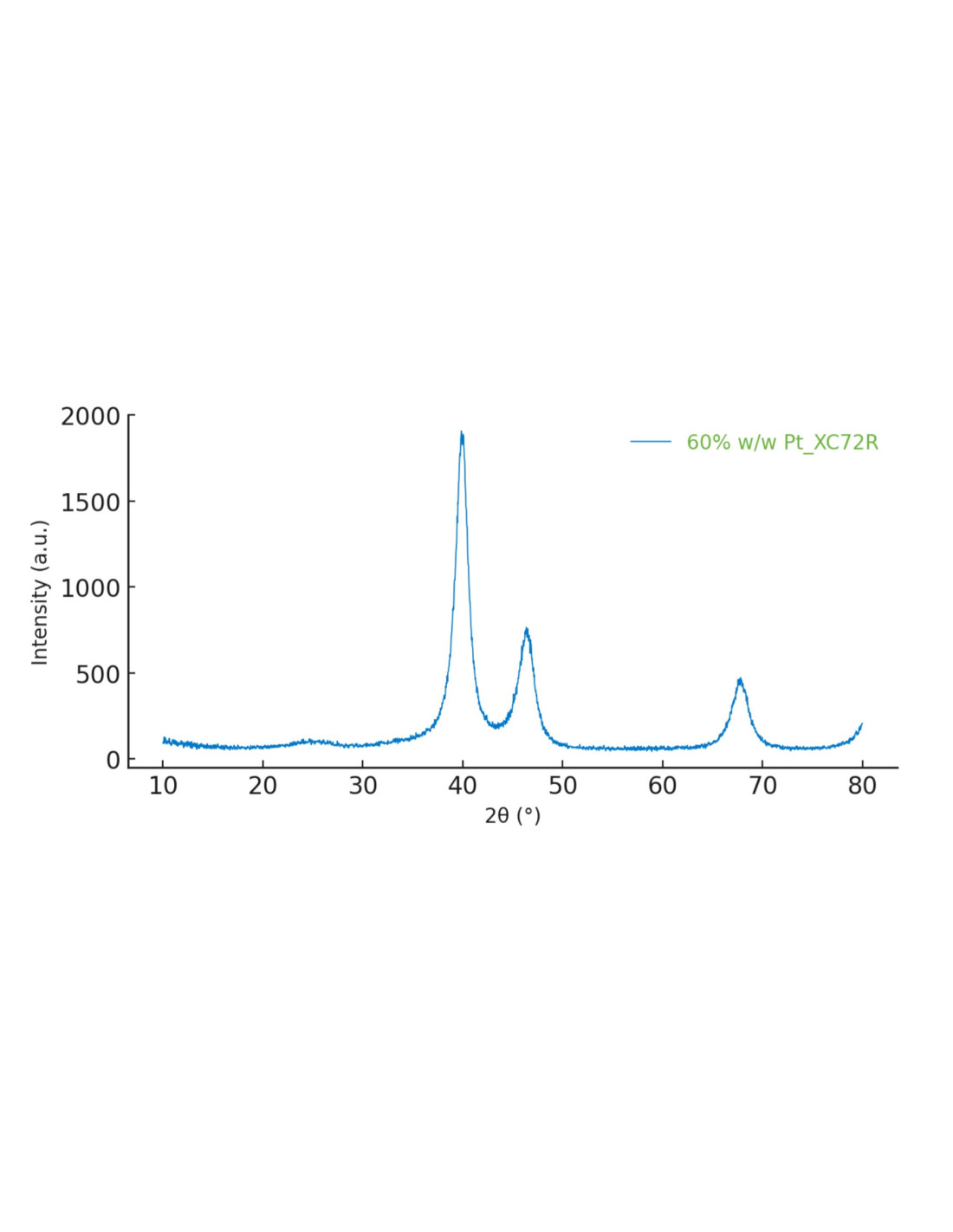

Structure	Face-centered cubic platinum (0), space group Fm-3m.
Secondary phases	None detected; only amorphous carbon support by PXRD.
Particle distribution	D10 approx. 11.99 micrometres; D25 17.51; D50 26.06; D75 39.47; D90 54.57.
Electrochemical applications	PEM fuel cells, PEM electrolyzers, alkaline/AEM fuel cells, DMFC, DEFC, electrochemical sensors and RDE benchmarking.
Catalytic applications	Hydrogenation, nitroaromatic reduction, dehalogenation, hydrogen release and continuous-flow hydrogenation systems.
Official document	XT-Pt-60-XC-72R-Grade-S Technical Specification Sheet.
