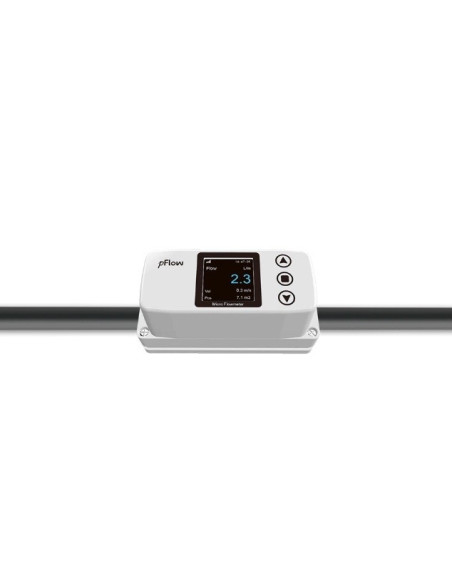

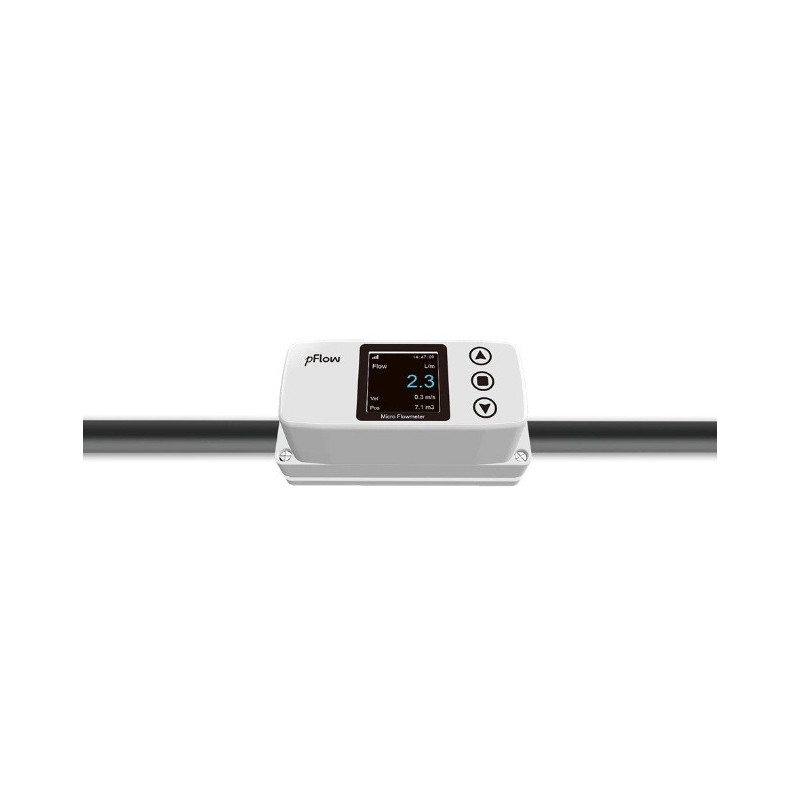

MFCL Micro Flowmeter for Power Generation
● Easy installation, No breaking pipeline
● No need to adjust, Clip on to measure
● LCD color display screen
● 360° rotatable display screen
Accurate flow measurement can be achieved in just a few simple steps. For the flow measurement needs of small tube diameters, MFCL clamp-on micro flowmeter is undoubtedly the best choice.
MFCL micro flowmeter adopts the ultrasonic time measurement principle and relies on high reliability signal processing circuit to accurately measure flow through complex algorithms such as sampling, calculation and correction.
The product adopts an integrated external clamping structure design, which is quick and easy to install. The installation is simple and fast, and there is no need to directly contact the fluid medium during operation, which effectively avoids interference with the existing production process.
|
Performance Index |
|
|
Flow velocity |
0.03m/s ~5.0m/s |
|
Accuracy |
±2%,(0.3m/s ~5m/s) |
|
Repeatability |
0.4% |
|
Pipe Size |
DN10 |
|
Medium |
Water |
|
Pipe Material |
Stainless Steel, PVC, Copper, PPR |
|
Functional Index |
|
|
Communication Interface |
RS485, Support FUJI Protocol and MODBUS Protocol |
|
Output |
4~20mA |
|
Power Supply |
10～36VDC/500mA |
|
Keypad |
3 touch keys |
|
Display Screen |
1.54"LCD color screen, resolution 240*240 |
|
Temperature |
Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃ ) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Cable |
φ5 six core cable, standard length: 2m |
Power Generation
Water and wastewater management
HVAC (Heating, Ventilation, and Air Conditioning) systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
- The Sensor measures:
- Water Flow
- Output Signal:
- 4-20 mA
- Cable Length:
- 2m
- Power Supply:
- 12 a 36 VDC
- Sensor IP Rating
- IP54
