MSAS01 Lighting Educational Trainer (OBD 16 Pin)

► Equipment for technical and vocational automotive education and training.

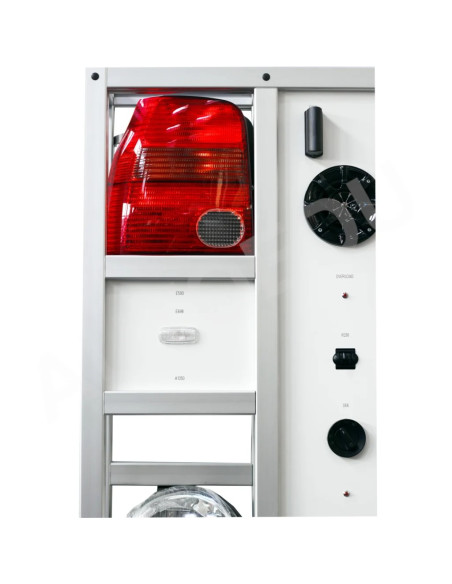

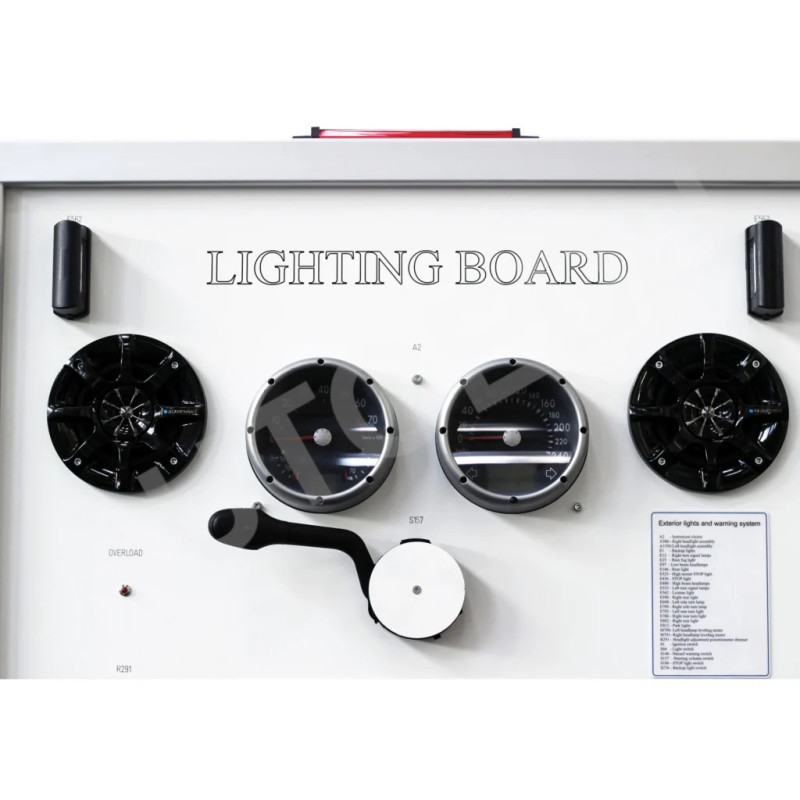

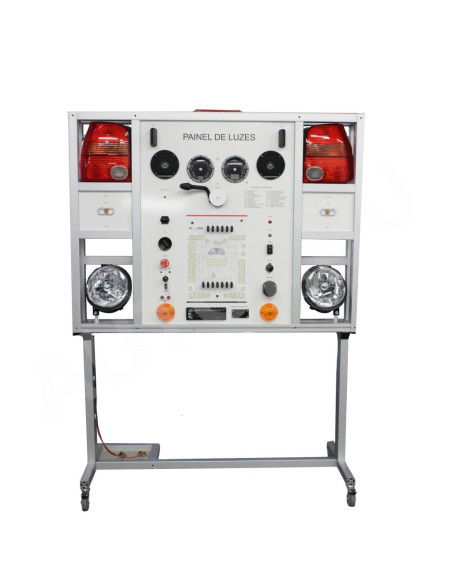

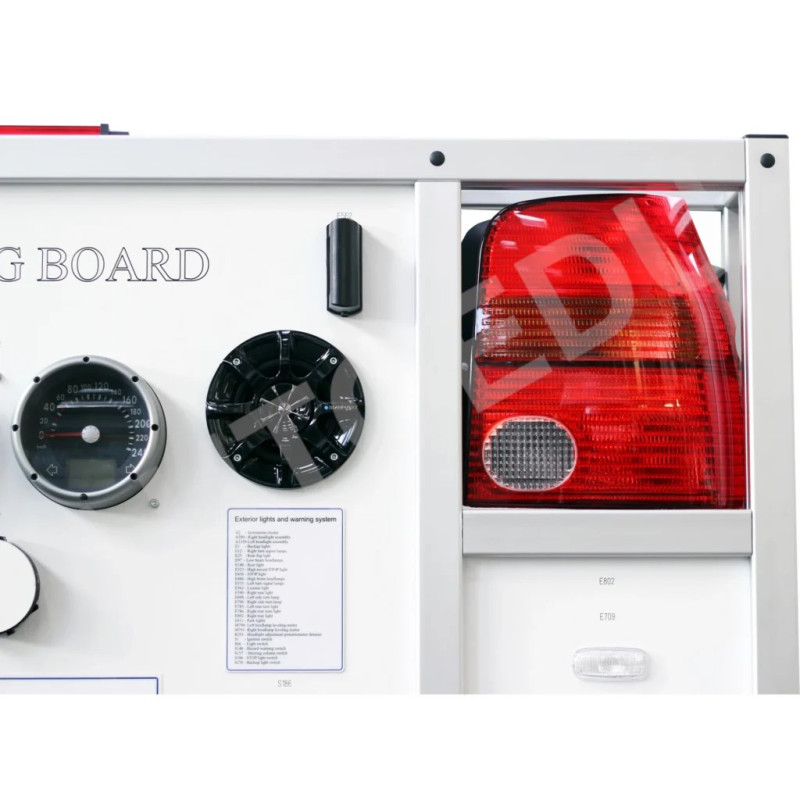

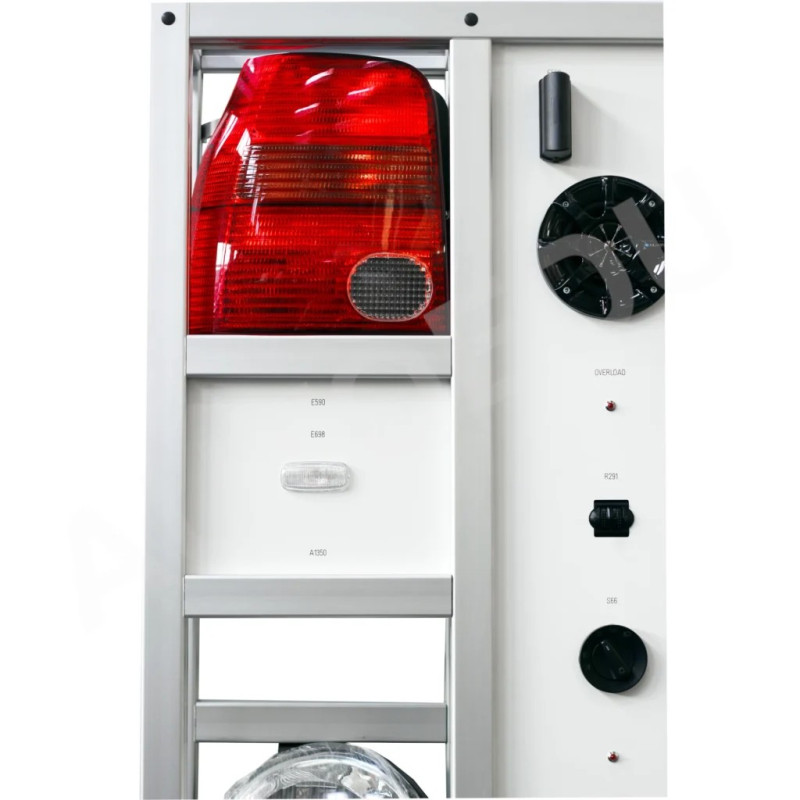

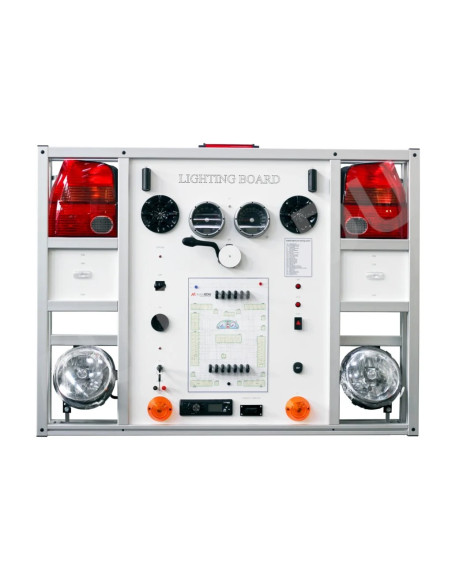

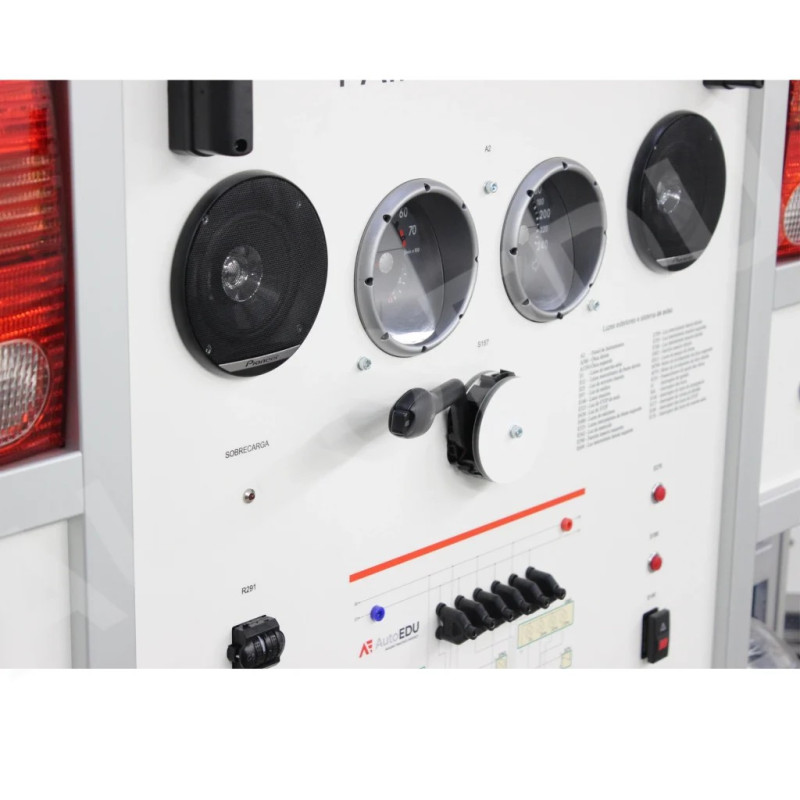

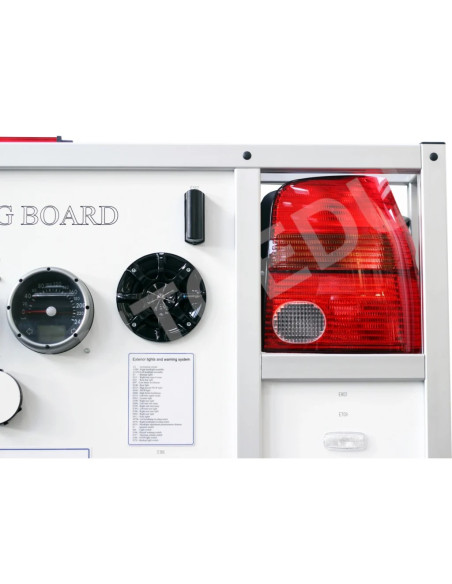

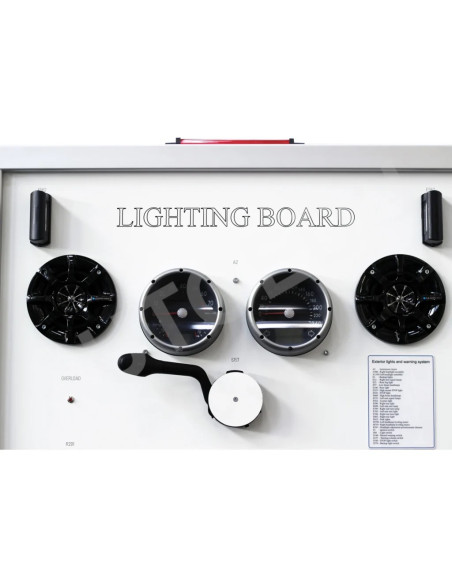

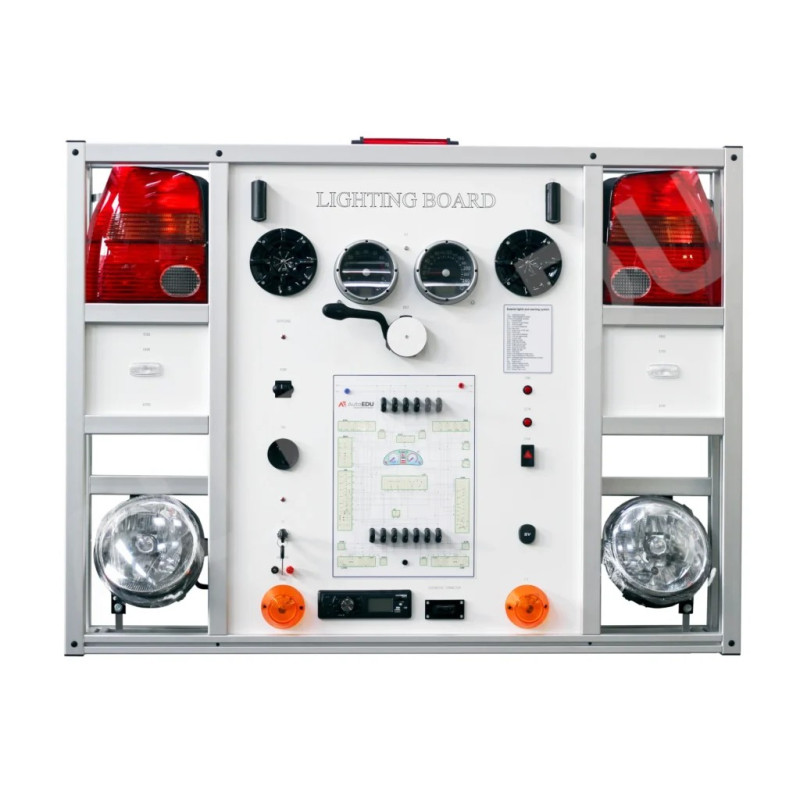

A fully functional lighting training system is installed in a mobile aluminum frame. The educational training board is based on VW/AUDI OEM components.

► The training board-simulator is a great educational tool that allows students to learn the structure of the lighting system, study its components, and perform various measurements, tests and other diagnostic procedures.

► Value for Students

● A fully functional lighting system that enables the study of automotive lighting components, circuit structures, and diagnostic methods.

● Make accurate electrical measurements using integrated banana plugs and open contacts, ideal for signal analysis with oscilloscopes and multimeters.

● Develop diagnostic skills with the 16-pin OBD connector, which enables control unit identification, fault code reading/clearing, and real-time data monitoring.

● Practice headlight beam adjustment and perform tests with a headlight tester, reinforcing your understanding of automotive lighting standards and safety.

● Learn a wide range of lighting functions, including turn signals, brake lights, and headlight height adjustment, enhancing your knowledge of modern automotive lighting systems.

► Value for Instructors

● Demonstrate real-life automotive lighting systems with a robust mobile training platform that integrates seamlessly into the classroom.

● The OEM-based system allows students to train in diagnostics using virtually any multi-brand, specialty, or OEM scan tool, ensuring a safe and high-quality learning environment.

● The wheeled version, mobile and compact in the classroom, allows simultaneous use by multiple students, encouraging collaborative learning and hands-on training.

● Simulate faults and measure system parameters to create dynamic, interactive lessons that enhance student engagement and understanding.

● The training stand is designed to be simple; it requires only minor adjustments to restore default parameters, making it easy to set up and start each lesson quickly and efficiently.

● Plug-and-play design: requires no additional setup, assembly, or special preparation for operation.

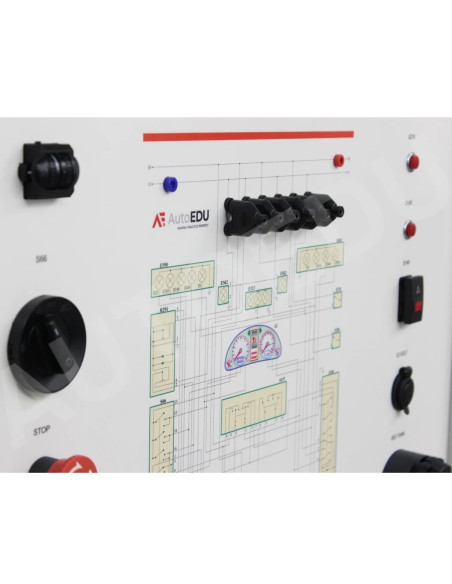

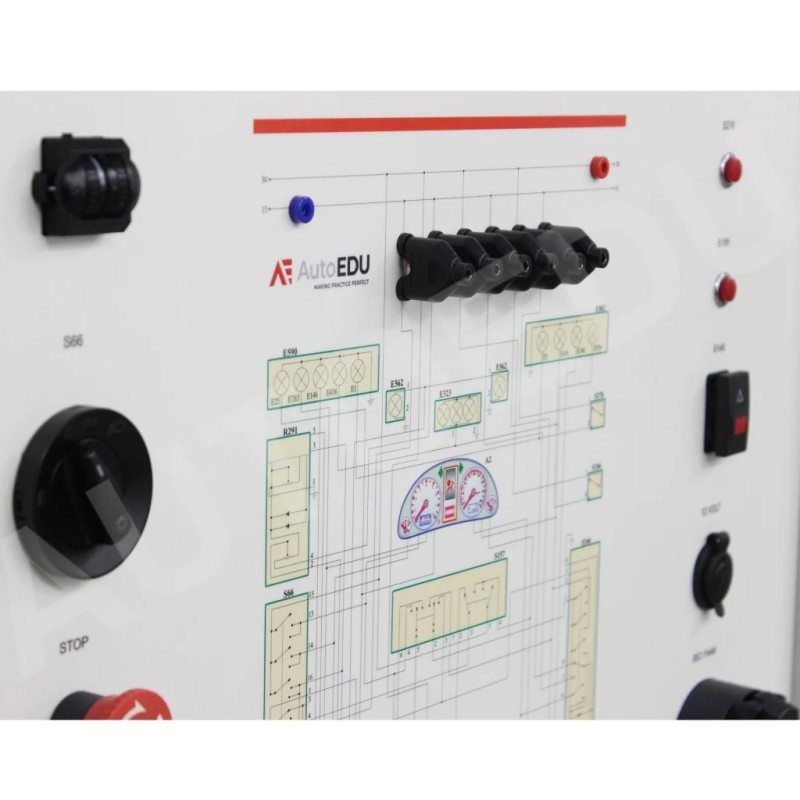

► Electric wiring diagram with built-in banana plug jumpers for measurements and connecting or disconnecting the components
► Open contacts for measuring of system’s components and circuits
► Diagnosis through OBD (J1962) 16 – pin diagnostic connector (dashboard only)

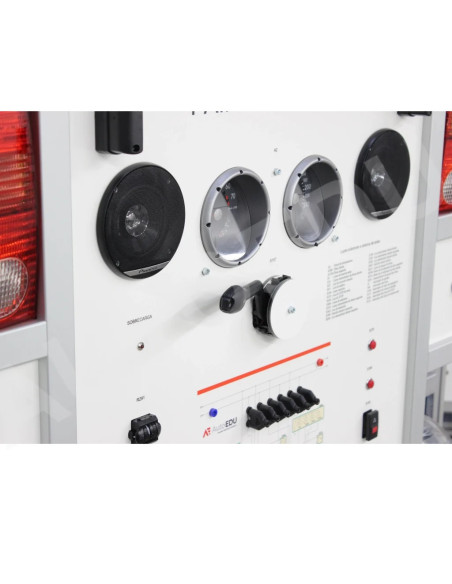

► Adjustable beam levels with the motors of front headlights
► Possible adjustments training with the headlight tester (optional)

Diagnostic and measurement

Oscilloscope/multimeter

► Ability to measure electrical signal parameters of system component;
► Control unit diagnosis
► Diagnosis through OBD (J1962) 16–pin diagnostic connector;
► Electronic control unit (ECU) identification;
► Reading/erasing fault codes;
► Displaying the operating system parameters (live data);
► Activating the actuators (depends on the control unit);

Other

► The stand has a closed structure– internal wiring is not visible
► Power supply: 12V from the battery (optional)
► Dimensions approx. (HxLxW): 1820 x 1360 x 500 mm
► Nett weight approx.: 60 Kg
► Made in EU
► CE certificate
► Optional accessories
► 12 V battery
► 220/12 V Power supply unit
► Automotive oscilloscope
► OBD diagnostic scan tool

Automotive training equipment is a great tool for professional teachers and technicians that helps explain to students of technical subjects how processes in Lighting Educational Trainer operate and its technology.

► Optional Equipment (sold separately)

● OBDEleven Diagnostic Tool
● VCDS Diagnostic Tool
● TXT MULTIHUB CAR Diagnostic Tool
● AutoCOM ICON Diagnostic Tool
● NANO S TEXA Diagnostic Tool
● TEXA Uniprobe Diagnostic Tool
● ADK5004D TiePie Automotive Diagnostic Tool
● Foxwell Oscilloscope OS100 Diagnostic Tool
