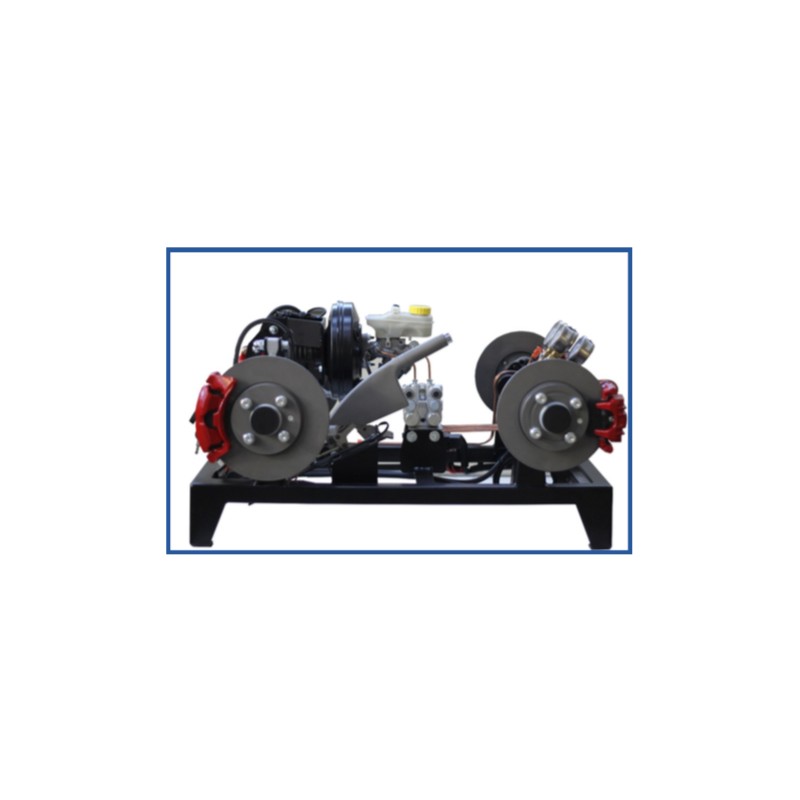

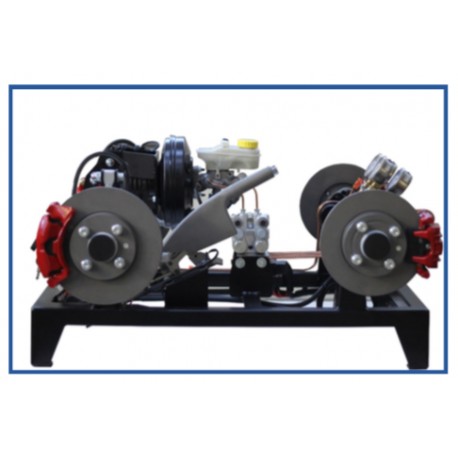

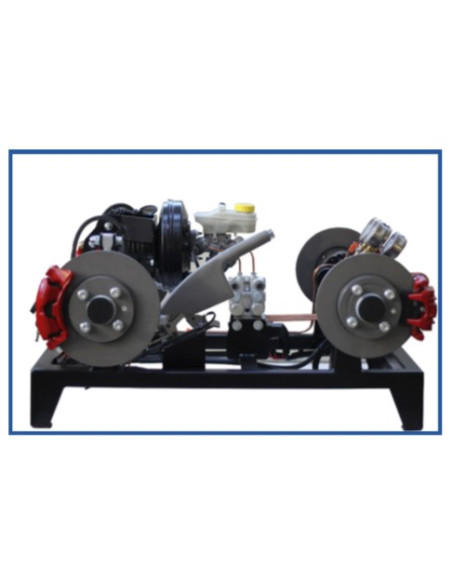

MSSS03 Braking System Rig (Bench Version)

- Fully functional system with ABS
- Brake booster, front and rear discs with calipers, cross diagonal hydraulic circuit, hand brake
- Diagnosis through OBD 16 pole diagnostic socket
- Driving simulation
- 4 measuring gauges

Fully functional, cross diagonal, hydraulic braking system with ABS is installed in solid frame. The training brake rig is specially designed to
demonstrate hydraulic braking system with electronic ABS system and brake booster. The educational automotive training stand is based on Audi/VW components. The trainer is equipped with a functional ABS braking system and shows the different operation modes.
The training brake rig is a great educational tool that allows students to learn the structure of hydraulic braking system, study its components, perform various measurements, tests and other service and diagnostic procedures.
The training brake rig can be used as visual aid for students of mechanical subjects to demonstrate and explain the structure and components. Also, automotive training stand can be used as a educational equipment for the brake system repair and service procedures.
AUTOEDU made training brake rig is equipped with ABS modulator and brake booster. The increase of braking force after connecting a vacuum can be demonstrated using the brake booster.
With installed four pressure gauges it is possible to monitor the pressure in the brake circuit of each wheel. Simulation of blocking (slipping) wheel in a drive mode allows to monitor ABS system demonstration. With installed pressure gauges can be monitored brake force distribution and foot brake pedal rejection when ABS system is activated.
The training rig has an integrated OBD 16 – pin diagnostic connector that allows to connect with the diagnostic tool and perform various measurements, tests and other diagnostic procedures such as reading fault codes, displaying the operating systems parameters and other.

Technical specifications and functions
• Clearly visible fully functional braking system and its
components
• Cross diagonal hydraulic braking system with front and rear
discs with calipers
• Functional parking brake
• Functional electronic ABS system
• Functional brake booster
• With installed pressure gauges can be monitored the pressure
in the brake circuit of each wheel
• Driving mode simulation
• Brake rigs can be used for mechanical service and repair
training
• On-board diagnostic capabilities
• On AUTOEDU made brake rigs cold be performed all routine
brake service like a component replacement, adjustments or
hydraulic bleeding procedures

Optional accessories
• 12V Battery
• OBD Diagnostic scan tool
• Standard tool kit for mechanic
• Special tools for brake system repairs
• Vacuum pump
