Nvis 6508 Laboratory for Experimentation with Zener Diode Voltage Regulator

Reference: Nvis6508 - Manufacturer: NVIS TECHNOLOGIES

Nvis 6508 Laboratory for Experimentation with Zener Diode Voltage Regulator has been designed specifically for the study of regulated power supply based on zener diode. As zener diode is generally employed in a standard circuit as a voltage regulator, it is very useful for students to study the operation of zener diode as a voltage regulator with the variation in source voltage and load resistance.

Nvis 6508 Laboratory for Experimentation with Zener Diode Voltage Regulator is an ideal platform to enhance education, training, skills & development amongs our young minds.

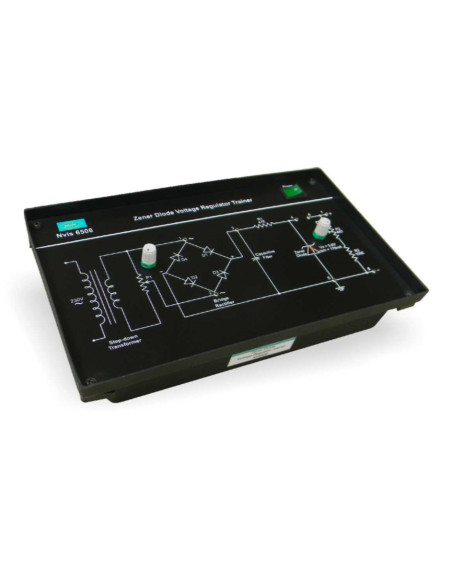

This training board is provided with different sections of a regulated power supply i.e. step-down transformer, bridge rectifier, capacitive filter and voltage regulator.

Features:

- Provided with different sections of a regulated power supply
- Good quality, reliable sockets and test points are provided
- Strongly supported by systematic operating instructions and theoretical details
- A low cost training system
- Online product tutorial

- Study of Zener Diode as a Voltage Regulator, when input voltage, V is in fixed while load resistance R is variable
- Study of Zener Diode as a Voltage Regulator, when input voltage, V is in variable while load resistance R is fixed

Category: Laboratories

Download (174.4KB)
