Reference: Nvis6005 - Manufacturer: NVIS TECHNOLOGIES

Nvis 6005, Experimentation with Solar Energy is an ideal platform to enhance education, training, skills & development amongs our young minds.

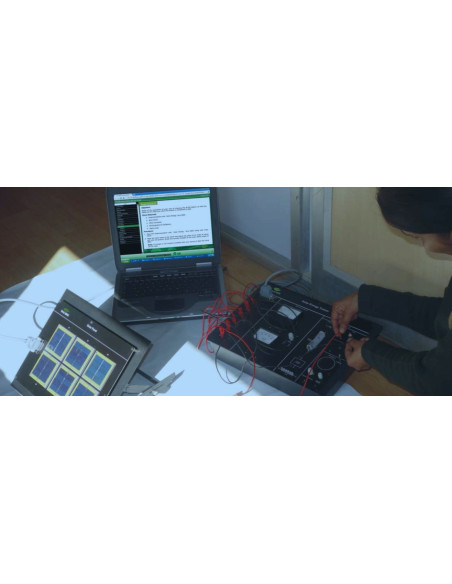

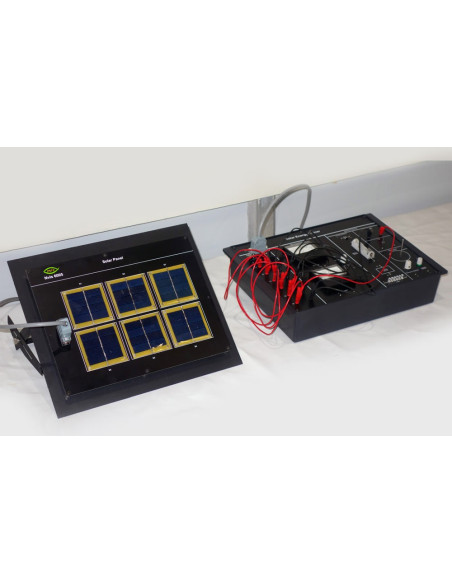

Experimentation with Solar Energy Nvis 6005 is a versatile training system to be used in laboratories. It introduces the basic concept of solar cell (photovoltaic cell) of converting sunlight directly into electrical energy. The system works as a live demonstration unit of solar cells in terms of its concepts and applications. This system is provided with Solar Energy Trainer and a Solar Panel.

Nvis 6005, Experimentation with Solar Energy is an ideal platform to enhance education, training, skills & development amongs our young minds.

Complete training system to study the fundamentals of photovoltaic system
The system has two modes for study: Characteristics and Application Modes
On board voltmeter and ammeter are provided to measure the voltage and current respectively, during various modes of operation
Charging the batteries using solar energy
Weather proof solar cells
Portable and light weight
Online product tutorial

Calculation of voltage and current of solar cells in series
Calculation of voltage and current of solar cells in parallel
Study of V-I curve and power curve of solar cells to find out maximum power point (MPP)
Calculation of efficiency of solar cells
Application of solar cells in domestic purposes: Charging of battery in load and no load condition, Operating bulb, fan and radio

Category: Solar Energy

Download (208.93KB)
