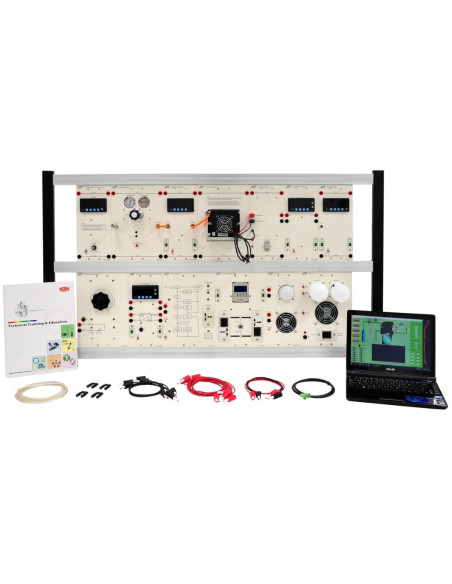

GFC-3100 PEM Fuel Cell Hybrid Training System

The PEM Fuel Cell Hybrid Training System (GFC-3100) provides a modularized teaching platform with a safe and secure experiment environment, in which a user can easily connect a fuel cell with a high-pressure hydrogen cylinder through a rapid joint.
The major topics GFC-3100 explores include the performance optimization, the energy conversion efficiency of a hydrogen PEM fuel cell, as well as the integration and applications of hydrogen PEM fuel cell technology.

Integrating GFC-3100 PEM Fuel Cell Hybrid Training System and GES-500 Wind and Solar Hybrid System (optional), mixed application of the green energy power generating system can be made, thereby resolving the problem of discontinuous power, caused by insufficient wind and solar power. It makes the power generating network more complete and perfect.

  1. GFC-3100 Module Introduction and Software Installation
  2. The Operating Principle of Fuel Cell Stack
  3. Hydrogen Storage - Theory and Operation
  4. Activation Experiment
  5. I-V curve
  6.  Fuel Cell Efficiency Calculation
  7. Power Densities of Single Cell and Stack Discussion
  8. DC-to-DC Converter
  9. Inverter Efficiency
10. Fuel Cell and Solar Power System (With optional GES-500A)
11. Fuel Cells and Wind Power System (With optional GES-500B)
12. Fuel Cells, Wind Power and Solar Power Systems (With optional GES-500)
