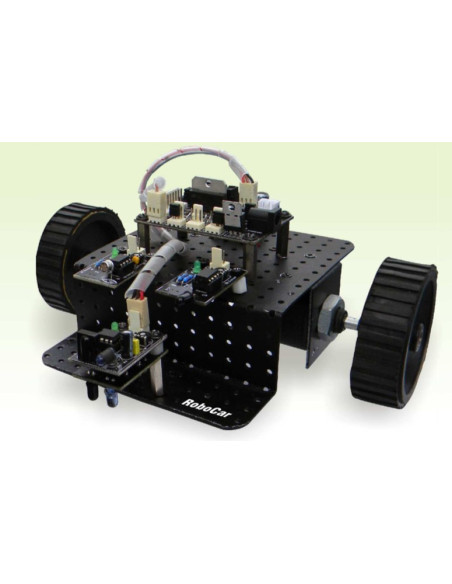

Nvis 3302W Basic RoboCar

Nvis 3302W consists of metallic chasis, L-clamps and wheels, with different sensor modules and motor driver circuit mounted on it. The machine is driven by DC motors which are powered by rechargeable battery. This RoboCar is used for various applications like fire sensing, clap sensing, light detecting, object following, obstacle avoiding, wall following, path detecting and many more. Apart from all these features, the control unit and all the Sensors can be interfaced with any microcontroller board.

Nvis 3302W, Basic RoboCar is an ideal platform to enhance education, training, skills & development amongs our young minds

• Features:

- IR Sensor module interface
- TSOP-IR Sensor module interface
- Fire Sensor module interface
- Clap Sensor module interface
- Light Sensor module interface
- DC motor interface & control
- Expansion connectors
- Onboard battery charger

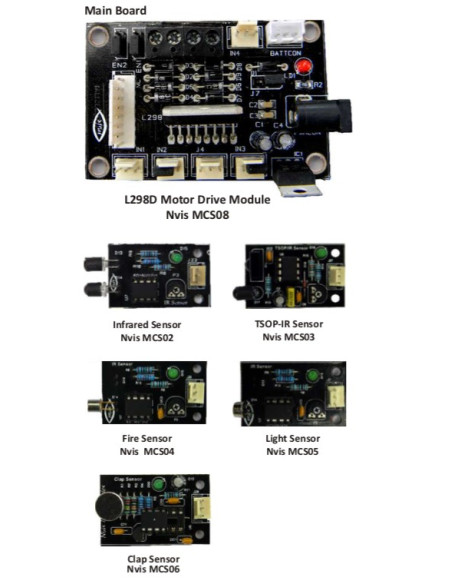

+ Controlling Unit: L298D Motor Driver
+ Lithium Polymer battery: 8.4V
+ DC Power Supplies: +8.4V & +5V
+ Charger Supply: 9V
+ Motor:
        -- Rated Voltage: +4 to +12V DC
        -- Rated Speed: 100 rpm at +12V
        --  Rated Torque: 5Kgcm
        -- Rated Current: 600mA

+ General:
        -- Dimension: 20 x 22cm
        -- Weight: 1kg (approx)
        -- Interconnection for modules: CBK female connector

+ Sensor:
- Fire Sensor module:
        -- Operating voltage: 4.5V – 5.5V
        -- Output: TTL Output
- Clap Sensor module:
        -- Operating voltage:4.5V – 5.5V
        -- Output: TTL Output
- TSOP-IR Sensor module:
        -- Operating voltage: 4.5V – 5.5V
        -- Output: TTL Output
- IRSensor module:
        -- Operating voltage: 4.5V – 5.5V
        -- Output: TTL Output
- LightSensor module:
        -- Operating voltage: 4.5V – 5.5V
        -- Output: TTL Output

+ Included Accessories:
- Fire Sensor module: 1 no.
- Clap Sensor module: 1 no.
- Light Sensor module: 1 no.
- TSOP-IR Sensor module: 1 no.
- IR Sensor module: 1 no.
- Battery (8.4V): 1 no.
- CBK 3-pin cable: 1 no.
- CBK 3-pin cable (Double Ended): 1 no.
- Jumpers: 10 nos
- Software CD + Learning Material CD: 1 no.
- DC Adapter 9V: 1 no.

- Learn to implement Robots from basic to high level
- Learn to drive DC motors with H bridge motor driver based on L298 IC
- Learn to interface various Sensor modules like: Fire Sensor module, Clap Sensor module, Light Sensor module, TSOP-IR Sensor module, IR Sensor module
