Nvis 3301C Educational Robot with 5 Axis moving Arm

Reference: Nvis3301C - Manufacturer: NVIS TECHNOLOGIES

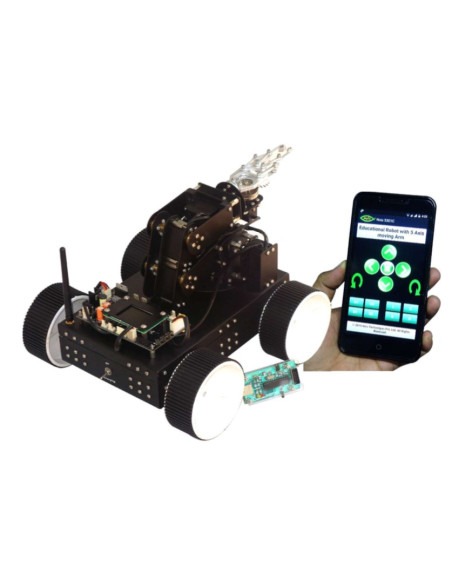

Nvis 3301C Educational Robot with 5 Axis Moving Arm an educational robotic arm based on ATmega 128

Nvis 3301C Educational robot with 5-axis mobile arm, provides knowledge on basic mechanical design concepts and also deals with very fascinating features such as servo motor interface and control, wireless control, TFT graphic interface, etc.
This mobile arm driven by the RC servomotors consists of 5 degrees of freedom (DOF) that can be represented by the rotating base, the shoulder, the elbow, the wrist and the clamp. The DC motors at its base make it a robotic arm in motion.

Moving Robotic Arm
Wireless Wi-Fi control
160x128 TFT Color LCD interface
DC motor interface & control
Servo motor interface
Switch interface
Expansion connectors for more experiments
Onboard battery charger

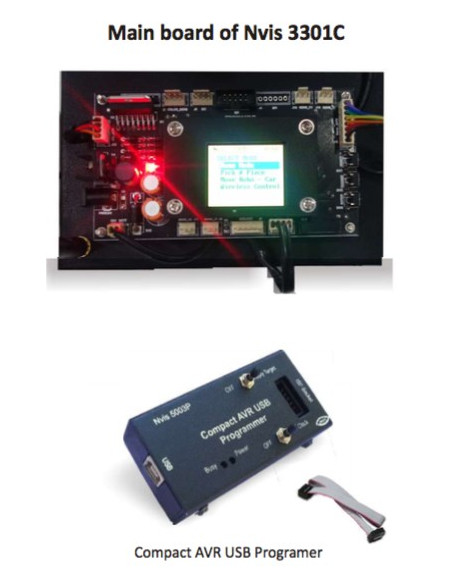

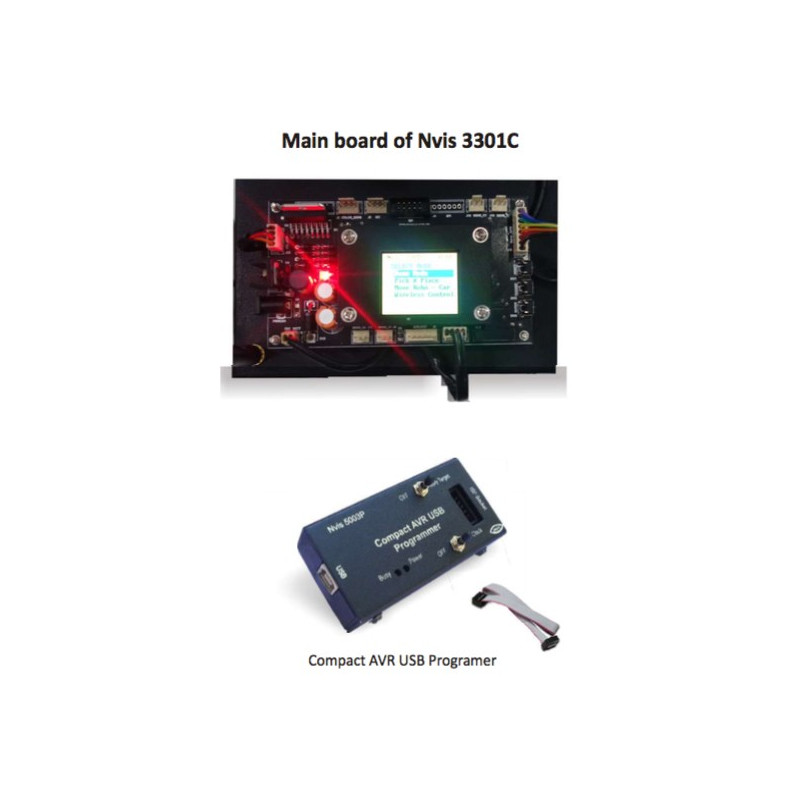

PC based programming
Gripper for pick and place
Online Product Tutorial

Learn to interface RC servo motor with ATmega128 microcontroller

Learn the concept of RF communication

Learn to interface LCD with ATmega128 microcontroller

Learn to interface DC motor with ATmega128 microcontroller

Learn the concept of Pick and Place Robot

Learn to interface color sensor and study of application like color detection and sorting

Gaining knowledge about Robotics and ATmega128 microcontroller

Wi-Fi Module Interface

Category: Robotics

Download (285.13KB)
