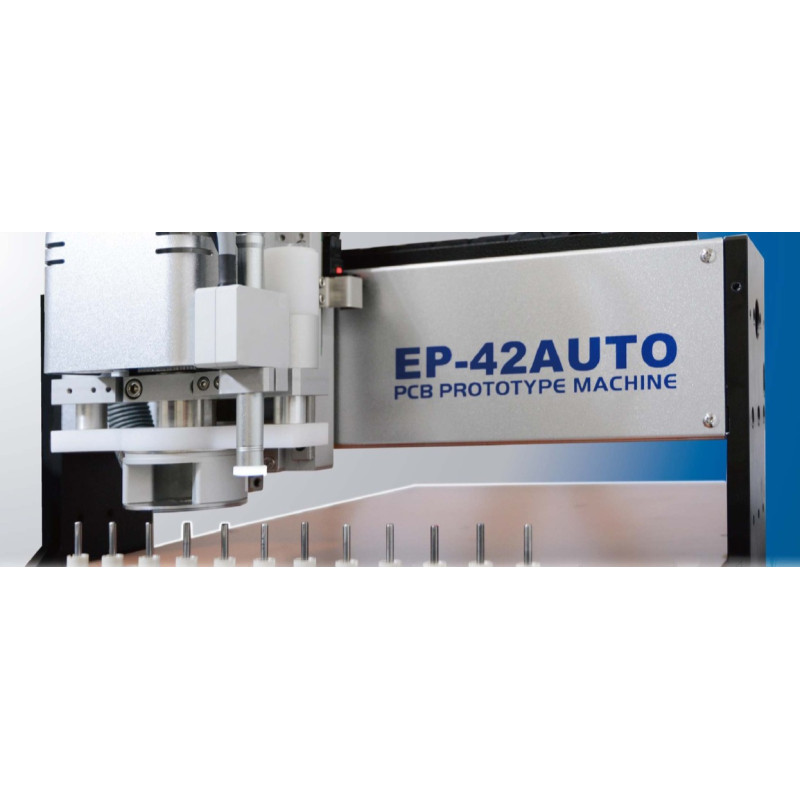

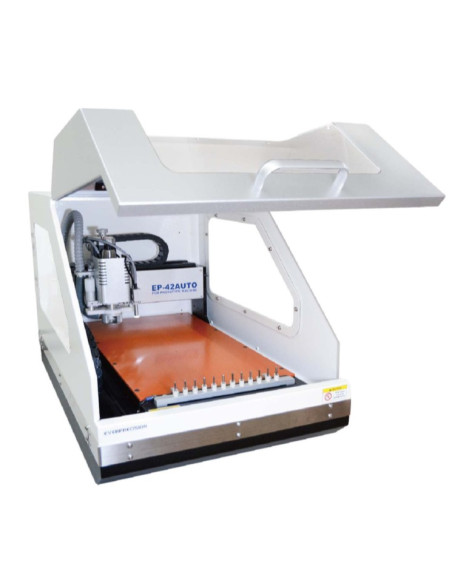

ScientechEP-42 PCB Prototype Machine

• Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production.
• 42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can be control spindle speed by software and apply to 4 mil track and trace.

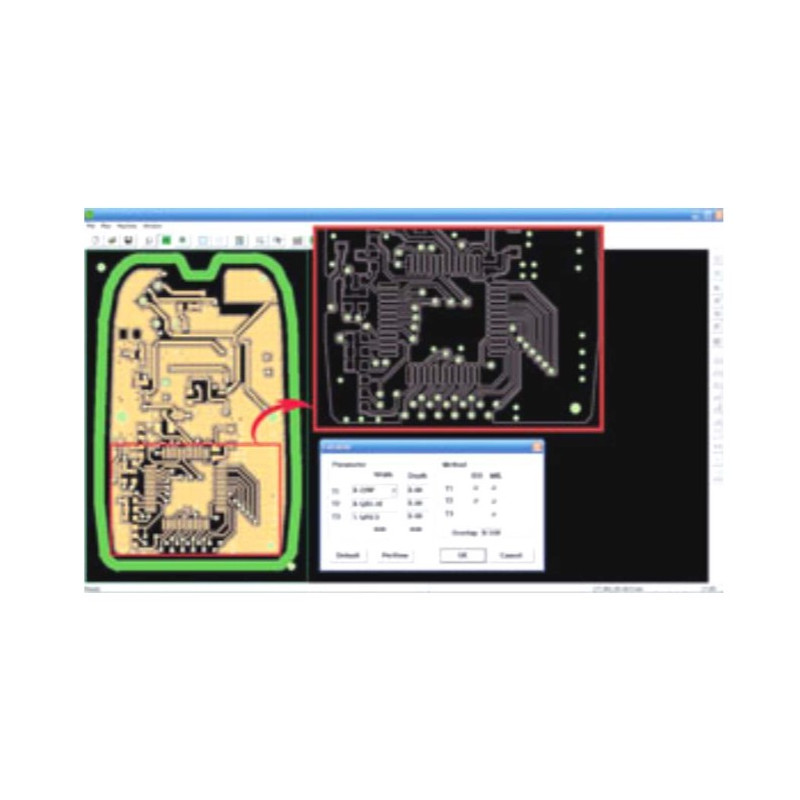

• PCAM Software:

PCAM is compatible with all windows system and accepts standard RS274D/X format Gerber files exported from Layout Software like : P-Cad/ allegro / protel /ALTIUM Designer/ Power PCB(PADS)/ORCAD, etc

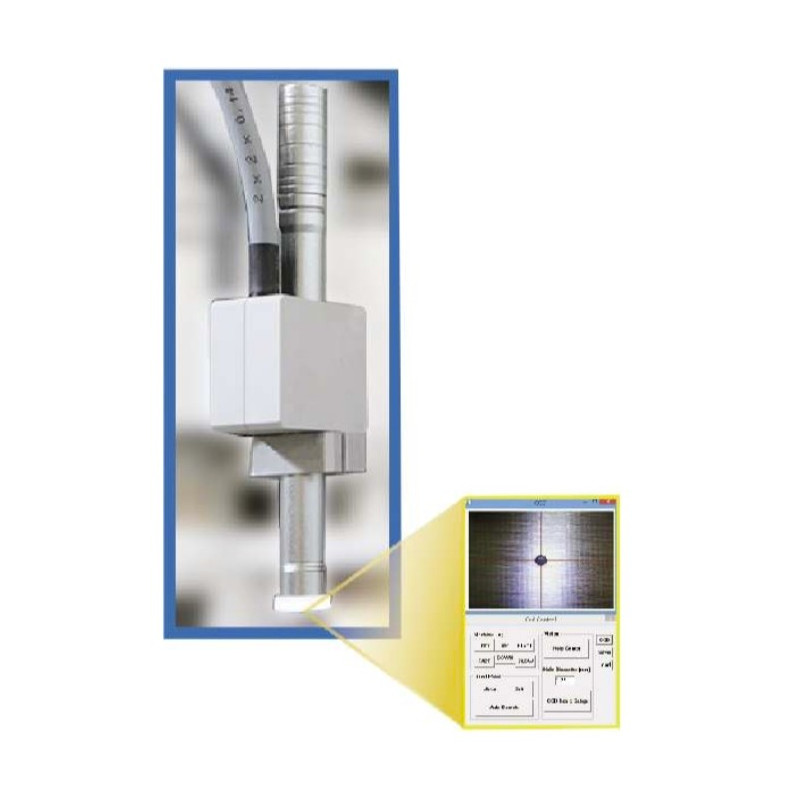

• Vision Align System:

Optical CCD Align system (camera) Significantly faster and more accurate than the front and back system. Virtually indispensible in structuring multilayer boards and double-sided PCBs. Includes automatic tool length inspection and automatic board surface detecting.

• Thru-hole Application

• No pollution / environmental friendly
• Easy Operation / cost saving
• Apply to minimal 0.2mm holes
• Working Area : 220mm X 320mm
• Resistance range : 0.02~0.1

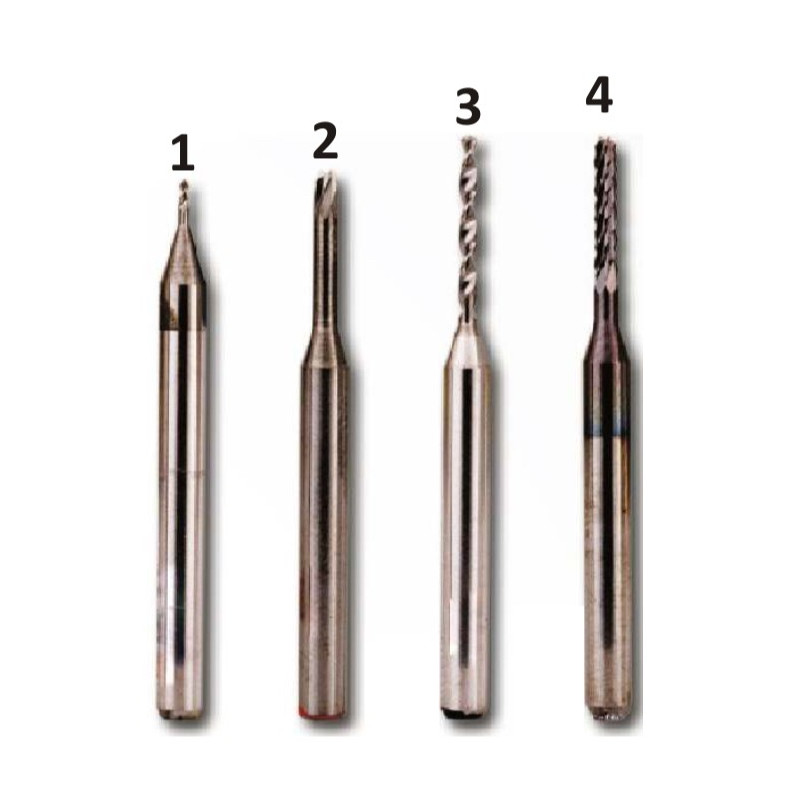

• Tools

1. Engrave Tool: For engraving trace and pad.
2. End-mill Tool: For copper removing.
3. Drill Bit: For drilling holes
4. Router Bit: For PCB outline cutting.
