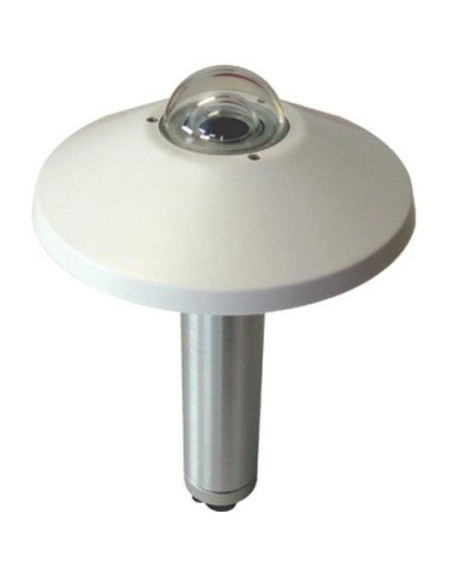

RSG1 First class Global Solar Radiation Sensor

Reference: RSG1 - Manufacturer: Nesa srl

5 Meters cable included

Select Model

Sensor for Global Solar Radiation (pyranometer) measurement. Class I with thermopile.
Designed to measure the global component of the sunlight on the spectrum 0,3 um - 3um according to the cosine law.
Conforms to WMO for environmental monitoring.
Ideal instrument for photovoltaic applications according to IEC-9060 and IEC-17025.
Quality instrument which, thanks to the different types of electrical outputs (voltage and current) or digital RS485 with ModBus protocol, allows it to be easily interfaced with any acquisition system.

• Measurement of global solar radiation with thermopile in class I
• Compliant to ISO9060, WMO and IEC-17025
• Body in aluminum, sturdy and compact, easy to install
• Measuring range 0 ÷ 2000W/m2
• Sensitivity: 10μV/m2
• Spectral range: 0,3÷3 µm
• Long-term stability: <± 1,5%
• Response to tilt from 0÷90° <± 2%
• Uncertainty expected daily: < 5%
• Output signal: 10µV/W/m2, 0÷2Vdc, 4÷20mA, RS485/Modbus
• Operating conditions: -40 ÷ +80°C
• Power supply: 10 ÷ 30Vdc

RSG1-N Global Solar Radiation Sensor (Pyranometer) with thermopile 0÷2000W/m2 Class I in accordance to WMO. Typical sensitivity: 10μV/(W/m2).
Salida Eléctrica en μV. Complete of Calibration Report. (Also available with cable and support)
Available options for this sensor: (see also section Sensors Accessories )
- Manual equatorial band screen, for the measurement of diffuse solar radiation

RSG1-A Global Solar Radiation Sensor (Pyranometer) with thermopile 0÷2000W/m2 Class I in accordance to WMO. Typical sensitivity: 10μV/(W/m2).
Salida: 0÷2Vdc. Complete of Calibration Report. (Also available with cable and support)
Available options for this sensor: (see also section Sensors Accessories )
- Manual equatorial band screen, for the measurement of diffuse solar radiation

RSG1-B Global Solar Radiation Sensor (Pyranometer) with thermopile 0÷2000W/m2 Class I in accordance to WMO. Typical sensitivity: 10μV/(W/m2).
Salida: 4÷20mA. Complete of Calibration Report. (Also available with cable and support)
Available options for this sensor: (see also section Sensors Accessories )
- Manual equatorial band screen, for the measurement of diffuse solar radiation

RSG1-C Global Solar Radiation Sensor (Pyranometer) with thermopile 0÷2000W/m2 Class I in accordance to WMO. Typical sensitivity: 10μV/(W/m2).
Salida: RS485/ModBus. Complete of Calibration Report. (Also available with cable and support)
Available options for this sensor: (see also section Sensors Accessories )

Download (272.35KB)
