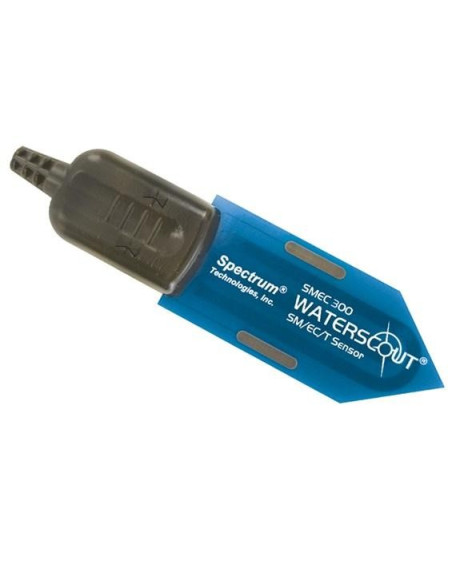

SMEC-300 WaterScout Soil Moisture, EC & Temperature Sensor

Reference

Manufacturer: Spectrum Technologies

Condition: New

6470-6 SMEC 300 Triple Sensor - 6ft
6470-20 SMEC 300 Triple Sensor - 20ft

More details

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

295,00 €

tax excl.

Quantity

Cable Length

Add to wishlist

OVERVIEW
SPECIFICATIONS
LOGGERS COMPATIBLES
More info
Data sheet

Manual

Esp

The Sensor measures:	Temp./Rel. Humidity/CE

CABLE DE 6.1 m

Whether it’s container pots in a greenhouse or turf on a putting green, the salinity of the root zone is a critical element for healthy plant growth.
Irrigation, fertilizers, and crop demand all impact salt concentrations. High levels can damage the plant: low levels can lead to nutrient deficiencies.

Identify situations where soil salinity is an issue or where certain moisture and temperature conditions facilitate soil-borne diseases

Capacitance-type soil moisture sensor
Carbon ink electrodes provide large measuring surface for electrical conductivity (EC)
Easy, 1-step EC calibration process

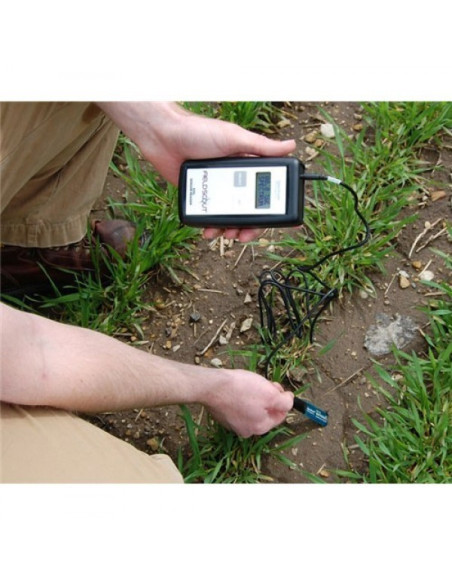

Can be read with the FieldScout® Soil Sensor Reader (Item 6466) or WatchDog® 2000 and 1000 Series Stations
Connect up to 4 sensors per station
WaterScout Calibration Device (Item 6470CAL3V) required unless using Soil Sensor Reader (Item 6466)

4 OTHER PRODUCTS IN THE SAME CATEGORY:

Standard Interface: WatchDog station, FieldScout soil moisture reader
Range: VWC: 0% VWC to saturation, EC: 0 to 10 mS/cm, Temp: 33 - 175°F (0.5 - 80°C)
Resolution: VWC: 0.1%, EC: 0.01 mS/cm, Temp: 0.1°F (0.1°C)
Accuracy: VWC: 3%, EC: ± 2%, Temp: ± 1.4°F (0.8°C)
Cable Length: 6 ft (1.8 m) and 20 ft (6 m) standard, extendable up to 50 ft (15 m)
Power Requirements: 3V @ 6 to 10 mA
Output: Analog voltage, time division multiplexed
Sensing Area: 2.25 in. x 0.75 in.

LOGGERS
