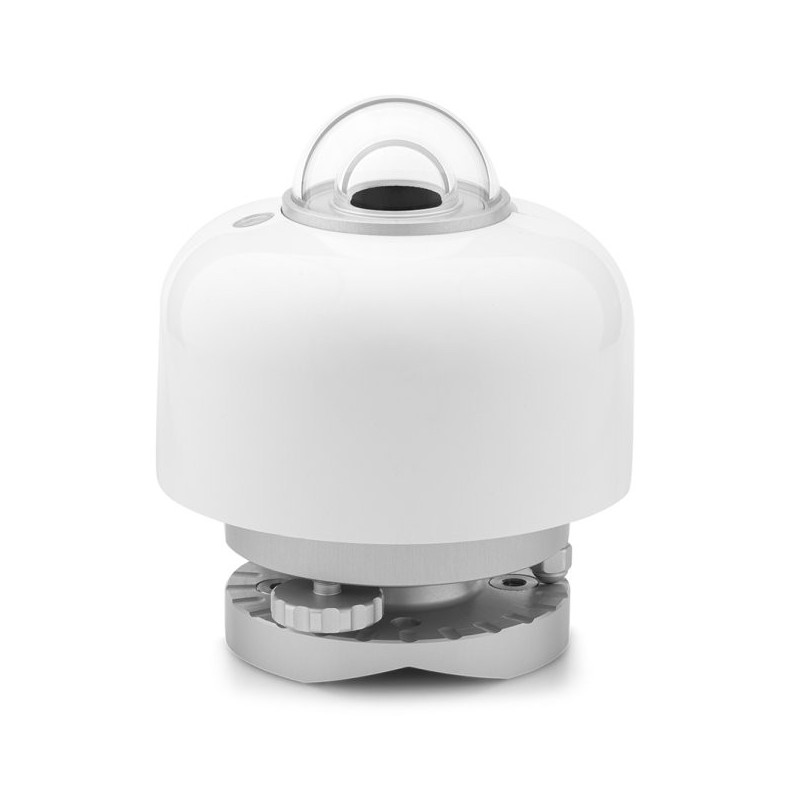

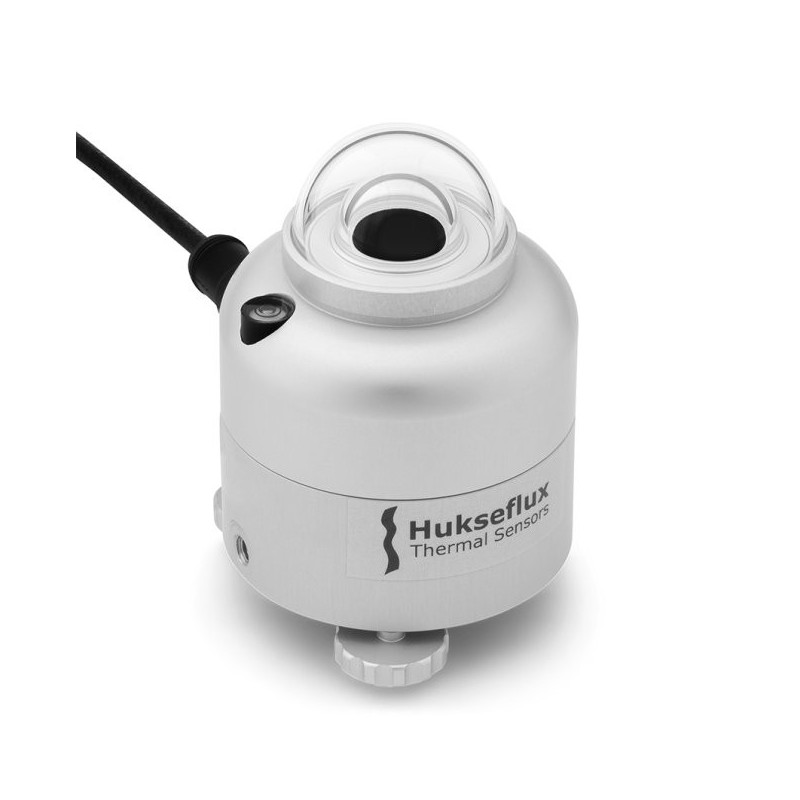

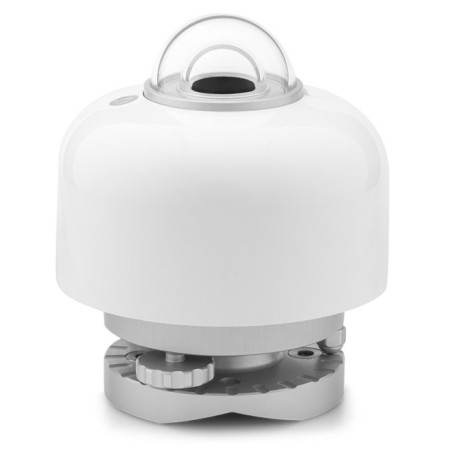

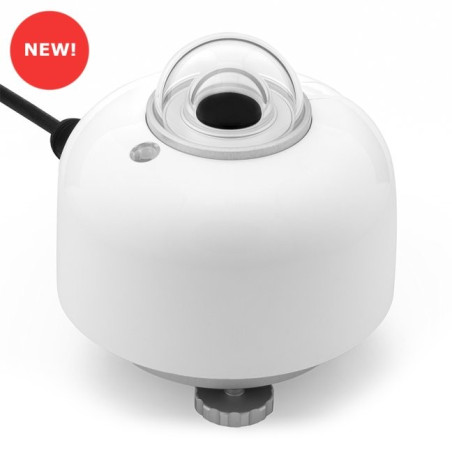

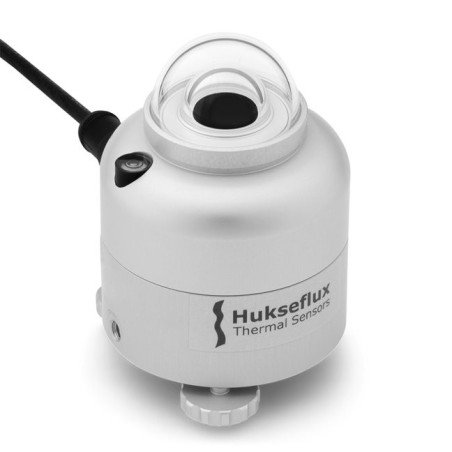

SR200-D1 Industrial Pyranometer with Solar Radiation Sensor Class A

Reference SR200-D1

Manufacturer: Hukseflux

Condition: New

◆ Hukseflux presents the SR200-D1, an industrial-grade Class A pyranometer designed for precise solar radiation measurement.

◆ Engineered for IEC 61724-1 Class A compliance, this all-digital device offers exceptional reliability and accuracy, integrated surge protection, and is optimized for PV system performance monitoring under extreme conditions.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

The Sensor measures:	Solar Light Radiation W/m2
Communication	RS485

SR200-D1 Software Download (644.47k)

SR200-D1 Data Sheet Download (498.69k)

SR200-D1 Manual Download (3.59M)

SR200-D1 Register List Download (296.79k)

Industrial Class A Pyranometer

Hukseflux introduces “industrial-grade” solar radiation monitoring! The all-digital Class A pyranometer model SR200-D1 is engineered to measure solar radiation with the utmost reliability and measurement accuracy.

► Designed for IEC 61724-1 Class A compliant PV system performance monitoring
► Integrated surge protection, designed to withstand the extreme conditions encountered on PV power plants, upgradable to 4 kV with optional SPD01 Surge Protection Device
► Compliant with IEC 61326-1 “Industrial equipment” – rated for Industrial Electromagnetic Environments
► Enables system designers to comply with local safety regulations
► Designed to minimise integration costs
► Supported by a worldwide calibration organisation for the lowest total cost of ownership

SR200-D1: industrial-grade, high-accuracy and reliable

SR200-D1 may look like its predecessor, but in many ways it is a completely new instrument. We built upon the measurement capabilities of the earlier pyranometer model SR20 and tailored the SR200-D1 pyranometer to its most common applications in PV system performance monitoring systems and meteorological stations.

SR200-D1 complies with – Industrial-grade – Immunity, Emission, Electrical, Environmental and Safety requirements for use in these outdoor and industrial environments, greatly improving measurement reliability. Ease of operation is further enhanced through extended functionality and diagnostics.

PV System performance monitoring: IEC 61724-1 Class A compliant

SR200-D1 complies with IEC requirements for “Class A” PV system performance monitoring, for climates in which dew and frost are not an issue. If you need a pyranometer that complies with all locations and climatic conditions, consider the SR300-D1 pyranometer.

Immunity to high voltages and currents - surges

SR200-D1 is tested and classified for Industrial Environments according to IEC 61326-1 and IEC 61000-6-2. When designing a measuring system, pyranometer users may reach several levels of immunity.

With the optional Surge Protection Device SPD01 this immunity can be increased to 4 kV. Up to 3 pyranometers can be protected with a single SPD01. A third-party SPD with similar specifications may be used instead.

To attain the required level of immunity for a given installation, some general system components should be included, such as:

lightning protection system
earthing and grounding network
external surge protection in addition to the native on-board sensor protection

Electrical safety in the workplace

A PV power plant is a potentially hazardous workplace environment. To comply with safety regulations, SR200-D1 features a dedicated earthing terminal for connection to protective earth. When the pyranometer is isolated from the mounting platform, it should still be properly earthed via this terminal. SR200-D1 allows system designers to comply with safety regulations. These are often based on EU and US electrical safety standards such as:

EN-50110 Operation of Electrical Installations
NFPA 70 National Electrical Code (NEC)

Specification	Details
Measurand	Hemispherical solar radiation
ISO 9060:2018 Classification	Spectrally flat Class A pyranometer
IEC 61724-1:2021 Compliance	Meets Class A PV monitoring system requirements
Dome protector	Included (model DP01)
Instrument diagnostics	Internal humidity
Calibration certificate	Included (content limited according to ISO/IEC 17025, section 7.8.1.3)
Temperature response test of individual instrument	Report included
Temperature response	< ± 0.4 % (-30 to +50 °C)
Directional response test of individual instrument	Report included to 95°
Standard cable length (not included)	3 m
EMC and Surge immunity	Equipment classification: Industrial Equipment Surge Immunity: Level 2, test level 1 kV With optional SPD01: Level 4, test level 4 kV
Electrical Safety in the workplace	Safety compliance: EU Low Voltage Directive (2014/35/EU) / USA National Electric Code (NFPA70) Earthing terminal: Included on instrument
Digital communication	Communication protocol: Modbus RTU RS-485 isolation voltage: 1.5 kV Hardware interface

Comparison of Pyranometers

Specification	SR300-D1	SR200-D1	SR100-D1
ISO 9060:2018 Classification	Spectrally Flat Class A	Spectrally Flat Class A	Spectrally Flat Class B
IEC 61724-1:2021 Compliance for Solar Irradiance Measurement	Meets Class A Requirements	Meets Class A Requirements	Meets Class B Requirements
Dew and Frost Mitigation	Heating Included	Not Included	Not Included
IEC 61724-1:2021 Compliance for Tilt Measurement	Meets Class A Requirements	Not Included	Not Included
Measurement Accuracy for Daily Sums	2.3%	2.4%	4.6%
Internal Humidity Measurement	Yes	Yes	Yes
