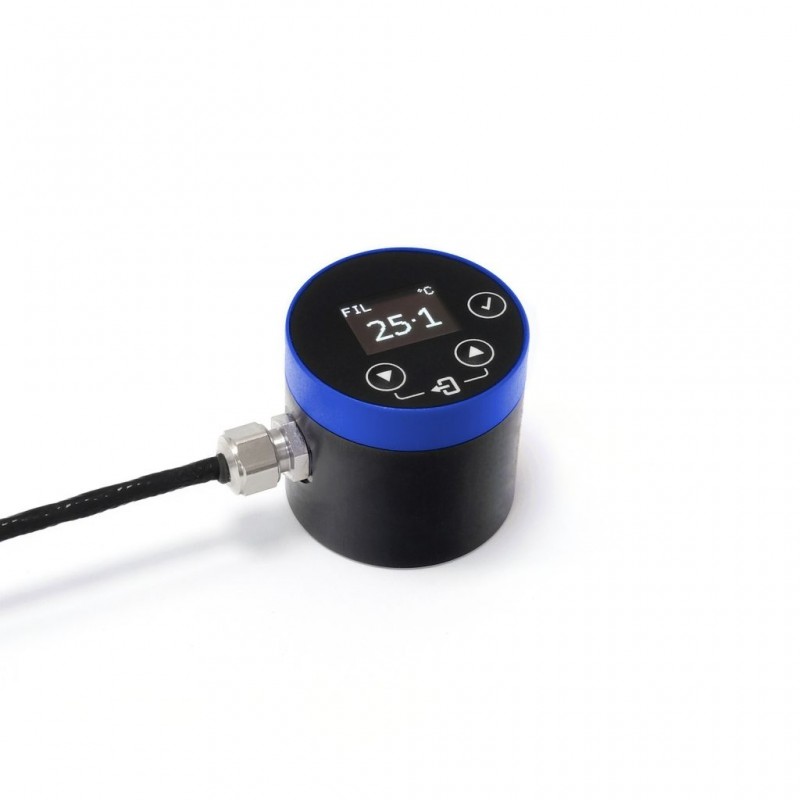

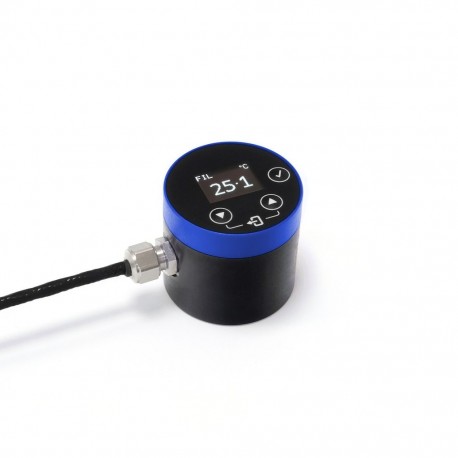

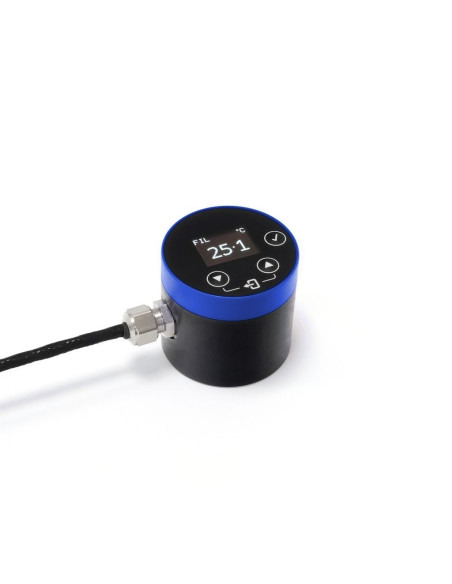

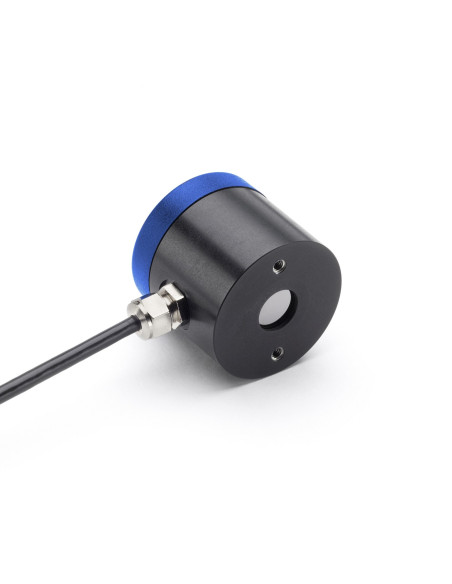

PyroSigma - Miniature Pyrometer with Built-in Display

Reference PyroSigma

Condition: New

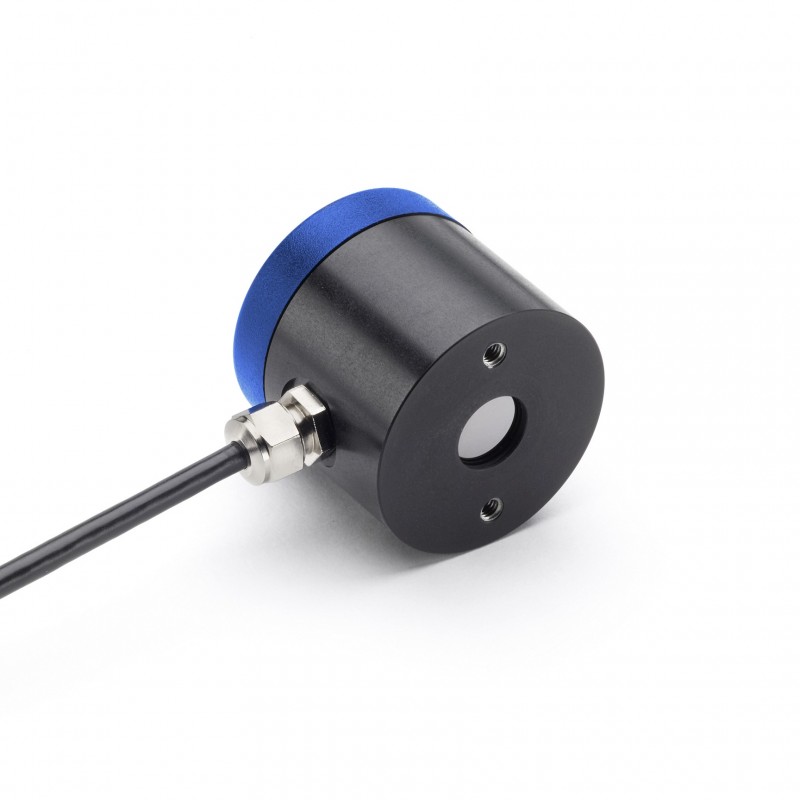

Small, low-cost industrial infrared temperature sensor
Side-entry cable: ideal for mounting in tight spaces
Voltage output, selectable 0-10 / 0-5 / 1-5 V DC
Measures temperatures from 0°C to 1000°C
Fully configurable for averaging, hold processing, emissivity, output scale etc.
Alarm output
Low-profile housing for applications with limited headroom e.g. IR curing, dryers, laminating machines, switchgear cabinets etc
Not designed or approved for fever detection

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

SPECIFICATIONS
OPTIONS
Data sheet
Download

The Sensor measures:	Temperature of a surface

PyroSigma Download (621.37k)

Temperature Range: 0 to 1000°C

Temperature Output:Voltage: 0-5 V DC or 0-10 V DC output, linear with measured temperature, rescalable

Alarm Output:Open collector alarm output with temperature threshold and hysteresis, configurable
Note: Alarm and temperature outputs may be used simultaneously

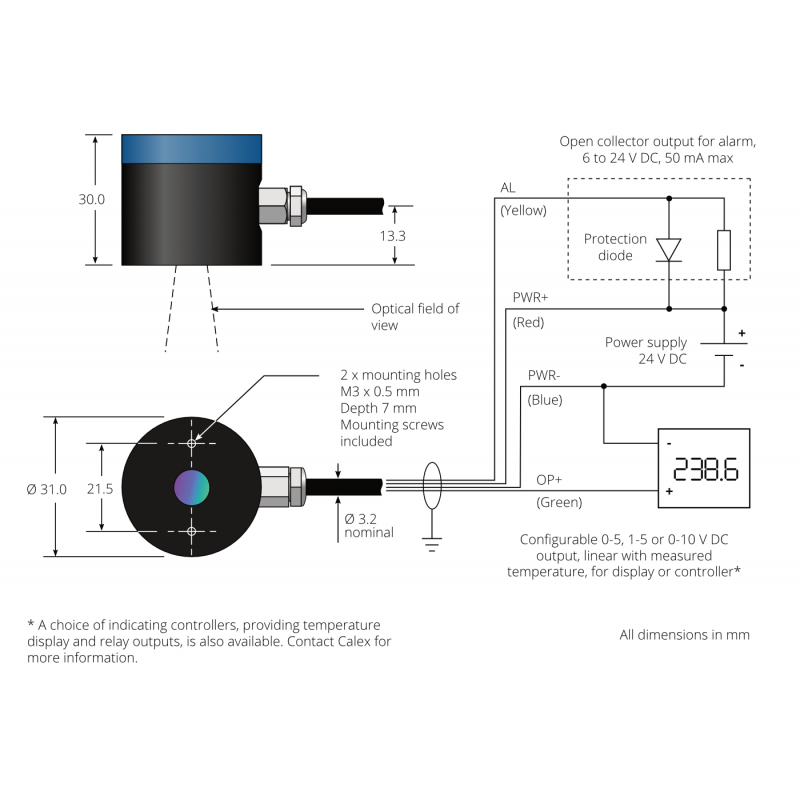

Field of View: 15:1 (see Field of View Diagram)

Accuracy: ± 1.5% of reading or ± 1.5°C, whichever is greater

Repeatability: ± 0.5% of reading or ± 0.5°C, whichever is greater

Response Time: 125 ms (90% response)

Configuration: Via built-in display and controls

Emissivity Setting: Adjustable 0.2 to 1.0

Max Temperature Span (Voltage Output): 1000°C

Min Temperature Span (Voltage Output): 100°C

Spectral Range: 8-14 μm

Max. Supply Voltage: 28 V DC

Min. Supply Voltage (at Sensor):
12 V DC (for 10 V output)
6 V DC (for 5 V output)

Max Current Draw: 6 mA

Configuration

Configurable Parameters:

Temperature range for voltage output
Output voltage range and scale
Alarm output threshold and hysteresis
Emissivity setting
Reflected temperature
Signal processing (see below)

Temperature Units: °C / °F

Signal Processing:
Averaging Period (0.125 to 60 seconds)
Peak / Valley Hold Mode
Hold Period (0.125 to 120 seconds)

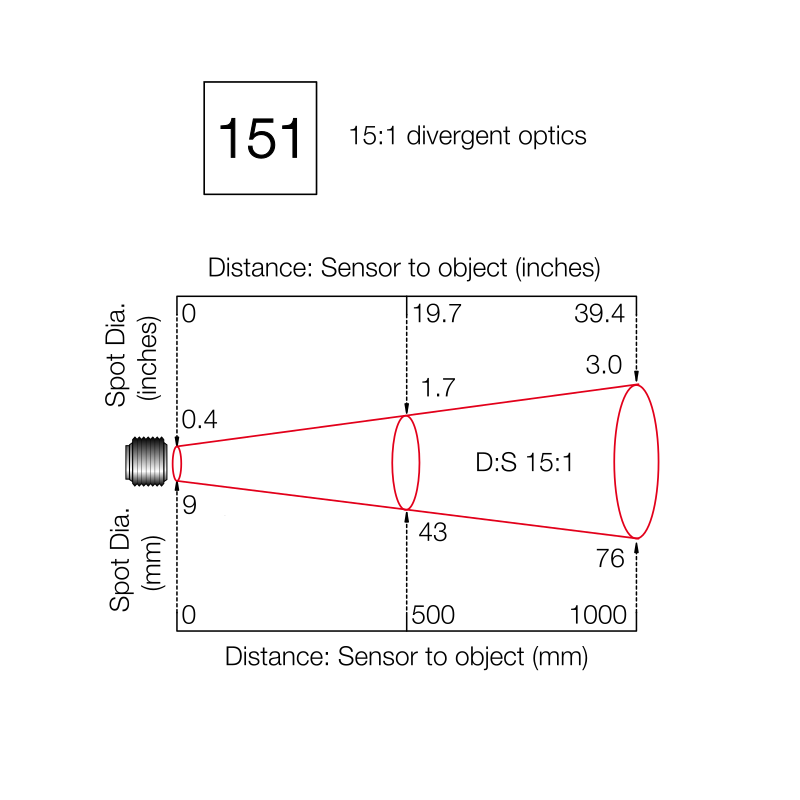

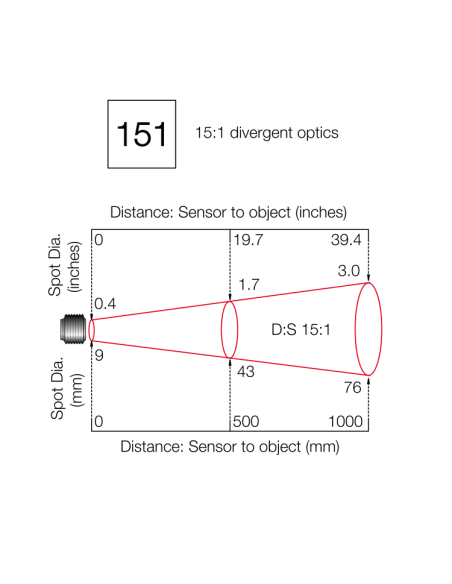

The diagram shows the measured spot size for 90% of the detected energy. Sensors can measure longer distances than the diagram shows, and the accuracy is not affected by the measurement distance in clean air. This is because the PyroNFC detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.

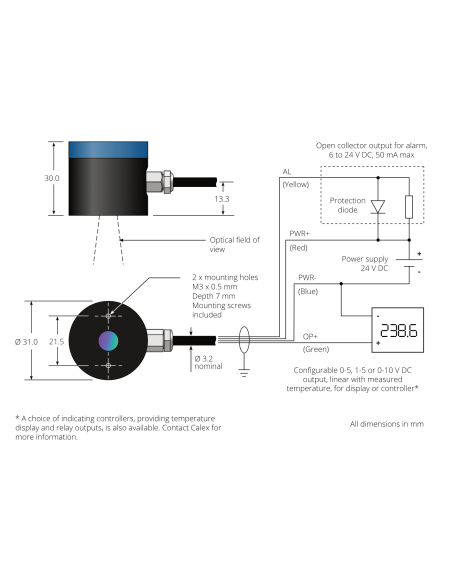

Mechanical Specifications

Construction

Black anodised aluminium and blue ABS

Cable Length

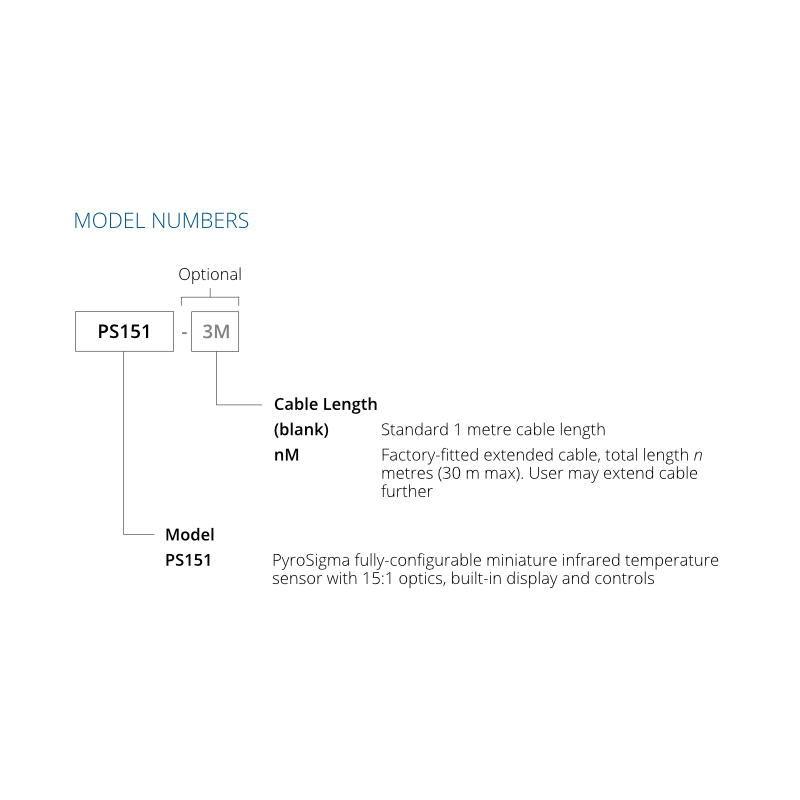

1 metre standard (longer lengths available to order)

Weight with 1 Metre Cable

65 g

Environmental Specifications

Environmental Rating

IP65

Ambient Temperature Range

0°C to 70°C

Relative Humidity

95% max. non-condensing

Electromagnetic Compatibility Standards

EN61326-1, EN61326-2-3 (Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements)

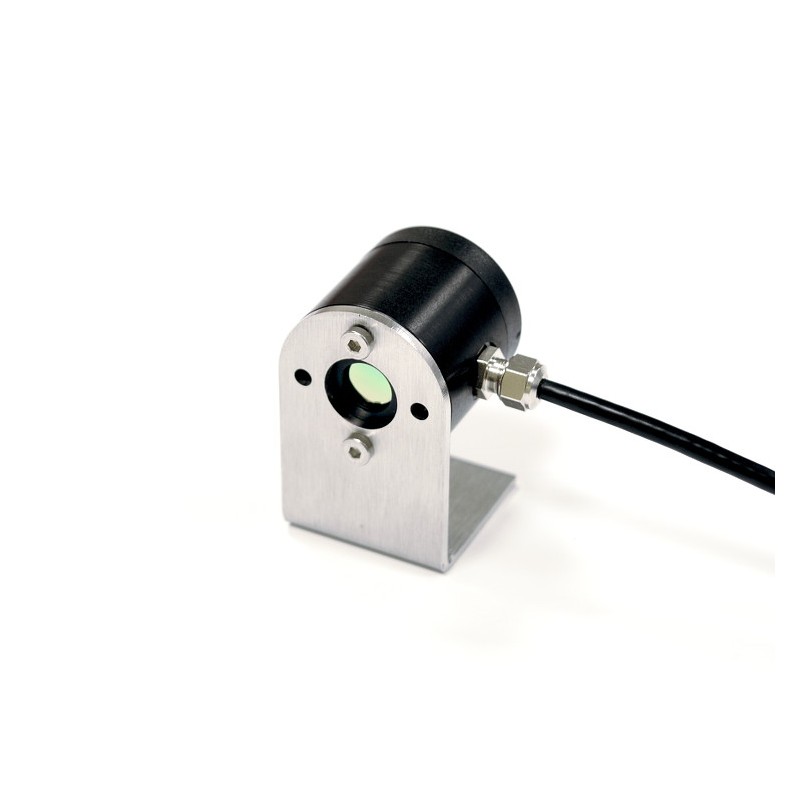

Mounting Bracket

Fixed and adjustable mounting brackets

Provides 1 or 2 axis adjustment for aiming the sensor. Model shown: FBN (fixed mounting bracket, 1 axis adjustment).

Model: FBN (fixed); ABN (adjustable)

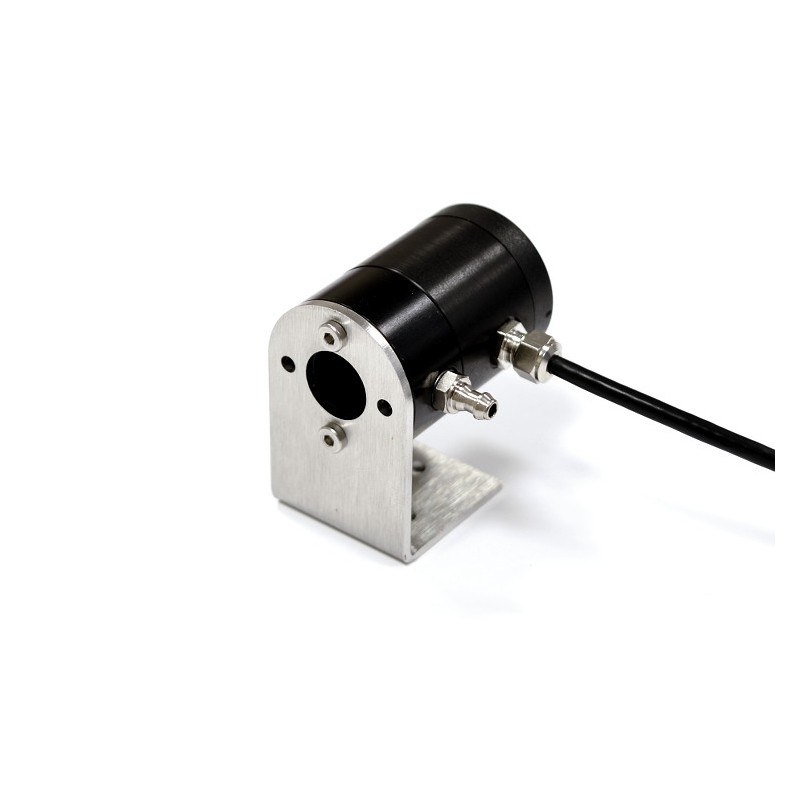

Air purge collar

The lens of all infrared temperature sensors must be kept clean for accurate measurements. This accessory helps stop dust and condensation from settling on the lens. Includes barbed air fitting and long mounting screws.

Model: APN
