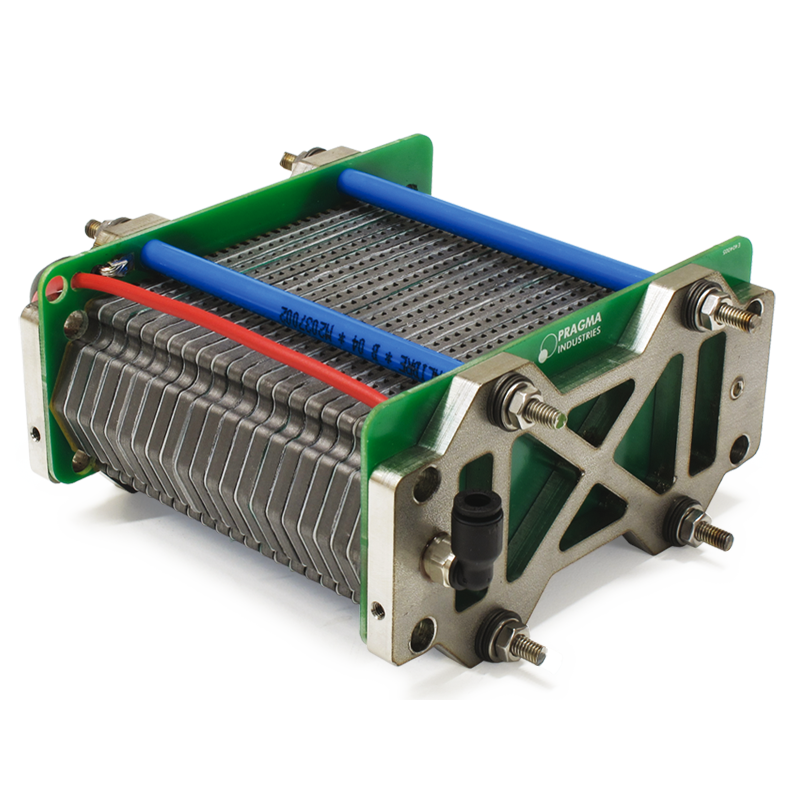

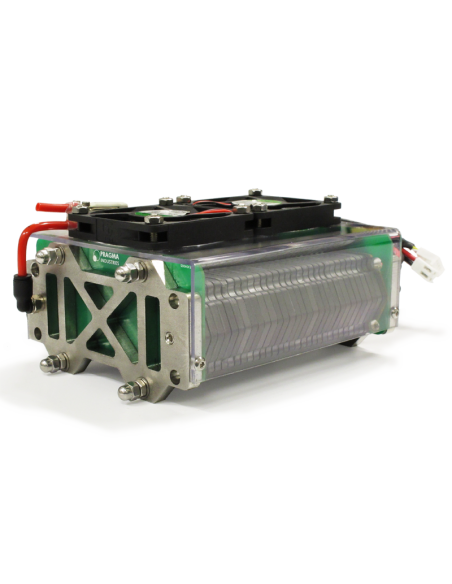

FCPc-PEM FUEL CELL STACKS
Reference:
FCPc-PEM
Fuel Cell Systems available of 50W (100W special model), designed to facilitate system integration.
Based on an open-cathode PEM fuel cell architecture, the system offers good power densities, minimum balance-of-plant requirements and simplicity of operation.

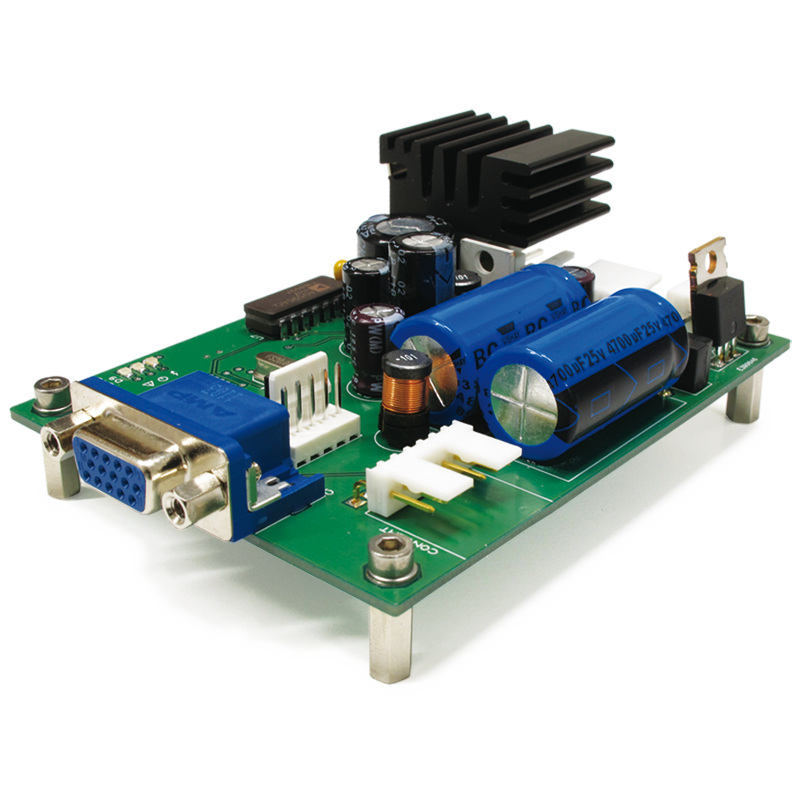

The fuel cell controller is equiped with on-board measurements and analog transmission. When the fuel cell is integrated into an application, operating data can be collected directly from the controller.
Additional sensors can be plugged to the controller board.
Fuel cell stacks and electronic controllers can be sold separately.
KEY FEATURES:

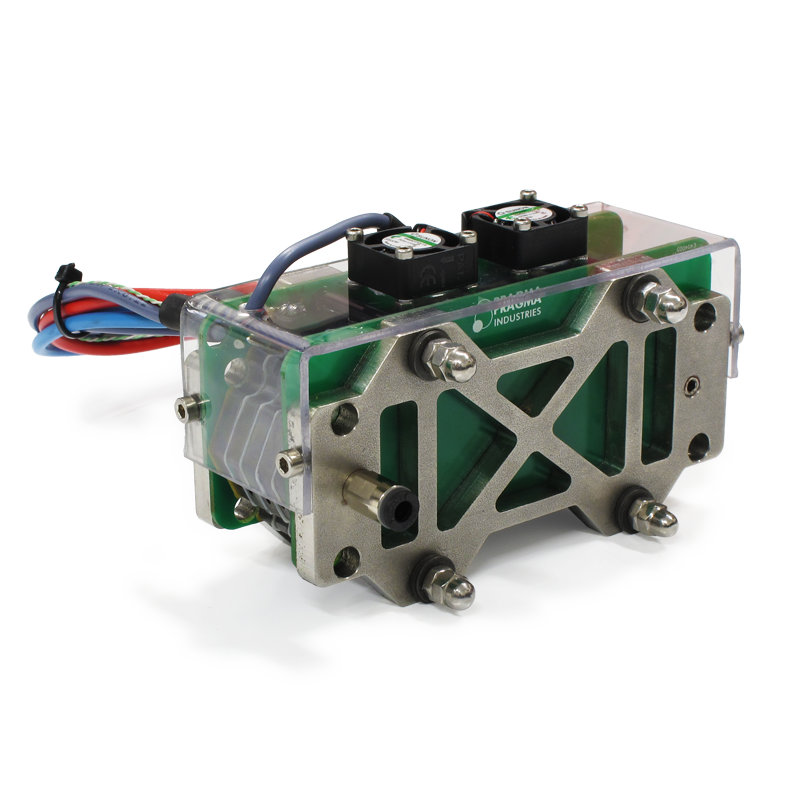

– Robust open-cathode fuel cell design
– No external power source required (electronics powered by the fuel cell)
– Datalink port on controller board
– Available free input channels on controller for sensors or control
– led display on controller board for system state indication
– Open-source embedded microcontroller code
– Code and functunalities can be taylored by the user for system integration.
PACKAGE INCLUDES:

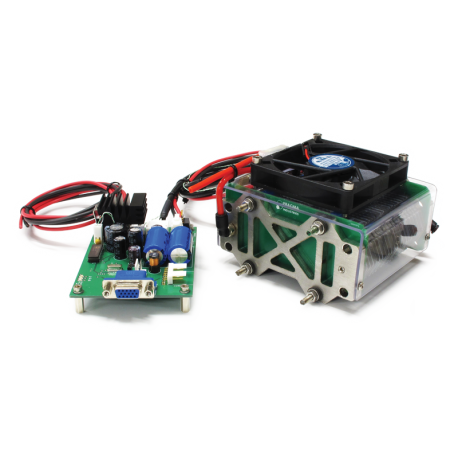

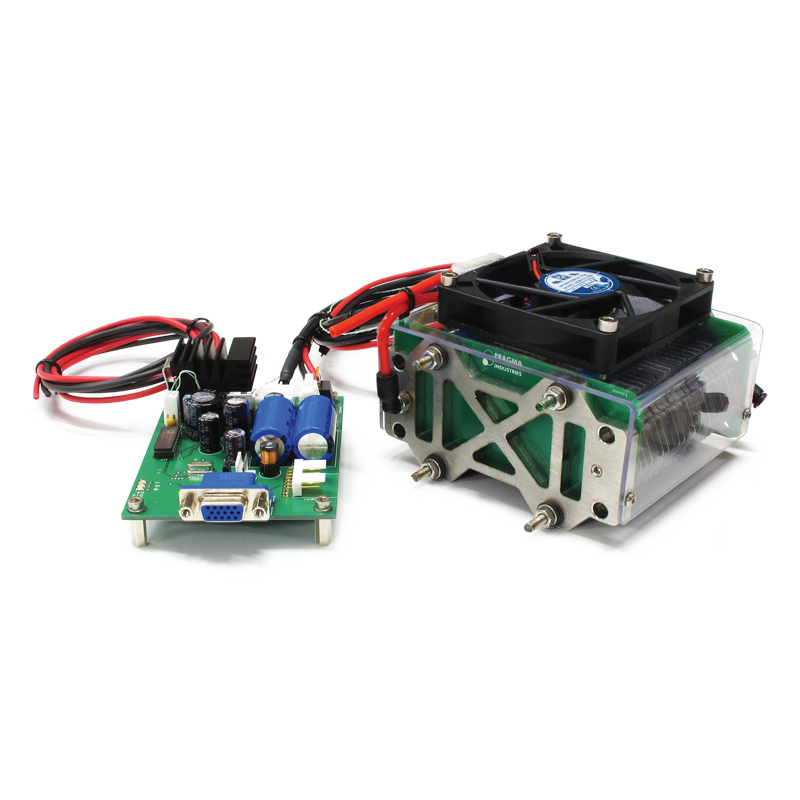

– Open-cathode fuel cell
– Electronic controller
– H2 purge micro valve
– H2 pressure reducer
– Fuel cell temperature sensor
– Integrated air blowing fan with casing
– On/off/menu switch
– Power connector
– Microcontroller code
– User guide

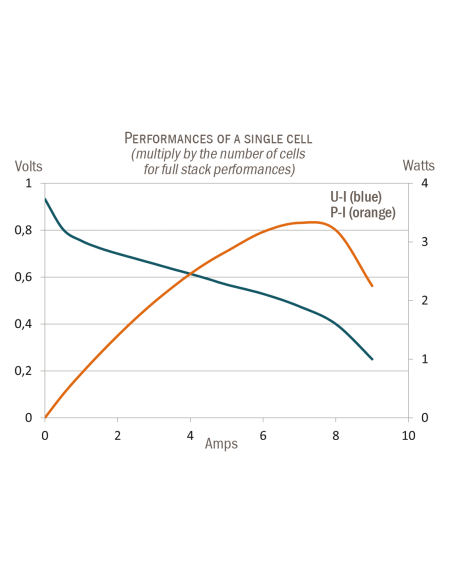

TECHNICAL SPECIFICATIONS
| Referencia del modelo | FCP30 | FCP50 | FCPc |
| Número de celdas | 12 | 20 | Custom |

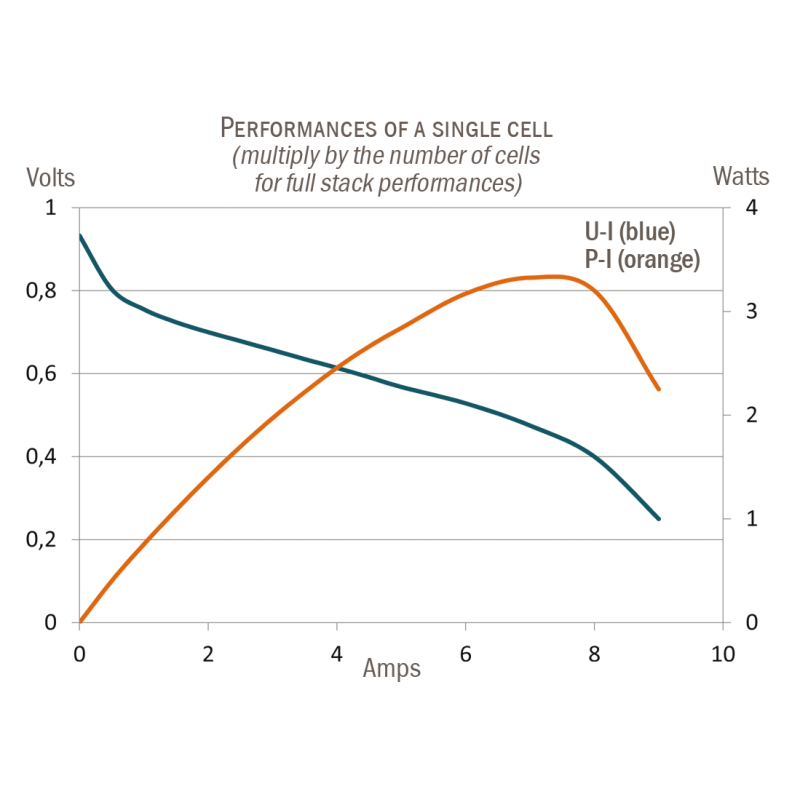

| Potencia nominal | 30W | 50W | 2.5W/cell |
| Potencia máxima | 40W | 67W | 3.3W/cell |
| Rango de voltaje | 7.2-11.2V | 12-19V | – |
| Corriente (at 0.6V/cell) | 4.25 Amps | 4.25 Amps | 4.25 Amps |
| Dimensiones | 84x115x75 | 116x115x75 | XXXx115x75 |
| Peso bruto (pila + ventilador + válvula) | 750g | 900g | – |
| Condiciones de Funcionamiento del FC | Especificaciones del Controlador | |||
| Gases reactivos | H2/air | Fuente de alimentación | Autoamplificada por FC | |
| Temperatura de funcionamiento | 5°C-30°C | Voltaje de funcionamiento mínimo | 7V | |
| Temperatura máxima de FC | 55°C | Temperatura máxima cortada | 60°C | |
| Enfriamiento de celda de combustible | Air cooled | On/Off/Menu control | Botón de estado único | |
| Humidificación | Self humidified | Peso | 165g | |
| Presión de suministro H2 | 0.2-0.3 barg | Salidas | 12V potencia del ventilador + 12V purga Voltaje FC + corriente Consumo de energía del controlador Temperatura FC, posición de la válvula Alarma, Gerente de Cortocircuito |
|
| Pureza H2 | 99.995% seco |
|||
