LU06-C Hydrometer Ultrasonic Sensor ( range 0÷6m. Out:RS485/ModBus.)

Ultrasonic level sensor. Applications or as hydrometer or as snow gauge, suitable for outdoor use with high temperature and aggressive atmospheres such as sewers, silos, etc.. Aluminum structure anticorrodal IP65 with automatic temperature compensation. Conforms to WMO for environmental monitoring. Sensor is equipped with electrical protections and available with different signal outputs.

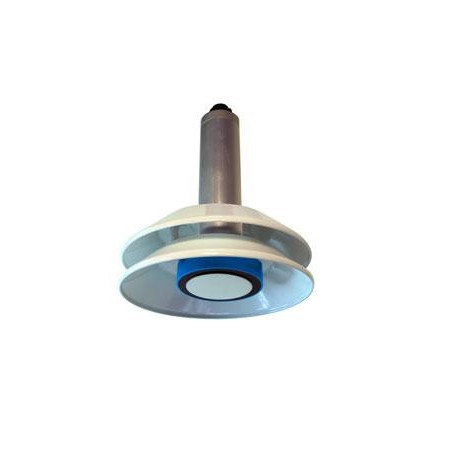

The sensor for hydrometric level measure or snow level, mod. LuxxNesa is made of a piezoelectric transducer IP67, housing inside a shield that protects the sensor from the direct solar radiation and from the wind blasts. Beside the transducer employed, supplies extremely precise measures, with an excellent repeatability, low hysteresis and stable behaviour with the temperature, that allows to employ the sensor as a hydrometer and a snow-meter.

• Ultrasonic sensor for measuring the water level/snow

• Conforms to standard WMO

• Aluminium body IP65 for outdoor applications

• Piezoelectric measuring system with automatic compensation for temperature

• Measuring range: 0÷6000mm (0÷10.000 mm on request)

• Resolution: 1mm

• Accuracy: 0.1% f.s.

• Reduced power consumption (<900mW in reading)

• Reading very fast (> 1s)

• Operating conditions: -25 ÷ +70°C even in corrosive atmosphere.

• Power supply: 10÷30Vdc

Available options for this sensor: (see also section Sensors Accessories ) - Wall arm or bridge (SS-P1) L = 1500mm with hinge for easy retrieval of the sensor during maintenance. - Hydrometric rod, vertical or inclined at 30°. Type of mounting: wall or slopes, complete with brackets and numbering.
