HD 9006 Aspirated Air Temperature Probe with Protection Screen

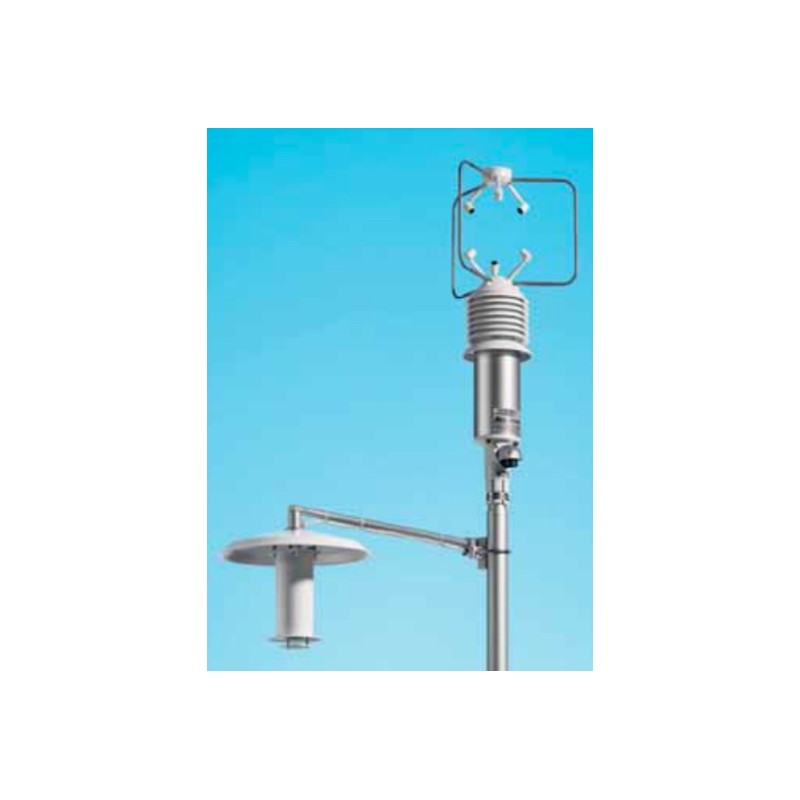

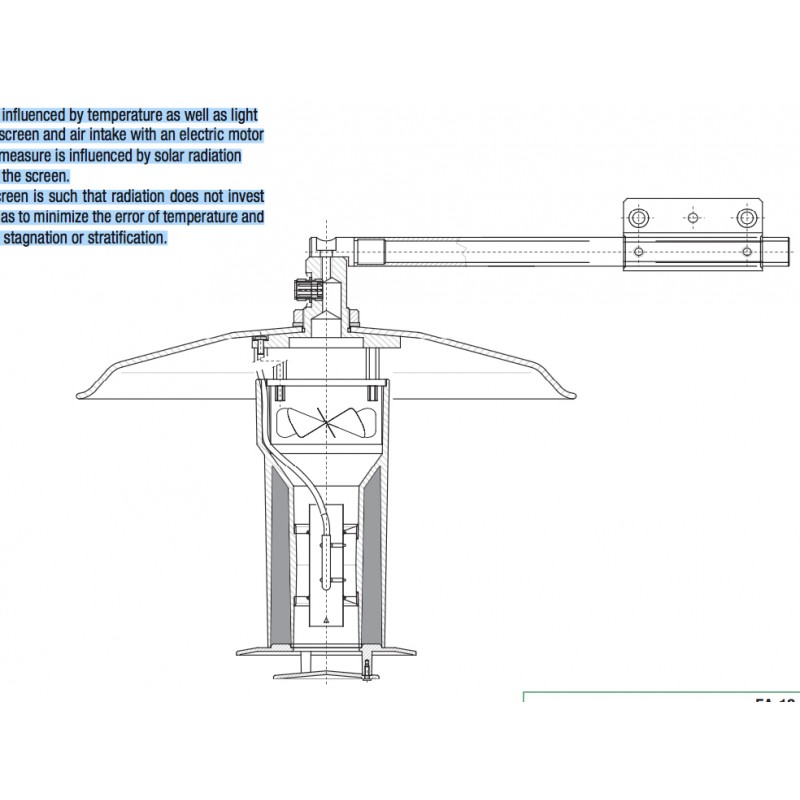

An appropriate screen and air intake with an electric motor detects the air temperature without the measure is influenced by solar radiation and terrestrial heat by the convection of the screen.
The position of the sensor inside the screen is such that radiation does not invest the sensor. The screen is constructed so as to minimize the error of temperature and convective air flow is such as to prevent stagnation or stratification.

The advantages of the radiation shield:

- reduces the measurement error

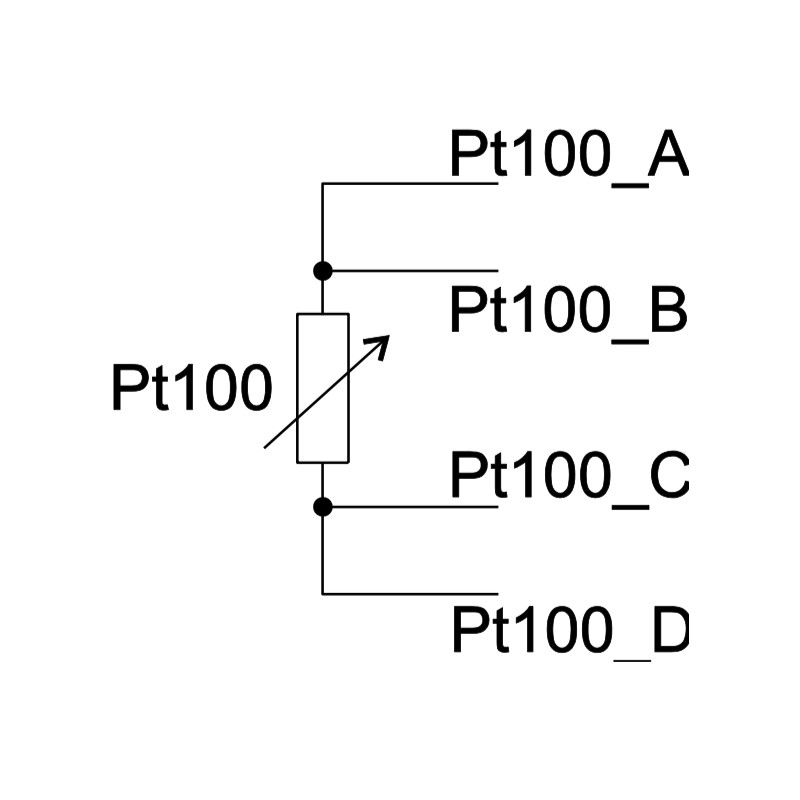

- the Pt100 (100Ω at 0°C) 1/3DIN wire wound sensor is accurate and stable over
time and can be extracted for periodical calibration
- the support structure of the sensor has a low thermal conductivity
- the electric motor power is 12Vdc, 35mA maximum current
- the construction of the screen is UV resistant Luran S777K plastic
- support of the probe is provided for the installation on weather stations poles

Features

- intake by electric motor
- suction flow: 422 l / min, 35Pa
- power: 12Vdc - 25mA nominal
- expected life time: 12,000 hours (MTTF)
- working temperature: -20...+65°C
- dimensions: 270mm diameter, 245mm overall height

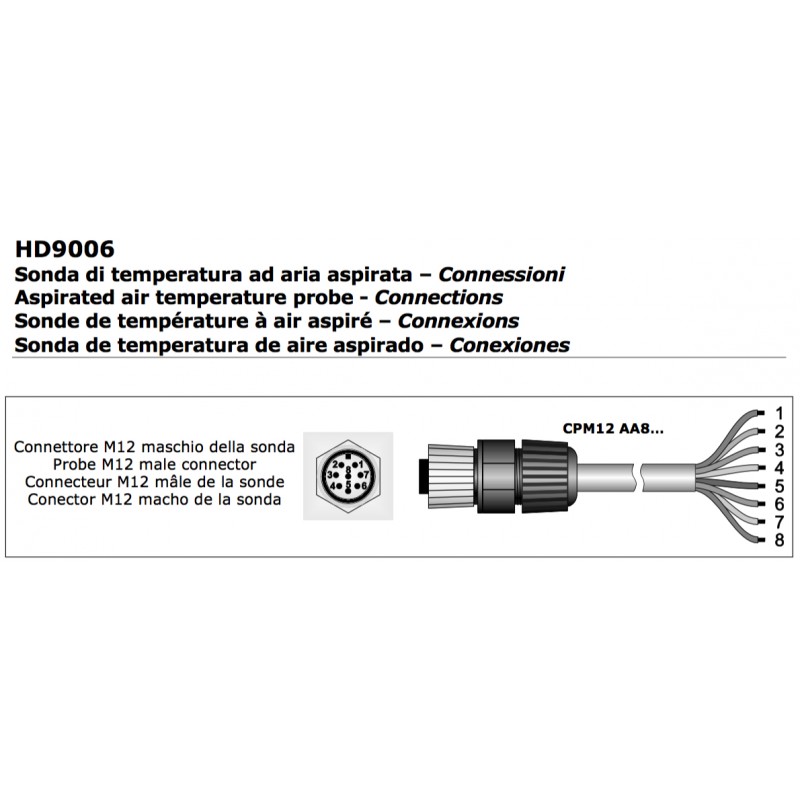

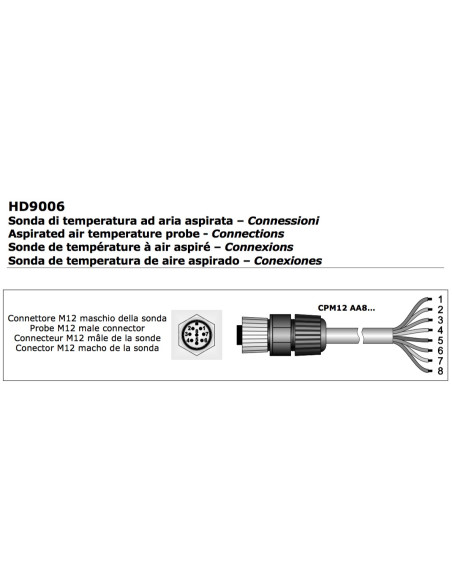

- M12 male connector for probe connection
- support rod: diam.16mm, length 580mm, complete with bracket on pole diameter
25 ÷ 44mm maximum

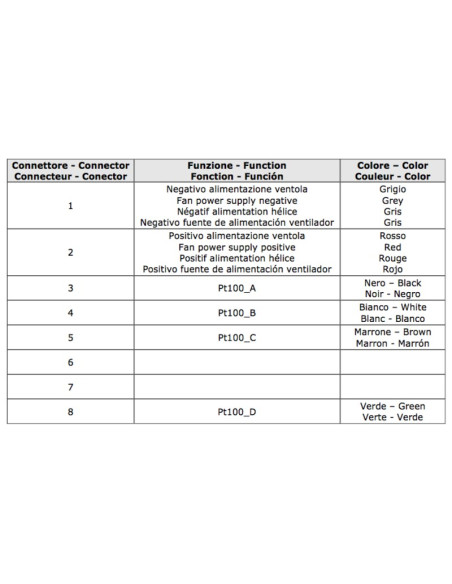

- cable: 8-wire (Pt100 sensor + power). Cable CPM12AA8 ... on request 2 meters,
5 meters, 10 meters.

Purchasing Codes

HD 9006: Aspirated air temperature sensor with radiation shield. Power 12Vdc,
35mA max, length 580mm.
CPM12.AA8.2: 8-pin cable for Pt100 sensor and motor. 8 pin female connector on
one end and open wires on the other side. Length 2 meters.
CPM12.AA8.5: 8-pin cable for Pt100 sensor and motor. 8 pin female connector on
one end and open wires on the other side . Length 5 meters.
CPM12.AA8.10: 8-pin cable for Pt100 sensor and motor. 8 pin female connector on
one end and open wires on the other side. 10 m.
HD 9006.14: Flange to install the HD 9006 aspirated air temperature probe to the
40 ÷ 50 mm diameter mast.
