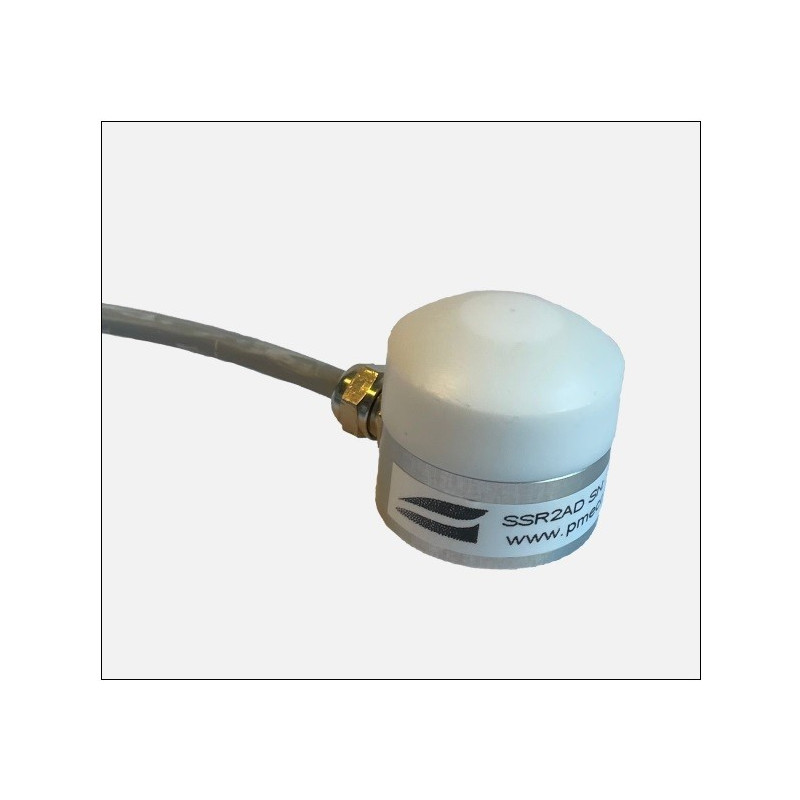

SSR2AD Solar Radiation Sensor

Reference SSR2AD

Condition: New

► High acccuracy of measurements
► Excellent characteristics
► Waterproof enclosure made of anodized aluminium with IP67
► Output signal 0-5V or digital SDI-12 and Low power consumption

MODEL SSR1D DISCONTINUED

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	230,00 €	0%
5+	223,10 €	3%
10+	216,20 €	6%
15+	209,30 €	9%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

IP Classification	IP67
The Sensor measures:	Solar Light Radiation W/m2
Output Signal:	0 to 5 Vdc
Cable Length:	1 meter
Sensor IP Rating	IP67

SSR2AD Specs Download (388.29k)

cSSR2AD solar radiation sensor uses photodiode as the sensing element.
► The device has been designed for constant outdoor use and the radiation is measured on the whole hemisphere with the full sight vision of 180°.
► The sensor works great in photovoltaic, food farming, thermal
convection and evaporation systems.
► It is fully compatible with PM Ecology data loggers and devices of other manufacturers with analog 0-5V or digital SDI-12 inputs.

- The calibration of the sensor was made for natural, unshaded daylight.
- In case of artificial light, the measured data will be not correct.
- In most cases the sensor is used to measure solar radiation reaching a flat surface, however if a needed, the sensor can be used in reversed or slanted position.
- The enclosure is made of anodized aluminium with ingress protection IP67.
- The sensor may be used in every weather condition.
