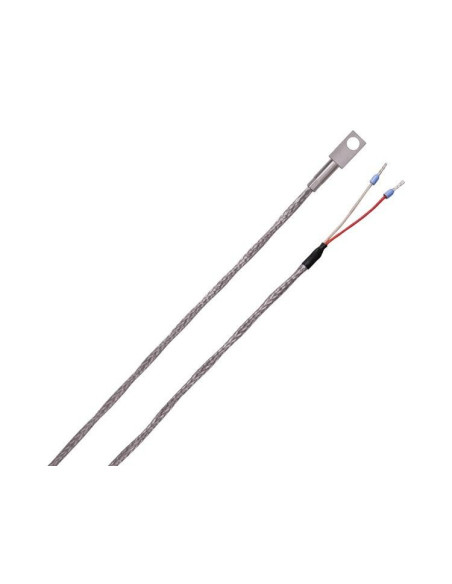

AO-OF5/E Surface Temperature Sensor - Stainless Steel sensor tip. PT100, Pt500, PT1000 (-30 +500°C)

Reference AO-OF5/E

Manufacturer: AO-Electronics

Condition: New

Stainless steel with glass fiber mesh surface temperature sensor (- 30 +500°C) 5 metre cable

-30...+500°C
PT100, Pt500, PT1000
stainless steel contacting block

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet

The Sensor measures:	Temperature of a surface
Cable Length:	5 meters

The AO-OF5/E surfaces sensor with stainless steel block measures the temperature of surfaces in the range of -30 up to +500°C.
By a screw or adhesive mounting the stainless steel block tip of the temperature sensor can be mounted fast and safely directly on the surface to be measured.

Measurement range temp.	-30...+500°C
Sensor	Pt100, Pt500, Pt1000 (other on request)
Circuit type	2-wire connection
Measurement current	approx. 1 mA
Cable	2 m up to 5 m glass fibre/stainless steel netting (2x0,22 mm², max. +400°C) with core cable ends
Leakage resistance	> 100 MOhm, at +20°C (500 V DC)
Material	Contacting block: stainless steel VA 1.4571
Dimensions	Contacting block: L 15 x W 8 x H 8 mm, bore hole Ø 5 mm
Protection type	IP54
Storage temperature	-20...+70°C
Installation	screw fixing or adhesive bond
Approvals	CE-conformity, EAC, RoHS
