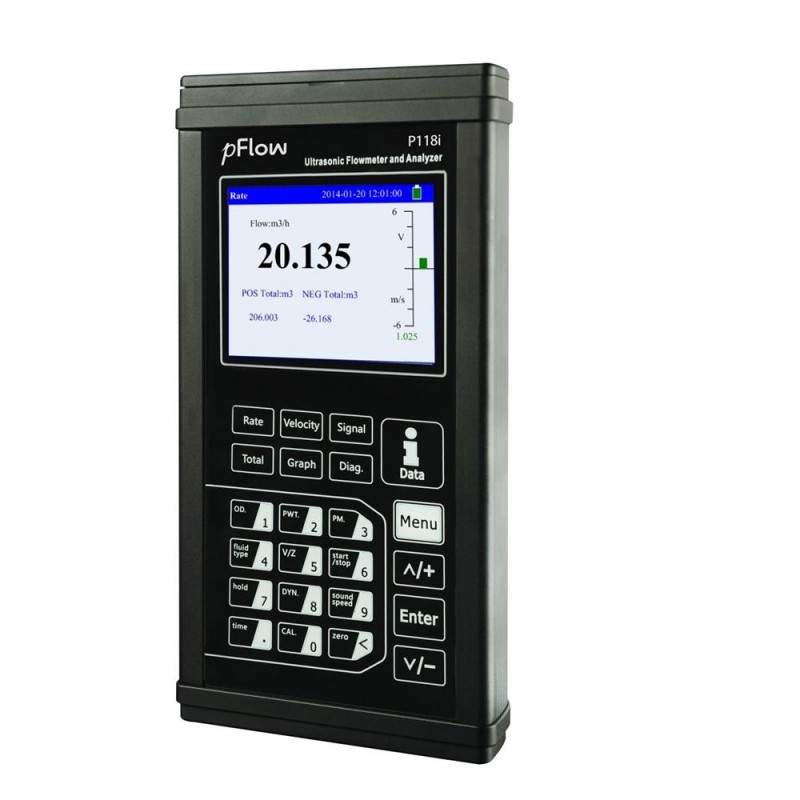

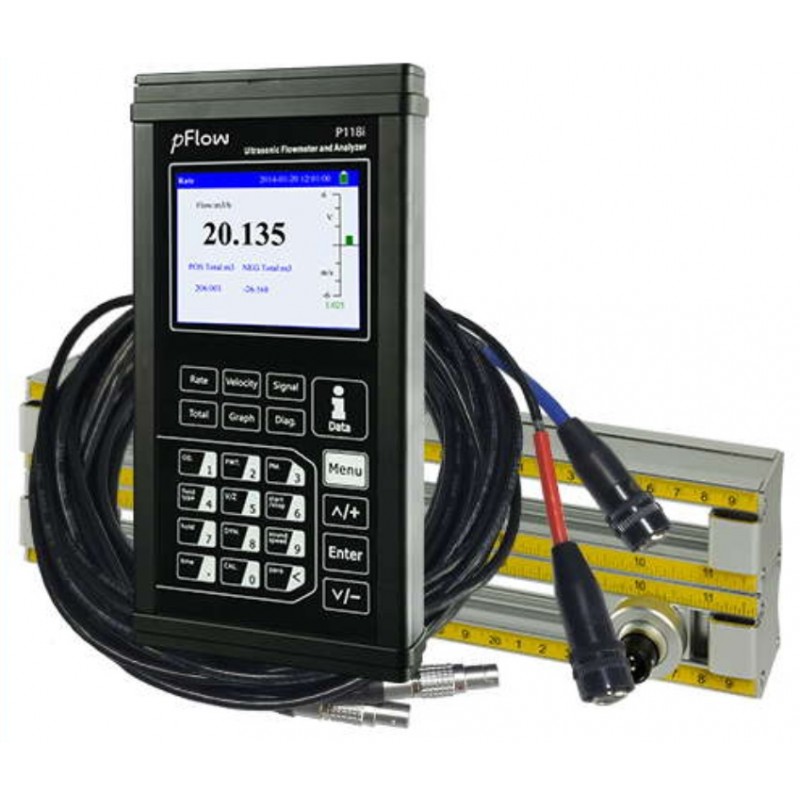

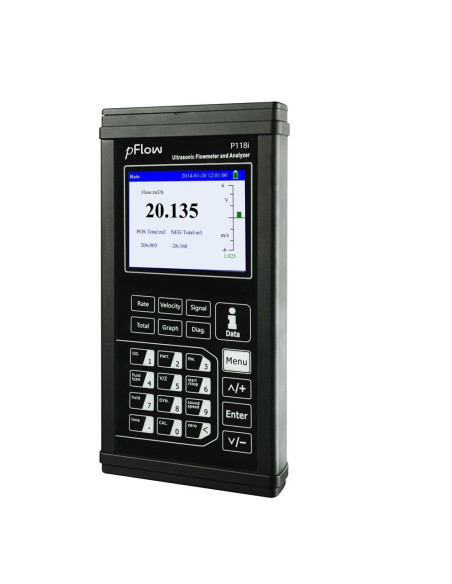

P118i High Precision Portable Ultrasonic Flowmeter

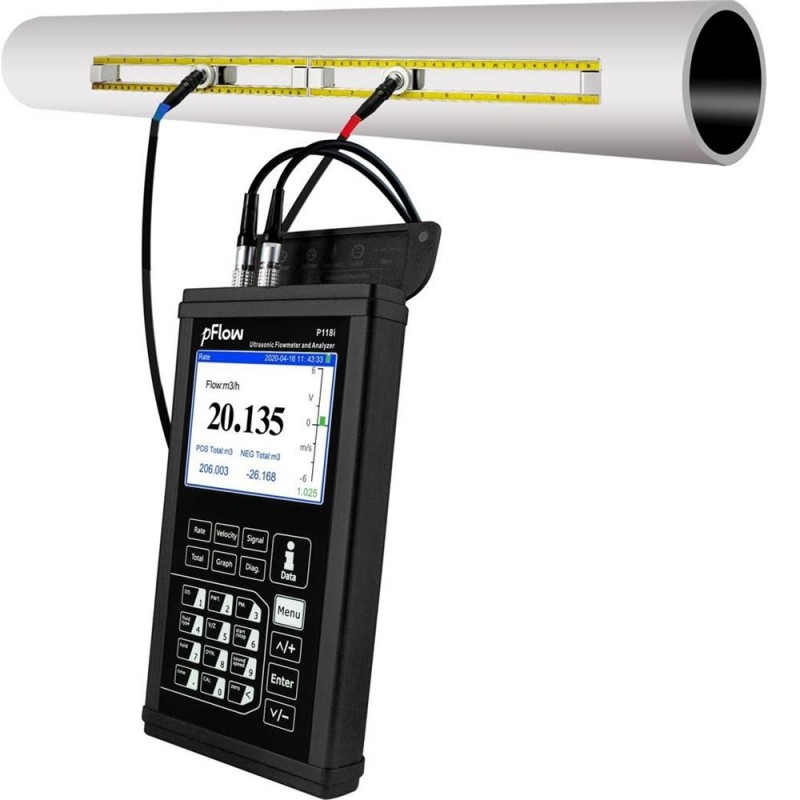

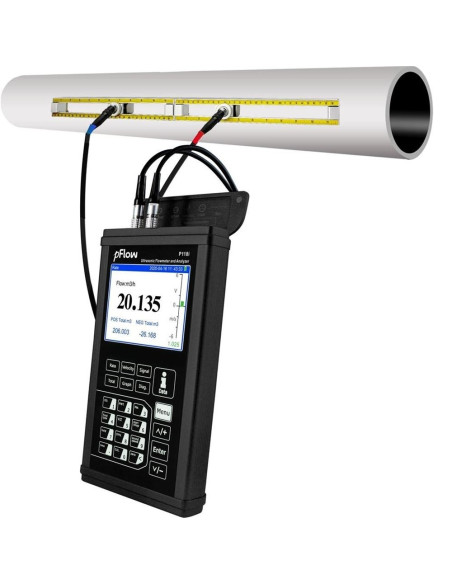

P118i Portable Ultrasonic Flowmeter enables the user to do flow measurement checks at many points in a flowprocess without the need for a permanent installation.
This ultrasonic flowmeter adopts Gentos unique PICOFLY time measurement technology, which could make the resolution
reach to 10 picoseconds (0.01 nanosecond).
It uses high respondence and high accuracy ultrasonic measurement technology and application.
Compared with other traditional flowmeter or ultrasonic flowmeters, it has distinctive features such as high precision, high reliability, high capability and low cost.

The flowmeter features other advantages:
- PICOFLY technology designed.
- Less hardware components, low voltage broadband pulse transmission, low consumption power.

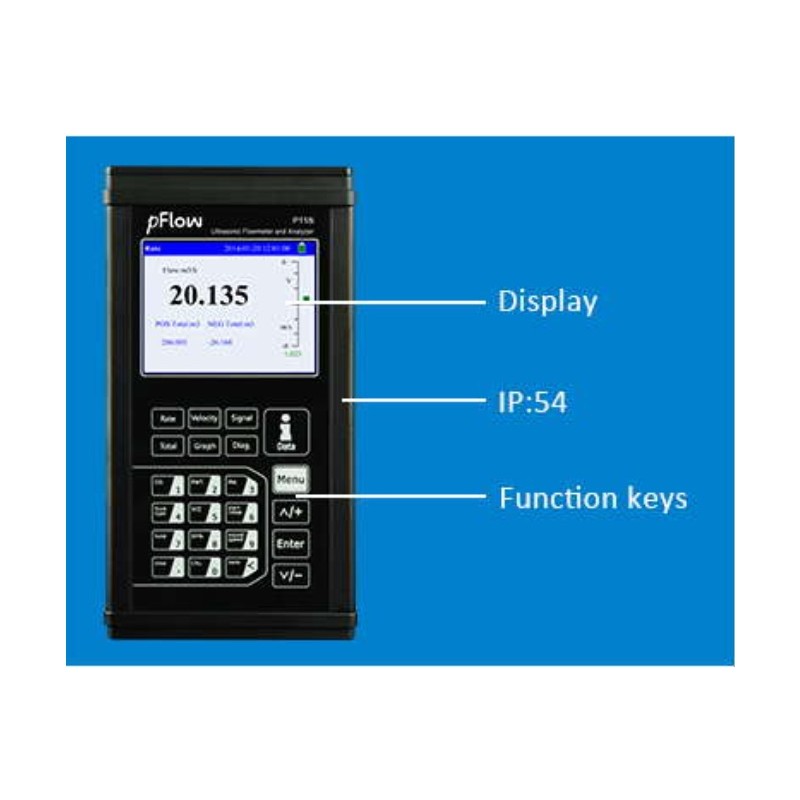

- Clear, user-friendly menu selections make flowmeter simple and convenient to use.
- Daily, monthly and yearly totalized flow.
- Parallel operation of positive, negative and net flow totalizes with scale factor (span) and 7 digit display.

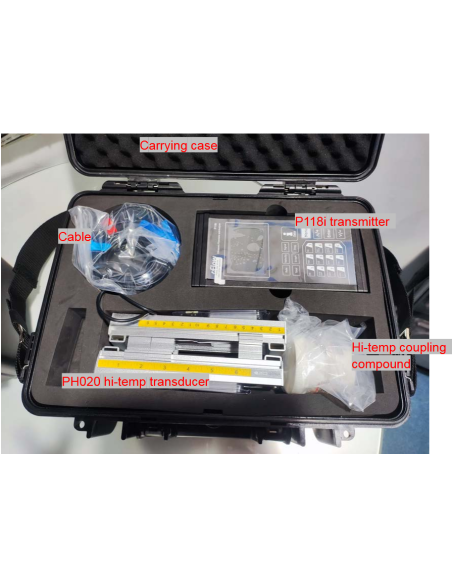

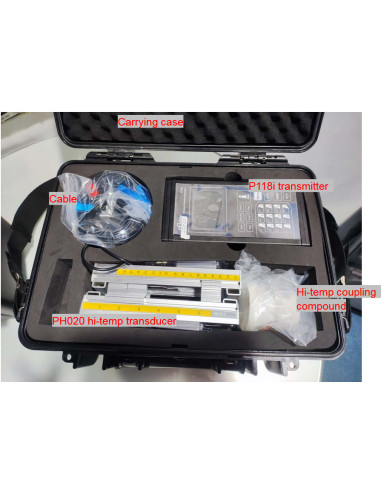

Notes: The P118i "High-Temperature Version" is equipped with PH020 transducers, suitable for temperatures from -40~150℃.

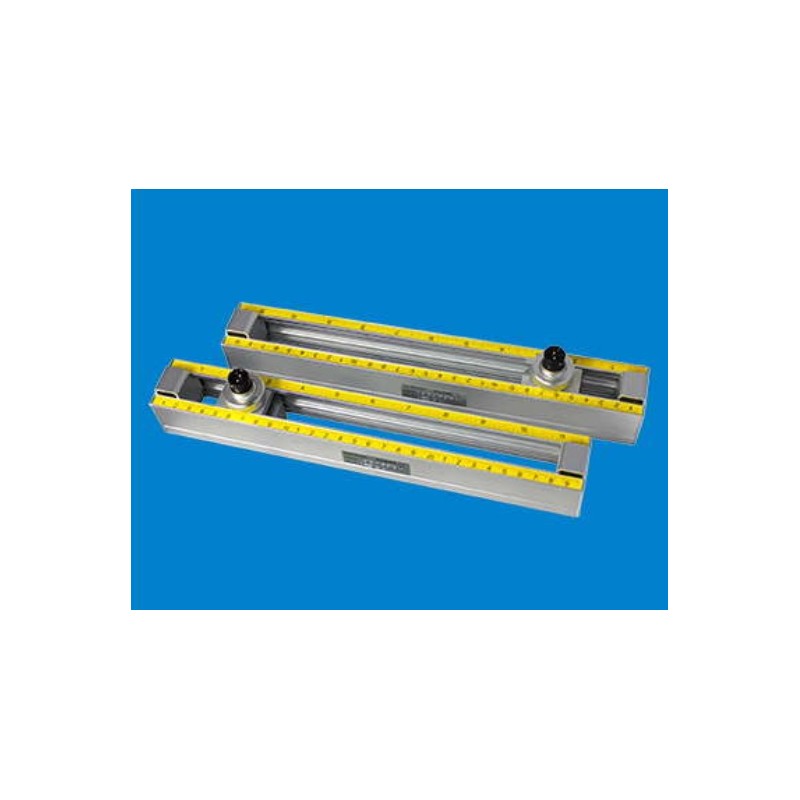

All transducers, whether P010 or PH020, need to be calibrated with the P118i transmitter before leaving the factory to ensure the accuracy of the measurements. So, generally, one P118i transmitter is paired with one pair of transducers.

For measurements of fluids below 80ºC, the "Standard Version" (P118i-P010) is recommended. For more than 80ºC, the "High-Temperature Version" P118i-PH020 is recommended.
