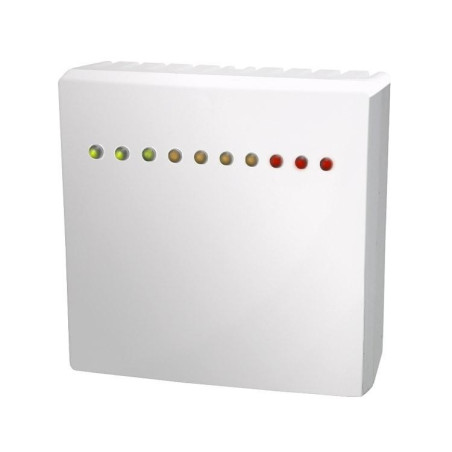

AO-RL2/A VOC Room Air Quality Sensor for Mixed Gas with LED Display

Reference

Manufacturer: Fuehler Systeme

Condition: New

Room Air Quality Sensor for Mixed Gas (VOC) with LED Display

0...100% mixed gas VOC
0-10 V, 0/4-20 mA, Relay
automatic re-calibration
LED status lamp

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

275,00 €

tax excl.

Quantity

Select Model

Add to wishlist

Overview
Specifications
MODELS
Data sheet
Download
Accessories

The instrument measures:	Air Quality - VOC
The Sensor measures:	VOC

RL2/A Data Sheet Download (765.21k)

The AO-RL2/A mixed gas sensor (VOC) with LED display measures the air quality in the range of 0...100 with reference to the calibration gas.

For further processing it provides a linear 0-10 V, 0-20 mA, 4-20 mA and a contact output signal.

The normal ambient air quality can be defined for the manual calibration standard on the device (zero point adjustment).

The air quality sensor runs an automatic calibration procedure at regular intervals, thus long-term drift and deterioration due to operation can be completely eliminated.

Measurement range VOC	0...100% (good / bad air quality, referring to the calibration gas)
Accuracy	±15% FS
Response time (t90)	max. 60 s (at 5% alteration)
Long term stability	< 15% FS/year at norm load
Sensor	metal oxide VOC-sensor
Sensor protection	mounted inside housing
Running-in time	1 hour
Supply voltage	24 V AC/DC (±5%)
Current consumption	max. 60 mA
Analogue output 0-10 V	3-wire connection, min. load resistance 100 kOhm
Analogue output 0/4-20 mA	3-wire connection, load resistance < 500 Ohm
Alarm output	potential-free change-over contact max. 48 V (1 A), threshold can be defined by 270° potentiometer
Equipment	LED display: 1-3 green (good), 4-7 yellow (average), 8-10 red (bad)
Electrical connection	screw terminals max. 1,5 mm²
Housing	ABS polyman, colour signal white like RAL 9003
Cable gland	at the backside of the housing
Dimensions	Housing: L 82 x W 82 x H 25 mm
Weight	ca. 70 g
Protection type	IP30
Protection class	III
Working range r.H.	0...98% r.H. in contaminant-free, non-condensing air
Working temperature	0...+50°C
Storage temperature	-20...+50°C
Initial operation	After switch-on of the device follows a self-test and the tempering, which takes ca. 1 h depending on the environmental conditions. At this time the analogue output drifts from the actual measurement value.
Automatic calibration	The automatic re-calibration of the output signal is started in the interval of 4 weeks and can be disabled. The device must be supply within this interval at least 10 minutes with fresh air.
Manual calibration	The manual calibration of the output signal to 1V (zero point) will be started by pushing the button on the circuit board (push ca. 5 s until LED is blinking). Before this it is to ensure a non-stop operating of min. 2 h on air quality which is defined as normal. After successful calibration the LED will be deactivated.
Installation	on-wall or on flush-mounted box
Approvals	CE-conformity, EAC, RoHS

Model AO-RL2/A-UI:
Air Quality Transducer for mixed gas VOC in room housing, 10 LED traffic light, Outputs 0-10V or 4-20mA, Supply voltage 24 V AC/DC.

Model AO-RL2/A-UIR:
Air Quality Transducer for mixed gas VOC in room housing, 10 LED traffic light, with changeover contact, Outputs 0-10V or 4-20mA, Supply voltage 24 V AC/DC.
