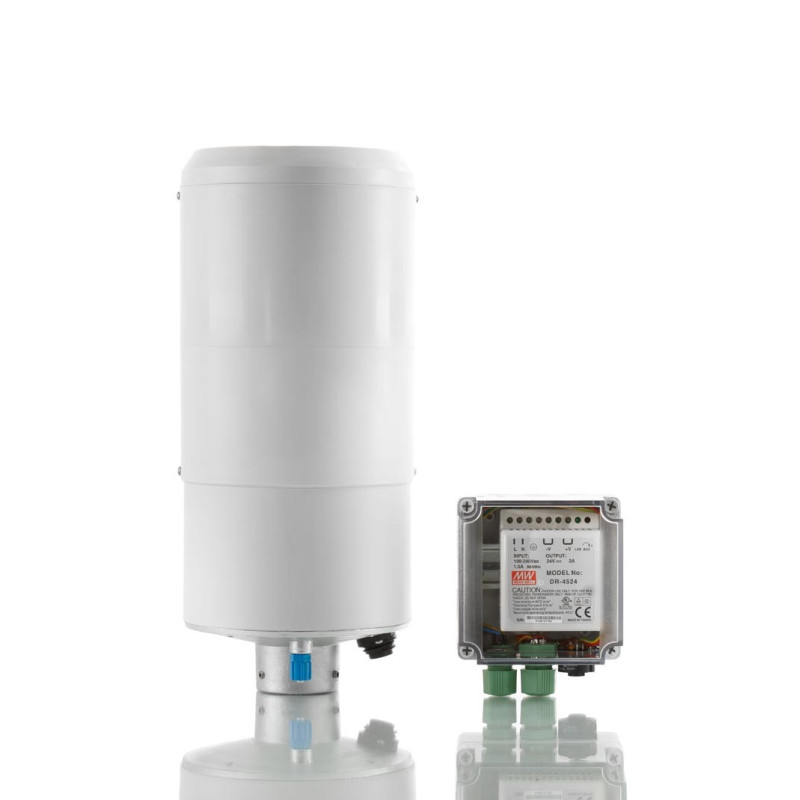

Rain-O-Matic-Meteorological-Snow Rain Gauge (max. +/- 5 % deviation)

View larger

Rain-O-Matic-Snow Heated Rain and Precipitation sensor (max. +/- 5 % deviation)

Reference Rain-o-Matic-Snow

Manufacturer: Pronamic

Condition: New

Rain-O-Matic-Meteorological-snow, rain and precipitation sensor with our patented self-emptying tipping bucket is one of the most accurate and reliable heated precipitation gauges that comply with WMO standards.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	1 495,00 €	0%
2+	1 345,50 €	10%
5+	1 270,75 €	15%
10+	1 196,00 €	20%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download
Accessories

The Sensor measures:	Rain/Snow/Hail/Sleet/Freezing
Output Signal:	Pulses
Sensor for use in:	Outdoor

Datasheet-Snow-and-Rain Download (1.06M)

Universal Pole bracket...

500.311 Universal Pole Mount for Tower Rain Gauges
25,00 €

Add to cart

- Meteorological rain and snow collector, orifice 200 cm2,
- PCB no. 9602 (2 reed switches, Normally Open and Normally Closed, with terminal strip),
- Manual calibration
- Resolution 0,1 - 0,20 - 0,25 or 0,50 mm
- Top ring with 60 degrees angle
- Power supply included
- Bottom in aluminium

Rain-O-Matic-Snow, rain and precipitation sensor with our patented self-emptying tipping bucket is one of the most accurate and reliable heated precipitation gauges that comply with WMO standards.

Rain-O-Matic-Meteorological-Snow and Rain patented self-emptying tipping bucket is one of the most accurate and reliable rain gauges on the market. It gives you advantages in:

More accurate measurements
Only one adjustment screw which makes it easy to recalibrate.
Bucket made in POM, which is a more dismissive material and therefore makes dust and dirt not stick so easily on the spoon and maximize water release.

WMO compliant

Rain-O-Matic-Meteorological-Snow and Rain complies with World Meteorological Organization standard (WMO guide no.8) Such as:

Deep funnel to avoid splash out and evaporation.
200 cm2 orifice angel top-ring with sharp edges.
Drain pipe for collection of precipitation.
Drip-rod/filter in plastic.
Thermal safety switches on the heating elements to avoid evaporation and reduce power consumptions.
2 separately heating compartments.

Calibration

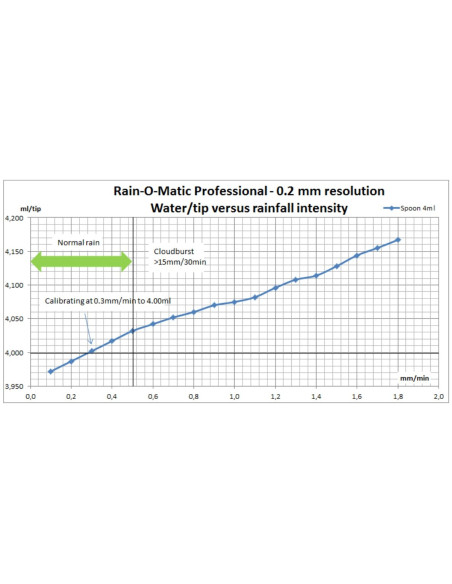

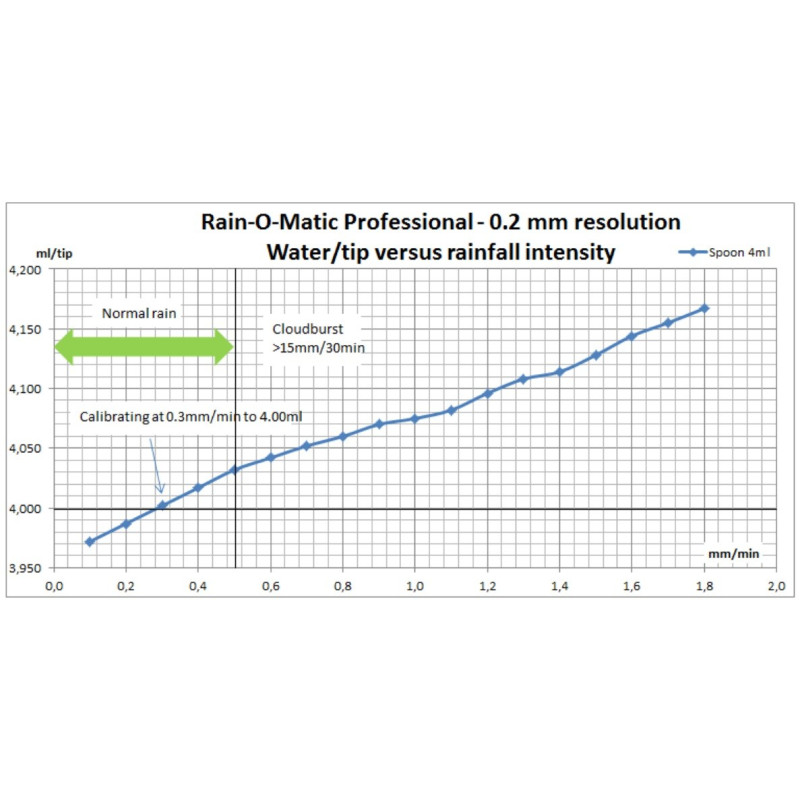

Calibration is a very important issue for Pronamic and therefore all Meteorological Snow and Rain gauges are manually calibrated. It gives you the guarantee for a very accurate measurement (max. +/- 5 % deviation).

Calibration

Calibration is a very important issue for Pronamic and therefore all Meteorological rain gauges are manually calibrated. It gives you the guarantee for a very accurate measurement (max. +/- 5 % deviation).

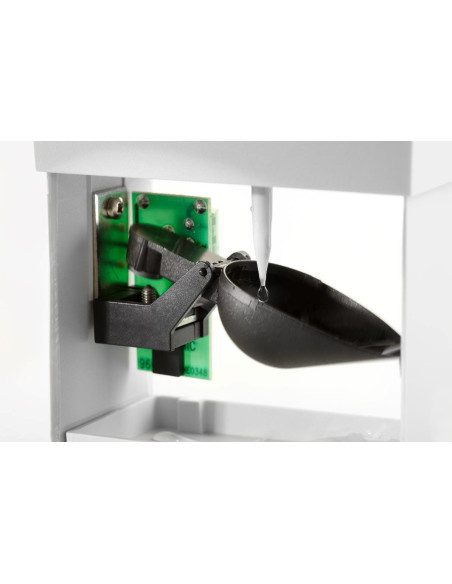

Rain-O-Matic Meteorological measures the precipitation by means of a funnel (orifice 200 cm2), which leads the water down into the self-emptying tipping POM bucket, held in place by a hard ferrite magnet. The magnet always exerts just enough tension to allow the measuring bucket to empty in one quick movement (less than 300 ms) and then return to its normal position, ready to once again collect precipitation. This means the counter weight always remains the same opposite to other conventional two spoons tipping bucket rain gauges.
In the bottom of the rain gauge there is space for a small internal datalogger.

Styrosun

The rain gauge is mainly made in molded modified high-impact polystyrene also known as STYROSUN which is a highly weather-resistant polymer that reduces breakdown and discoloration.

STYROSUN which has passed the Arizona test is extremely resistant against the sun’s UV radiation and it is frost- and heat resistant standing all climatically conditions.

STYROSUN is resistant to common household cleaners, recyclable and easily decorated.
