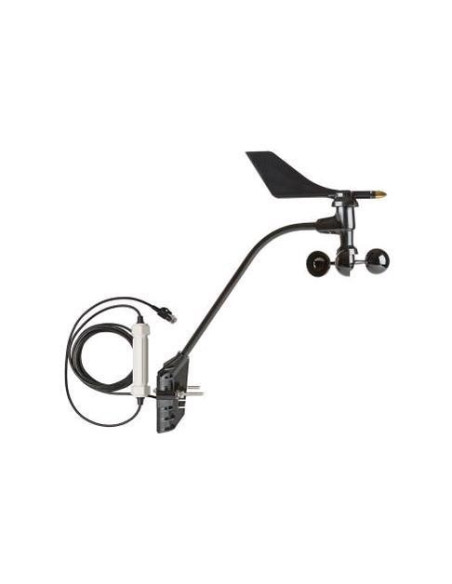

S-WCF-M003 Anemómetro y Veleta Davis para HOBO con Sensor Inteligente

Velocidad de Viento/Ráfaga

Dirección de Viento

Rango de Medida

0 a 76 m/sec (0 a 170 mph)

0 a 355 grados

Precisión

±1.1 m/sec (±2 mph) or ±5% of reading, whichever is greater

±7 grados

Resolución

0.5 m/sec (1.1 mph)

1 grados (0 a 355 grados)

Umbral de arranque

≤1 m/sec (2.2 mph)

1 m/sec (2.2 mph)

Measurement Definition

Cup revolutions are accumulated every three seconds for the duration of the logging interval

Wind speed: Average speed for the entire logging interval

Gust speed: The highest three-second wind recorded during the logging interval

See Measurement Operation.

Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation)

Operating Temperature Range

-40°C to 70°C (-40°F to 158°F)

Environmental Rating

Weatherproof

Housing

Polycarbonate wind cups

UV-resistant ABS wind vane and black-anodized aluminum anemometer arm

Bearing Type

Sealed stainless steel

Turning Radius

108 mm (4.25 in.)

Approximately 135 mm (5.25 in.)

Dimensiones

470 x 191 x 121 mm (18.5 x 7.5 x 4.75 in.)

Peso

1.332 kg (2 lb, 15 oz)

Bits por Muestra

8 for each channel, 24 total

Number of Data Channels*

3

Measurement Averaging Option

Automatic averaging (see Measurement Operation)

Cable Length Available

3 m (9.8 ft)

Length of Smart Sensor Network Cable*

0.5 m (1.6 ft)

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
