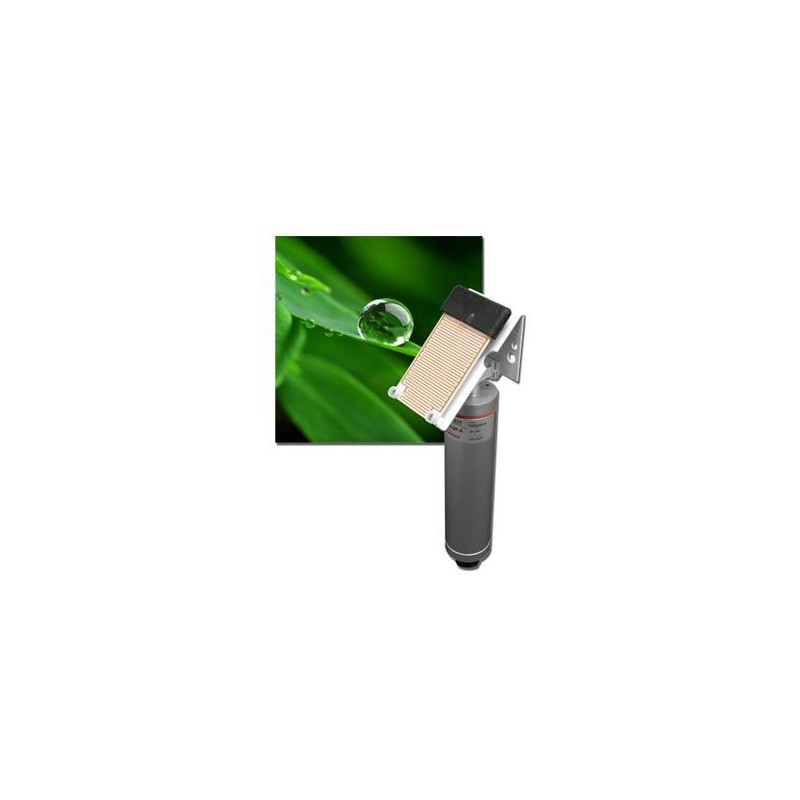

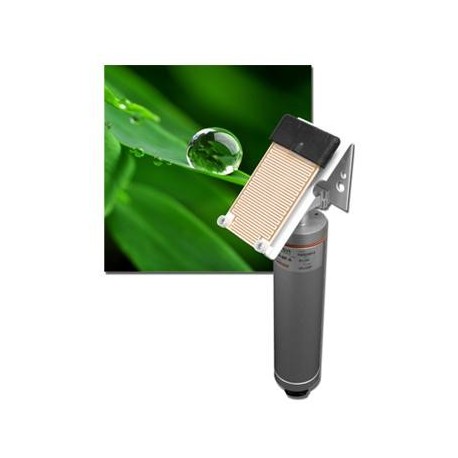

BF-N Leaf Wetness Sensor and Rain Detector (Output: dry contact ON/OFF)

Reference BF-N

Manufacturer: Nesa srl

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet

The Sensor measures:	LEAF WETNESS
Output Signal:	Pulses

The leaf wetness sensor allows to determine the degree of wetting on the foliage, the duration of a certain state (wet or dry) and determine whether there are precipitations (rain). In function of the degree of wetting, the sensor detects a change of the electrical resistance on the elements of the grid and the output signal can be acquired by a data logger

• Leaf wetness or water (rain) presence

• Conforms to standard WMO

• Sturdy and compact design

• Easy to install and low weight

• Electrical Output: RS485/Modbus; presence rain on/off dry contact.

• Operating conditions: -30 ÷ +60°C

• Power supply: 10÷30Vdc
