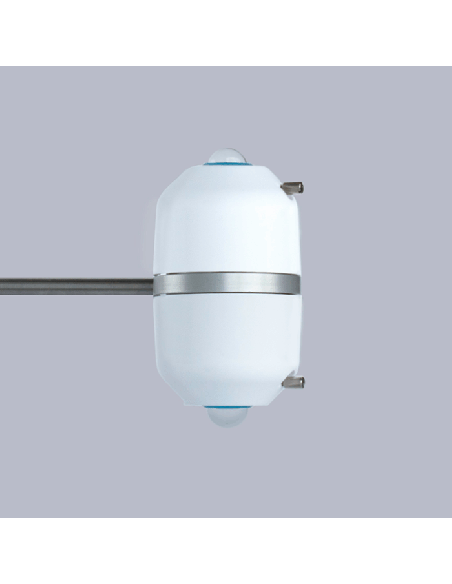

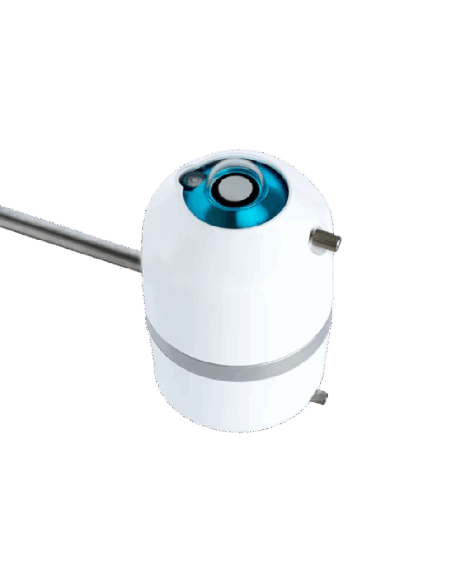

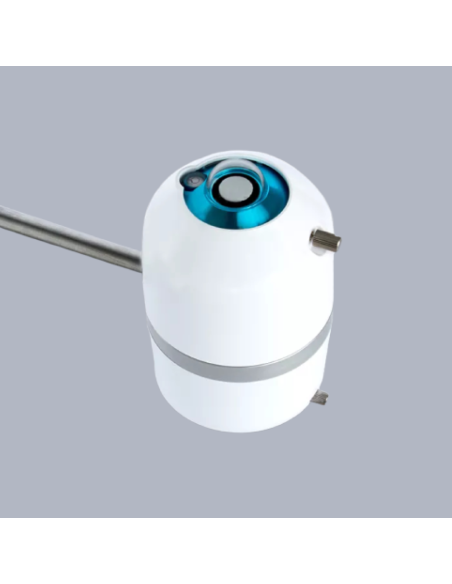

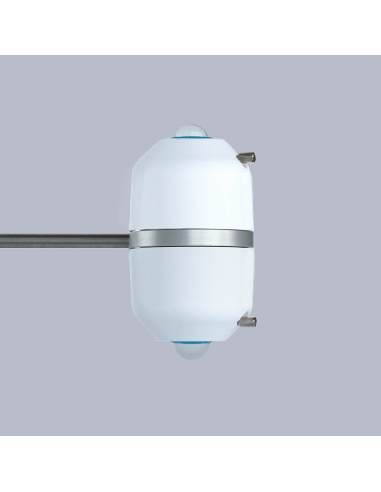

MS-80 Class A Albedometer

Reference: MS-80 - Manufacturer: Eko Instruments

ISO 9060:2018 Class A albedometer for low-uncertainty albedo measurement in meteorology and solar plants with bifacial PV modules.

help_outlineAsk for Quote

MS-80 Class A Albedometer

I accept privacy policy rules



Description

The MS-80 Albedometer combines two MS-80 pyranometers with the MS-Albedo Kit and a glare screen. It is designed to measure albedo with the lowest possible uncertainty across demanding applications, including meteorology and solar power plants with bifacial PV modules.

It delivers ultra-fast, spectrally flat response with exceptionally low zero offset, analog output, a 5-year warranty, and a recommended 5-year recalibration interval. The MS-80 is an ISO 9060:2018 Class A benchmark and an IEC 61724-1 compliant option for photovoltaic performance monitoring and large weather sensor networks.

The patented design uses an isolated thermopile detector, hermetically sealed beneath a pure quartz diffusor in a compact single-dome housing. The diffusor passes all solar wavelengths while reducing the total energy received at detector level, including harmful UV irradiance, improving accuracy, speed, and reliability.

MS-80 sensors are manufactured under strict quality controls. EKO provides calibration compliant with ISO/IEC 17025/9847, validated by a measurement report supplied with the sensor.

Key benefits

  • Under 0.5 s super-fast response time for accurate measurements during rapidly changing irradiance conditions.
  • High reliability with a 5-year warranty and recommended 5-year recalibration interval.
  • Zero offset A below 1 W/m2 and non-stability below 0.5% over 5 years.
  • IEC 61724-1 compliant photovoltaic system performance monitoring.

Specifications

  • ISO 9060:2018 classification: Class A.
  • 95% response time: < 0.5 s.
  • Zero offset A due to thermal radiation (200 W/m2): ± 1 W/m2.
  • Zero offset B due to temperature change (5 K/hr): ± 1 W/m2.
  • Total zero offset C: ± 2 W/m2.
  • Non-stability: < 0.5% over 5 years.
  • Non-linearity (100 to 1000 W/m2): ± 0.2%.
  • Directional response (1000 W/m2 | 0 to 80 degrees): ± 10 W/m2.
  • Spectral error: ± 0.2%.
  • Temperature response (-20 to 50 C): ± 1%.
  • Tilt response (0 to 90 degrees | 1000 W/m2): ± 0.2%.
  • Additional signal processing error: < 1 W/m2.
  • Wavelength range: 285 to 3000 nm.
  • Irradiance range: 0 to 4000 W/m2.
  • Signal output: Analog.
  • Sensor diagnostic: not available.
  • Operating temperature: -40 to 80 C.
  • Supply voltage: 5 to 30 VDC.
  • Power consumption: 0 W.
  • Ingress protection: IP67.
  • Calibration traceability / uncertainty: ISO 17025 / WRR / < 0.7% (k = 1.96).
  • Standard cable length: 10 m, optional 20 m, 30 m and 50 m.
