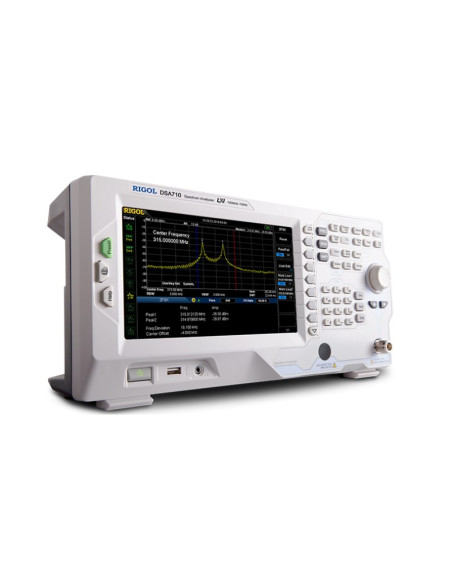

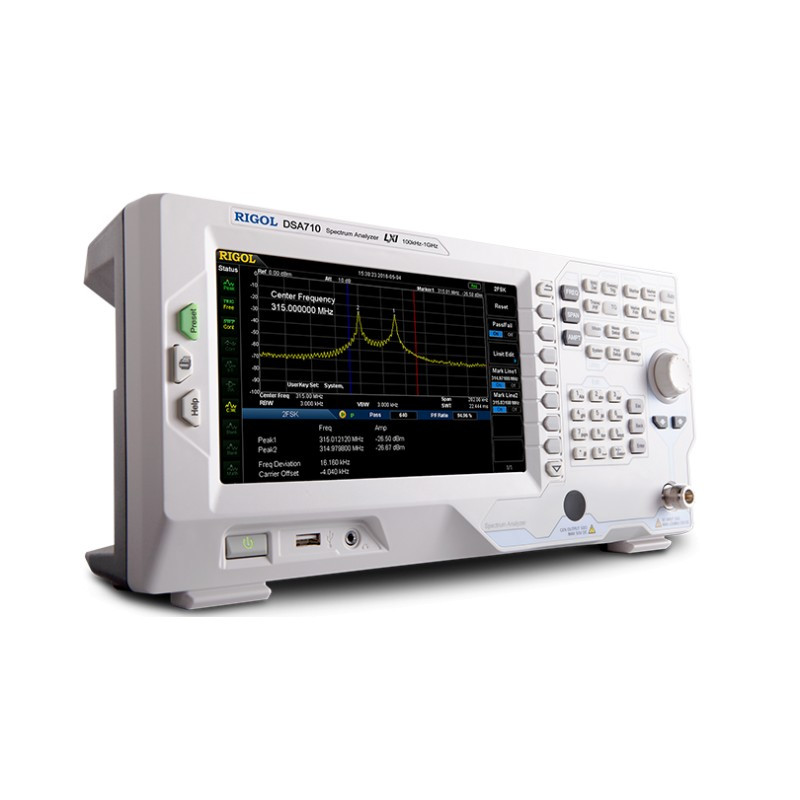

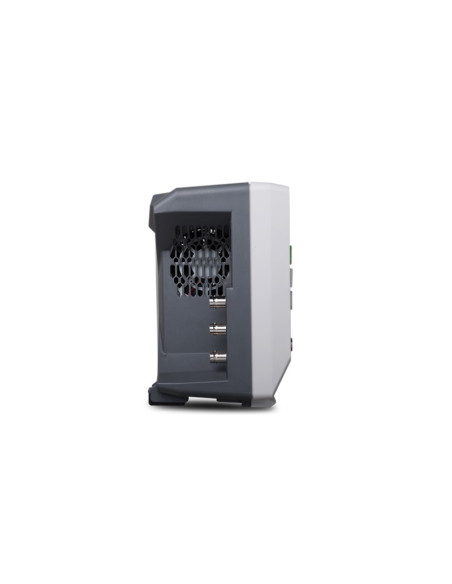

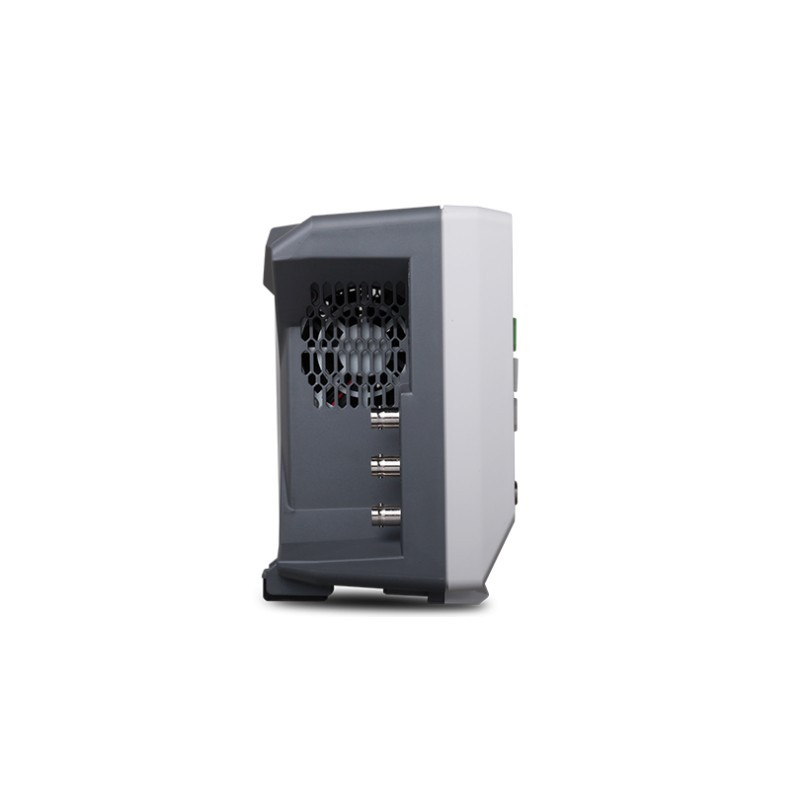

Spectrum Analyzer DSA705, 100kHz - 500MHz.

Reference: DSA705 - Manufacturer: RIGOL

Entry level spectrum analyzers for education, IoT, hobby, and radio applications 500 MHz and 1 GHz models with option for Seamless Signal Capture, EMI, and more

All-Digital IF Technology
Frequency Range from 100 kHz up to 1 GHz

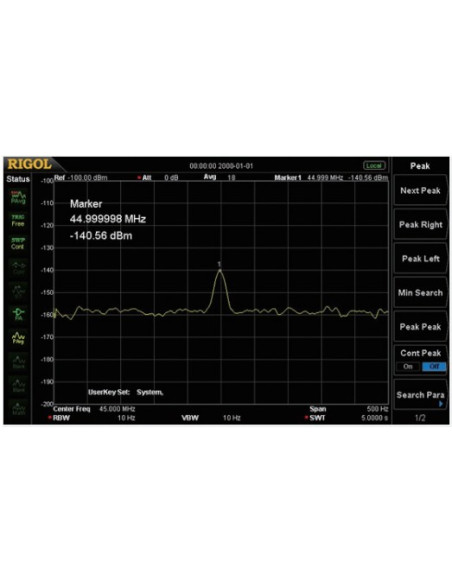

Min. -130 dBm Displayed Average Noise Level (Typ.)
Min. <-80 dBc/Hz @ 10 kHz Offset Phase Noise
Level Measurement Uncertainty <1.5 dB
100 Hz Minimum Resolution Bandwidth
Advanced Measurement Functions (Opt.)

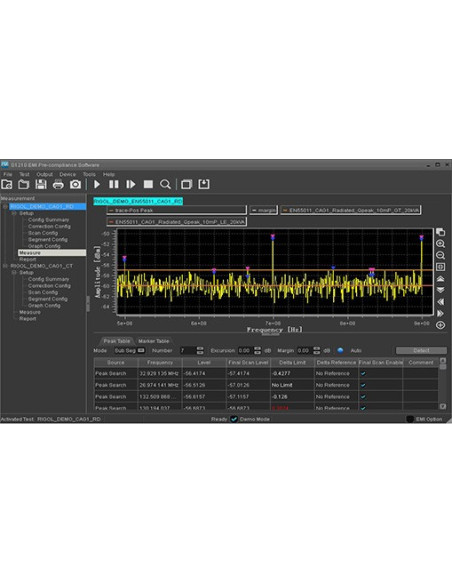

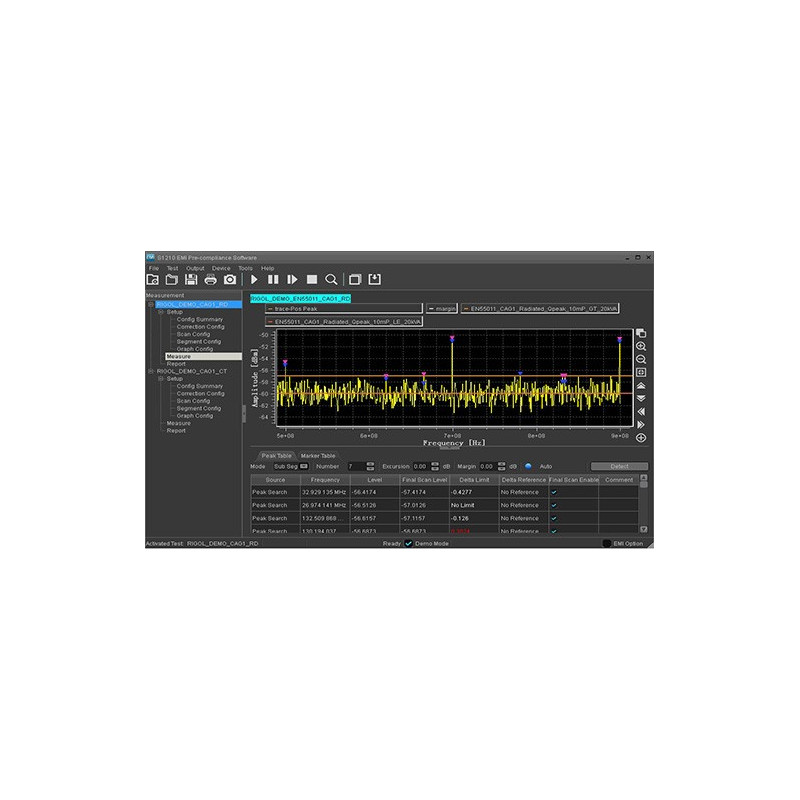

EMI Filter & Quasi-Peak Detector Kit (Opt.)
PC Software (Opt.)
Optional RF TX/RX Training Kit
Optional RF Accessories (Cable, Adaptor, Attenuator ...)
Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
8 Inch WVGA (800×480) Display
Compact Size, Light Weight Design

MEASUREMENT AND CALIBRATION INSTRUMENTS: Spectrum Analyzers

DSA700 Series Manual

Download (4.14MB)

Data Sheet Serie DSA700

Download (19.11MB)
