Waveform Generator DG812, 10MHz 2 chan,125MSa/s,16bit, 2Mpt,7digits/s counter

Reference: DG812 - Manufacturer: RIGOL

The DG800 series redefines the entry-level waveform generator by bringing advanced capabilities like high 16-bit resolution, intuitive touchscreen control, and a quiet fanless design to our most affordable line of generators.

10MHz 2 channel,125MSa/s sample rate,16 bit resolution,2 Mpt memory depth,7 digits counter

SiFi II technology, generating arbitrary waveforms points by points, outputting high-quality waveforms accurately
Built-in 8 orders harmonics generator
Standard waveform combination and channel tracking function
4.3'' TFT color touch screen and brand new UI design

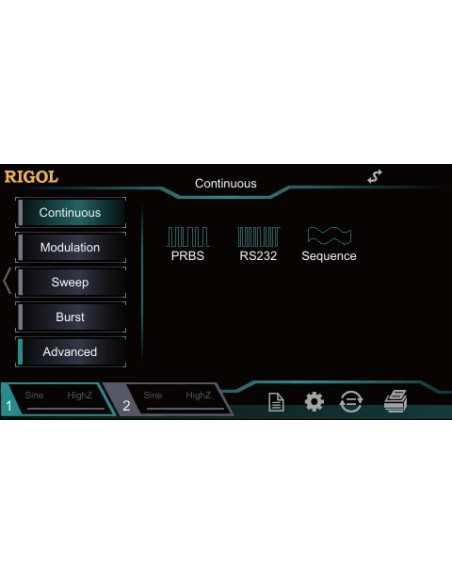

PRBS, RS232, and Sequence output

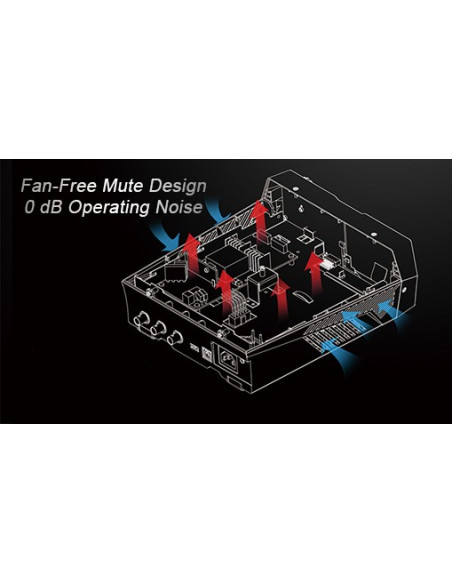

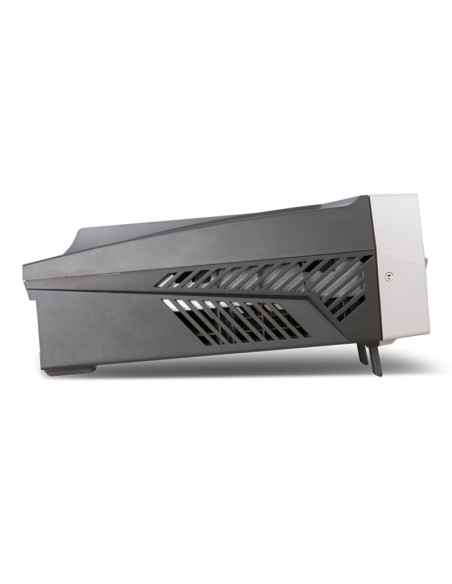

Fan-free mute design

MEASUREMENT AND CALIBRATION INSTRUMENTS: Function Generators

DG800 Series Manual

Download (2.18MB)

Serie DG800 Data Sheet

Download (4.04MB)
