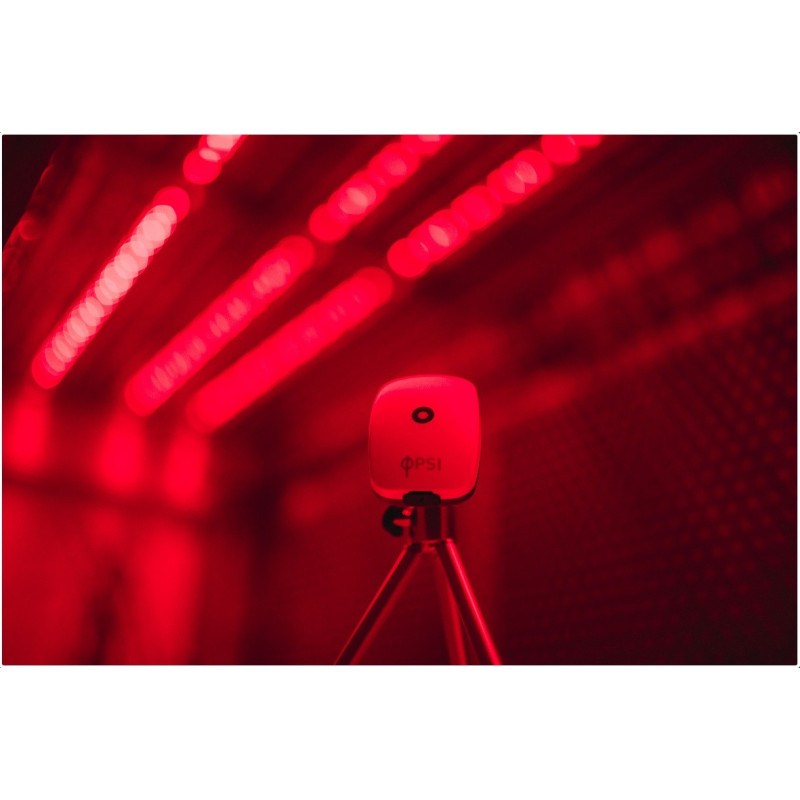

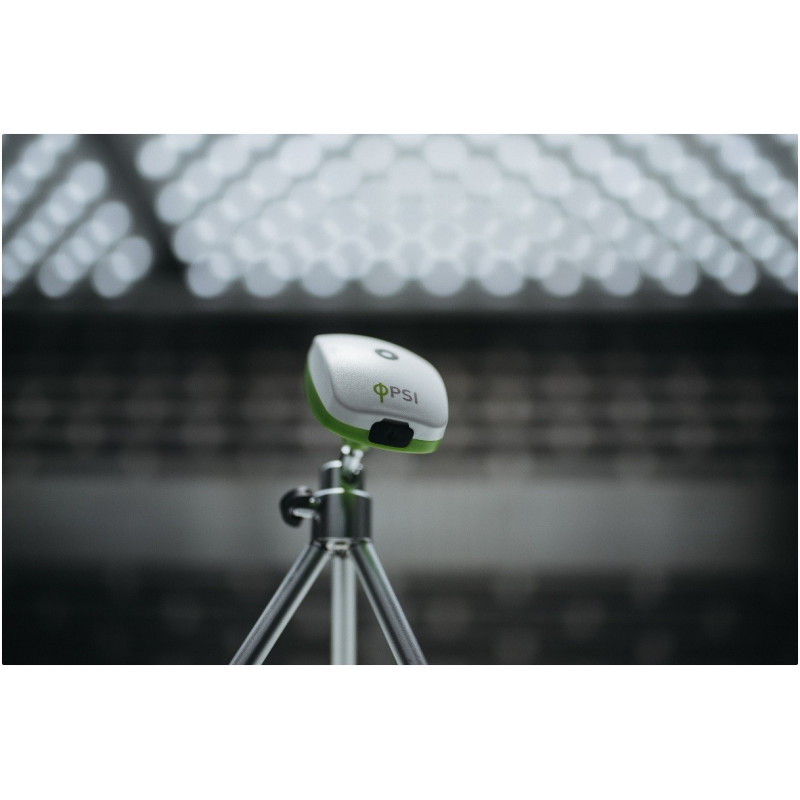

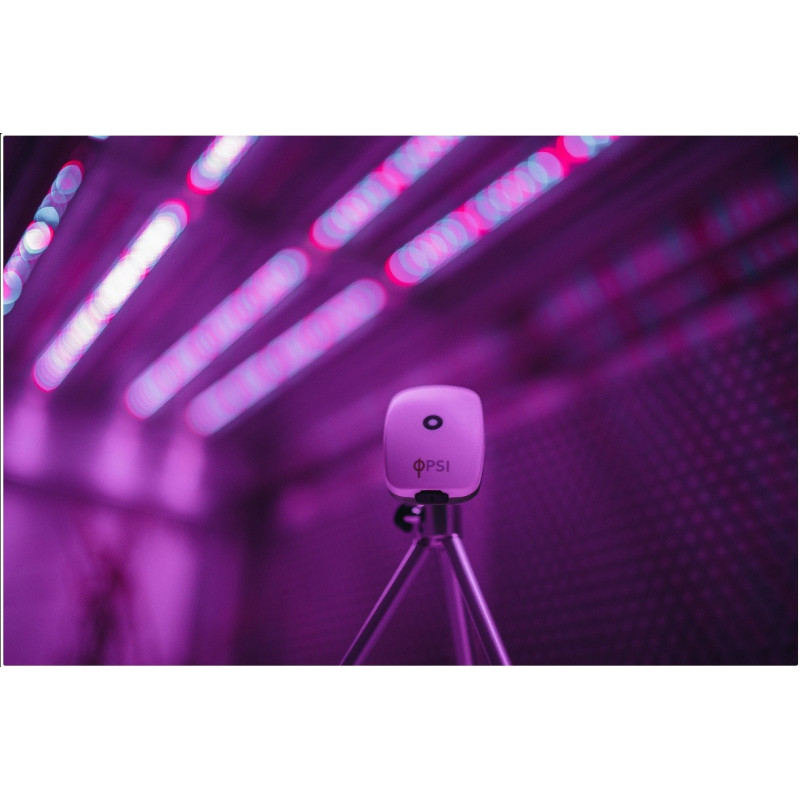

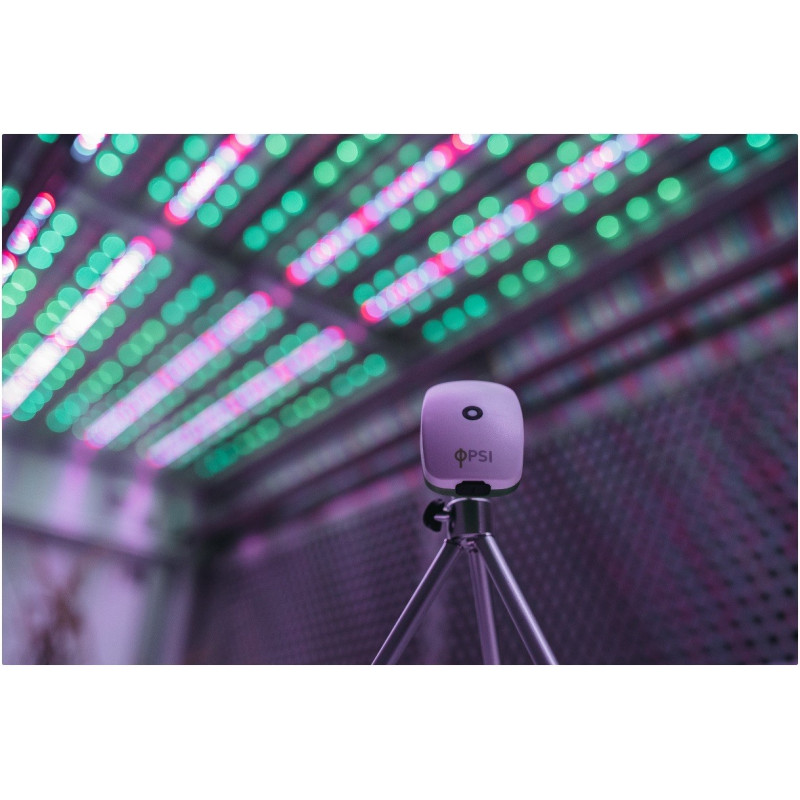

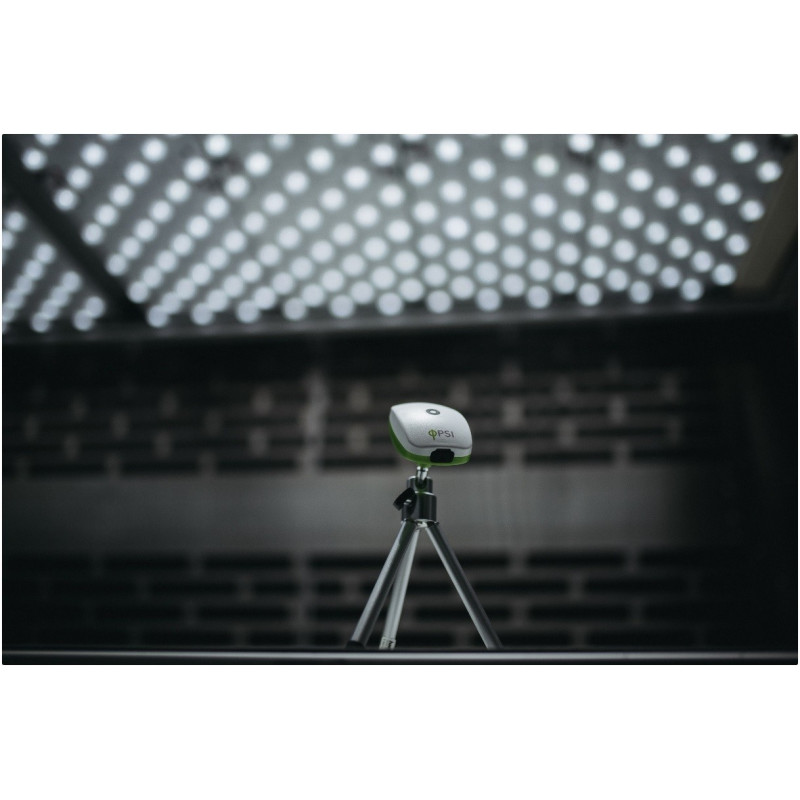

SpectraPen mini Spectroradiometer and Quantum Light Meter (340 - 850 nm)

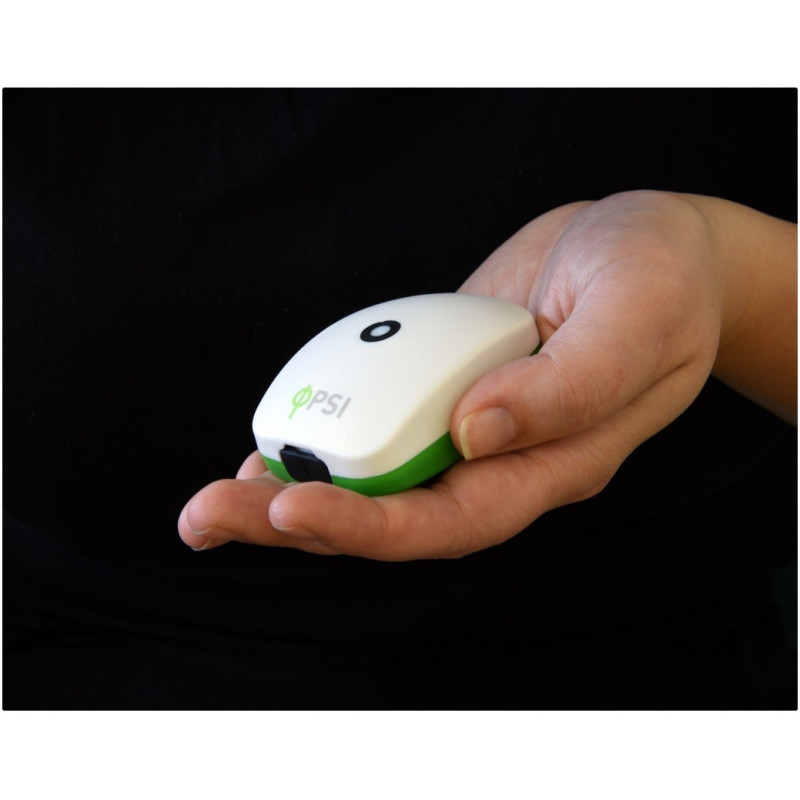

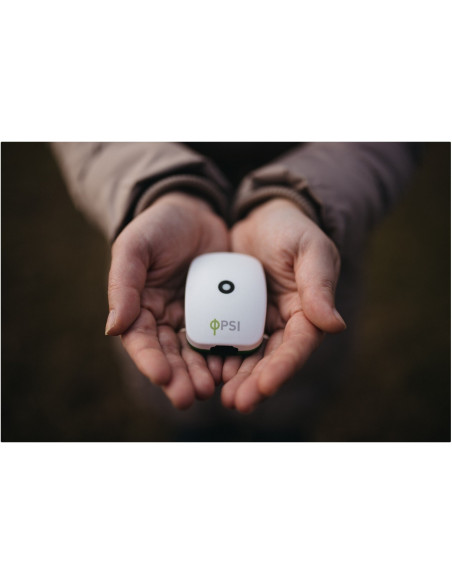

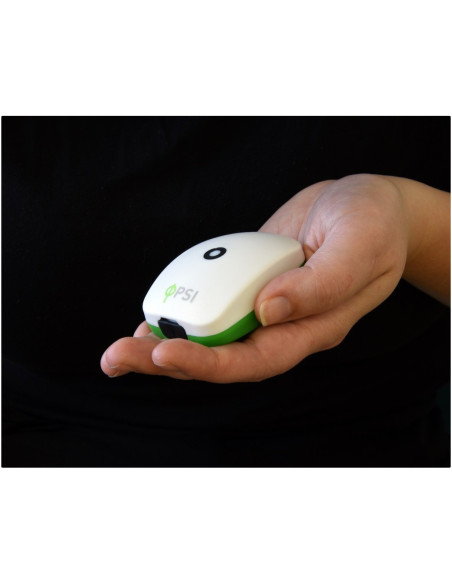

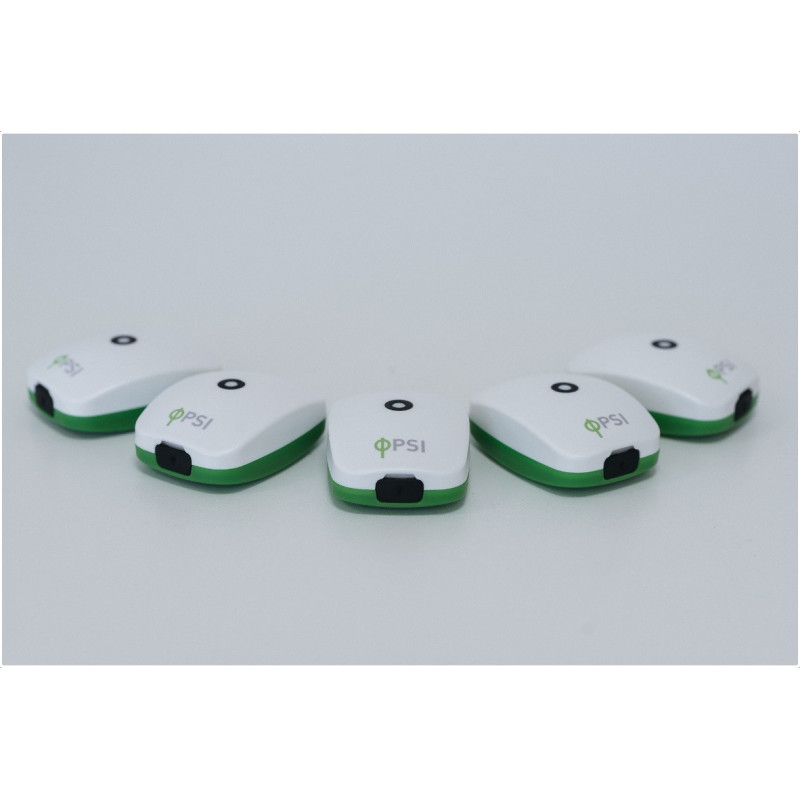

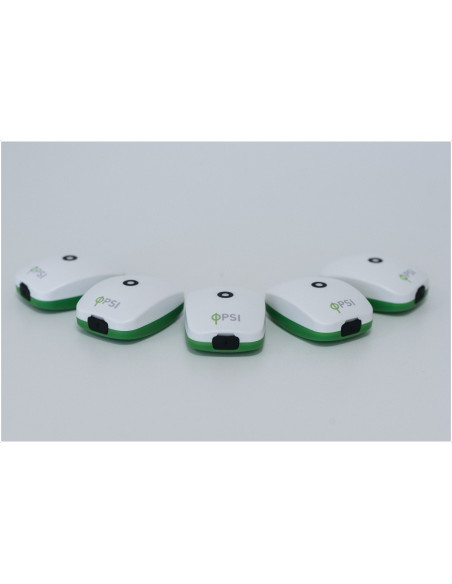

SpectraPen mini is a small, portable and affordable calibrated spectroradiometer and quantum light meter, which is controlled via mobile application.

The SpectraPen mini measures spectral quality, light intensity and color. The device is calibrated for visible light in the range from 340 to 850 nm. The sensor is equipped with cosine corrector, that extends the light collecting angle. Measured data are saved using the mobile application and can be shared to computer. PC software enables data visualization and export for further processing.

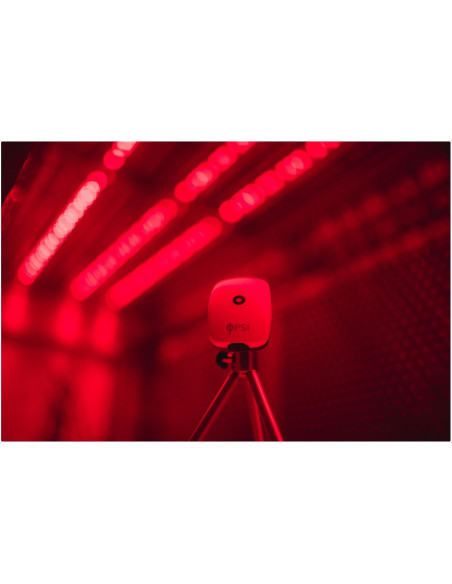

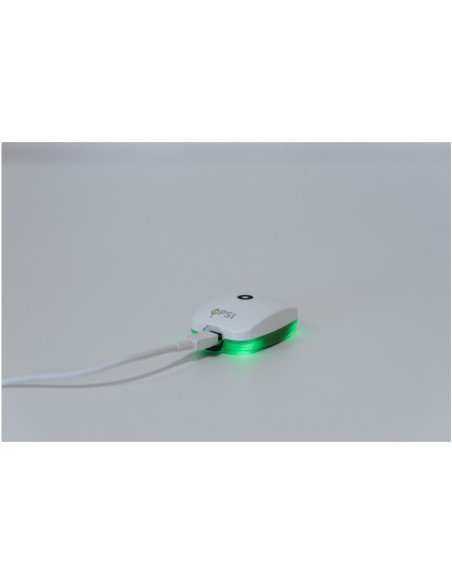

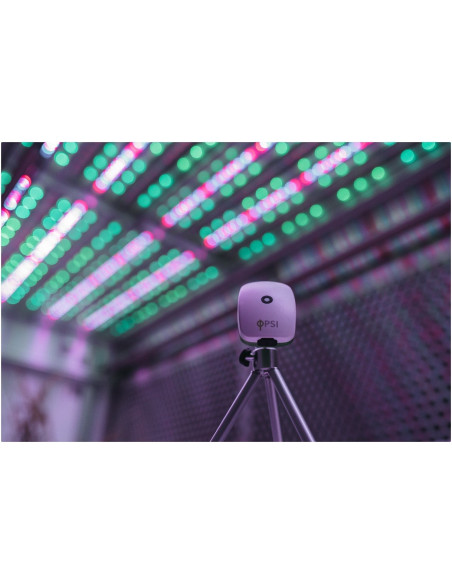

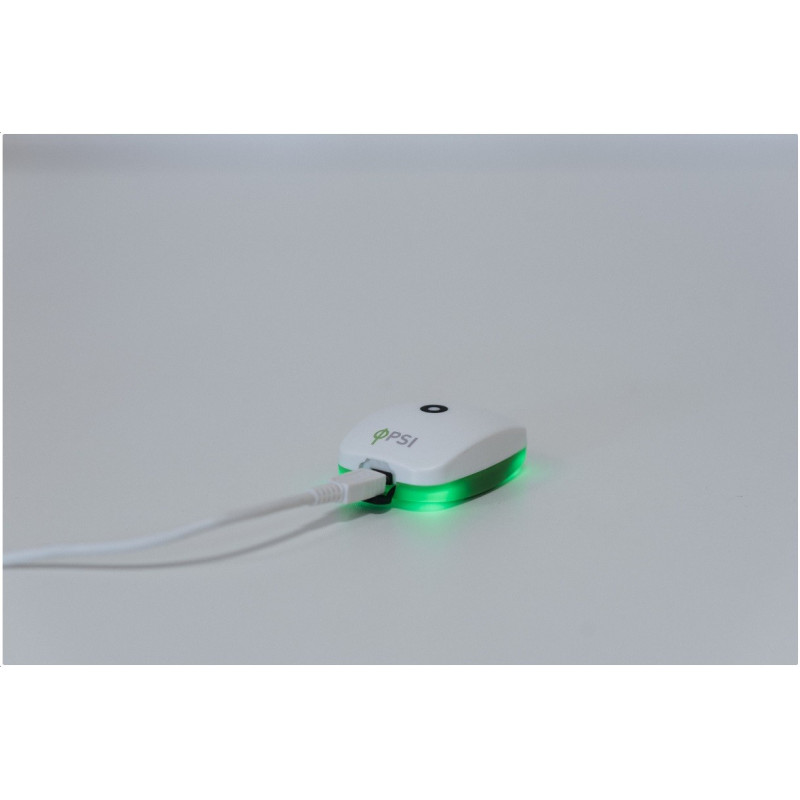

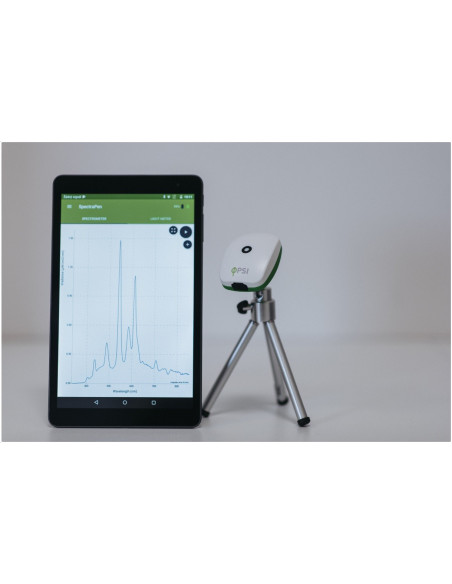

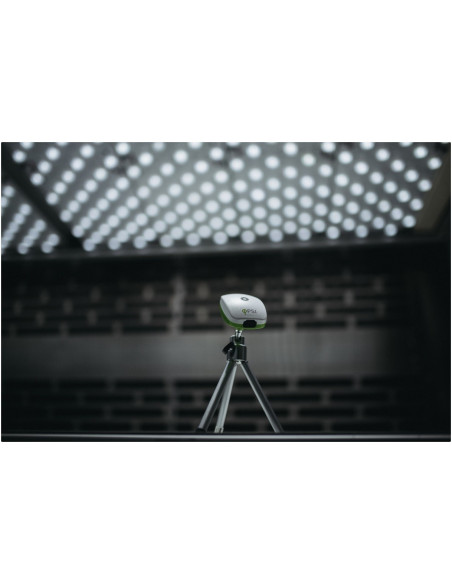

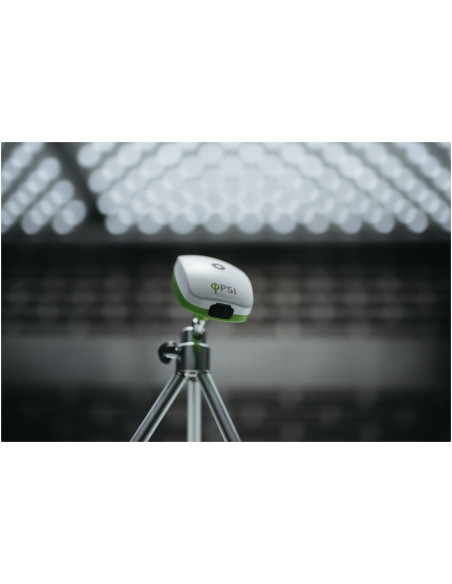

The SpectraPen mini is ideal as a multi-purpose instrument for research, industrial and agricultural applications. The device is supplied with splash-proof case, rechargable battery and magnetic holder for tripod. These features make SpectraPen mini an ideal tool for field measurements.

Key Features

- Small, portable and affordable spectroradiometer
- Light spectrum, intensity and color measurement
- Calibrated for visible light in the range from 340 to 850 nm

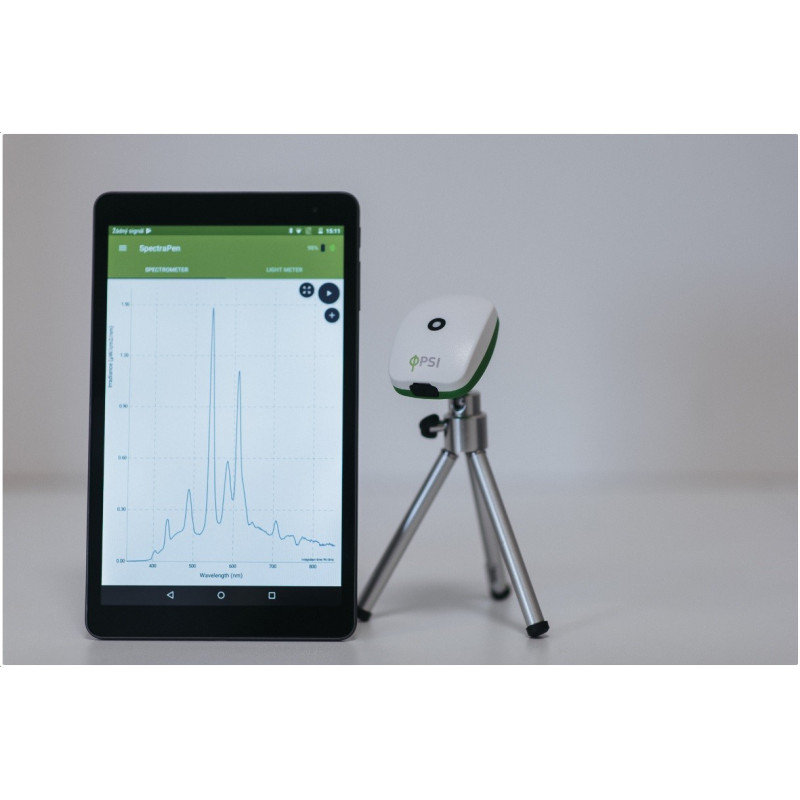

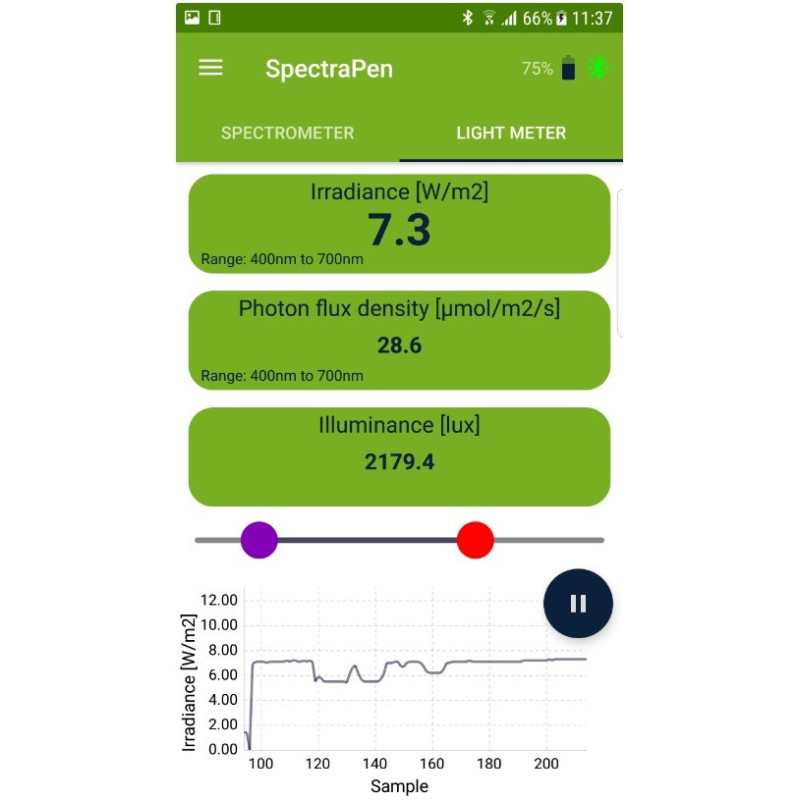

- Control and data acquisition via mobile app
- Splash-proof construction
- PC software for data visualization and export

SPECTRAPEN MEASURES

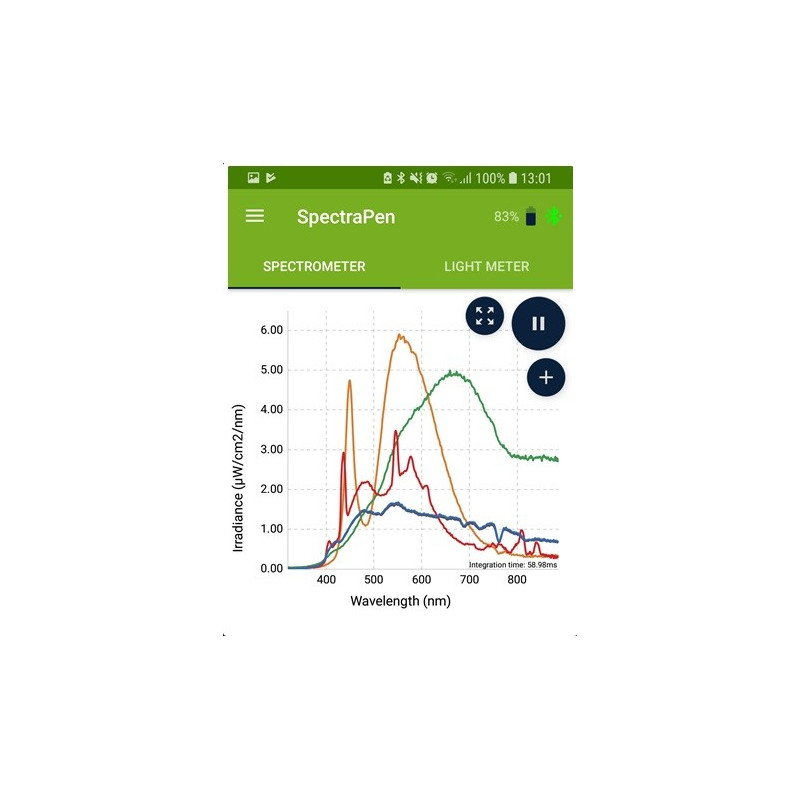

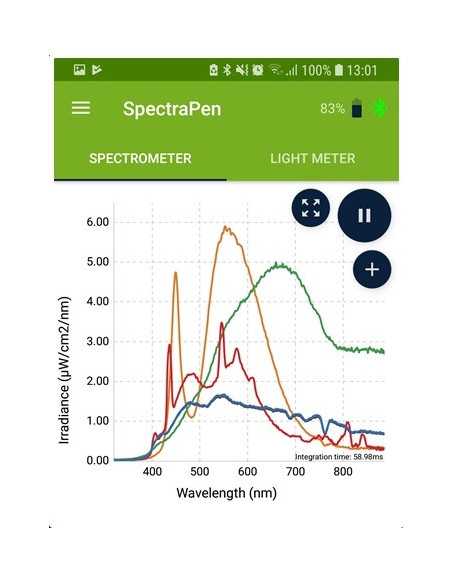

Spectrum
· Irradiance [µW.cm-2 .nm-1 ]
· Irradiance [W.m-2 .nm-1 ]
· Photon flux density [µmol(photon).m2.s-1.nm-1]

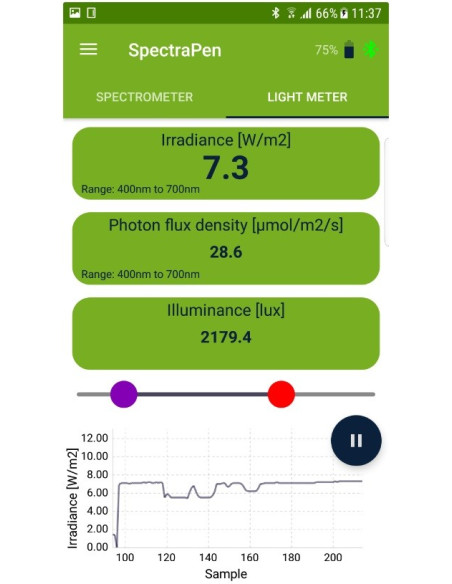

Absolute light intensity

Measured with custom predefined wavelength range:

· Irradiance [W.m-2]
· Photon flux density [µmol(photon).m-2.s-1]

Measured with fixed wavelength range:

· Illuminance [Lux]

Custom defined formulas in SpectraPen software

Health & Safety
- Blue light detection/monitoring
- UV inspection
- Architectural installations& lighting design

Industry

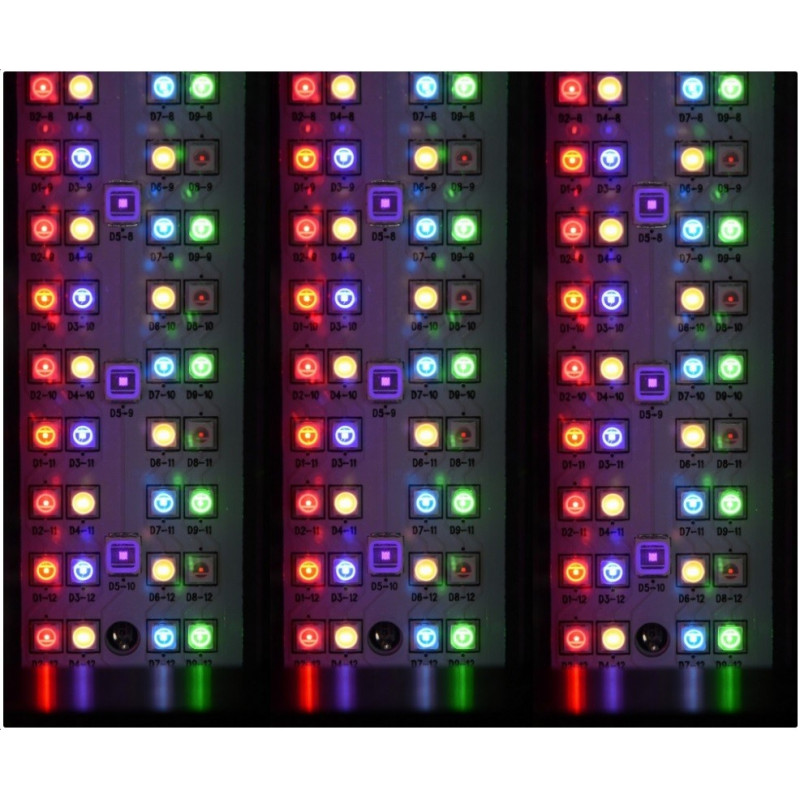

- LED production & check
- Light source quality inspection

Agriculture

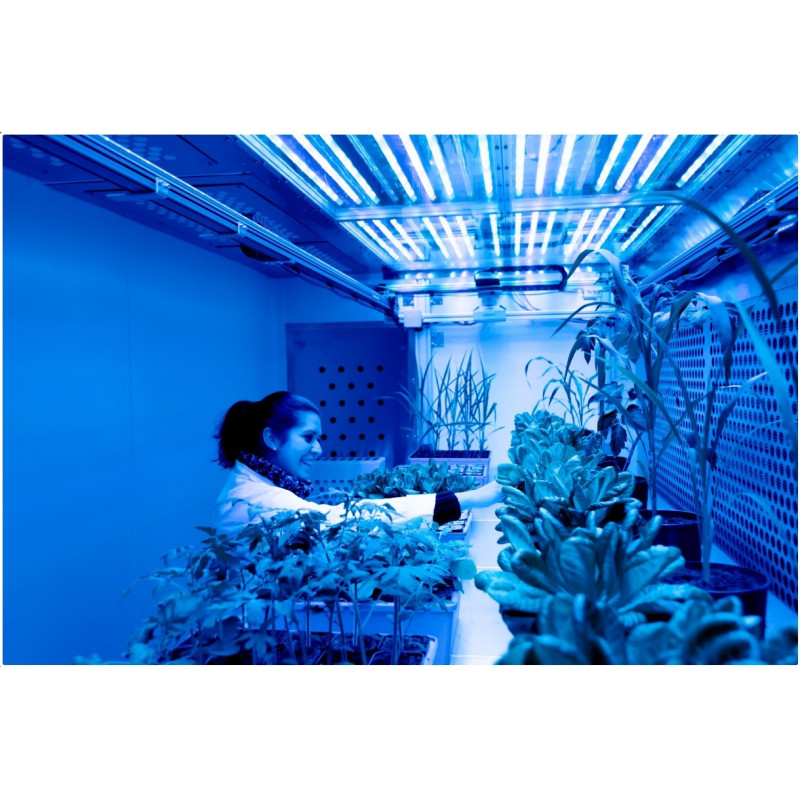

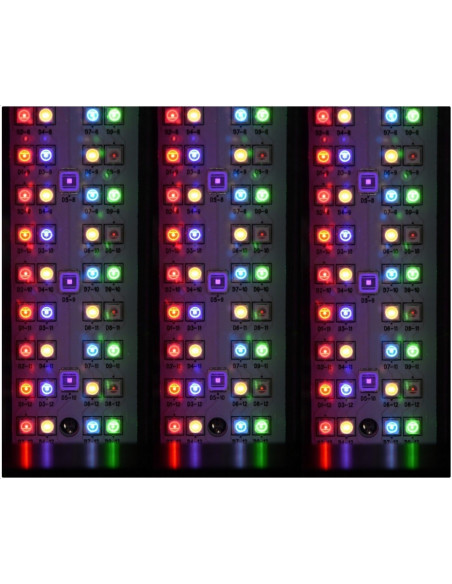

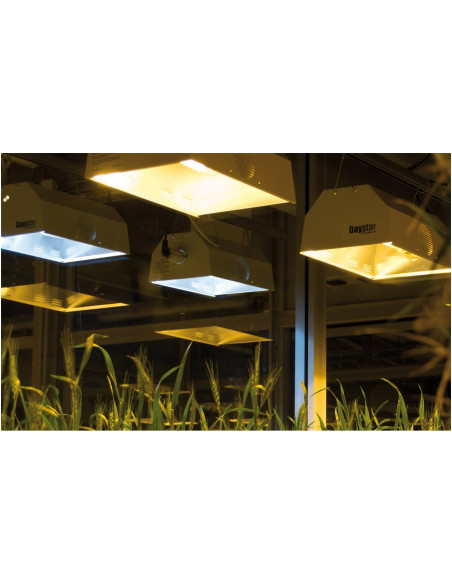

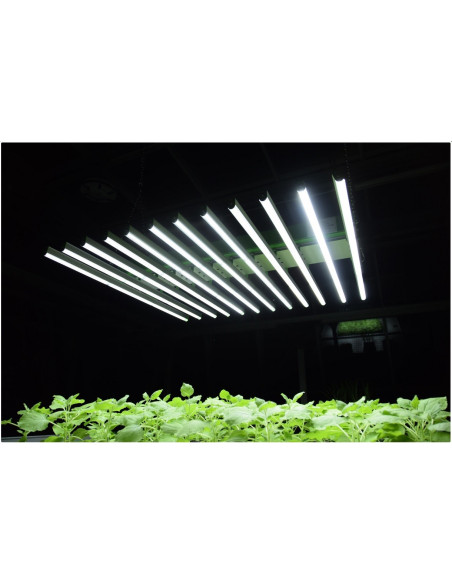

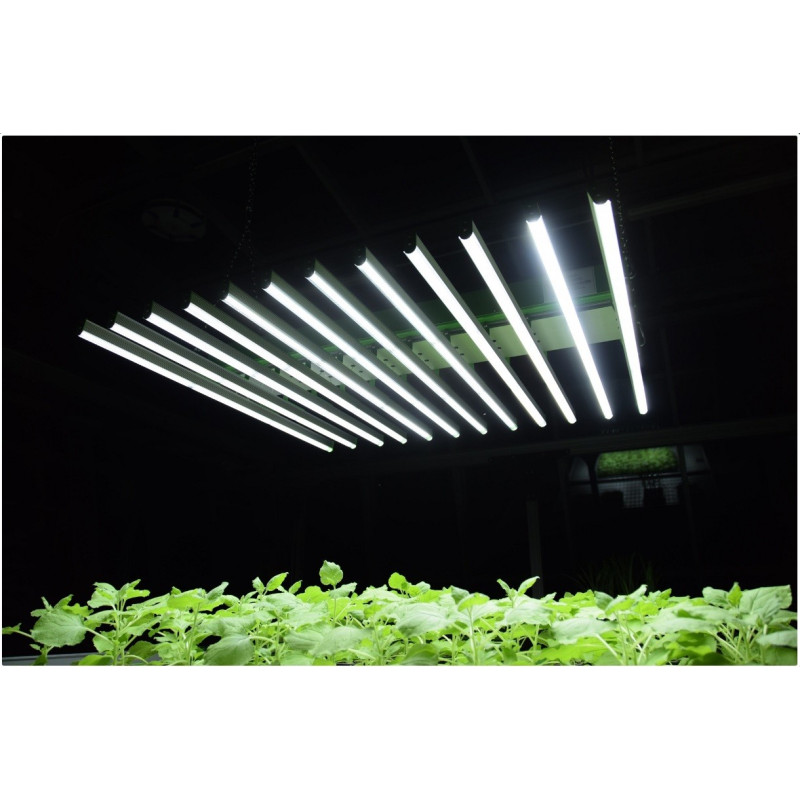

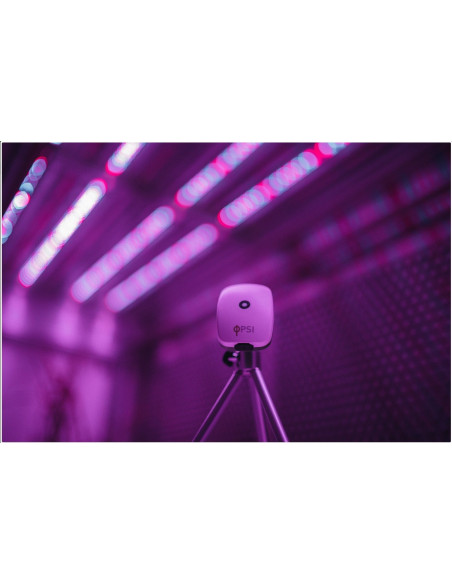

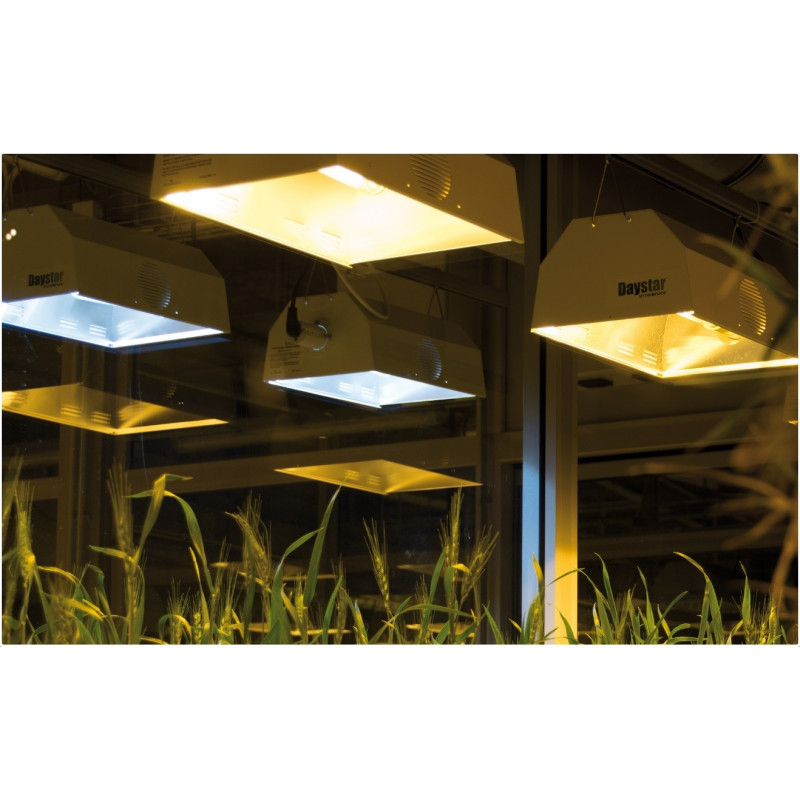

- Lights in greenhouses and growth chambers
- Measure LEDs as well as broad spectrum light sources including sun light
- Optimize composition of supplemental lights
- Automotive lighting
- Find your lighting formula
- Academics Research & Teaching

- SpectraPen software 1.1.0.10 (exe)

- Android Application*

* Application requires Android 5.0 or higher

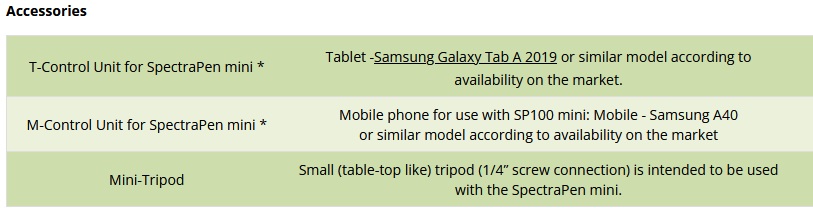

- T-Control Unit for SpectraPen mini
Tablet -Samsung Galaxy Tab A 2019 or similar model according to availability on the market.

- M-Control Unit for SpectraPen mini
Mobile phone for use with SP100 mini: Mobile - Samsung A40 or similar model according to availability on the market
