Industrial Spray Particle Size Analyzer PA-3190

Reference: PA-3190 - Manufacturer: MRC

Bench-top spray laser particle size analyzer for droplet size test.

Models & Testing Range:
PA-3190A:   1μm-500μm
PA-3190B:   1μm-1000μm
PA-3190C:   1μm-2000μm

Bench-top spray laser particle size analyzer for droplet size test.
Executive Standard: ISO13320-1：1999，GB/T19077.1-2008，Q/0100JWN001-2013

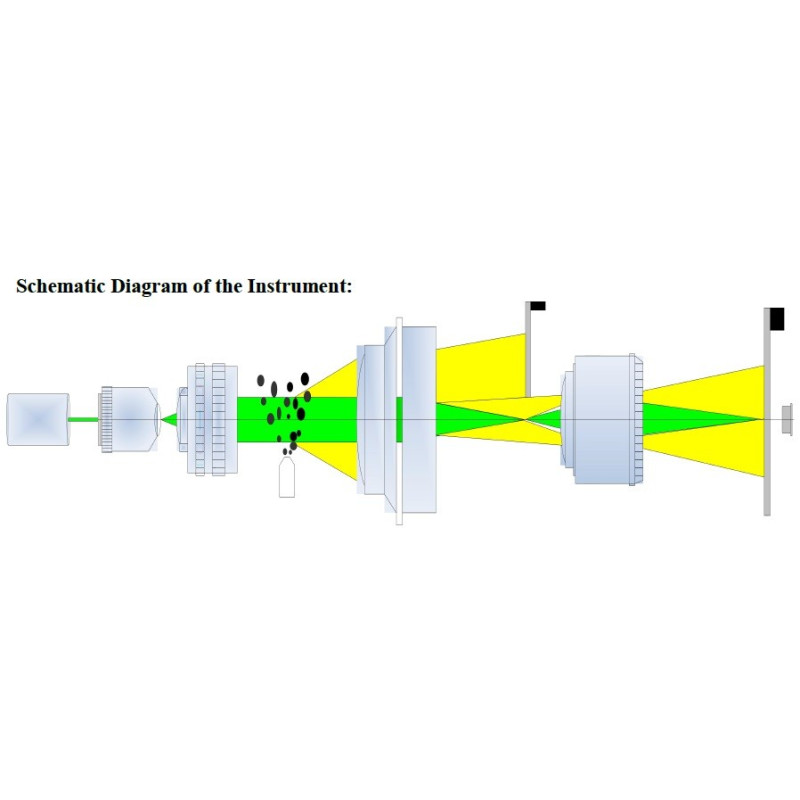

Principle: Fraunhofer diffraction principle
Instrument Structure: Split-Type
Testing Range: 1μm-1000μm
Number of Channels: 51 pcs
Data Acquisition Rate: ≧2KHZ
Laser: LD Pump Laser；λ=532nm, p>40mw, life time>25000 hour
Laser safety: Class 3B
Operation platform: Common model, Windows 7/8/10 (64 bits) need install Office 2003
Transmit port: L369*W295*H360mm
Receive port:L858*W295*H360mm
Weight: 68KG

Instrument for:: Particle Size
Function:: Analyze Particle Size

PA-3190 Data Sheet

Download (2.77MB)
