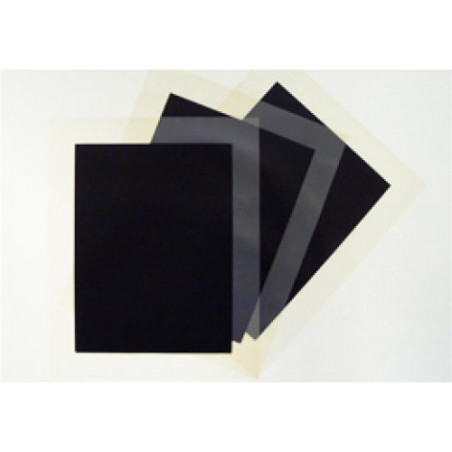

Reversible Fuel Cell MEA - 3 Layer - Ref.: 1141018

Reversible Fuel Cell MEA - 3 Layer - Ref.: 1141018

Reversible Fuel Cell MEA - 3 Layer - Ref.: AO-1141018

Reference: AO-1141018

These Reversible Membrane Electrode Assemblies (MEA) AO-1141018 can be used as in an Electrolyzer for Hydrogen production or in Polymer Electrolyte Fuel Cell (PEMFC) for electricity production.

Select Size

They are perfect for educational purposes or demonstrations of the advantages of hydrogen as an energy storage medium.
These Reversible MEAs come in a 3-Layer configuration, also known as a Catalyst Coated Membrane (CCM).
We can assist with additional customization as well as the unique design aspects of Reversible Fuel Cell / Electrolyzer systems.

MEA Properties
MEA Type	Reversible Fuel Cell or in an Electrolyzer system or PEM Fuel Cell
Membrane Type	Nafion™ 115
Membrane Thickness	127 micrometers (5 mil)
Anode Loading	1.5 mg/cm² of two catalysts
Anode Catalyst	Iridium Ruthenium Oxide and Platinum Black
Cathode Loading	3.0 mg/cm²
Cathode Catalyst	Platinum Black
Gas Diffusion Layer	None

Type of Cells: MEA's & GDL
