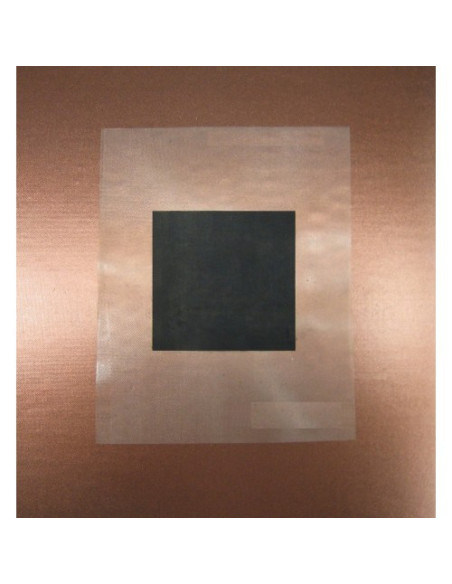

Direct Methanol Fuel Cell MEA - 3 Layers - Ref.: 1141006

Direct Methanol Fuel Cell MEA - 3 Layers - Ref.: 1141006

Direct Methanol Fuel Cell MEA - 3 Layers - Ref.: AO-1141006

Reference: AO-1141006 - Manufacturer: AO-Electronics

The DMFC MEA is often useful in lower power applications. The DMFC MEA is a 3-Layer configuration, also known as Catalyst Coated Membrane (CCM).

Select Size

Methanol (MeOH) can be used directly (without the need for a reformer) with Direct Methanol Fuel Cell (DMFC) Membrane Electrode Assemblies (MEA). It also allows a liquid fuel to be used directly in a fuel cell instead of a gaseous fuel.

MEA Properties
MEA Type	Direct Methanol Fuel Cell (DMFC)
Membrane Type	Nafion™ 117
Membrane Thickness	183 micrometers (7.2 mil)
Anode Loading	4.0 mg/cm²
Anode Catalyst	Platinum Ruthenium
Cathode Loading	4.0 mg/cm²
Cathode Catalyst	Platinum Black
Gas Diffusion Layer	None

Type of Cells: MEA's & GDL
