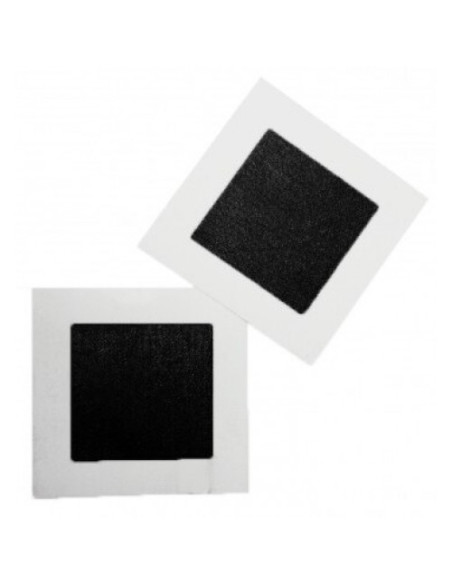

MEA for PEM Research Cell - 5cm² - Ref.: 550025

MEA for PEM Research Cell - 5cm² - Ref.: 550025

MEA for PEM Research Cell - 5cm² - Ref.: AO-550025

Reference: AO-550025 - Manufacturer: AO-Electronics

This 5-Layer Membrane Electrode Assembly (MEA) is the standard MEA for use in the Electrically Heated PEM Research Cell - 5cm².

Specifications:
- Membrane Type: Nafion™ 212
- Active Area: 2.2 x 2.2cm
- Membrane Area: 7.2 x 3.8cm
- Anode Loading & Catalyst: 0.3 mg/cm² Platinum on Carbon 40%
- Cathode Loading & Catalyst: 0.3 mg/cm² Platinum on Carbon 40%
- Gas Diffusion Layer: Sigracet 28BC
- Gas Diffusion Layer Type : Carbon Paper

Type of Cells: MEA's & GDL
