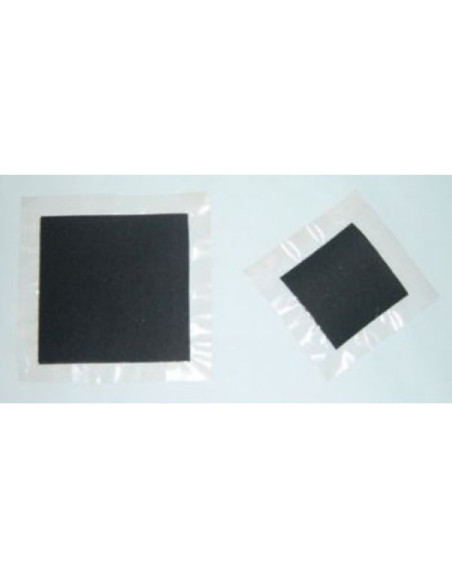

Hydrogen Oxygen MEA - 5 Layer, Ref.: AO-590914

Hydrogen Oxygen MEA - 5 Layer, Ref.: AO-590914

Hydrogen Oxygen MEA - 5 Layer, Ref.: AO-590914

Reference: Ref.: AO-590914 - Manufacturer: AO-Electronics

These are 5-Layer Hydrogen Oxygen MEAs.

Select Size

This High performance Polymer Electrolyte Fuel Cell (PEMFC) Membrane Electrode Assembly (MEA) is used where performance and efficiency is critical.
It can be used in Hydrogen/Air or Hydrogen/Oxygen fuel cells.
It is the most economical high performance MEA on the market, the standard configuration features a high Platinum loading (4 mg/cm²) and a 0.005” membrane (Nafion™ 115) with a 365 um thick carbon cloth GDL (others available).
There are available custom sizes and configurations with no minimum order quantities.
The typical lead timesare of 1 to 5 days, even for custom configurations.

Active Area	Membrane Area
2.2cm x 2.2cm	10.0cm x 10.0cm
5.0cm x 5.0cm	10.0cm x 10.0cm
7.1cm x 7.1cm	13.0cm x 13.0cm
10.0cm x 10.0cm	13.0cm x 13.0cm

MEA Properties
MEA Type	Hydrogen Oxygen Fuel Cell
Membrane Type	Nafion™ 115
Membrane Thickness	127 micrometers (5 mil)
Anode Loading	4.0 mg/cm²
Anode Catalyst	Platinum Black
Cathode Loading	4.0 mg/cm²
Cathode Catalyst	Platinum Black
Gas Diffusion Layer	Carbon Cloth with MPL - W1S1010
Gas Diffusion Layer Type	Woven Carbon Fiber Cloth
Gas Diffusion Layer Thickness	.365 mm (365 microns)

Type of Cells: MEA's & GDL
