MEA for Expandable PEM Research Test Cell - 50cm² - Ref.: 550020

MEA for Expandable PEM Research Test Cell - 50cm² - Ref.: 550020

MEA for Expandable PEM Research Test Cell - 50cm² - Ref.: AO-550020

Reference: AO-550020 - Manufacturer: AO-Electronics

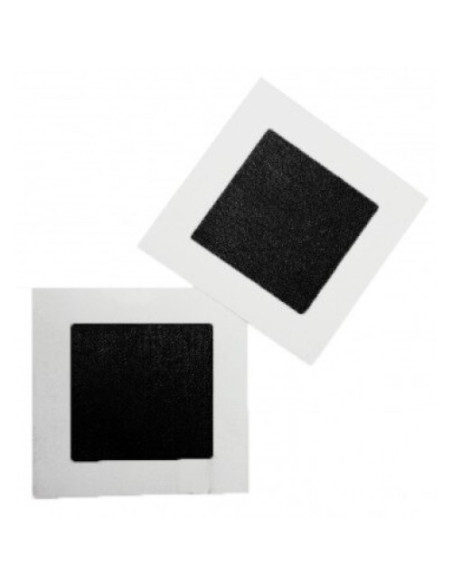

This 5-Layer Membrane Electrode Assembly (MEA) is the standard MEA for use in the Expandable PEM Research Test Cell.

Specifications:
- Membrane Type: Nafion™ 212
- Active Area: 7.2 x 7.2cm
- Membrane Area: 12.8 x 12.8cm
- Anode Loading & Catalyst: 0.3 mg/cm² Platinum on Carbon 40%
- Cathode Loading & Catalyst: 0.3 mg/cm² Platinum on Carbon 40%
- Gas Diffusion Layer: Sigracet 28BC
- Gas Diffusion Layer Type : Carbon Paper

Type of Cells: MEA's & GDL
