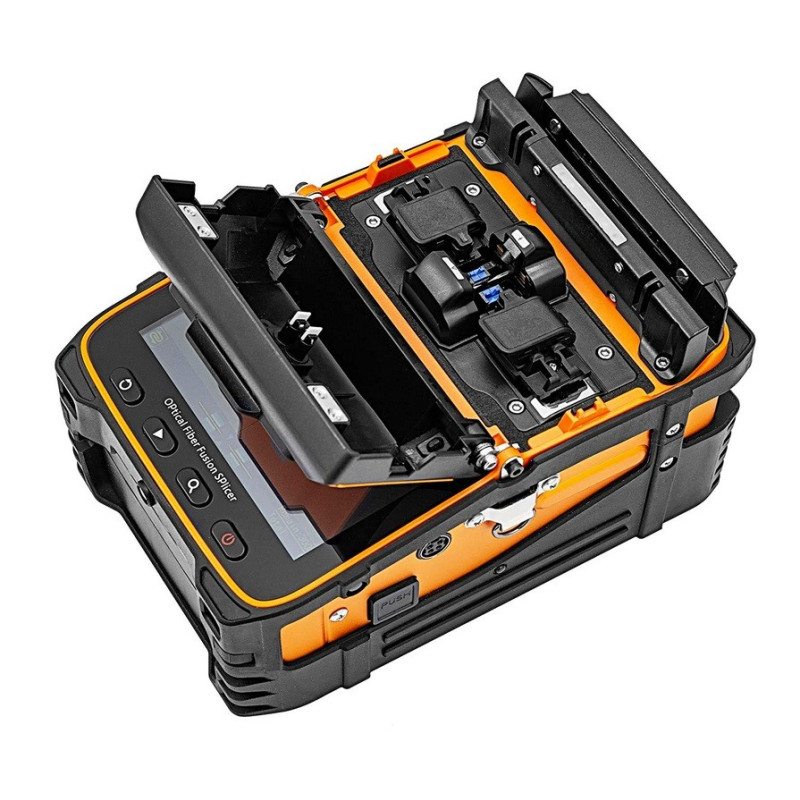

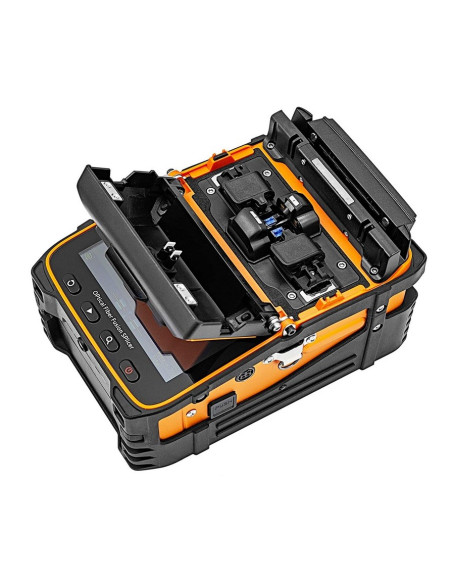

Fiber Optic Splicer, Splicing Machine, Fiber Optic Fusion Splicer for SM Ref.: AO-AI-9

- 3-in-1 Fiber Support
- Applicable fiber:
- SM (G.652 and G.657)
- MM (G.651)
- DS (G.657)
- NZDS (G.655).
- 5 inch 800X480 high resolution Tft screen.
- The operation graphics are simple and intuitive which increases the zoom magnification up to 300 times.
- Built-in Power and Vfl Meter: Effectively measures connection loss, verifies continuity, and helps evaluate fiber link transmission quality.

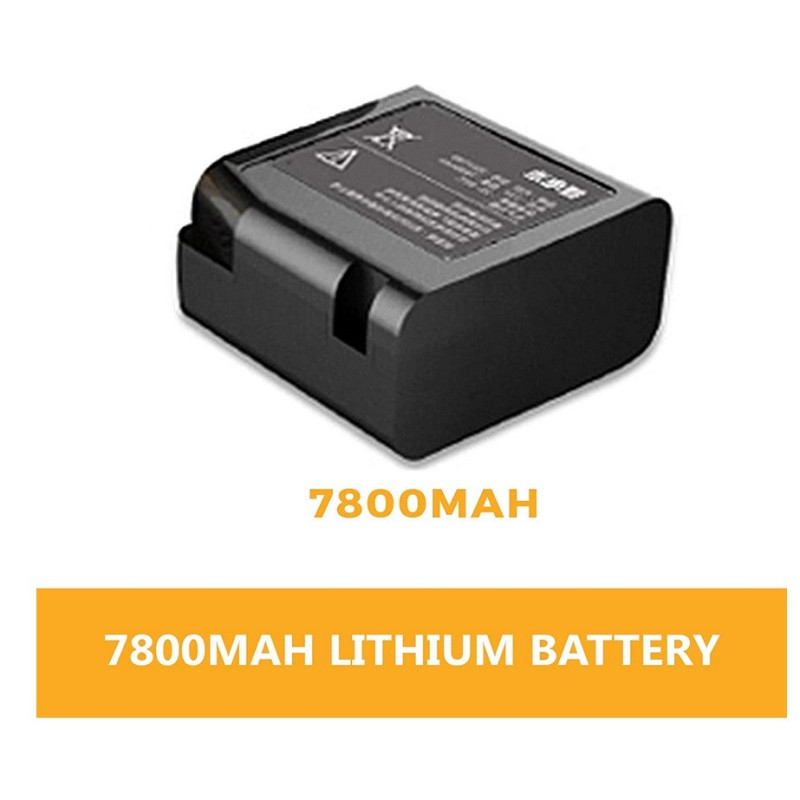

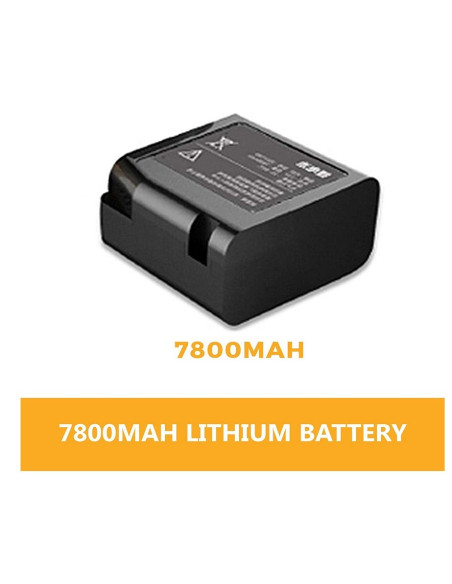

- 7800Mah Lithium Battery: 7800 mA high capacity lithium battery, charging time ≤ 3.5 hours, splicing and continuous heating about 200 times.

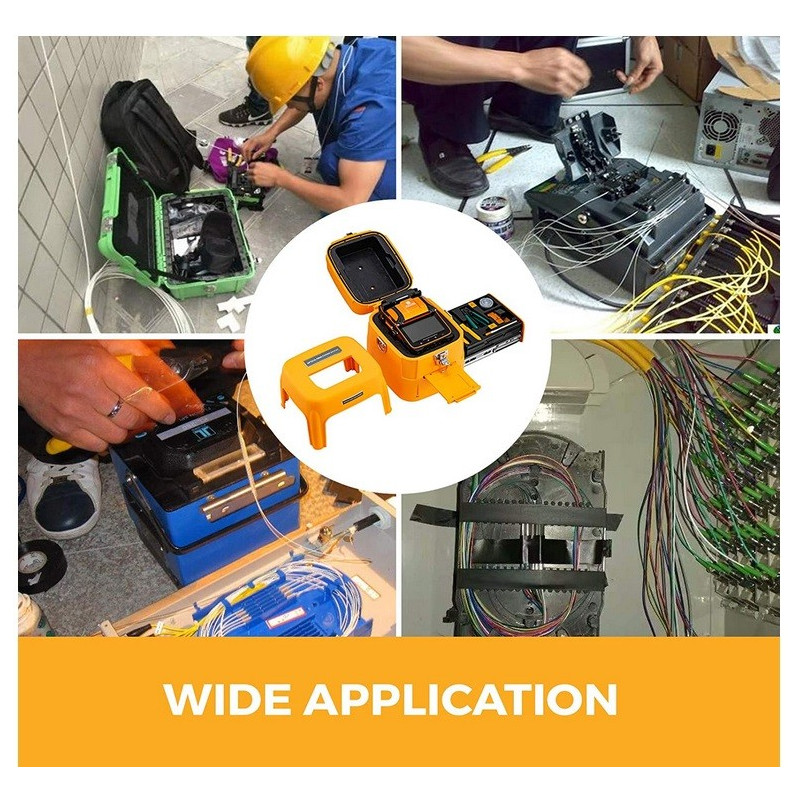

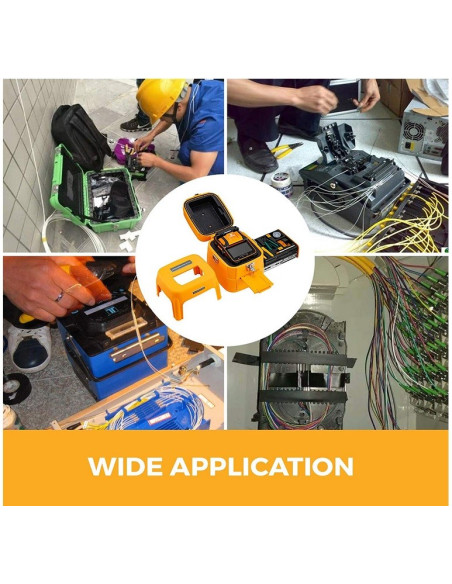

- Very wide field of applications: Especially suitable for fiber optic and cabling projects, maintenance of scientific research, facilities, railways, petrochemicals, electrical energy, military and public security and other fields in communications.

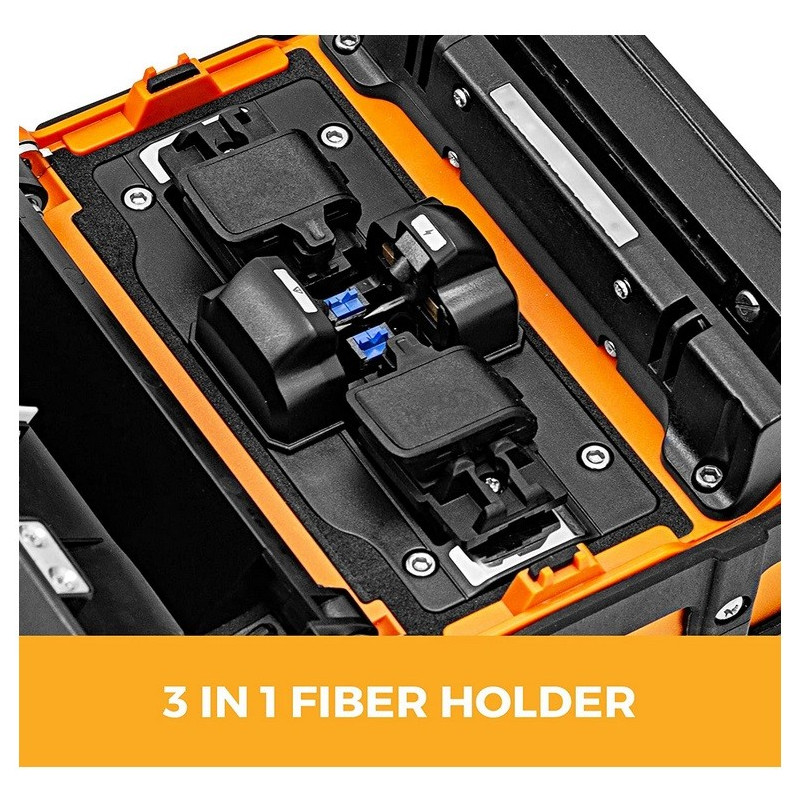

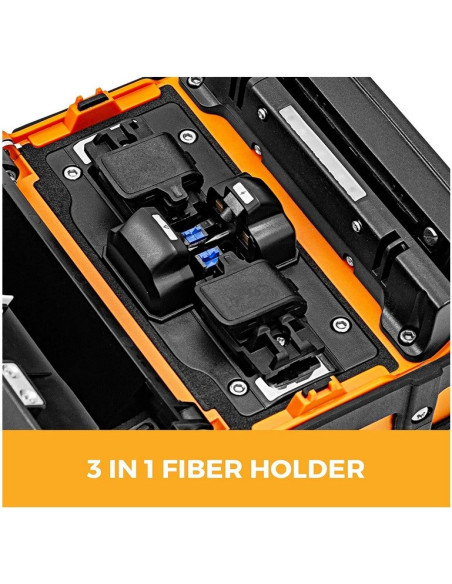

- 3 in 1 fiber holder.
- SM, MM, bare fiber, pigment, multi-fiber wire, rubber insulation.
- Applicable fibers: SM (G.652 & G.657); MM (G.651); DS (G.657); NZDS (G.655).
- It is fully qualified for FTTH projects, security surveillance and other fiber optic cable splicing projects.

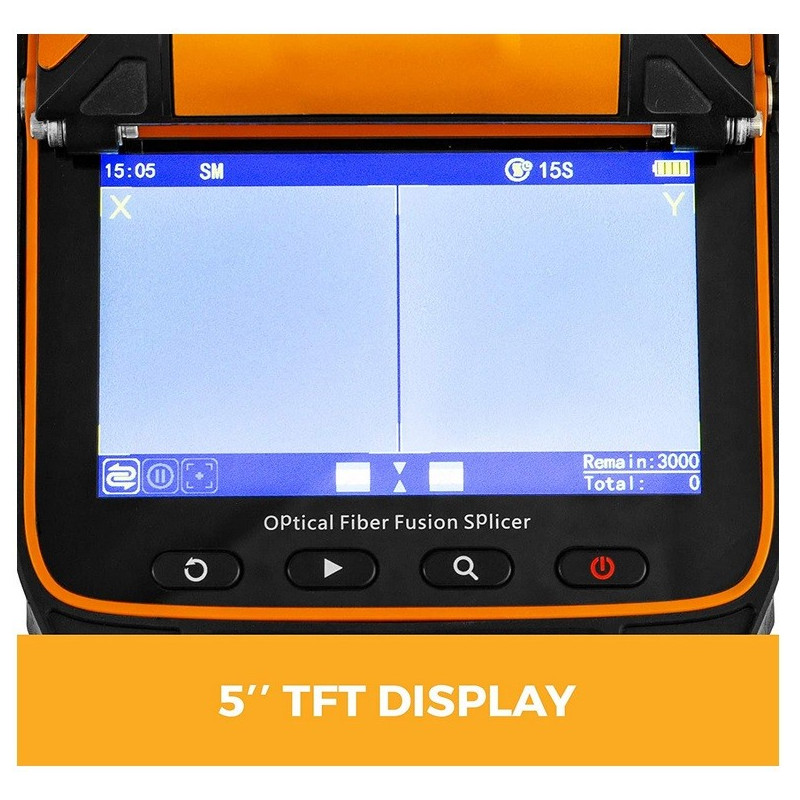

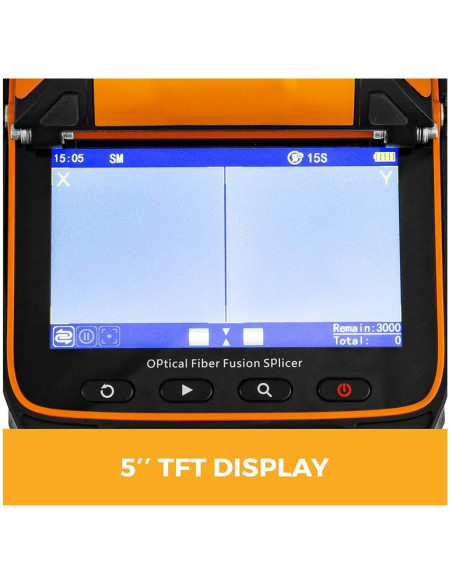

- 5 inch TFT screen.
- It adopts a 5-inch 800 x 480 high-resolution screen, and the operating graphics are simple and intuitive, allowing focus magnification up to 300 times.

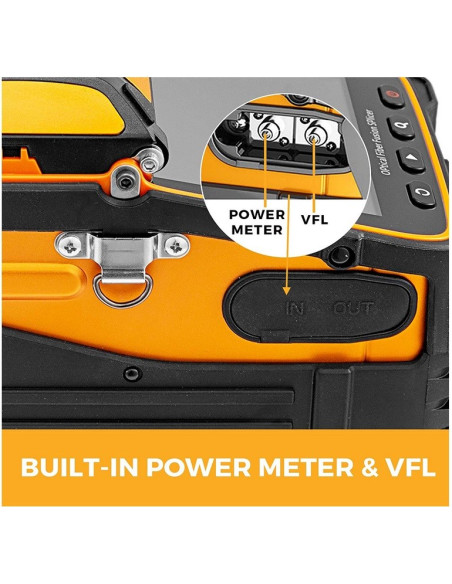

- Integrated energy meter and VFL.
- Effectively measure connection loss, check continuity, and help evaluate the quality of fiber optic transmission. In addition, it is integrated and does not take up space

Manufacturer: VEVOR
Dimensions: 40.13 x 35.05 x 34.04 cm
Model: AO-AI-9
Weight: 7.71 kg

- Fiber alignment: core / cladding / manual alignment.
- Evaporation time: 5 seconds.
- Heating time: 15 seconds. Automatic heating (preheating).
- Building lighting: high luminosity, wide range of lights, easy to use at night.
- Screen: 5 inch TFT screen.
- Focus mode: six autofocus motors.
- Applicable fibers: SM (G.652 and G.657), MM (G.651), DS (G.657) and NZDS (G.655).
- Splice loss: 0.025 dB (SM), 0.01 dB (MM) 0.04 dB (DS / NZDS).
- Power supply: AC input 100-240 V, 50/60 Hz, DC output 13.5 V / 4.8 A.

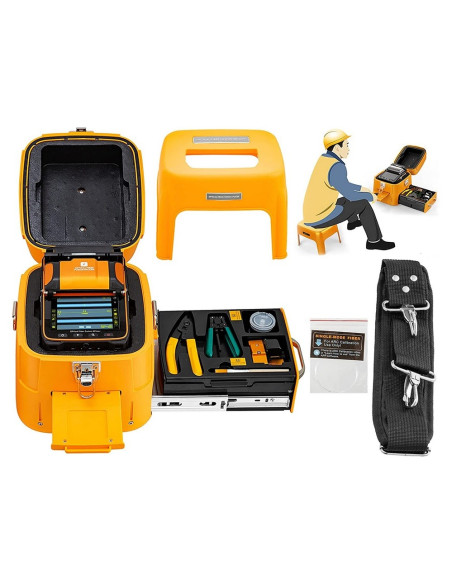

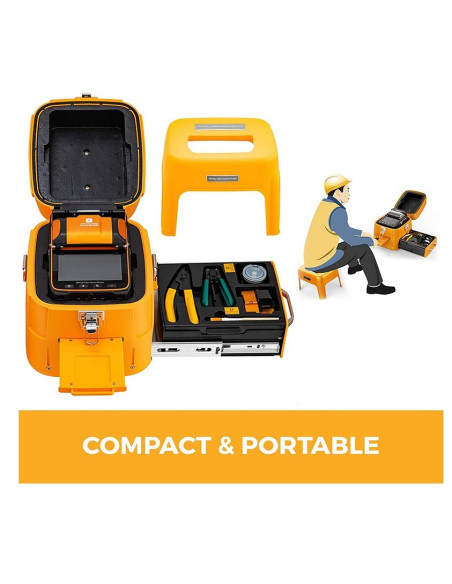

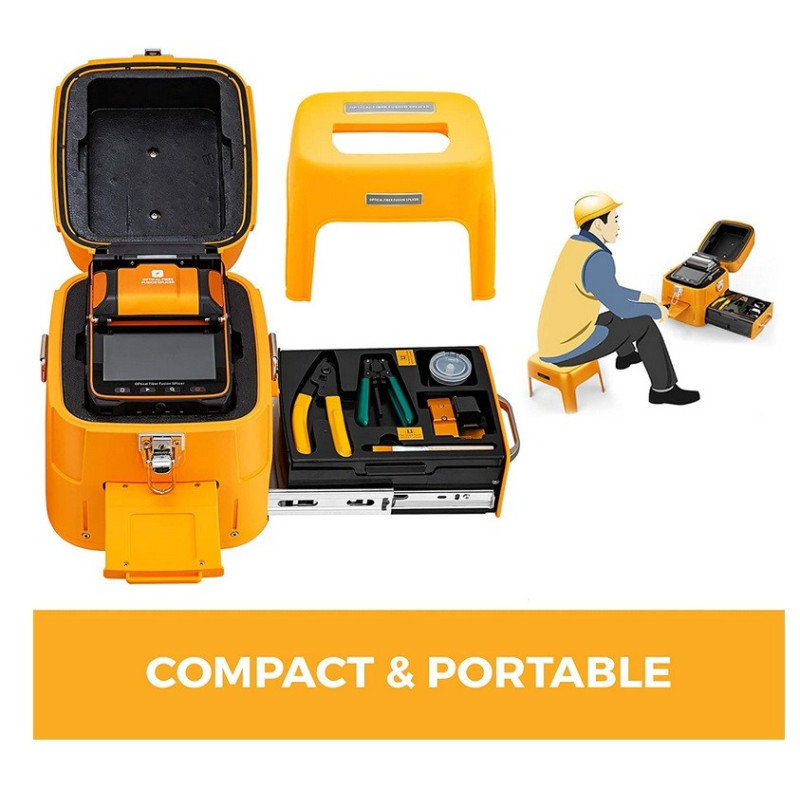

◆ 1 x Fiber optic fusion splicer.
◆ 1 x fiber cutter.
◆ 1 x yellow transport box.
◆ 1 x accessory kit.

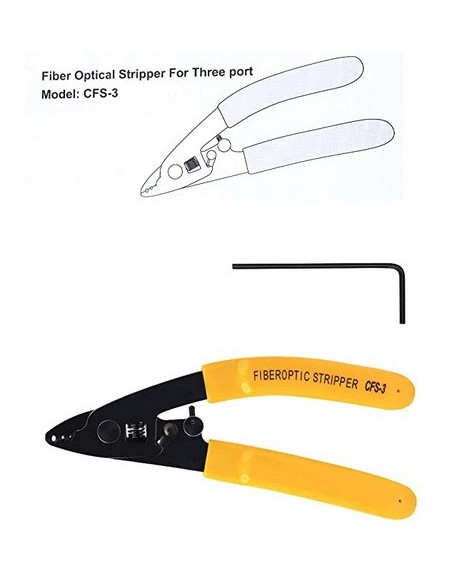

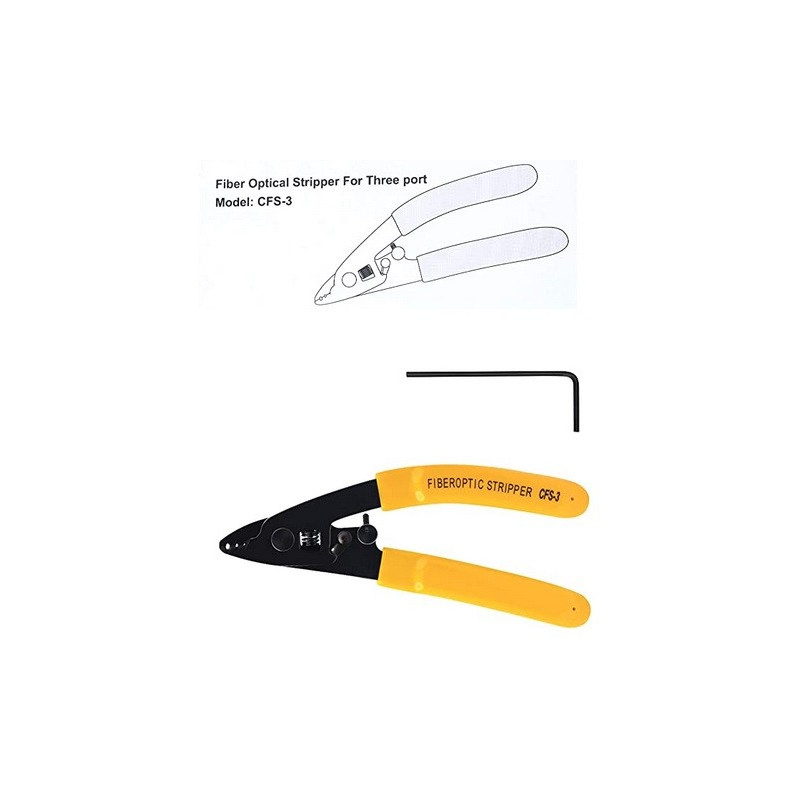

◆ Fiber stripping plier with holes for stripping fiber coatings of: 125 μm, 250 μm, Model AO-CFS-3

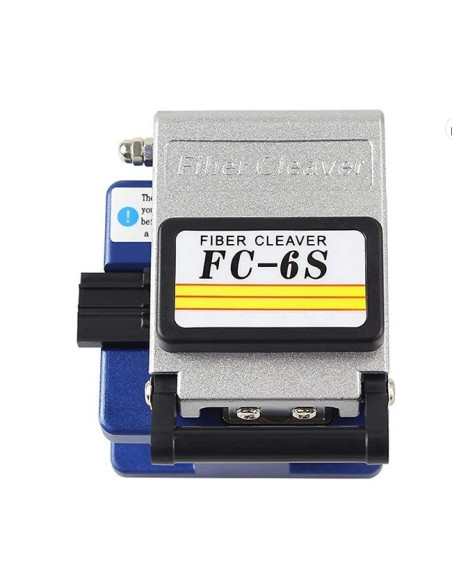

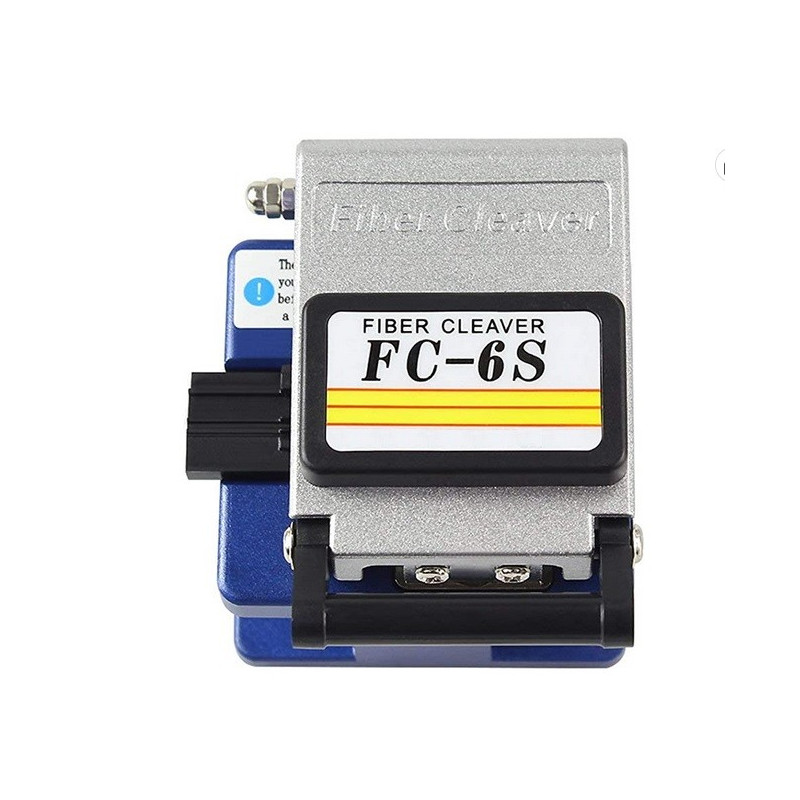

◆ Metal Cleaver for fiber optics, Model AO-FC-6S
