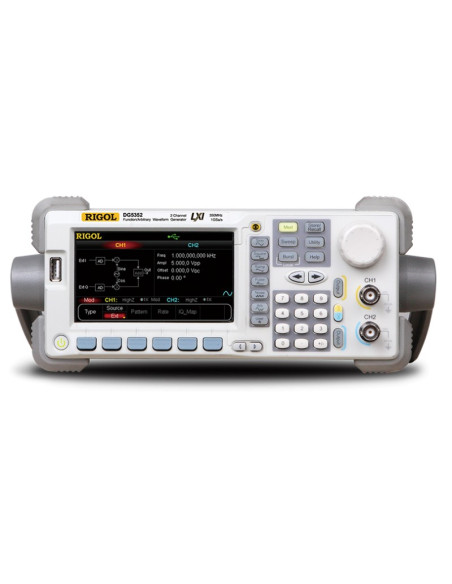

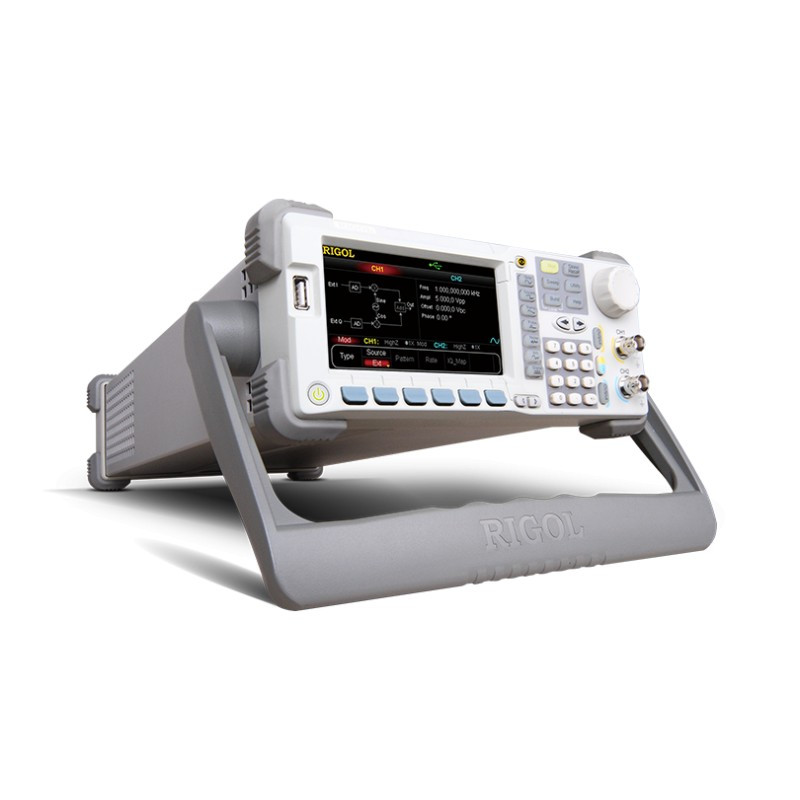

Reference: DG5352 - Manufacturer: RIGOL

The DG5000 series has 6 functions, including waveform generator, pulse generator, IQ baseband / if source, frequency hopping source, code generator, and function generator. The series includes one and two channel models. The functions of the two channels are completely the same and the phase between channels can be precisely adjusted.

350MHz, 2CH, 1GSa/s, 14bits, 128Mpts Arbitrary Memory Depth

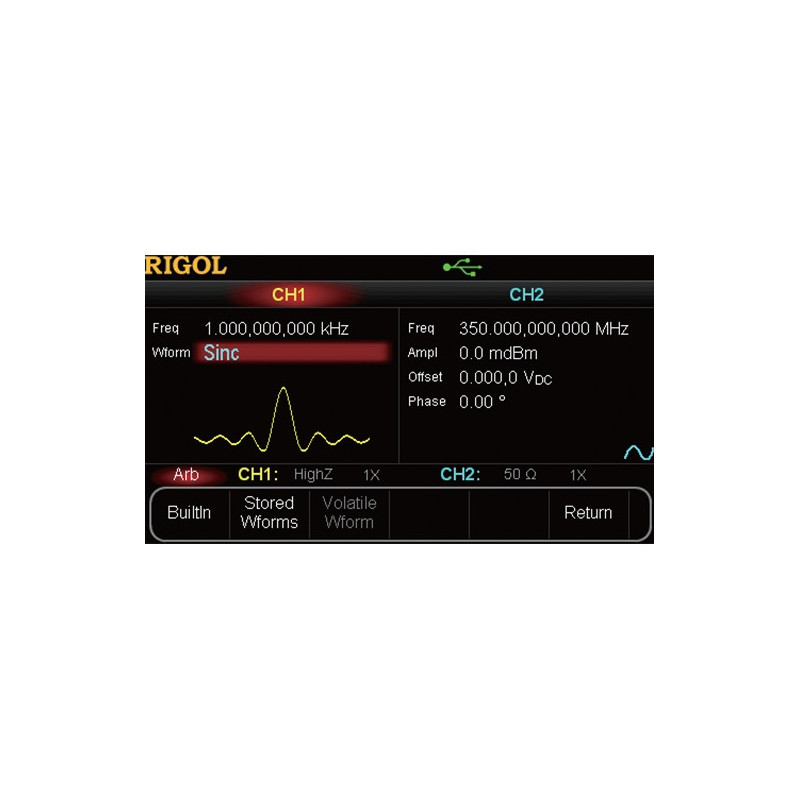

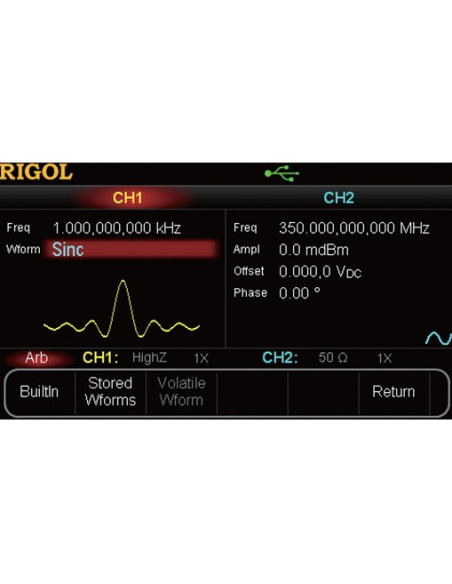

Arb function with 1 GSa/s sample rate, 14 bits vertical resolution

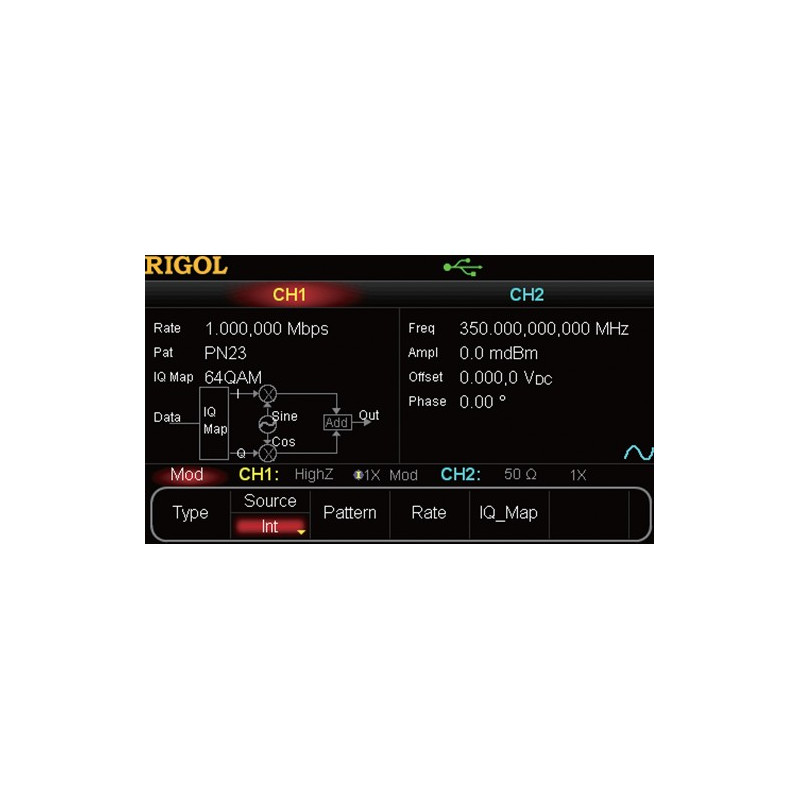

Support internal and external IQ modulation

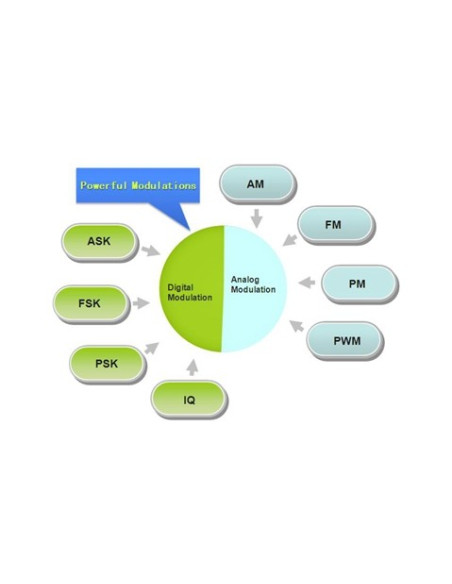

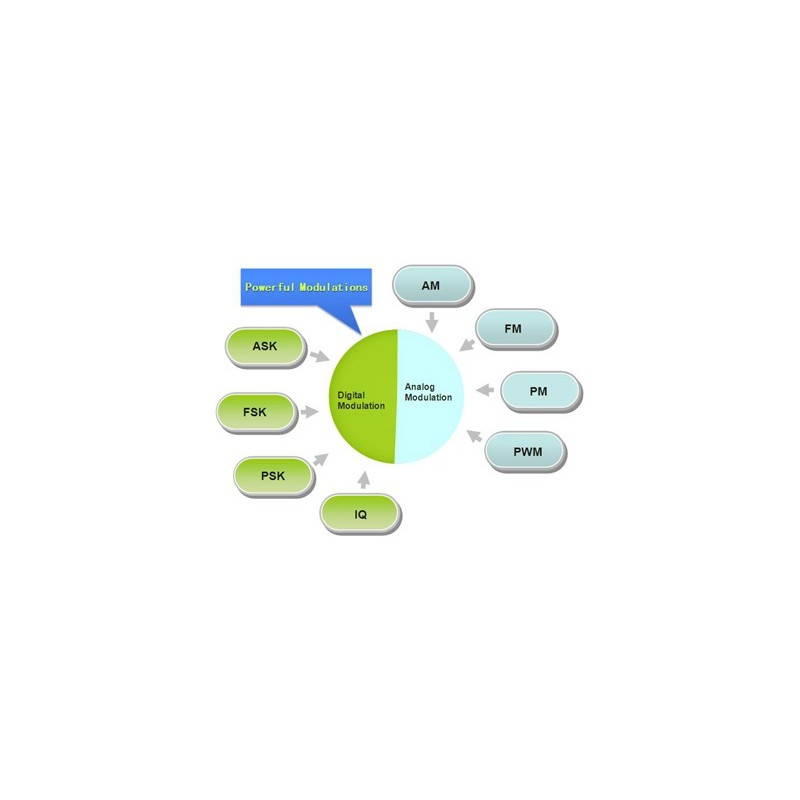

Whole range of Analog/Digital modulation functions (standard)

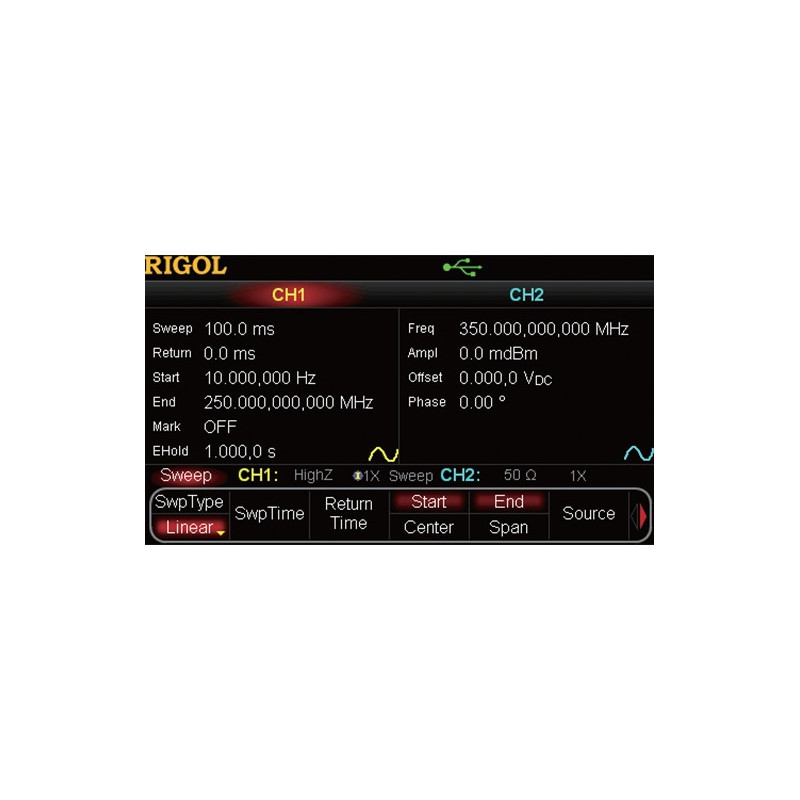

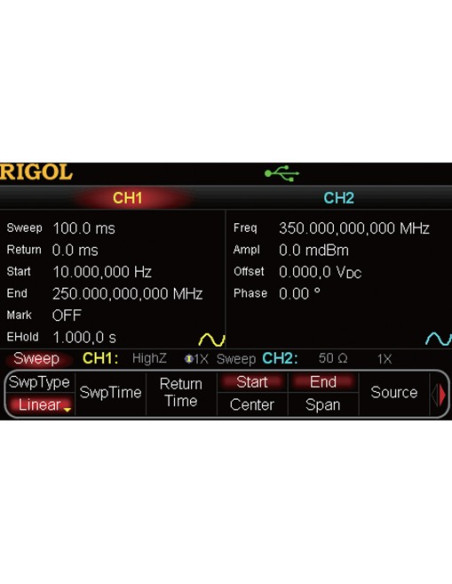

Various Sweep Types (standard)

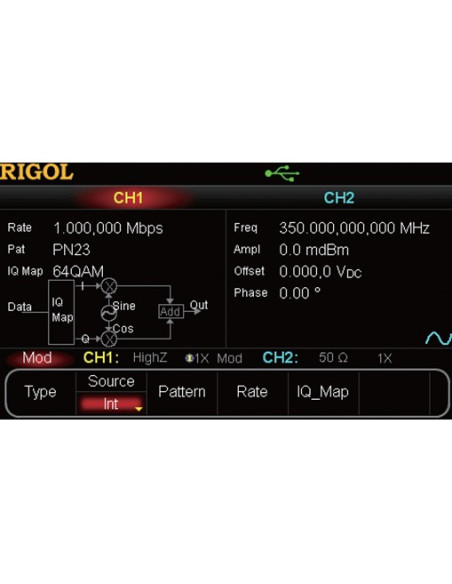

Intuitive Constellation setup and display

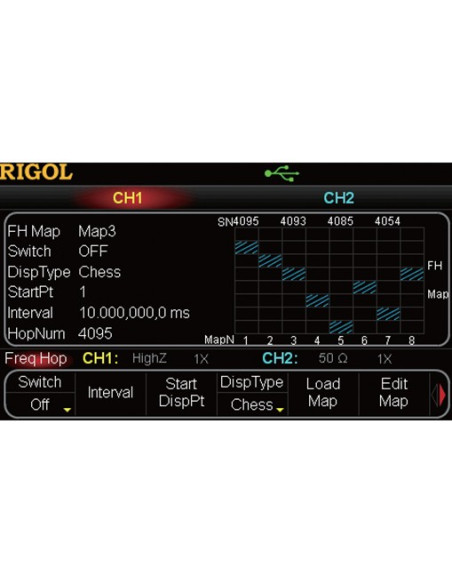

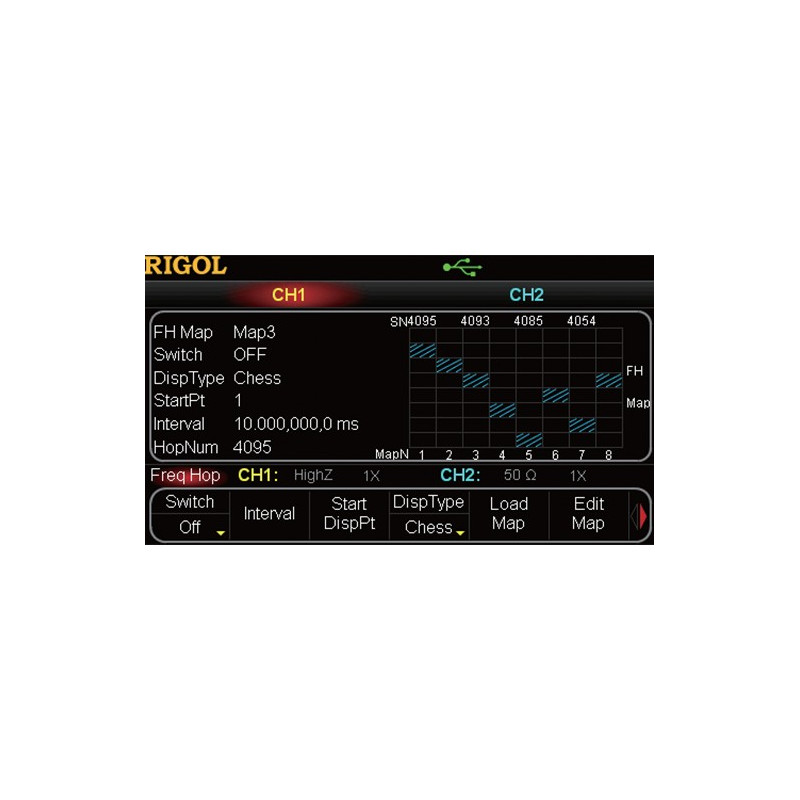

Support Frequency Hopping function (option)

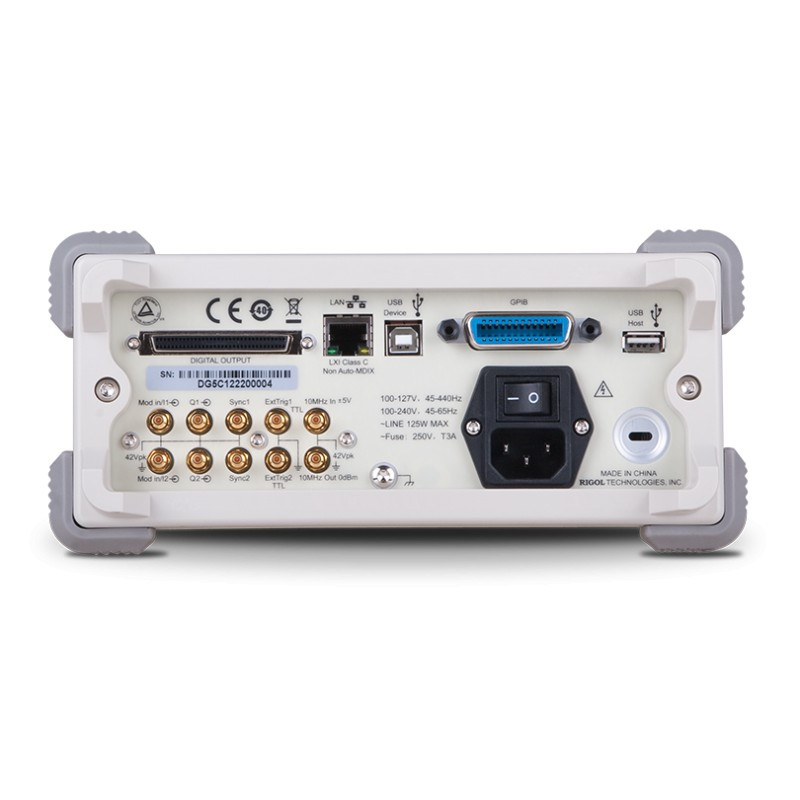

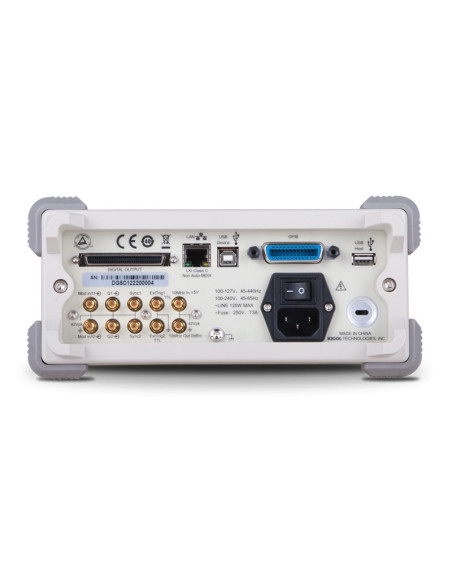

Complete connectivity, support Parallel Bus output (Option)

MEASUREMENT AND CALIBRATION INSTRUMENTS: Function Generators

DG5000 Series Manual

Download (3.82MB)

DG5000 Series Datasheet

Download (6.08MB)
