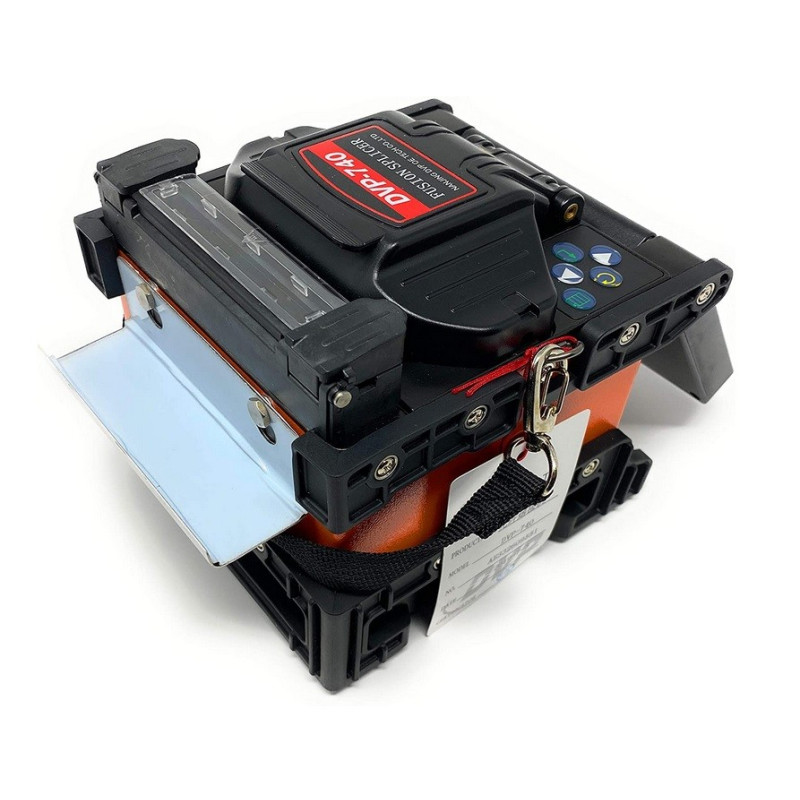

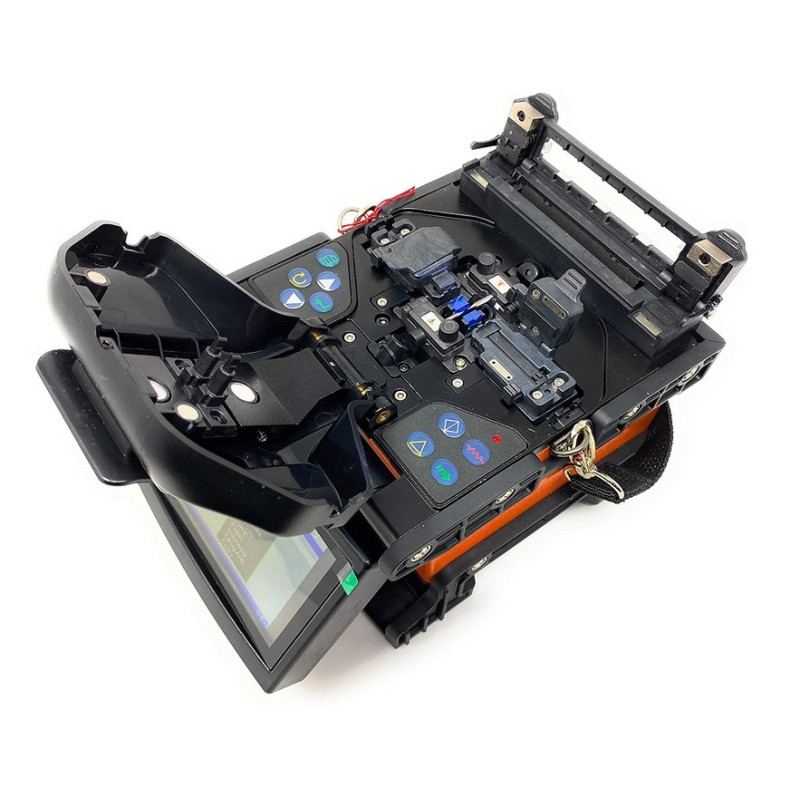

Reference: AO-DVP-740 - Manufacturer: AO-Electronics

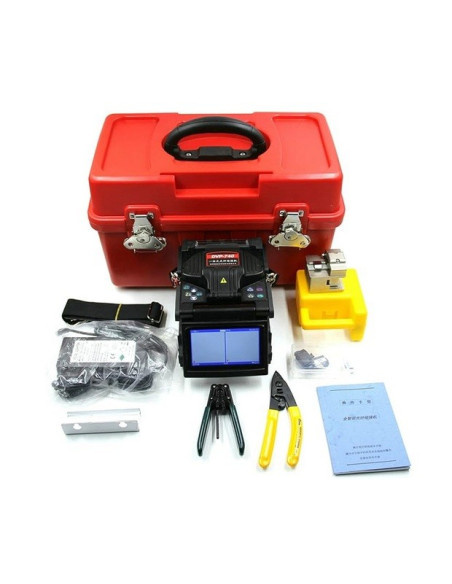

Fusion Splicer Kit AO-DVP-740
Fiber knife core alignment.

€1,799.00
Tax excluded Envío: 3 a 6 semanas



- Compact and Light

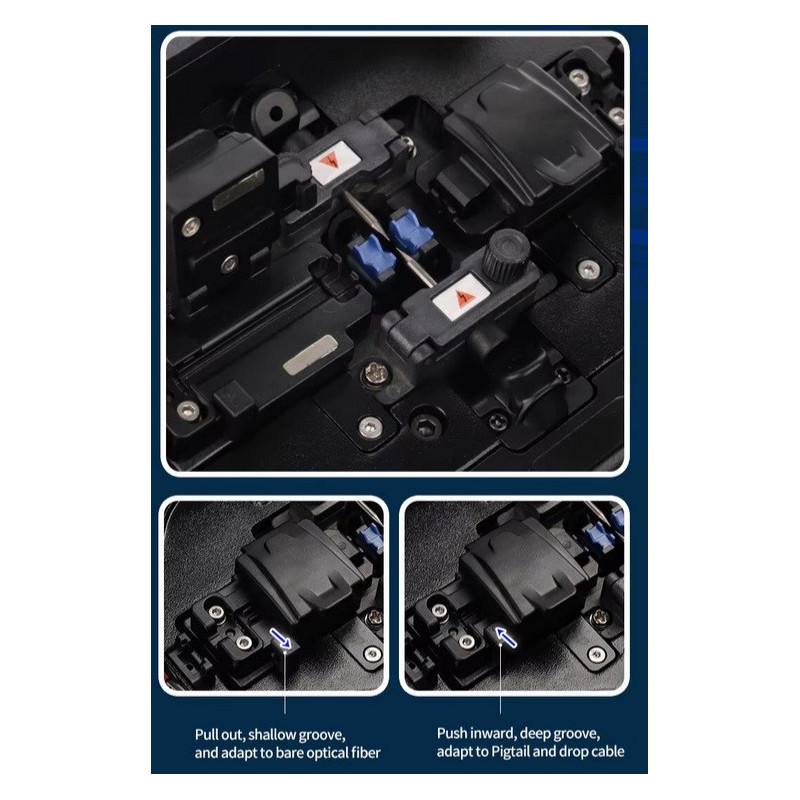

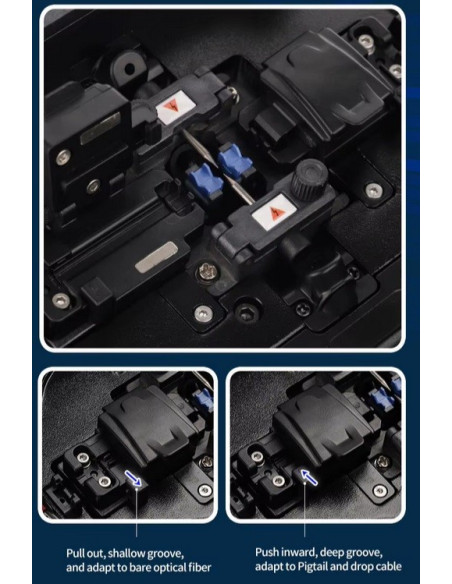

- Applicable for optical fibers, cables and SOC (Splice-On type connectors)
- Integrated Support
- Operating modes: automatic, semi-automatic, manual
- Shock and drop resistant
- Energy save mode

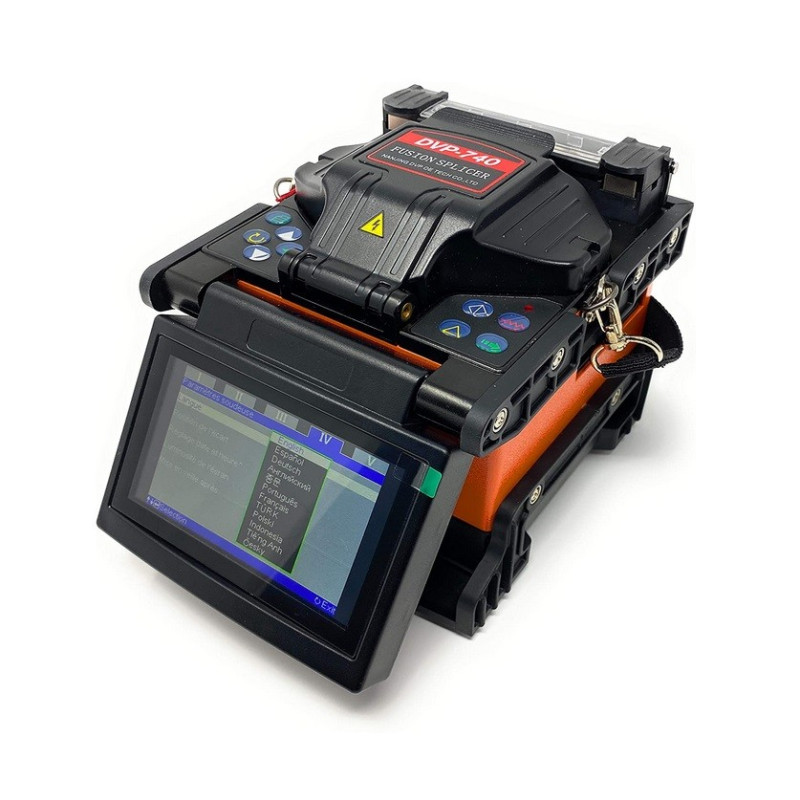

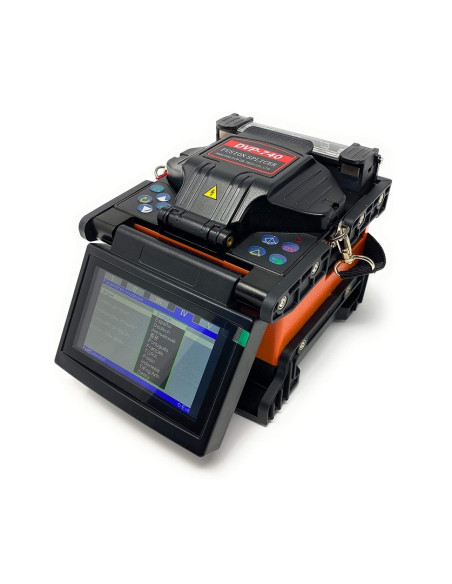

- 4.3 inch color LCD screen
- USB, DC interface

- Compatible fiber types:
SM, MM, DS, NZ-DS (G655), EDF, bending loss insensitive fiber (G657), pigtail, drop cable and connector.
 - Cut length: 8-22mm
 - Fusion loss, typical: 0.02dB (SM) 、 0.01dB (MM) 、 0.04dB (DS) 、 0.04dB (NZDS)
- Return loss: ≥60dB
- Splicing time: 7s
- Thermo-Contraction Time: 18s
- Tension Test: 2.0N (200gf) (Standard)
- Length of protectors: 20mm, 40mm, 60mm
- Splice programs: 5 groups of preset programs, 75 group of manual setting
- Languages: English, Chinese, Russian, Spanish, Portuguese
- Environmental Conditions: -25 ～ ＋ 50 ℃ (operating temperature), 0 ～ 95% RH (humidity), 0 ～ 5000m (altitude)
- Storage Temperature: -40 ～ + 80 ℃ (temperature), 0 ～ 95 ％ RH (humidity)
- Power Supply: AC adapter 85 ～ 260V input voltage
- Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
- Dimensions / Weight: 142 （D） × 122 （W） × 138 （H） mm / 1.95kg

- Brand: DVP
- 1 Lithium Ion batteries (Type of battery required)
- Screen: 4.3 Inches
- Battery power supply
- Battery type: Lithium Ion
- Includes rechargeable battery: No
- Dimensions: 14.2 x 12.19 x 13.79 cm;
- Weight: 1.9 kg

- Fusion Splicer

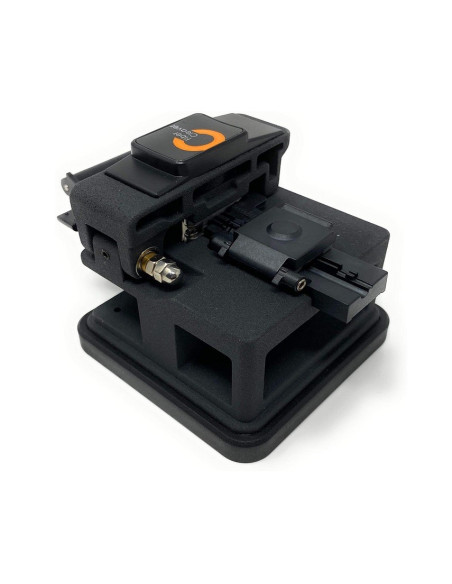

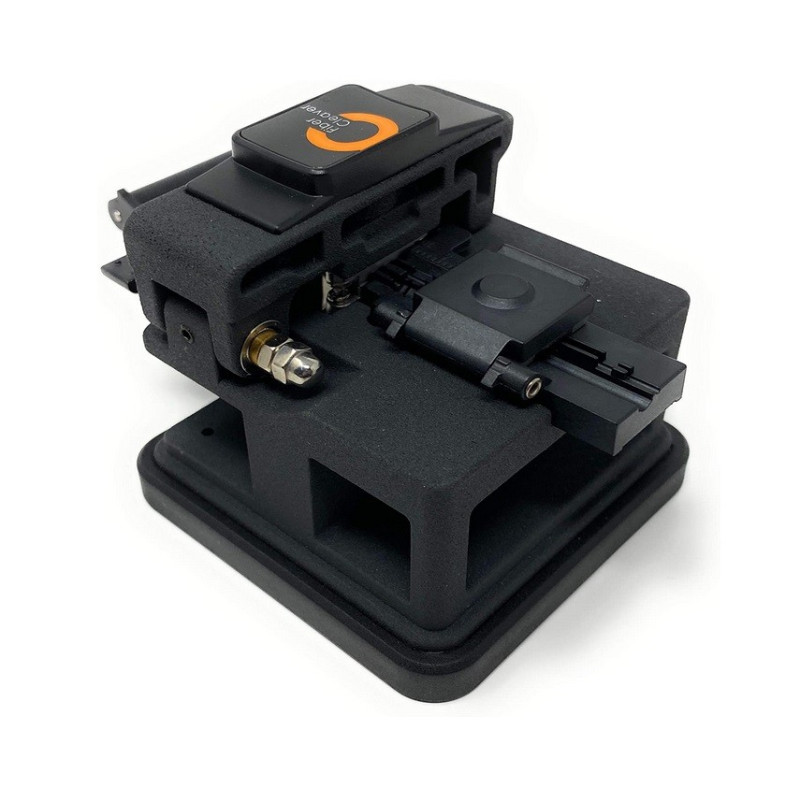

- Fiber cutter
- Wire stripper
- Support for connectors
- Heater for connectors
- Replacement electrodes
- Charger
- Cooling tray
- User manual (English)
- Briefcase.
