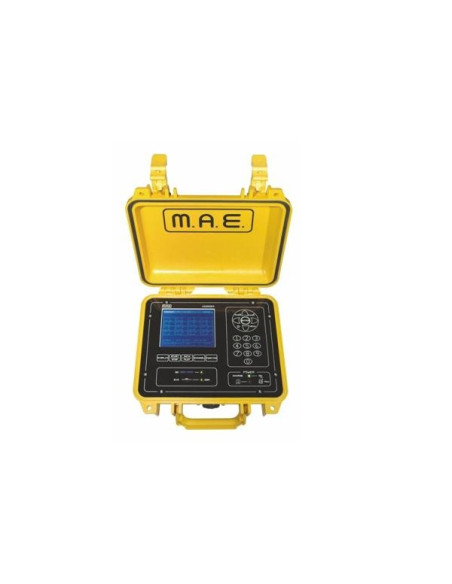

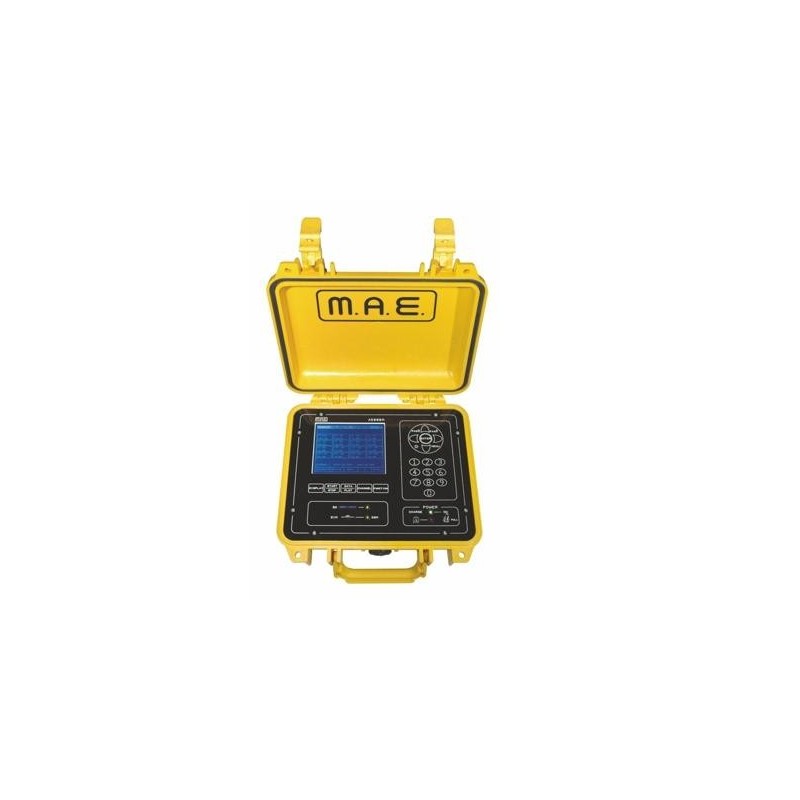

A5000M-08 Data Acquisition System for Structural or Environmental Monitoring

24-bit data acquisition system for structural or environmental monitoring, characterised by extreme compactness, high technological content and versatility of use.
A5000M device is an independent data acquisition unit, equipped with graphic display, charge-transfer keyboard and removable S.D. memory, to carry out acquisitions from multiple types of measurement sensors (movement transducers, inclinometers, environmental sensors, water table meters, etc), with operative methods set by the user.
In fact, it is possible to use the instrument to carry out static or dynamic tests, where the data must be verified as soon as it is acquired or the device can be programmed for medium and long term acquisitions, where the data can be examined remotely, through online connection via modem or GSM network.
The connection between sensors and data acquisition unit can be effected by cables or, alternatively, by wireless connection without installing cables on-site, but through miniaturized radio transmitters (WLS-1), able to transmit the data coming from the sensor and transfer it to A5000M acquisition unit for visualization and storage on solid state memory. Hybrid configuration are available (8 channels on cable + 8 wireless channels).

The high technological content and low cost render A5000M acquisition device, the ideal solution for different monitoring and data acquisition applications. The operative methods can be easily programmed by the user directly on the instrument, without the need of a PC for configuration. The device is equipped with output interface of USB type (LAN interface is available upon request), to analyse the data in real time with post-processing software.
