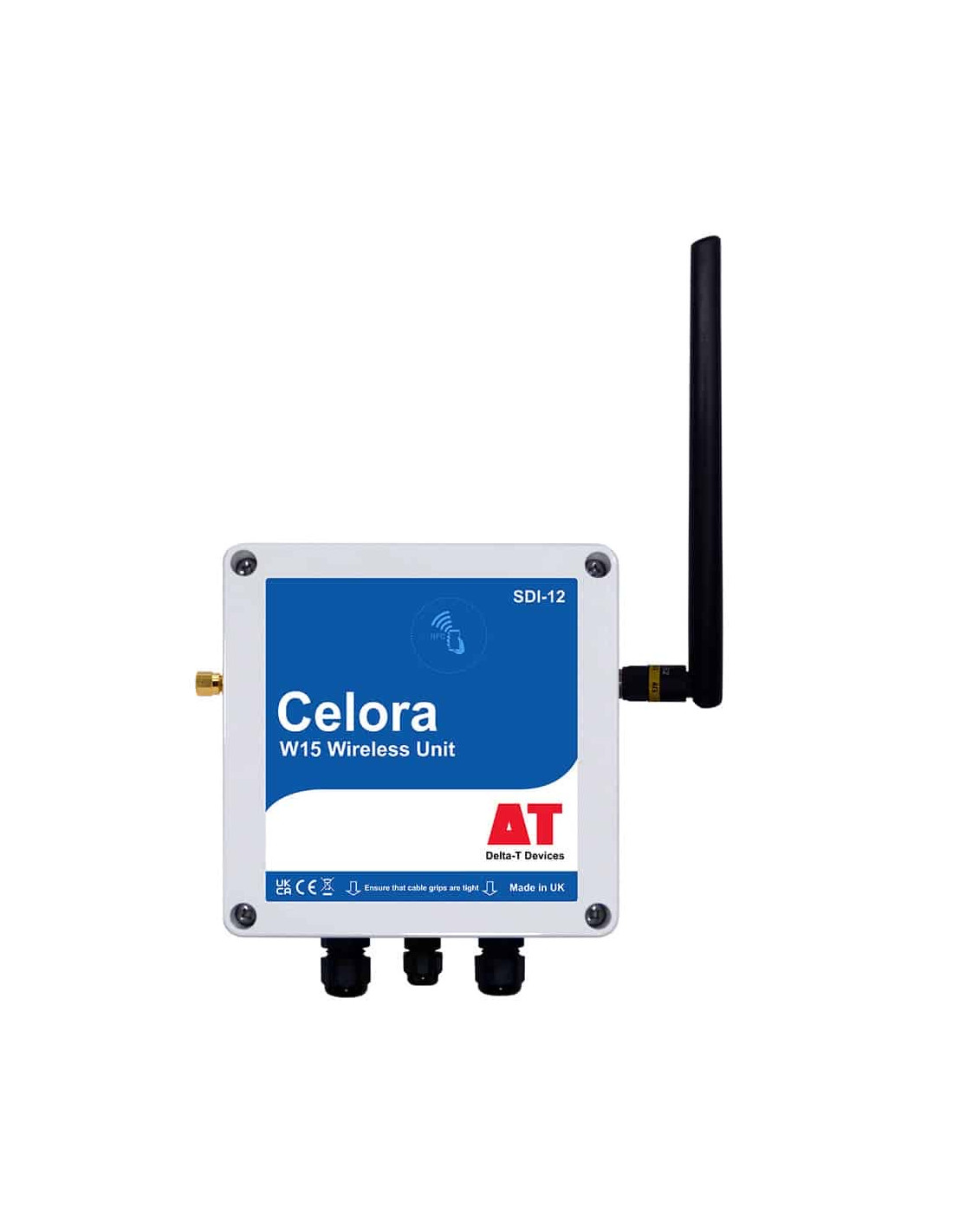

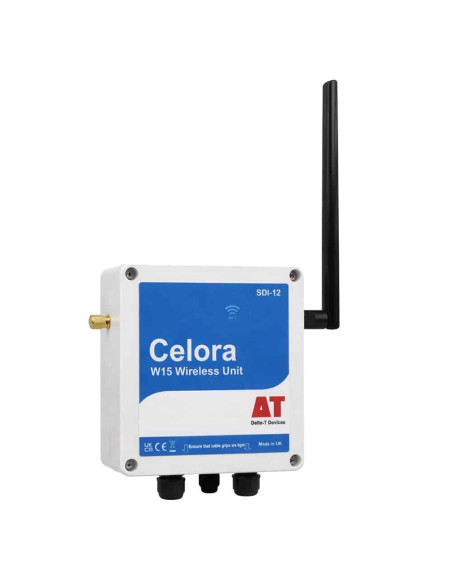

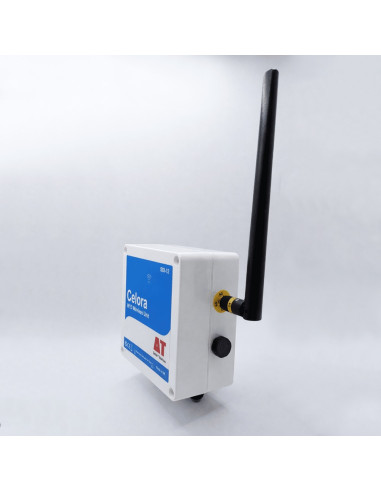

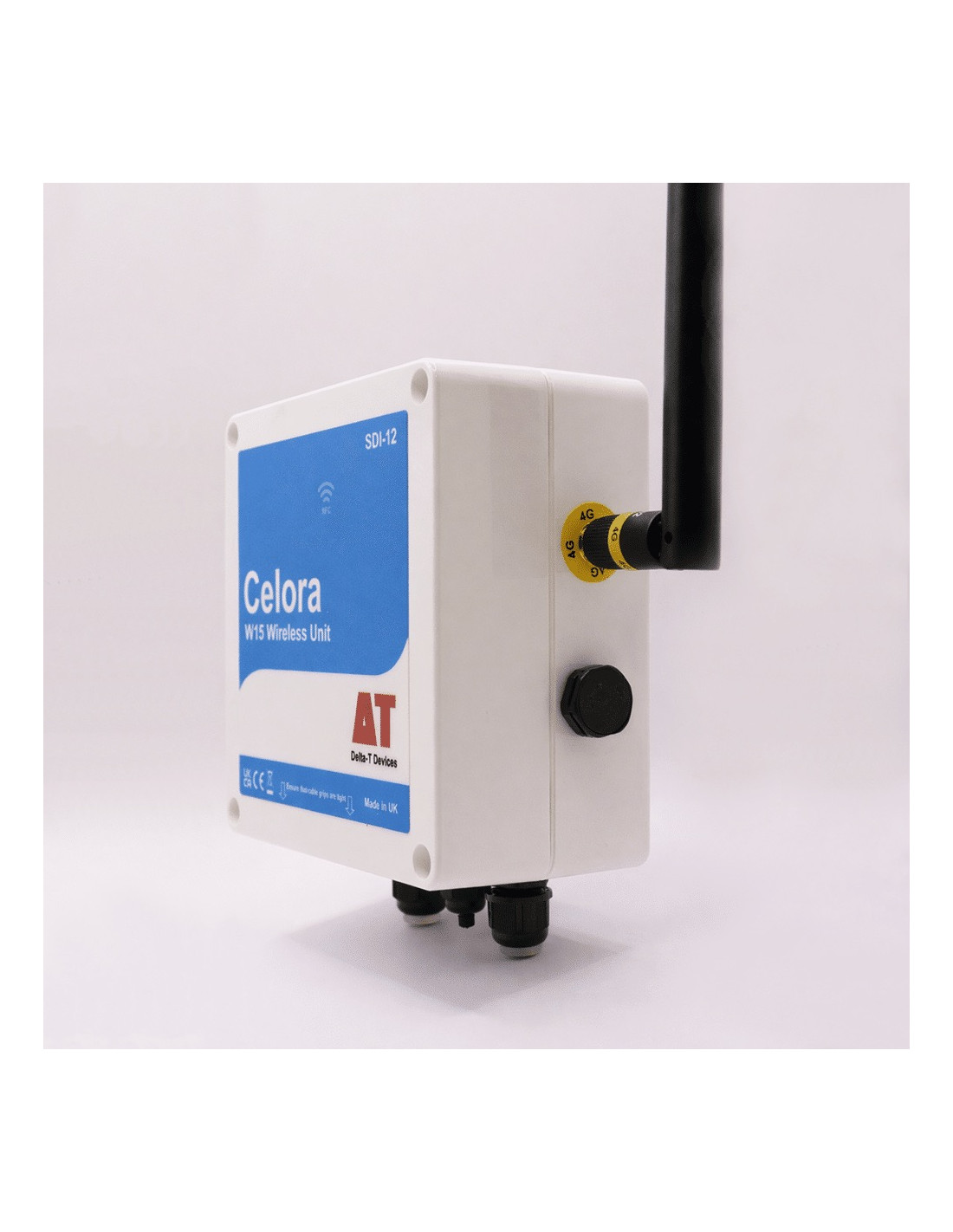

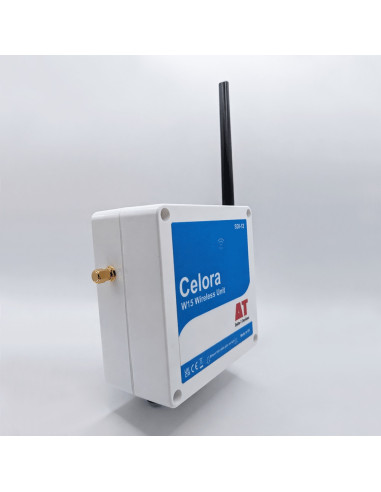

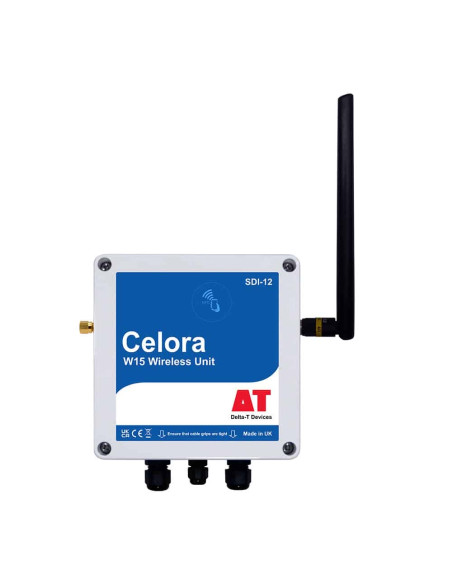

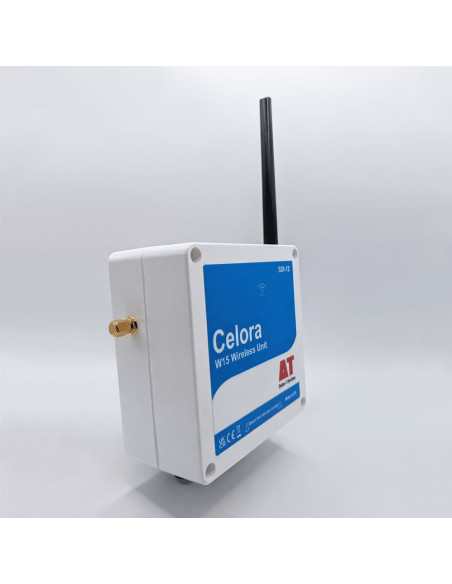

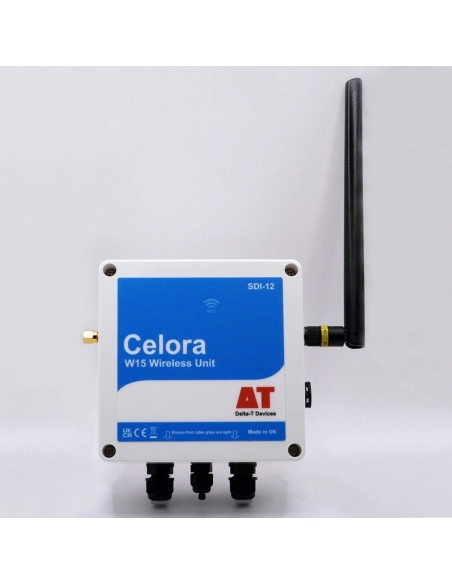

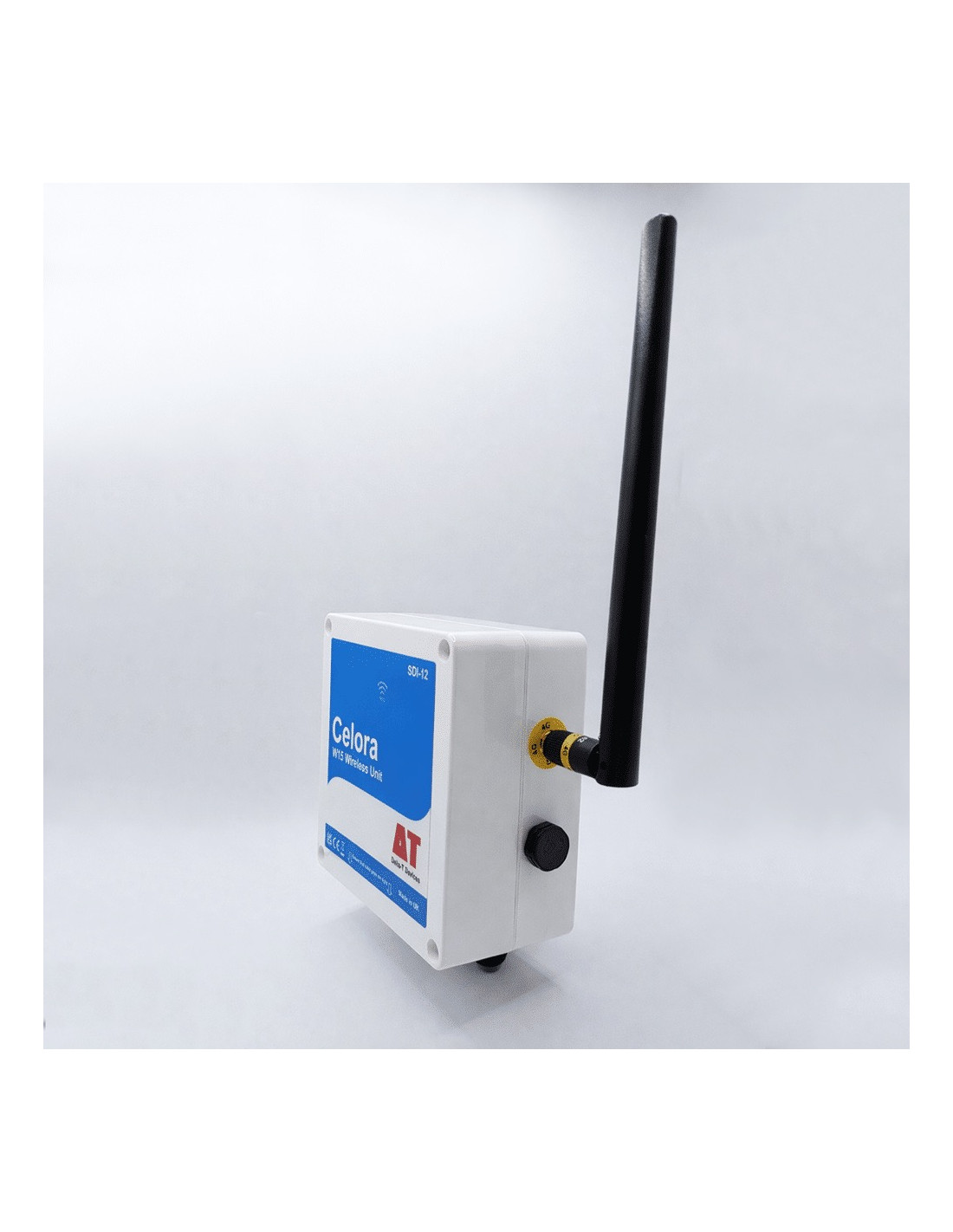

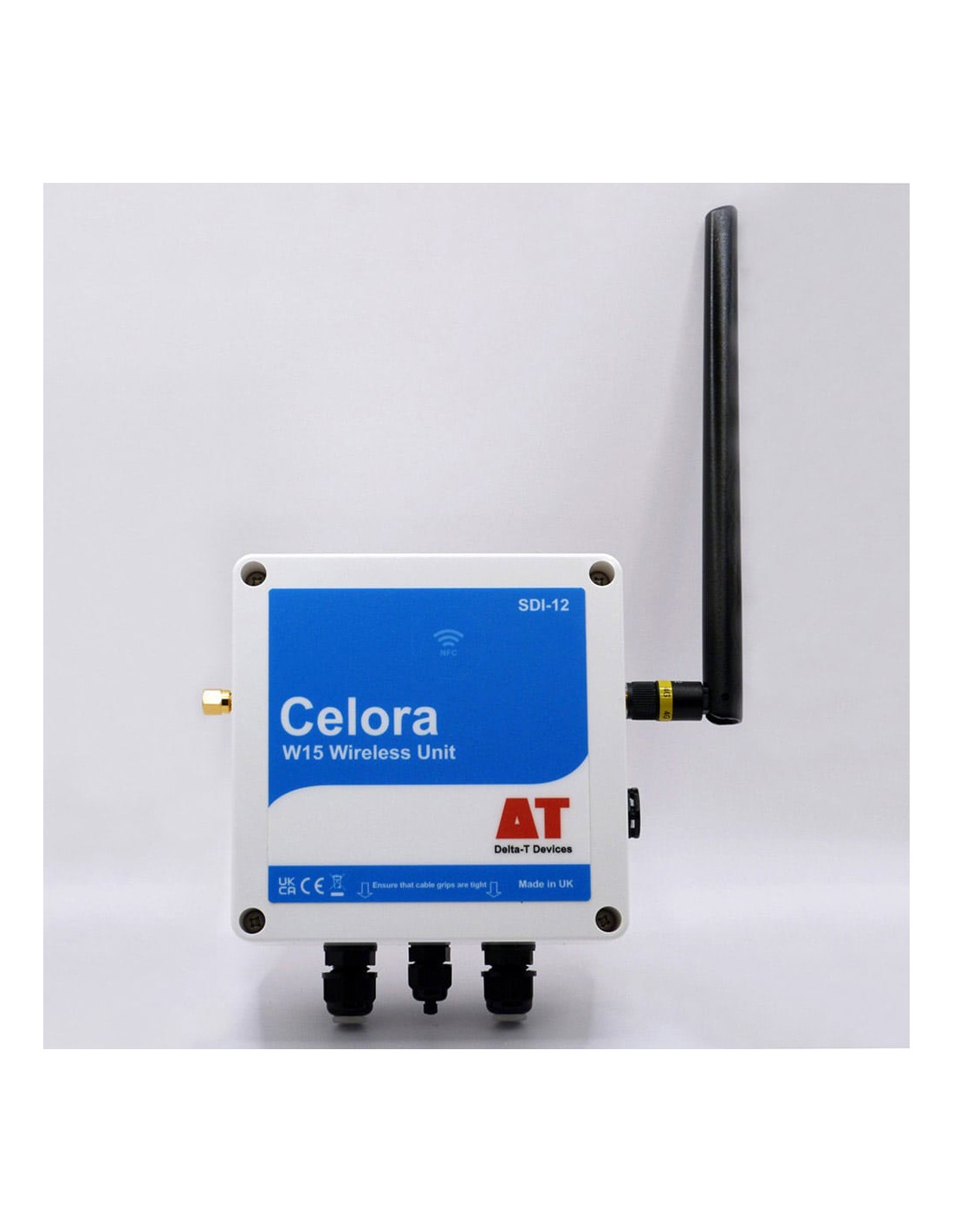

CELORA W15 wireless SDI-12 Telemetry unit

Reference: CELORA W15 - Manufacturer: Delta T

Delta-T CELORA W15 wireless unit for SDI-12 sensor networks, with 4G, NFC, DeltaLINK-Cloud and connection for up to 8 sensors.

- Real-time cloud access to SDI-12 sensor measurements
- Connect up to 8 SDI-12 sensors (plus 1 event counter) per unit
- Direct integration with our feature-rich DeltaLINK-Cloud platform
- View and manage online data with ease via custom charts and widgets
- Mobile app enables system configuration via contactless NFC
- Cellular 4G connectivity for remote deployment
- Optional local memory card logging
- Flexible power options – internal battery or external power source

help_outlineAsk for Quote

CELORA W15 wireless SDI-12 Telemetry unit

I accept privacy policy rules



CELORA W15 wireless SDI-12 unit

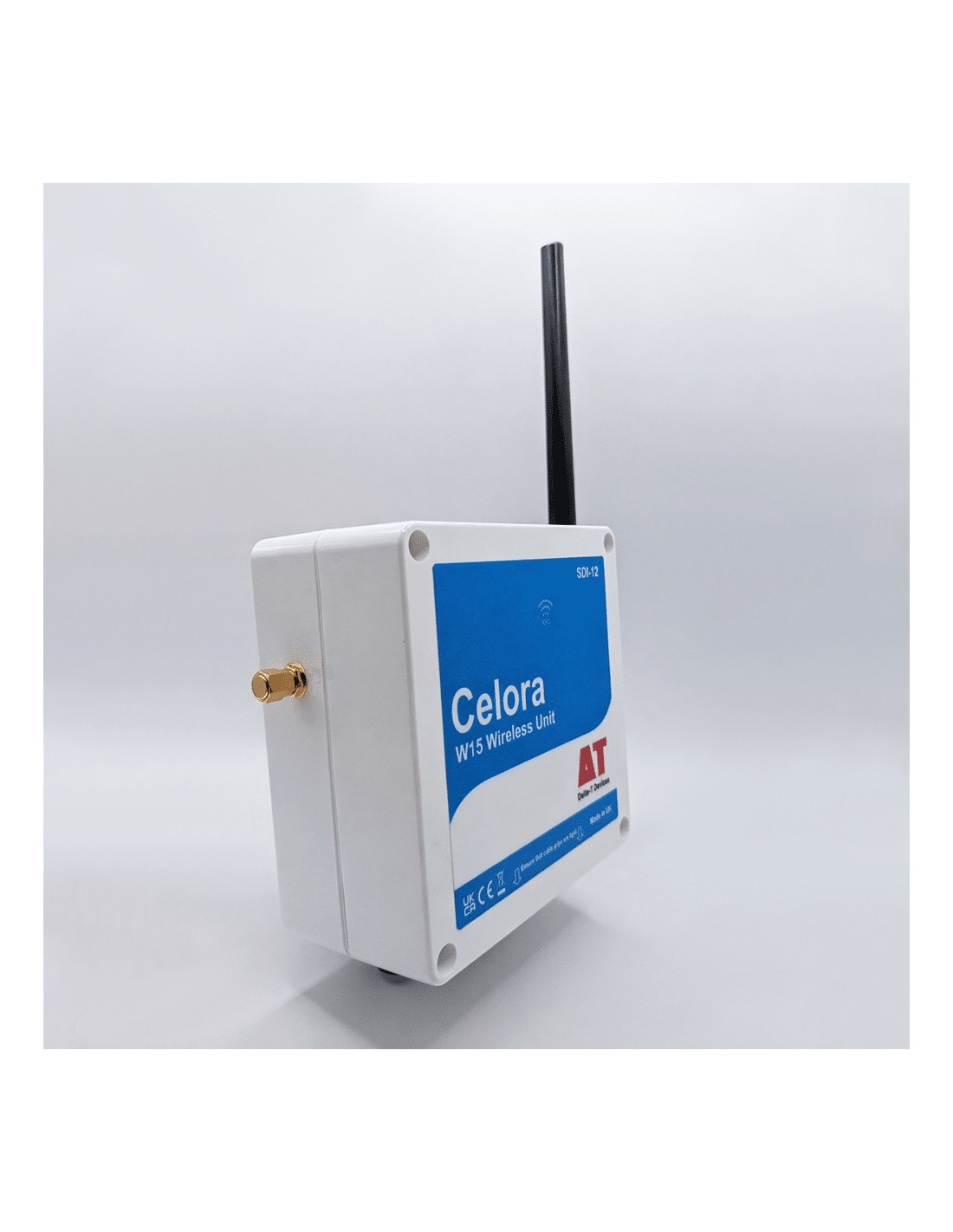

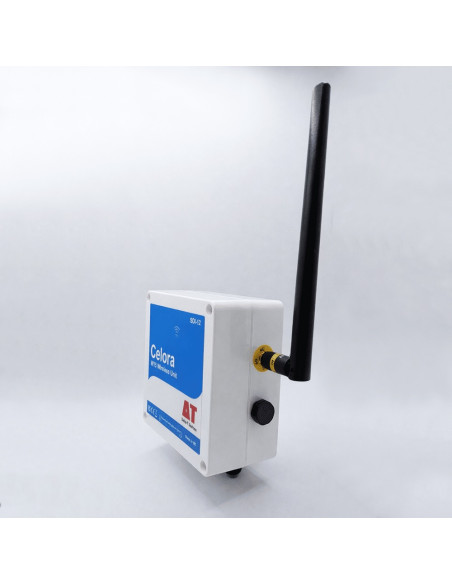

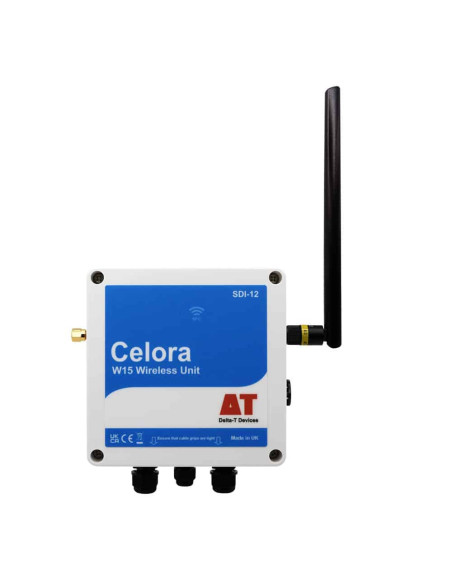

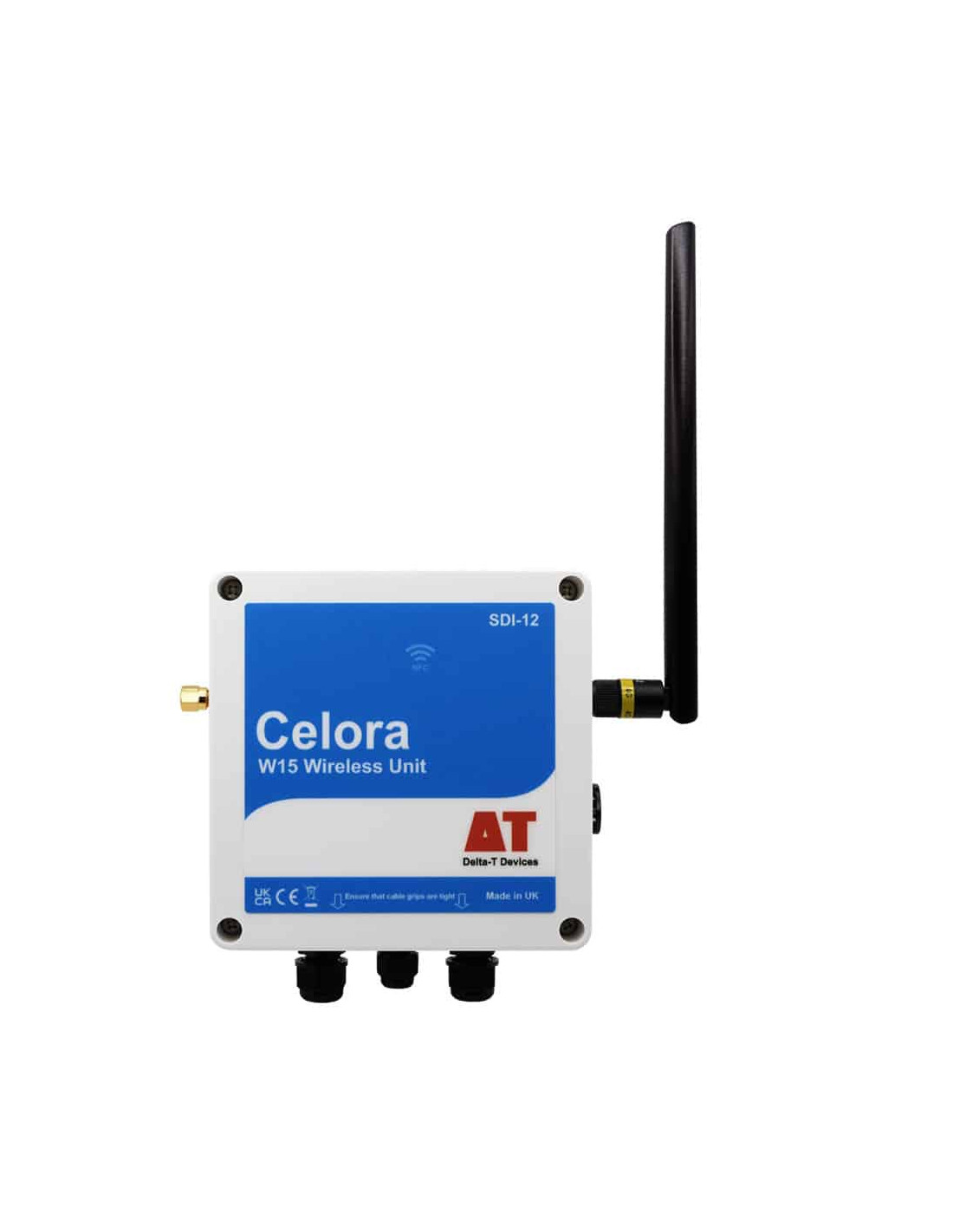

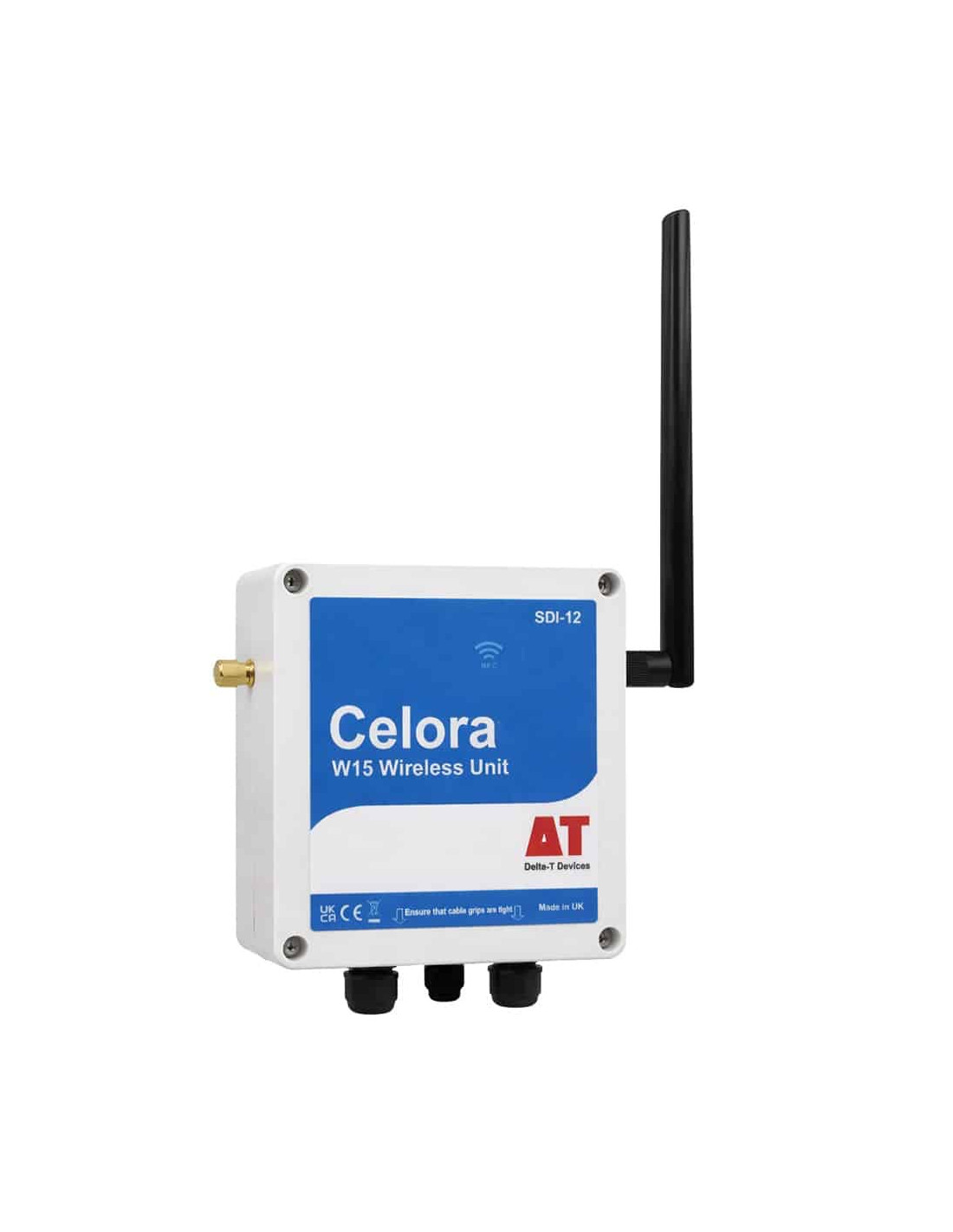

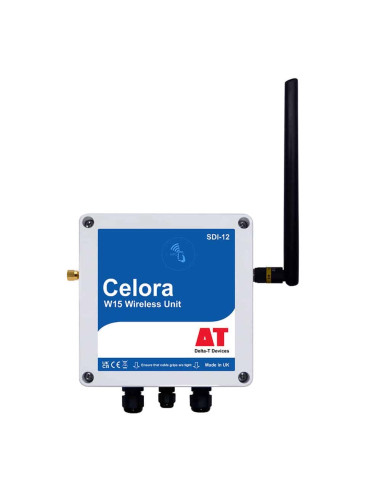

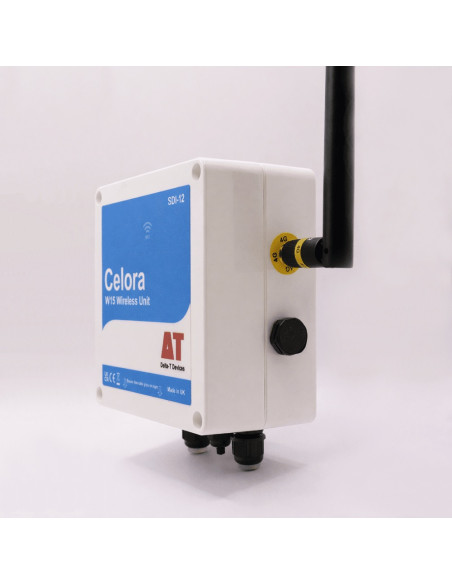

CELORA W15 by Delta-T is a compact wireless telemetry unit for building SDI-12 sensor networks and sending field data directly to the DeltaLINK-Cloud platform. It is designed for fast deployment in environmental monitoring, agriculture, horticulture, research and scientific applications.

The unit connects up to eight SDI-12 sensors and one event counter, transmitting data over 4G cellular connectivity. It also supports local logging on a memory card and mobile-app configuration through NFC, avoiding the need for a laptop in the field.

CELORA W15 is housed in an IP67 UV-stable polycarbonate enclosure. It can operate from internal battery or external power, integrates with Delta-T sensors such as PR2 and WET150, and can also work with compatible third-party SDI-12 sensors.

Reference CELORA W15.
Product Wireless SDI-12 telemetry unit for sensor networks.
Communications 4G LTE / 2G GPRS modem with antenna and Nano SIM holder.
Local configuration 13.56 MHz NFC for setup through the mobile app.
Sensor connectivity SDI-12 compatible with version 1.3 or later, sequential mode, up to 8 sensors.
Event counter 0 to 3.3 V input, up to 32 kHz, for rain gauge or other event input.
External connection 2 x M12 and 1 x M8 glands for external power, SDI-12 bus and event counter.
Integration DeltaLINK-Cloud and iOS / Android apps.
Local storage Memory-card compatible.
Power supply 6 to 16 VDC; internal battery by default or external power source.
Power consumption Less than 1.7 mA at 12 VDC.
Operating temperature -40 deg C to 85 deg C, depending on selected power supply/batteries.
Operating humidity 0 to 90 % RH non-condensing.
Enclosure White RAL 9002 UV-stable polycarbonate, IP67 protection.
Dimensions 120 x 120 x 60 mm, excluding glands and breather.
Weight Less than 0.5 kg, excluding batteries, antenna and mounting brackets.
Included accessories 8 alkaline AA cells, antenna(s) and memory card.
Optional accessories SDI-12 network cable, SIM card and general purpose mounting kit.
Compliance CE including LVD, RED and RoHS 3.
Maximum cable lengths SDI-12: 60 m per sensor and 480 m maximum; external power: 3 m; event counter: 6 m.
