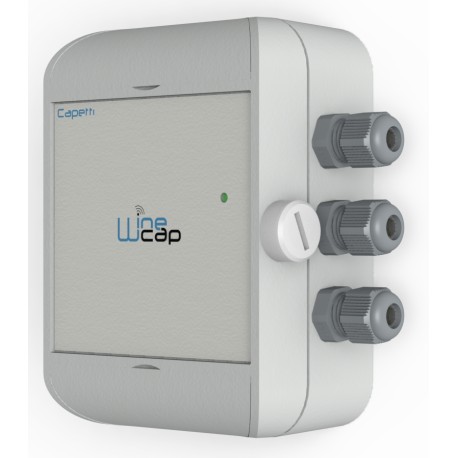

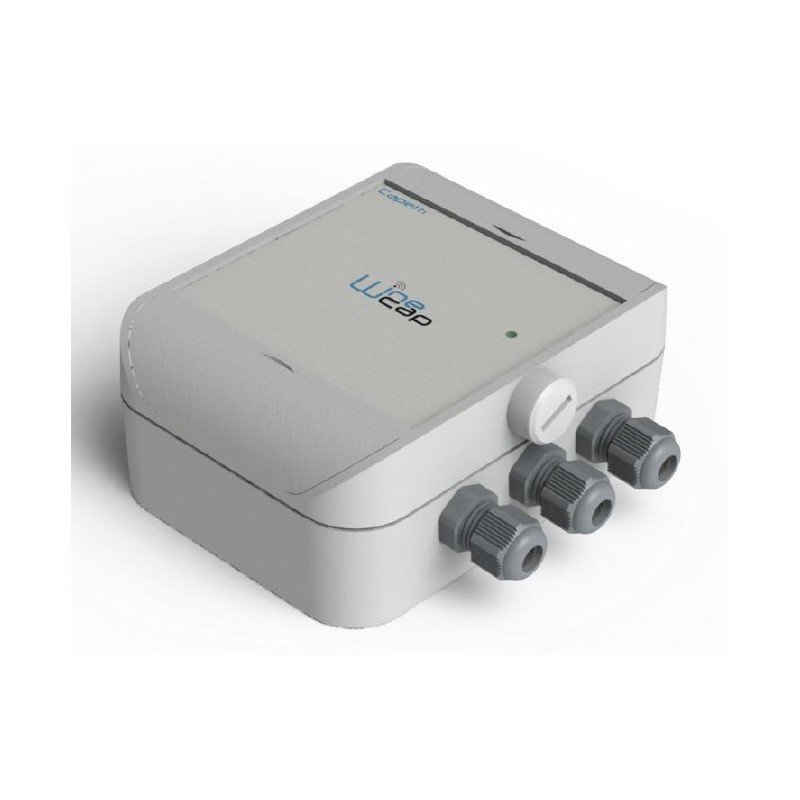

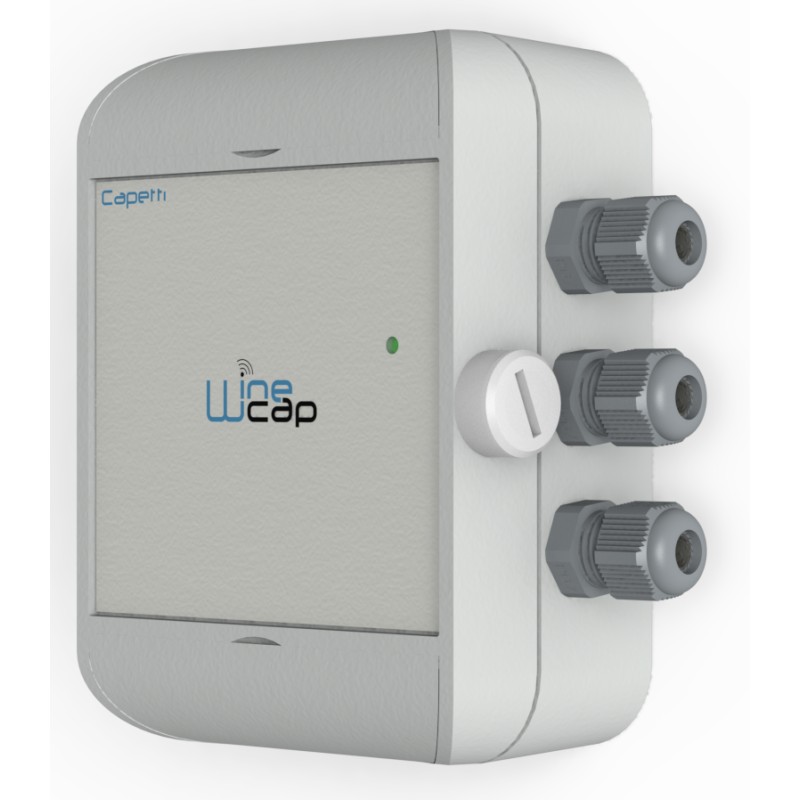

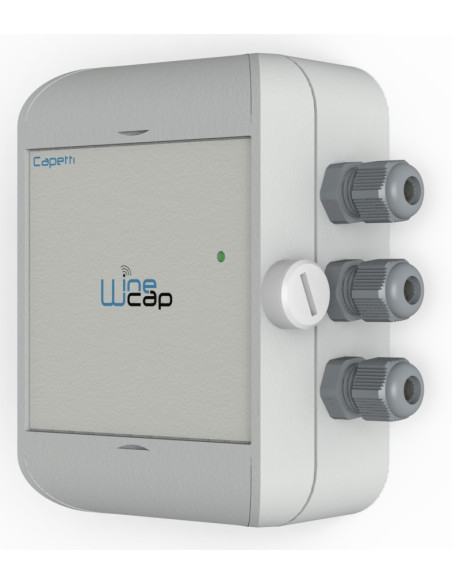

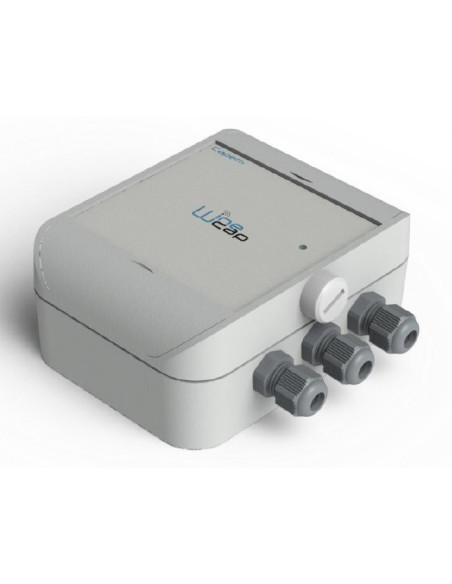

WSD12T-Ex6 Data Logger for Strain Gauges, Load Cells and Outside Temperature.

View larger

WSD12T-Exn Wireless Smart Data Logger for Strain Gauges, Load Cells and Outside Temp.

Reference WSD12T-Exn

Manufacturer: Capetti Elettronica s.r.l.

Condition: New

Strain Gauge/Load Cells and Outdoor Temperature Data Logger.
- 4 channels Wireless Smart Datalogger.
- Outdoor temperature and 3 strain gauge full bridge or load cells with 2480μV/V full scale inputs
- 1.2µV/V resolution
- Type "C" lithium battery for a battery life of 10 years with samples every 60 minutes
- IP 65 sealing.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
MODELS
APPLICATIONS
Data sheet
Download
Accessories

-----------------DATA LOGGERS----------------	Data Acquisition
Environment of Use	Indoor/Outdoor
Type of Logger	Multicanal
Application	Industry
Number of Channels	4 channels
With Display	State LED's
IP Classification	IP65
Communications	Wireless/USB
Battery Life	Up to 10 years
Memory Capacity	64,000 samples per channel

WSD12T-Ex6 Data Sheet Download (422.55k)

WSD12T-Ex6 Manual Download (739.24k)

- The WSD12T-Exn datalogger has 4 input channels to acquire Strain gauge/Load cells and Outdoor temperature sensors with storage functionality of the samples acquired.
- The radio module High Reliability (unique 868MHz radio technology implementing frequency hopping on 11 channels) is based on WINECAP™ LuPo protocol (Long Range) and provides an excellent radio range, a low battery consumption and the certainty of data recovery in any situation (eg.: black out/signal obstacles).
- With a backup memory onboard, the WSD12T may store the last 64,000 acquired samples "per channel" even if the wireless link goes down.
- Logged Samples can be downloaded using a USB connection.
- Using the configuration software, the sampling interval may be set and two thresholds per channel can be activated.

- The unit may be interfaced with:

► all the basestations of MWDG product line

► all the basestations of MWLI product line

- If necessary the radio coverage may be extended up to 16 times using routers (WR12 battery powered repeaters with battery life of up to 7 years) between the dataloggers and the basestations.

Power supply	8.5A/h - 3.6V type “C” lithium internal battery
Battery life (*)	Up to 10 years (samples every 60 minutes and radio signal quality at least sufficient)
*Measures acquired (4 channels***)	· Strain gauge/Load cells · Outdoor temperature
Sampling interval (*)	Selectable from one minute to 24 hours (60 minutes default)
Datalogger capacity	64,000 samples
Working temperature	· Operative: -30°C ÷ +60°C · Warehousing: -40°C ÷ +70°C
Radio frequency	ISM 868MHz
Radio coverage (**)	Up to 6Km in line of sight (can be extended using WR12* battery powered routers*)
Sealing	IP65

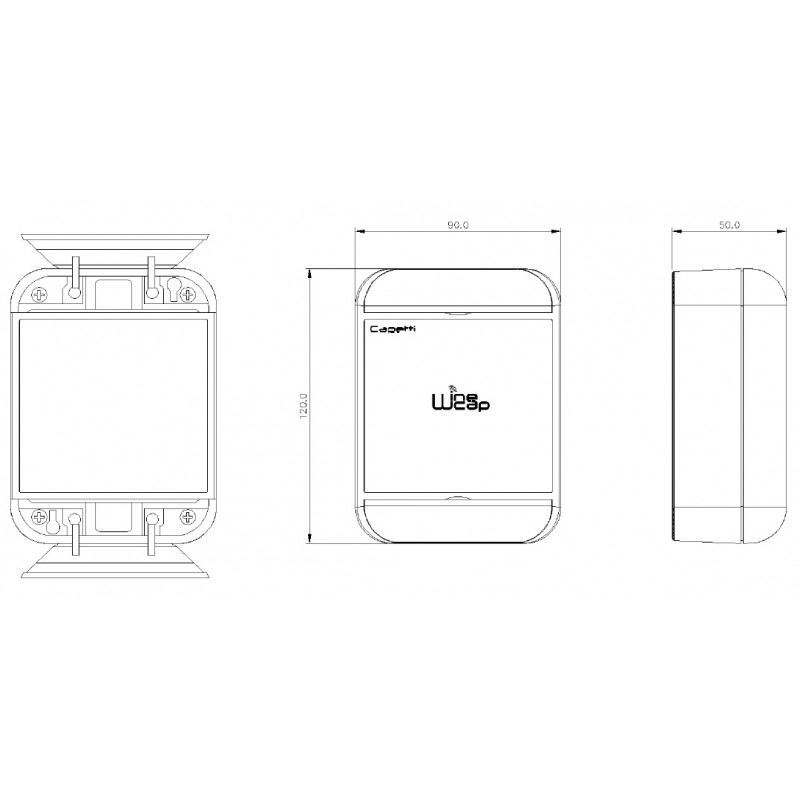

Dimensions	90 x 120 x 50mm
Weight	350g
Case material	ABS
Mounting	Fix on 4 points
Connections	Wireless/USB
Cable external diameter	4.7mm maximum
Copper wire section	0.05 ÷ 2.5mm² / ÷ 14 AWG
Outdoor temperature - Transducer type	NTC10KΩ
Outdoor temperature - Measure range	-30°C ÷ +60°C
Outdoor temperature - Measure accuracy	· ± 0.5°C Range -30°C ÷ 0°C · ± 0.2°C Range 0°C ÷ +60°C
Outdoor temperature - Measure resolution	0.01°C
Strain Gauges/Load Cells - Channels	3
Strain Gauges/Load Cells - Bridge input type	full bridge, ½ bridge, ¼ bridge (to be defined during order)
Strain Gauges/Load Cells - Bridge impedance	120Ω or 350Ω (to be defined during order)

* battery life and sampling interval may be influenced by fieldwork conditions and system configuration.
** radio coverage reachable using up to 32 WR12 routers (maximum 16 for each path) between the datalogger and the basestation.
