DS1922E+DS9107 Data Logger for Monitoring Temperature sea Water, Sterilization Autoclaves (+15°C - +140°C )
Includes protective capsule DS9107
THE DATA LOGGER APPLICATIONS: Seawater sterilization Autoclaves, Temperature monitoring, Monitoring temperature production of drinks and Scientific research...
THE DATA LOGGER APPLICATIONS: Seawater sterilization Autoclave, Temperature monitoring, Monitoring temperature production of drinks and Scientific research...
The smallest temperature data logger in the world!

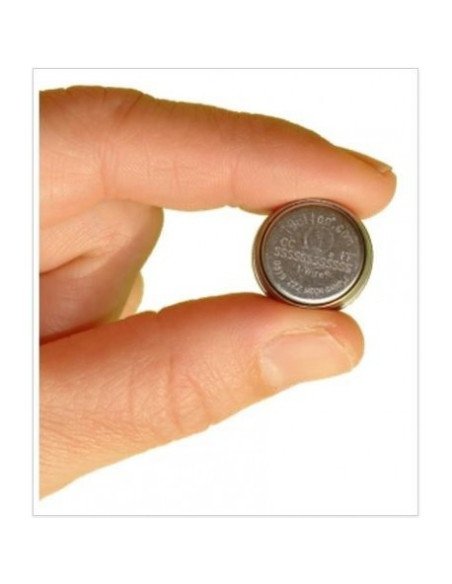

1922E Thermochron iButton (range +15°C to +140°C & 8K memory)
Thermochron® DS1922E is a robust and self-sufficient data logger that measures temperature.
The internal battery, with duration up to 8 years, ensures no extra maintenance costs with battery changes.
The stainless steel enclosure is extremely resistant to harsh environments, mechanical shocks, humidity, dust and dirt.
Its memory stores up to 8192 samples, taken in regular intervals configurable from 1 second up to 273 hours.
Several options are available to fix Thermochron DS1922E to almost any object, including containers, paletes, bags, etc.

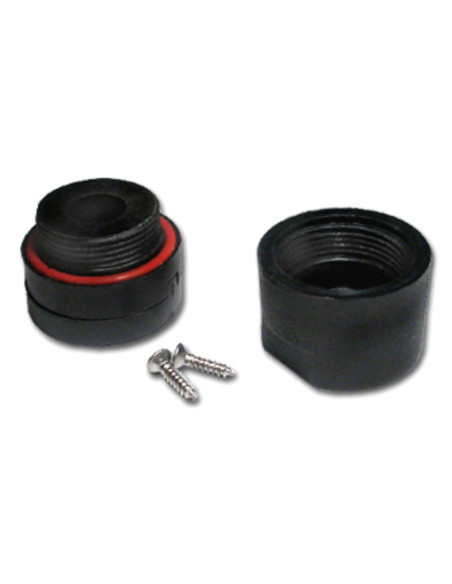

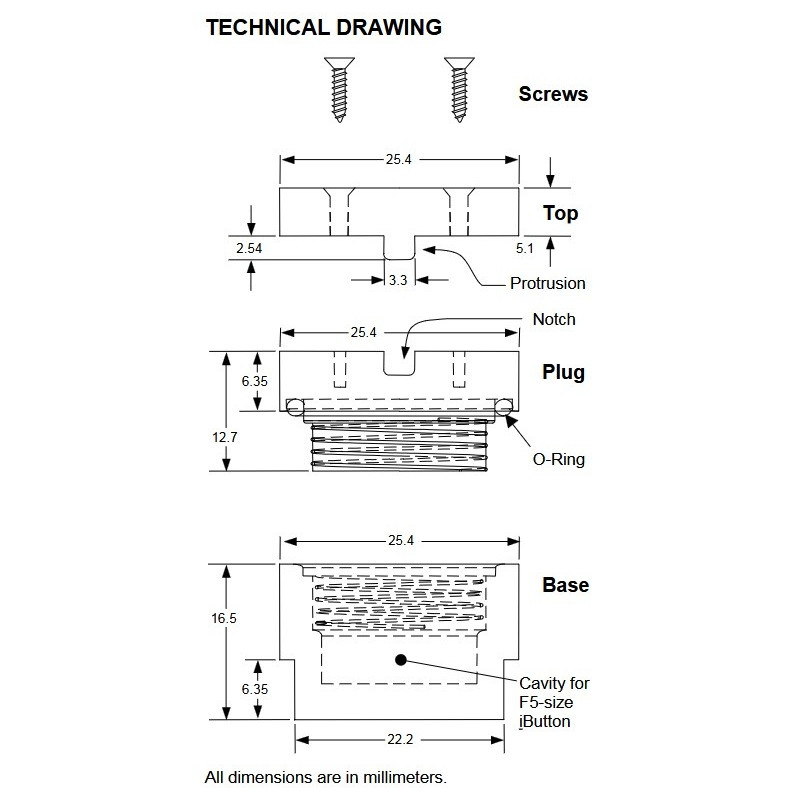

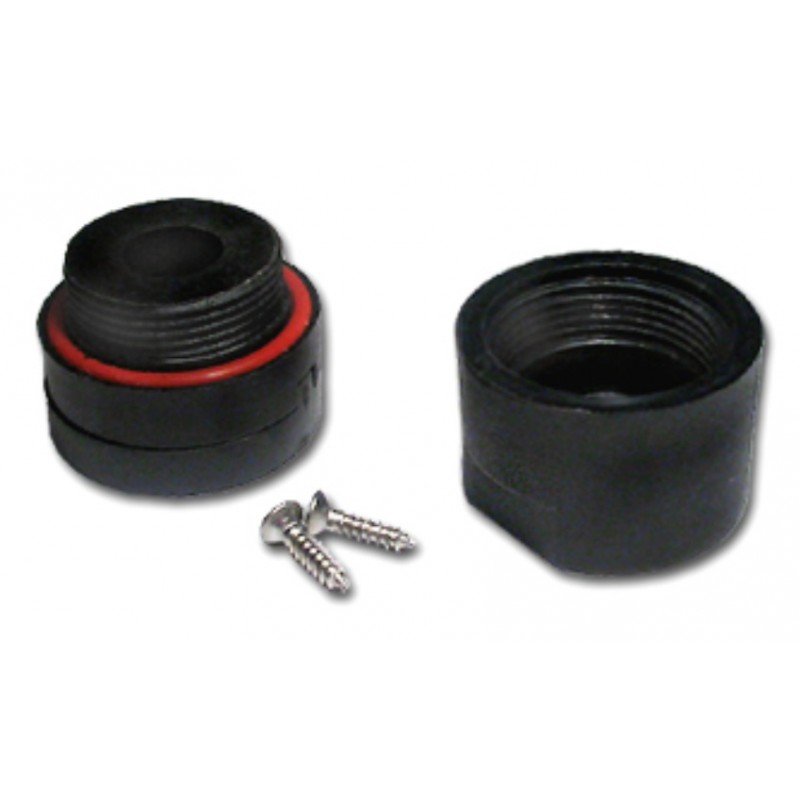

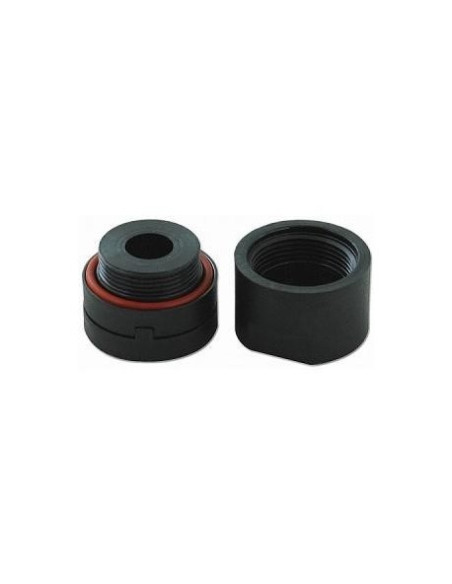

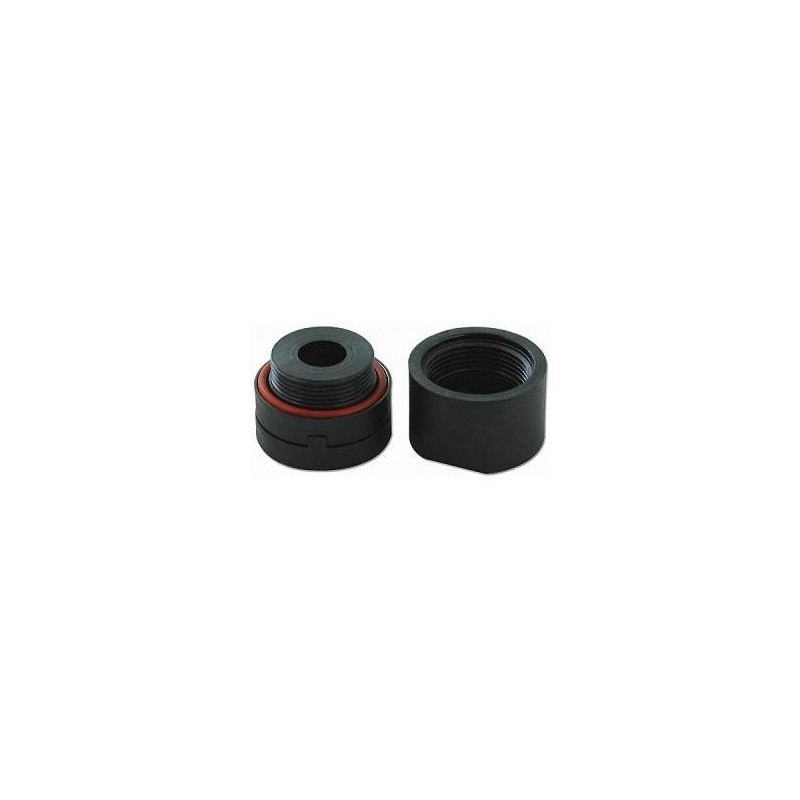

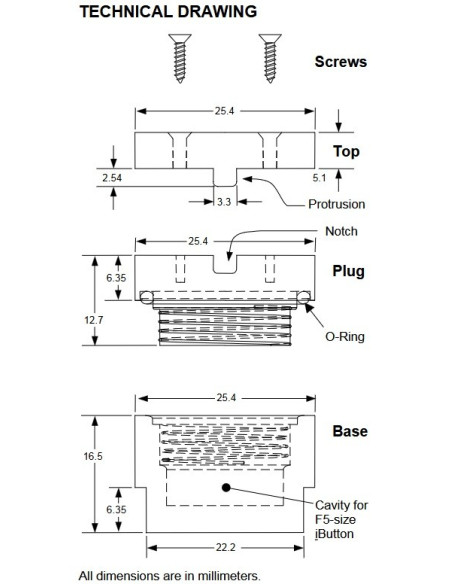

The iButton DS9107 Capsule is a mechanical enclosure designed to protect Temperature Logger iButtons (DS1921 and DS1922 series) from moisture, solvents and pressure. The device consists of a base with the cavity for a F5 iButton, a screw-in plug with O-ring to seal the enclosure, and a top with two stainless-steel screws to mount the iButton Capsule to a cable, e.g., to measure temperature at different levels within a liquid. The cable is inserted into the notch of the plug where it is held in place by the matching protrusion of the top piece.
Base, plug, and top are made of polyphenylene sulfide (PPS). This material is chosen for its mechanical properties (remains stable during both long and short-term exposure to high temperatures), inherent flame resistance, and outstanding chemical resistance (inert to steam, strong bases, fuels and acids). Although PPS is virtually insoluble below 200°C, it can be attacked by chlorinated hydrocarbons. The silicone O-ring matches the temperature and chemical qualities of the PPS. In addition, it is resistant to sunlight, ozone, oxygen, and UV light.
The chemical stability of the screws does not compromise that of the PPS and the silicone.
| Tamaño de iButton | F5 - 5mm |
| Temperatura en Funcionamiento | +15°C a +140°C |
| Precisión de Temperatura | ± 1.5°C: +110°C a +140°C (±7°C típica: +15°C a +110°C) |
| Resolución de Temperatura | Programable: 0.0625°C a 0.5°C |
| Temperatura en el Almacén | +15ºC a +140ºC almacenamiento o operación de pila por encima de +50ºC reduce significativamente la vida útil de la pila. (Nota 21 en Hoja de Especificaciones de DS1922E). |
| Tamaño de Memoria Registrable | 8K Bits |
| Tipo de Memoria | NV SRAM |
| Capacidad de Registros | Programable: 1 Seg a 273 hrs |
| Memoria de Uso General | 512 Bytes de Lectura / Escritura |
| Capacidad de Registros | 4096 - 8192 Lecturas, Dependiendo de Resolución |
| Soporte por Alarma | Alarmas de Temperatura de Alta/Baja |
| Vida útil con la Pila Instalada | 10+ Años |
| Código de Familia | 0x41 |
| Identificación único | Si – Configurado de Fábrica 64 Bits de Serie # |
| Intrínsecamente Seguro | Si |
