MCR-4TC Thermocouple data logger (K, J, T, S, R)

Reference MCR-4TC

Manufacturer: TandD

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Download

MCR-4TC Download (5.59M)

The MCR-4TC is a four channel battery operated temperature data logger designed to measure a wide range of temperatures using a thermocouple sensor. Up to 4 units can be coupled together making it possible to measure and record up to 16 channels.

Users can easily switch the LCD display between real-time measurement and the trend graph display.

Using a USB connection, recorded data can be sent directly to a PC, or a SD card (not supplied) can be used. Data can also be viewed and checked on the handy LCD display.

The MCR-4TC is convenient for recording temperatures in pipes and ducts, cooking equipment such as fryers and ovens, and recording boiler temperatures. Also great for management of refrigerated and frozen goods, or temperature testing of the electronic substrates.

MCR-4TC

Measurement Channels

Temperature 4 ch

Compatible Sensors

Thermocouple: Type K, J, T, S, R

Measurement Units

°C, °F

Measurement Range

Type K : -270 to 1370 °C
Type J : -210 to 1200 °C
Type T : -270 to 400 °C
Type S : -50 to 1760 °C
Type R : -50 to 1760 °C

Input Impedance

Approx. 1 MΩ

Accuracy (*1)

Thermocouple Measurement
Type K, J, T: ±(0.5 °C + 0.3 % reading) [ at -100 °C or above ]
Type S, R : ±(1.5 °C + 0.3 % reading) [ at 100 °C or above ]
(Individual sensor inaccuracies not included.)
Cold Junction Compensation
±0.5 °C [ in operating environent of 10 to 40 °C ]
±0.8 °C [ in other operating environment ]
Auto : According to the range in use

Measurement Resolution;

0.1 °C

Recording Method

Instantaneous or Average

Recording Interval

100, 200, 500 ms.
1, 2, 5, 10, 15, 20, 30 sec.
1, 2, 5, 10, 15, 20, 30, 60 min.

Logging Capacity(*2)

When recording 1 channel : up to 960,000 readings/ch
When recording 2 channels : up to 480,000 readings/ch
When recording 3 channels : up to 320,000 readings/ch
When recording 4 channels : up to 240,000 readings/ch

Recording Mode

Endless ( Overwrite oldest data in the current recording session when capacity is full )
One Time ( Stop recording when capacity is full )

Recording Start Method

Immediate Start or Programmed Start ( by individual logger or by group )

Group Recording

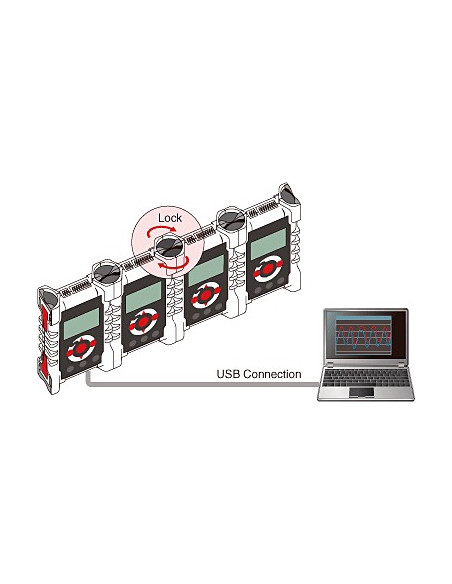

Up to 4 units ( 16 channels ) can be recorded simultaneously.
( Coupling of MCR-4TC and MCR-4V is possible. (*3) )

LCD Display Items

Measurements, Trend Graph, Battery Level, etc.

Communication Interfaces

USB Communication

Communication Time

Download Times for Full Data via USB
- From the master or a single unit: Approx. 1 minute 30 seconds
- From a slave unit: Approx. 4 minutes 30 seconds

External Memory

SD Memory Card, SDHC Memory Card (*4) ( For Manual or Automatic Data Export )

Power

AA Alkaline Battery x 2 ( AA Ni-MH batteries may also be used )
AC Adaptor (AD-05A2 or AD-05C2)
USB Power ( 5 V 250 mA )

Battery Life (*5)

For 4-Channel Measurement (AA Alkaline Battery)

		Rec.Method
		Instanteneous Value	Average Value
Rec Interval	100 ms	Approx. 5 days	Approx. 5 days
	500 ms	Approx. 7 days	Approx. 7 days
	1 sec	Approx. 21 days	Approx. 7 days
	5 sec or longer	Approx. 60 days	Approx. 21 days

(Battery life for 1-channel measurement is about 1.4 times longer than that of 4-channel measurement.)

Input Terminal

Screwless Terminals
< Compatible Wires >
Single Wire : ø 0.32mm to ø 0.65mm ( AWG 28 - 22 )
Twisted Wire : 0.08mm² to 0.32mm² ( AWG 28 - 22 ), ø 0.12 mm or more in diameter
Stripping Length : 9 to 10 mm

Isolation

CH1, CH2, CH3, CH4, and USB are isolated.
( Battery terminals are not isolated from the CH1-CH4 input terminals. )
CH1-CH4 Maximum Applied Voltage : ±50 V
Electrical Isolation Resistance : 50 MΩ or more ( DC ± 250 V ）

Dimensions

H 120 mm x W 75 mm x D 32 mm

Weight

Approx. 190 g ( including batteries )

Operating Environment

Temperature: 0 to 50 °C
Humidity: 90 %RH or less ( no condensation )

Accessories

AA Alkaline Battery x 2, USB Communication Cable (US-15C), Software (CD-ROM), Card Slot Cover, User's Manual Set (Warranty Included)

*1 : MCR-4TC has superior noise filter, but the measurement may sometimes fluctuate due to strong noise. Especially when the recording interval is set to 200 ms or less, the filtering becomes weaker and hence the fluctuation may become greater.
*2 : If the logging capacity is not filled at the end of one recording session, the logger can record up to 30 times.
*3 : Group Recording may not be started depending on the recording or measurement interval specifications of the connected Master unit.
*4 : Please check the for information on memory cards whose operation has been confirmed.
*5 : Battery life varies depending upon multiple factors including ambient temperature, recording interval, number of measurement channels, and frequency of data export to a memory card. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
