SQ16 Bluetooth Data Logger Squirrel

► The New sq16 has 8 differential channel inputs or 16 single ended, a long battery life (std AA cells) and an internal memory of 4GB allowing up to 250 million readings.
► It also has a Bluetooth connection allowing operation via a smart phone app, as well as the standard USB connection to a PC.
► Data can be saved and downloaded easily via an SD card if required.

The sq16 is our entry level logger with long battery life, making it ideal for portable and routine data logging applications. The logger can be started or stopped using the multi function button which displays logger status, this means a PC is not required to run the logger in situ. Store up to 250 million readings in the Squirrel’s onboard memory and up to 6 logger configurations. Use the SD Card memory slot for grabbing measured data in the field or use the SquirrelView app or software to download and export your data.
Easy to set up, use straight out of a box

► Easy to use simple set-up and intuitive to use
► Long battery life gives long life operation and portability
► Tough casing and robust design ideal for environmental applications
► Bluetooth and USB connectivity for multiple connection choices
► SD memory card for ease of data transfer

Powerful performance, meets your application needs

Portable monitoring, environmental applications, vehicle and transport applications and general industrial monitoring.

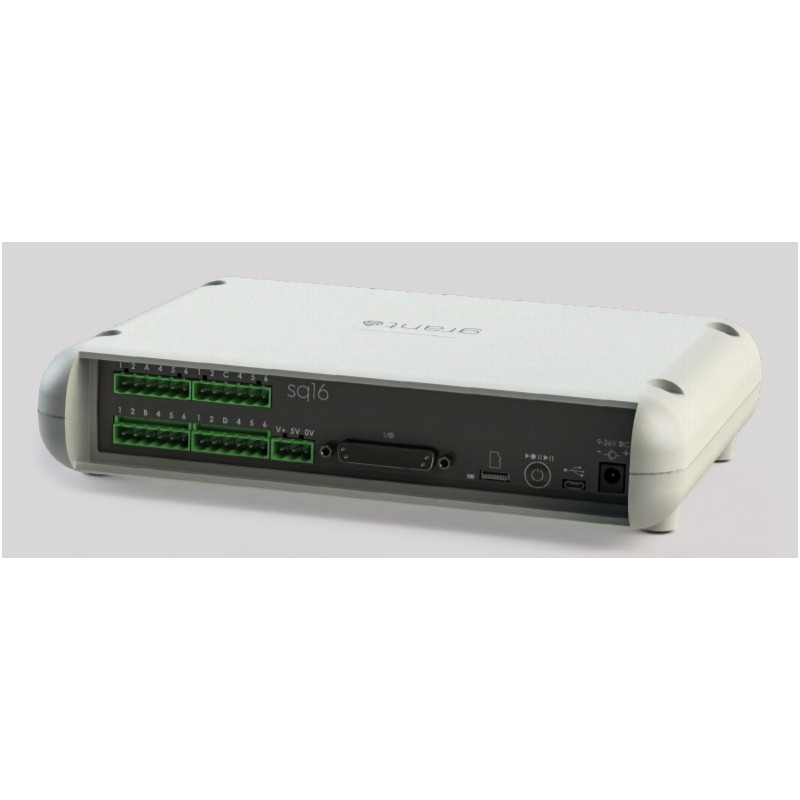

Squirrel SQ16:
The Squirrel SQ16 Data Logger is a versatile and user-friendly data acquisition device. It features 16 single-ended or 8 differential universal inputs, providing reliable and accurate data logging for various applications. The device supports both USB to PC connection and Bluetooth wireless interface, allowing for convenient data transfer and remote operation. The package includes SquirrelView software for easy configuration and data analysis, AA batteries, signal connectors, a screwdriver, and a USB-to-PC cable for immediate use.

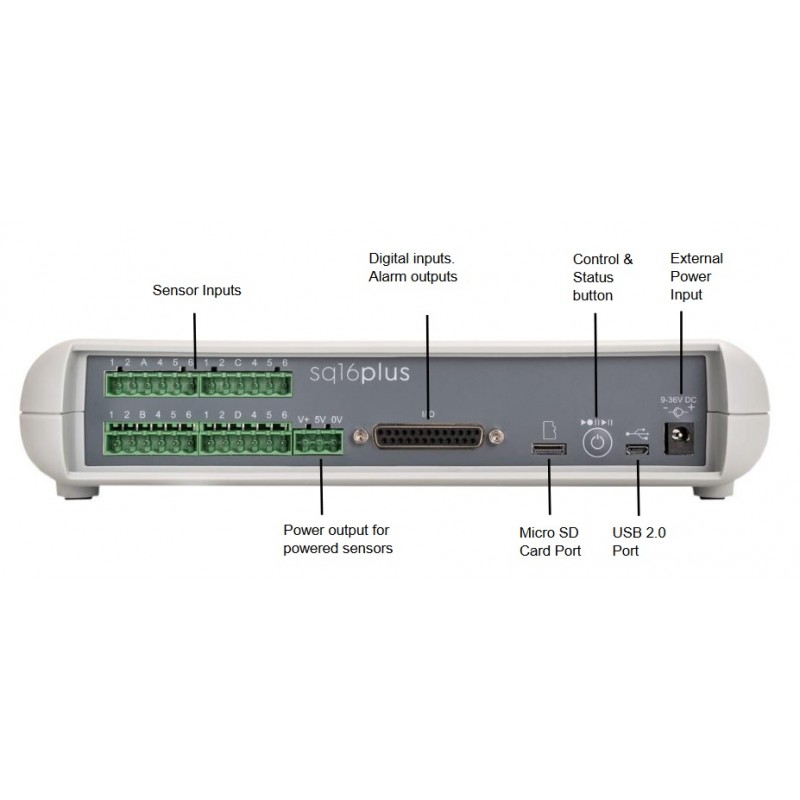

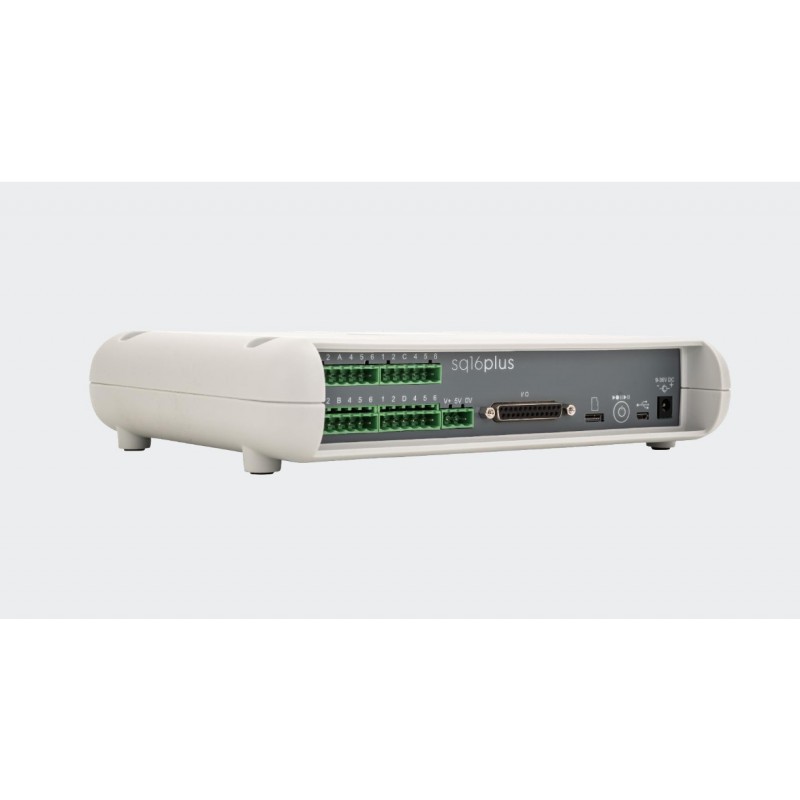

Squirrel SQ16plus:
The Squirrel SQ16plus Data Logger offers enhanced capabilities with the same 16 single-ended or 8 differential inputs. It includes an additional A to D converter and supports up to 4 (3 or 4 wire) PT100/PT1000 inputs for precise temperature measurements. Two fast channels allow sampling at rates up to 96Hz, making it suitable for applications requiring higher data acquisition speeds. The package also includes SquirrelView software, a USB data transfer cable, AA batteries, and signal connectors for comprehensive functionality right out of the box.

Both models provide robust and reliable solutions for monitoring a wide range of environmental and industrial parameters.

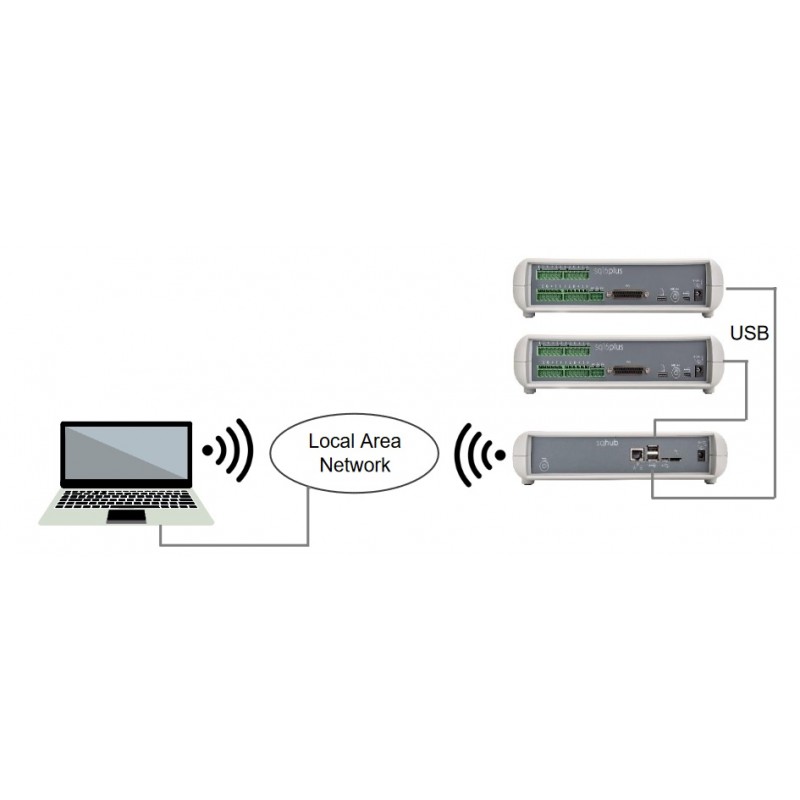

Squirrel sqhub communications gateway
SQHUB
with in-built WiFi and Ethernet connectivity to allow direct connection to a standard PC wireless ethernet network

Accessories:

MPU 12V
100-240VAC 50/60Hz Mains Adapter supplied with 4-single fit mains plugs for UK, Euro, US and AUS/NZ. Powers SQ Data Loggers only. Output 12VDC 1.0A


MPU 18V
100-240VAC 50/60Hz Mains Adapter supplied with 4-single fit mains plugs for UK, Euro, US and AUS/NZ. Powers SQHUB and Data Loggers. Output 18VDC, 1.6A
