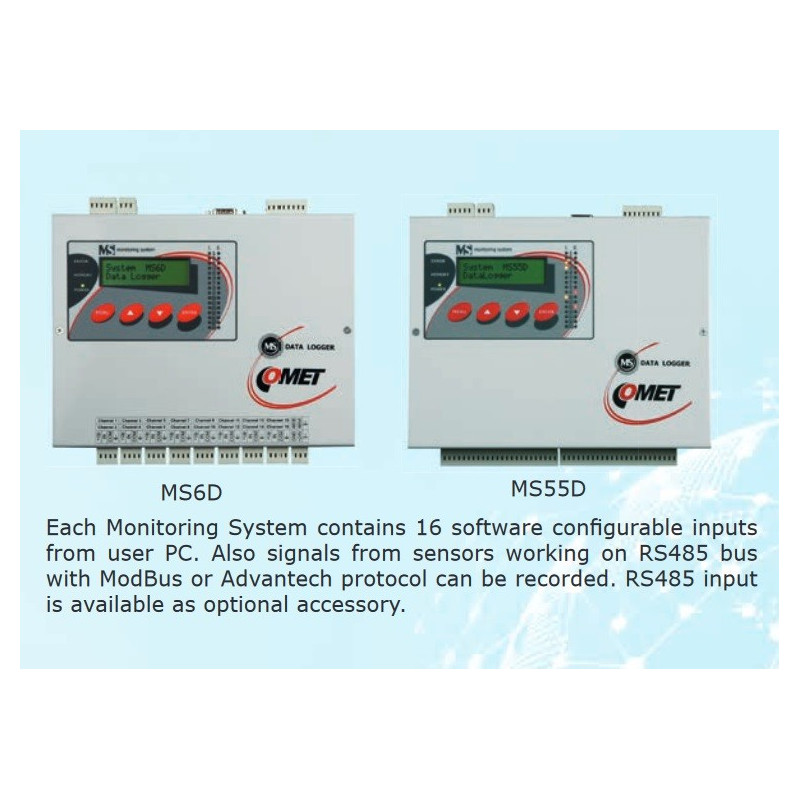

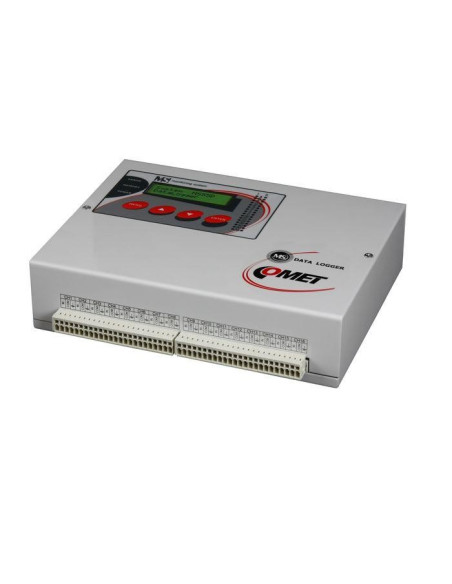

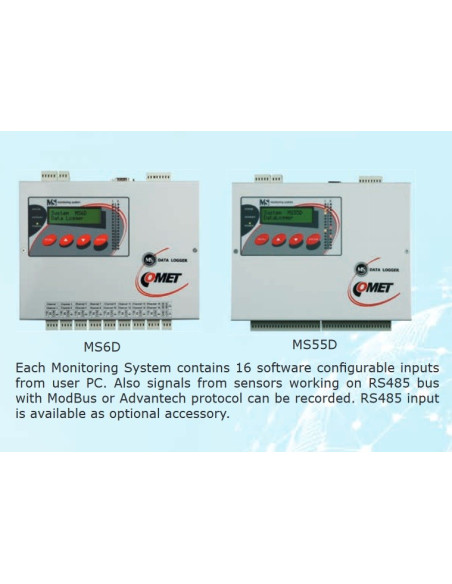

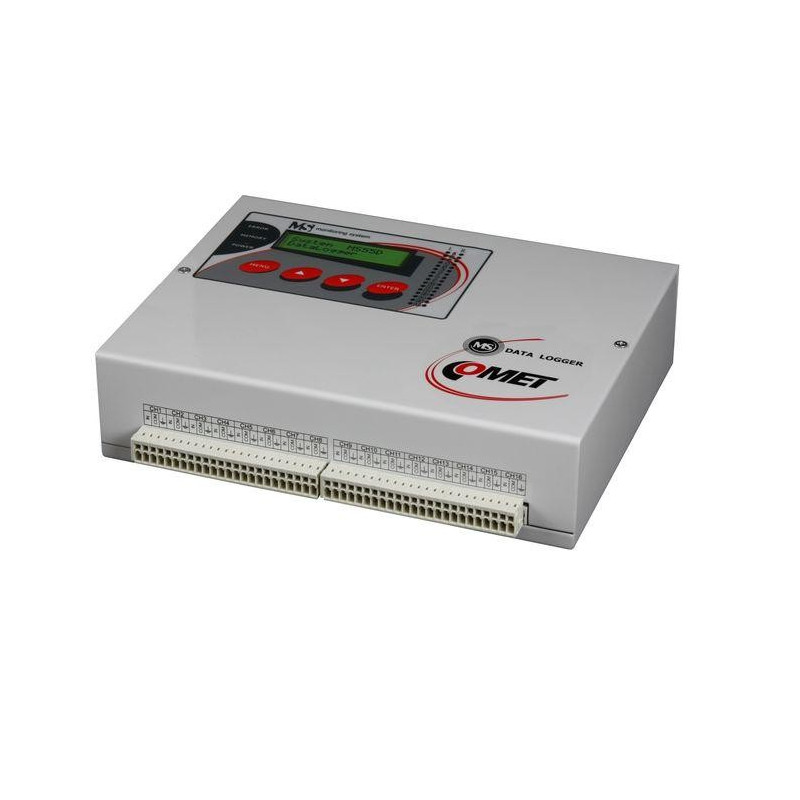

MS55D y MS6D Registradores de Datos de 16 Canales

Referencia:

Condición: Nuevo

La solución completa para el control de la temperatura , la humedad y otros valores. Los registradores de datos están diseñados para la medición , registro , evaluación y posterior procesamientode señales eléctricas de entrada, que están sujetas a cambios relativamente lentos ( > 1s ).En conjunción con los sensores y transductores apropiados son adecuados para el seguimiento de cantidades físicas.

El dispositivo incluye certificado de calibración.

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

999,00 €

sin IVA

Cantidad

Elegir Modelo

Añadir a la lista de deseos

General
Especificaciones
Módulos de Entrada
Accesorios Opcionales
Descargar

MS55D Data Sheet Descargar (1022.8k)

Data Logger permite:

Medir y el proceso de 1 a 16 variables de entrada

Cada uno de los 16 canales ofrece el canal virtual ( contable )

Adquirir la grabación autónoma de valores medidos

Crear condiciones de alarma

Sobre la base de las alarmas creadas realizar otras acciones ( acústica , señalización óptica , salidas de relé de control , el envío de mensajes SMS , manipulación marcador telefónico , mensajería utilizando diferentes protocolos de interfaz Ethernet , etc. )

Monitoreo on-line de los valores y estados medidos

Alarmas por:

Módem GSM

Los correos electrónicos Dialer

Teléfono

Zumbador integrado

Sirena externa o luz

Relay

Aplicaciones:

Alimentos y bebidas industria (HACCP )

Las salas de servidores , centros de datos

Las salas de servidores , centros de datos

Industria farmacéutica (GMP )

Estaciones de sangre , farmacias

La horticultura y el cultivo de plantas

HVAC - calefacción, ventilación, aire acondicionado , refrigeración

Construcción y gestión de la energía

La automatización de edificios

Investigación y desarrollo

Laboratorios (BPL)

Monitoring system inputs

Figure: communication interface, alarm outputs, connection of power. Ethernet interface is optional.

Features of Ethernet Interface:

	Ethernet interface Data logger is designed for connection to standard computer network. The 10 and 100Mb/s Ethernet is supported.No need to build new data lines. Thanks this installation cost are essentially reduced and instant easy start of monitoring system operation is enabled.
	Modbus protocol Enables to read actually measured values by means of industrial standard Modbus. Data is available in several formats. Protocol is suitable for implementing of MS data logger to SCADA system.
	SNMPv1 protocol Actually measured values can be acquired by means of SNMPv1 protocol. MIB tables are available for free. Designed especially for IT applications and use in “managed” computer networks.
	Fast data download Record download speed was increased four-times from previous MS5 data logger generation.
	SOAP protocol Protocol designed for data logger integration to own www infrastructure. Available actual values can be captured by www server (Apache, IIS) and processed by the user.Communication protocol SOAP version 1.1. is supported. By means of this protocol data logger sends actual values in preset intervals to specified server.
	Syslog protocol Syslog message is sent after alarm state or data logger error appears. Syslog is compatible with RFC5424.
	E-mail Data logger sends warning emails up to three different addresses. E-mail is immediately sent after alarm state of monitored technological process appears. User is also informed on error states of device itself (measuring channel error, fulfilling of internal memory, self-test error). SMTP servers requiring autentization are also supported.
	XML file Actual values can be downloaded to XML file. This option is suitable for data logger integration to SCADA systems.
	Data logger display Network parameters can be set directly from data logger display. It is possible to change IP address, subnetwork mask and initial gate.
	Secured WEB server WWW server is built in the device. Here it is possible to monitor actual values, alarm states and information on data logger. Also access password for www pages can be entered. WWW pages are user modifiable. Free SDK description is available to create own www pages.
	SNMP Trap SNMP Traps are sent after alarm state or device error appears.
	Database system Prepared for connection to database system including online values transfer.
	WWW remote conditions Control of remote condition and relays is enabled also via www interface.

Included in Delivery:

Data logger including the battery
Traceable calibration certificate. Calibration certificate contains calibration of 16 inputs 4-20mA, if it is not defined required configuration of inputs by the user. If required configuration of inputs is defined by the user, calibration certificate proves calibration of inputs in accordance with this required configuration - maximum one range for each of 16 inputs.
Calibration of other ranges is optional.
USB communication cable
Basic manual
Free basic Windows software is ready to download at folder

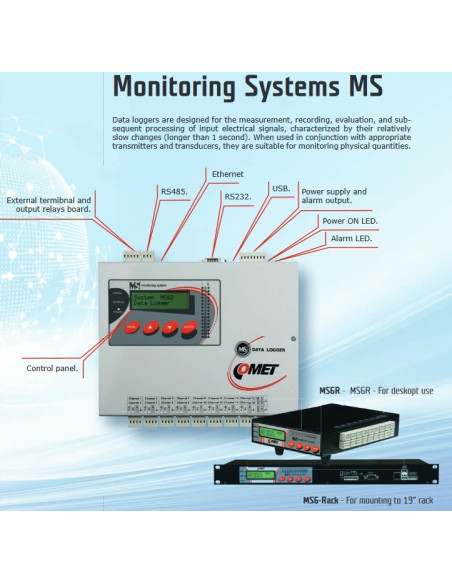

Sistemas de monitorización MS
MS55D      Registrador de datos de 16 canales con LCD
MS6D        Registrador de datos de 16 canales con entradas programables
MS6-Rack Registrador de datos de 16 canales, entradas programables, montaje en rack de 19"
MS6R       Registrador de datos MS6R con entradas programables, montaje en rack de 19"

Total memory capacity

2MB (up to 480 000 values)

Memory type

internal SRAM, backed-up by Lithium battery

Data logging modes

noncyclic - logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Data logging interval

adjustable individually for all input channels from 1 second to 24 hours

Real time clock

year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Input measured values (1 to 16 inputs)

are defined for each channel by installed input modules (see table) accordingly to user requirements

Resolution of the AD converter (analog channels)

16 bits, conversion duration approximately 60ms/channel

Communication speed

9600, 19200, 57600, 115200 Bd, 230400* Bd (* applicable for USB, Ethernet)

Power

9 to 30Vdc, 24Vdc recommended

Operating temperature range

0 to +50°C

Dimensions including connectors

215 x 225 x 60 mm

Protection

IP20

Weight

approximately 800 g

Warranty

2 years

A0 input module for MS data logger dc current 4-20mA code: M1001	A1 input module for MS data logger dc current 4-20mA code: M1002	B0 input module for MS datalogger dc current 0-20mA code: M1003
B1 input module for MS datalogger dc current 0-1A code: M1004	B2 input module for MS datalogger dc current 0-5A code: M1005	C0 input module for MS datalogger ac current 0-20mA, galvanic isolated code: M1006
C1 input module for MS datalogger ac current 0-1A, galvanic isolated code: M1007	C2 input module for MS datalogger ac current 0-5A, galvanic isolated code: M1008	D0 input module for MS datalogger dc voltage 0-100mV code: M1009
D1 input module for MS datalogger dc voltage 0-1V code: M1010	D2 input module for MS datalogger dc voltage 0-10V code: M1011	E0 input module for MS datalogger ac voltage 0-100mV, galvanic isolated code: M1013
E1 input module for MS datalogger ac voltage 0-1V, galvanic isolated code: M1014	E2 input module for MS datalogger ac voltage 0-10V, galvanic isolated code: M1015	F input module for datalogger MS code: M1017
J input module for MS datalogger RTD sensor Ni1000/6180 ppm code: M1018	K input module for MS datalogger RTD sensor Pt100 code: M1019	K1 input module for MS datalogger RTD sensor Pt1000 code: M1020
N input module for datalogger MS code: M1021	O input module for datalogger MS code: M1022	P input module for datalogger MS code: M1023
Q input module for datalogger MS code: M1024	A1G input module for MS datalogger dc current 4-20mA, galvanic isolated code: M1025	B0G input module for MS datalogger dc current 0-20mA, galvanic isolated code: M1026
B1G input module for MS datalogger dc current 0-1A, galvanic isolated code: M1027	B2G input module for MS datalogger dc current 0-5A, galvanic isolated code: M1028	D0G input module for datalogger dc voltage 0-100mV, galvanic isolated code: M1029
D1G input module for MS datalogger dc voltage 0-1V, galvanic isolated code: M1030	D2G input module for MS datalogger dc voltage 0-10V, galvanic isolated code: M1031	FG input module for datalogger MS code: M1033
JG input module for MS datalogger RTD sensor Ni1000/6180 ppm, galvanic isolated code: M1034	KG input module for MS datalogger RTD sensor Pt100, galvanic isolated code: M1035	K1G input module for MS datalogger RTD sensor Pt1000, galvanic isolated code: M1036
NG input module for datalogger MS code: M1037	OG input module for datalogger MS code: M1038	PG input module for datalogger MS code: M1039
QG input module for datalogger MS code: M1040	S input module for datalogger MS code: M1041	S1 input module for datalogger MS code: M1042
SG input module for datalogger MS code: M1043	CTU counter input module for logger MS code: M1044	CTK counter input module for logger MS code: M1045
FU input module for logger MS code: M1047	FK input module for logger MS code: M1048	TG input module for datalogger MS code: M1053
T input module for datalogger MS code: M1054	D4 input module for MS datalogger dc voltage 0-75V code: M1055	D5 input module for MS datalogger dc voltage -10 to +10V code: M1056
D4G input module for MS datalogger dc voltage 0-75V, galvanic isolated code: M1057	D5G input module for MS datalogger dc voltage -10 to +10V, galvanic isolated code: M1058	E4 input module for MS datalogger ac voltage 0-50V, galvanic isolated code: M1059
K3 input module for MS datalogger RTD sensor Pt1000 code: M1060	RP input module for datalogger MS code: M1061

Ac/dc adapter 21V/1A/25W unstabilized code: A1759	AC/DC adapter 230Vac to 24Vdc/1A, switch-mode code: A1940	Power supply 24Vdc for DIN 35mm rail code: A5948
Uninterruptible power supply MIN-DC-UPS/24VDC/2 code: A6963	Rechargeable battery module MINI-BAT/24DC/1,3AH code: A7963	DIN rail 35mm/226mm lenght with screws code: MP035
Uninterruptible power supply unit AWZ 224 code: A6966

Holders for data logger mounting to DIN 35mm rail

code: MP012

Universal holders for data logger and output relays module

code: MP013

Side covers for cables

code: MP027

Ethernet communication port (internal) for MS6R, MS6D code: MP042	Converter USB/RS485 for MS5 code: MP022	Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS code: MP023
RS232 connector with terminals code: MP030

GPRS/EDGE router ER75i RS232 set

code: MP052

KIT-GSM modem Fastrack Xtend

code: KIT-GSM-M

TP-LINK-TL WA5110G wifi adapter

code: TP-LINK-TL

Terminal with display for MS55, MS6 code: MP016	External terminal for MS5 with housing and cable code: MP032	Communication cable for ext. terminal or output relays module 60cm code: MP017
Communication cable for ext. terminal or output relays module 5m code: MP017-5	Communication cable for ext. terminal or output relays module 10m code: MP017-10

Output relays module code: MP018	Holders for output relays module mounting to DIN 35mm rail code: MP019	DIN rail 35 mm for output relays module with screws code: MP020
Communication cable for ext. terminal or output relays module 60cm code: MP017	Communication cable for ext. terminal or output relays module 5m code: MP017-5	Communication cable for ext. terminal or output relays module 10m code: MP017-10

External audio unit for MSxx and Multilogger code: MP026	Power detector SP008 code: SP008	Screwdriver for WAGO terminals 3.5mm code: MP031
Magnetic door contact SA-200-A code: SA200A	Magnetic door contact with cable length 2m code: SA200A-2	Magnetic door contact with cable length 5m code: SA200A-5
Magnetic door contact with cable length 10m code: SA200A-10	Magnetic door contact with cable length 15m code: SA200A-15	Magnetic door contact with cable length 20m code: SA200A-20
Magnetic door contact with cable length 30m code: SA200A-30

MS55D datalogger in IP54 protection case with connected terminal at the lid

code: MP049

Watertight case with wall holders and holders for data logger, no cutout in the lid

code: MP033

GD1250 thermocouple 'K' wire probe 1m code: GD1250-1/0	GD1250 thermocouple 'K' wire probe 2m code: GD1250-2/0	GD1250 thermocouple 'K' wire probe 3m code: GD1250-3/0
GD1250 thermocouple 'K' wire probe 4m code: GD1250-4/0	GD260 thermocouple 'K' wire probe 1m code: GD260-1/0	GD260 thermocouple 'K' wire probe 2m code: GD260-2/0
GD260 thermocouple 'K' wire probe 3m code: GD260-3/0	GD260 thermocouple 'K' wire probe 4m code: GD260-4/0	GD700 thermocouple 'K' wire probe 1m code: GD700-1/0
GD700 thermocouple 'K' wire probe 2m code: GD700-2/0	GD700 thermocouple 'K' wire probe 3m code: GD700-3/0	GD700 thermocouple 'K' wire probe 4m code: GD700-4/0
Pt1000TG8/0, temperature probe, cable 1 m code: SN104	Pt1000TG8/0, temperature probe, cable 2 m code: SN105	Pt1000TG8/0, temperature probe, cable 5 m code: SN108
Pt1000TG8/0, temperature probe, cable 10 m code: SN113	Pt1000TG7/0, temperature probe, cable 1 m code: SN164	Pt1000TG7/0, temperature probe, cable 2 m code: SN165
Pt1000TG7/0, temperature probe, cable 5 m code: SN166	Pt1000TG7/0, temperature probe, cable 10 m code: SN167	2301-220/0, temperature probe, cable 1 m code: SN168
2021-150/0, temperature probe, cable 1 m code: SN169	PTS350A-2/0, temperature probe, cable 2 m code: SN170	2034-220/0, temperature probe, cable 1 m code: SN175
2061-200/0, temperature probe, cable 1 m code: SN178	2061-200/0, temperature probe, cable 2 m code: SN179	2061-200/0, temperature probe, cable 5 m code: SN180
2061-200/0, temperature probe, cable 10 m code: SN181	PTS350A-5/0, temperature probe, cable 5 m code: SN182	PTS350A-10/0, temperature probe, cable 10 m code: SN183
Pt1000TGL40/0, temperature probe, cable 1 m code: SN185	Pt1000TGL40/0, temperature probe, cable 2 m code: SN186	Pt1000TGL40/0, temperature probe, cable 5 m code: SN187
Pt1000TGL40/0, temperature probe, cable 10 m code: SN188	Pt1000TR160/0, temperature probe, cable 1 m code: SN199	Pt1000TR160/0, temperature probe, cable 2 m code: SN200
Pt1000TR160/0, temperature probe, cable 5 m code: SN201	Pt1000TR160/0, temperature probe, cable 10 m code: SN202	Pt1000TR160/0, temperature probe, cable 15 m code: SN203
Pt1000TR160/0, temperature probe, cable 20 m code: SN204	PTS380K/0 temperature sensor with a stainless steel connection head and connector code: SN205	2091-200/0, Stick-in probe, cable 1 m code: SN210
2091-200/0, Stick-in probe, cable 2 m code: SN211	2091-200/0, Stick-in probe, cable 5 m code: SN212	2091-200/0, Stick-in probe, cable 10 m code: SN213
2071-030/0, special probe with CINCH connector code: SN214	Extension cable thermocouple K with female connector, 1meter length code: SNP03/0	Extension cable thermocouple K with female connector,2meters code: SNP06/0
Extension cable thermocouple K with female connector,3meters code: SNP07/0	Extension cable thermocouple K with female connector,4meters code: SNP08/0	Extension cable thermocouple K with female connector,5meters code: SNP09/0
Extension cable thermocouple K with female connector,6meters code: SNP10/0	Extension cable thermocouple K with female connector,7meters code: SNP11/0	Extension cable thermocouple K with female connector,8meters code: SNP12/0
Extension cable thermocouple K with female connector,9meters code: SNP13/0	Extension cable thermocouple K with female connector,10meters code: SNP14/0	Extension cable thermocouple K with female connector,11meters code: SNP15/0
Extension cable thermocouple K with female connector,12meters code: SNP16/0	Extension cable thermocouple K with female connector,13meters code: SNP17/0	Extension cable thermocouple K with female connector,14meters code: SNP18/0
Extension cable thermocouple K with female connector,15meters code: SNP19/0
