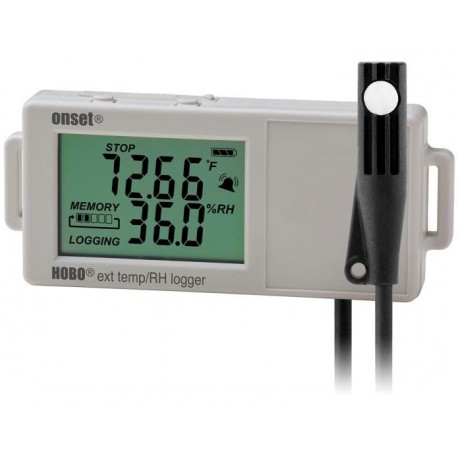

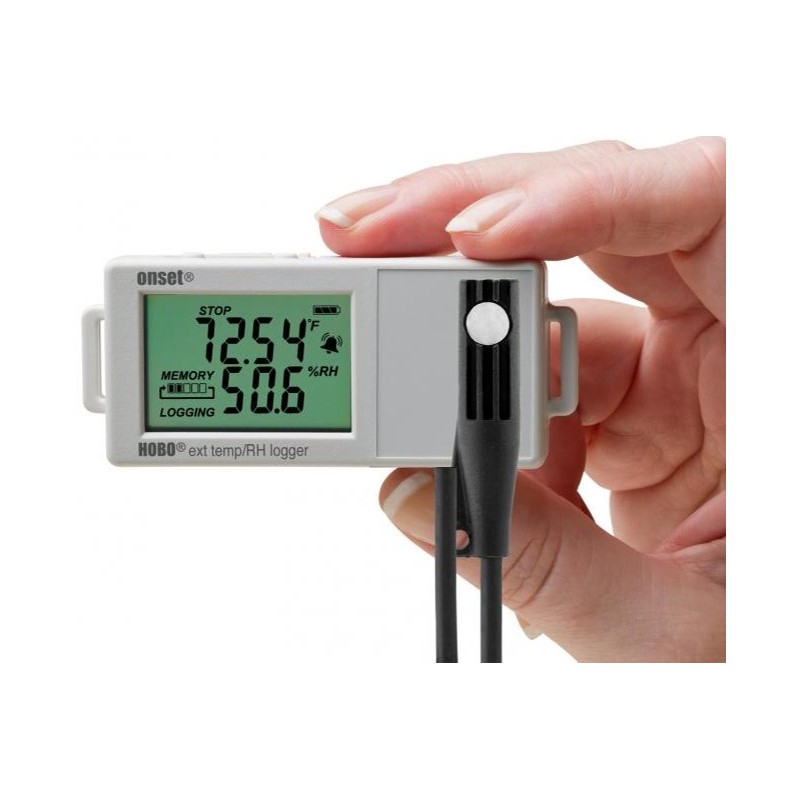

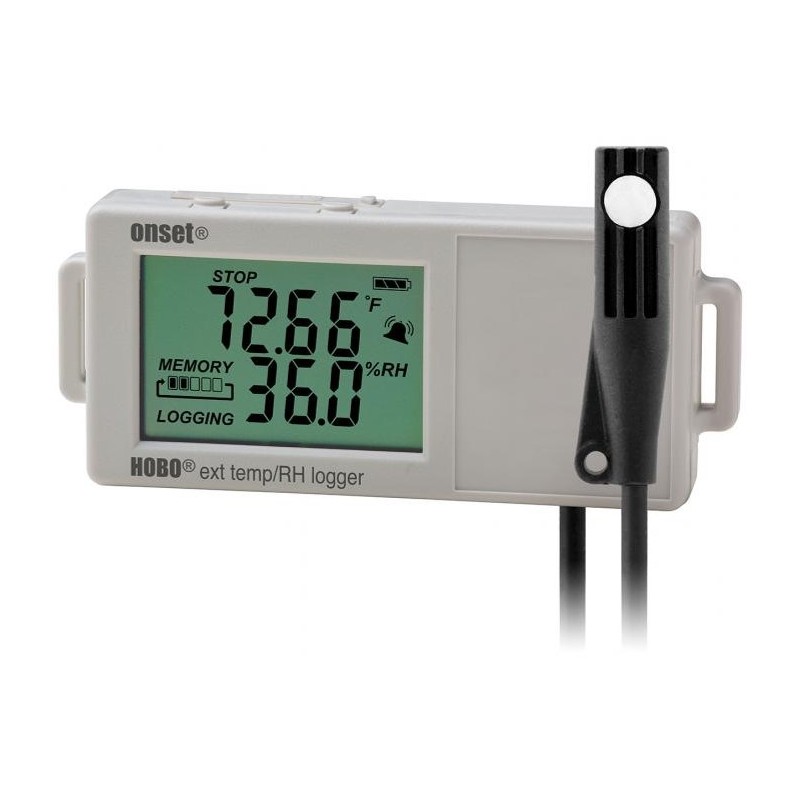

UX100-023A HOBO Logger for Temp/RH & ext. sensor

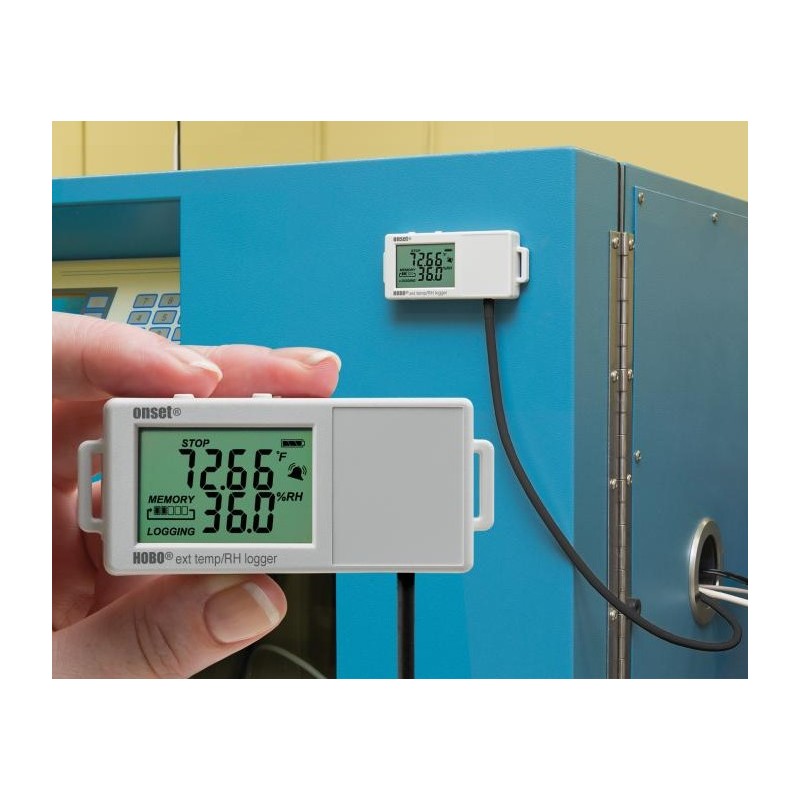

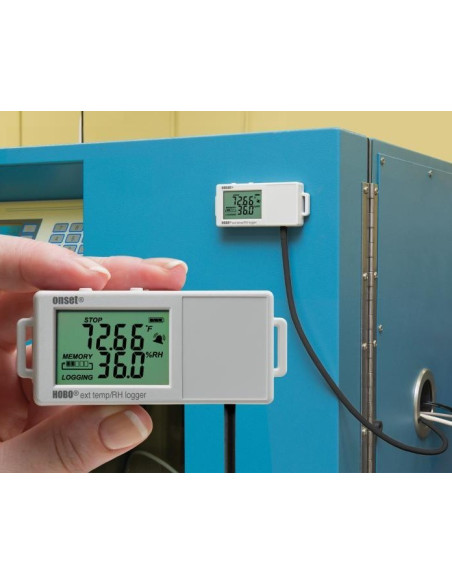

The HOBO UX100-023 External Temp/RH data logger records temperature and relative humidity in an indoor environment with its external sensor. Ideal for monitoring occupant comfort in office buildings, tracking food storage conditions in warehouses, logging temperature trends in server rooms, and measuring humidity levels in museums.

Easy-to view LCD display
Large memory capacity
Visual high & low alarm thresholds
New Burst and Statistics logging modes
User-replaceable RH sensor

Environment:
The UX100-023 Data Logger is for use in Indoor environments

Measurements:
The UX100-023 Data Logger supports the following measurements: Temperature, Relative Humidity

Sensor de Temperatura:

Rango: -20° to 70°C (-4° to 158°F)

Precisión: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A

Resolución: 0.024°C at 25°C (0.04°F at 77°F); see Plot A

Tiempo de Respuesta: 6 minutes in air moving 1 m/s (2.2 mph)

Deriva: <0.1°C (0.18°F) per year

Sensor HR:

Rango: 1% to 95% at -40° to 75°C (-40° to 167°F); exposure to conditions
below -20°C (-4°F) or above 95% RH may temporarily increase the
maximum RH sensor error by an additional 1%

Precisión: ±2.5% from 10% to 90% typical to a maximum of ±3.5% including hysteresis, see Plot B

Resolución: 0.05% at 25°C (77°F)

Tiempo de Respuesta: 5 minutes to 90% in airflow of 1 m/s (2.2 mph)

Deriva: <1% per year typical

Registrador:

Logger Operating Range:
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification

Logging Rate: 1 second to 18 hours, 12 minutes, 15 second

Logging Modes: Normal, Burst or Statistics

Modos de Memoria: Wrap when Full or Stop when Full

Start Modes: Immediately, Push Button, Date & Time or Next Interval

Stop Modes: When Memory Full, Push Button, or Date & Time

Restart Mode: Push Button

Precisión del Reloj: ±1 minute per month at 25°C (77°F), see Plot C

Vida de la batería: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater

Tipo de batería: One 3V CR2032 lithium battery

Memoria: 128 KB (84,650 medidas, máximo)

Download Type: USB 2.0 interface

Full Memory Download Time: 20 seconds

LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Dimensiones: 3.66 x 8.48 x 2.29 cm

Peso: 30 g (1.06 oz)

Entorno Operativo: IP50

 - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
