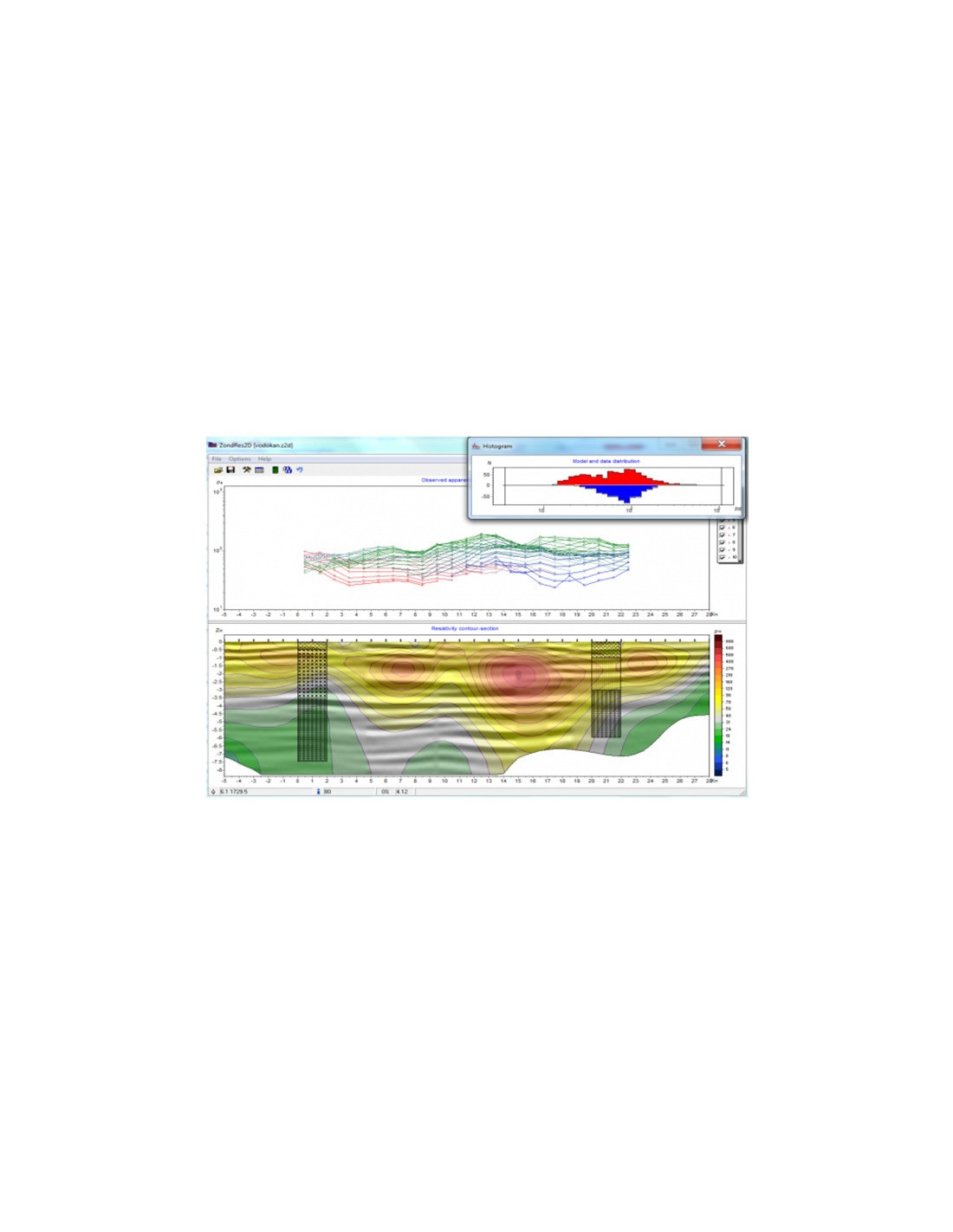

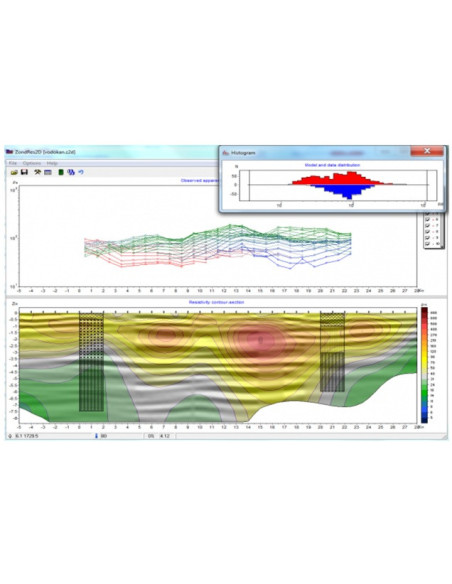

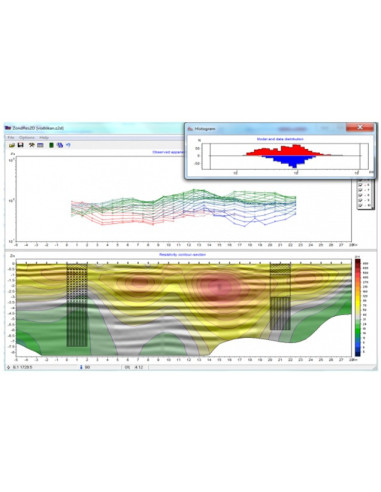

ZondRes2d Professional software for interpreting 2D electrical tomography data

Specifications

• Product type: Software
• Name: ZondRes2d
• Main function: interpretation of 2D electrical tomography data
• Supported technologies: resistivity and induced polarization
• Manufacturer: MAE SRL



Main Features

This software provides an advanced environment for processing, modelling and inversion of geophysical data, especially for electrical resistivity, induced polarization and complementary geophysical methods.

Key Functions

• Supports any electrode arrays or combinations, including arbitrary electrode spacings and positions.
• Allows different arrays with different numbers of electrodes to be used on the same site.
• Supports measurements at the water surface and on the water bottom, as well as borehole, cross-borehole and mixed survey systems.
• Four methods for defining topography, with real-time editing.
• Two induced polarization inversion methods:
  • Standard static IP inversion.
  • Full waveform IP inversion for Cole-Cole parameters in the time and frequency domains.
• Approximate and full-solution calculation options.
• Script recording for automatic multi-file processing.
• Working buffer for up to 5 models.
• Resistivity and IP data quality control, including denoising and data editing tools.
• Advanced tools for mathematical modelling of geoelectrical sections:
  • Standard “bitmap-style” mesh.
  • Arbitrary layered models.
  • Polygonal-style models.
• Additional tools for gravity, magnetic and self-potential forward modelling and joint inversion.
• Several resistivity and IP inversion algorithms:
  • Smooth.
  • Focusing.
  • Robust.
  • Block-based.
• Reference model definition for inversion.
• Noise component suppression during inversion using robust reweighting.
• Suppression of P/C static shifts during inversion.
• Support for anomalous MAN and AMNA arrays using the true anomalies method.
• Definition of limits for model parameters.
• Integration of a priori geological boundaries and borehole data into the inversion process.
• Weight assignment for data records and advanced measurement editing.
• Quality assessment of inversion results based on sensitivity matrix analysis.
• Calculation of sensitivity, quality and DOI index.
• Model edge cutting by angle or sensitivity level.
• Multiple visualization options for data, models and a priori information.
• Ability to use a semi-transparent background for resistivity sections, such as geological or seismic sections.
• 3D visualization of geoelectrical sections along arbitrary profile systems.
• Generation of parameter map slices at different depths.
• Geological section editor and borehole column editor, including titled boreholes.
• 2D joint inversion with magnetotelluric, refraction seismic and TDEM data.
• MMR method support.
• Export to multiple formats:
  • Bitmap images.
  • Vector graphics.
  • Excel.
  • Surfer.
  • AutoCAD.
• Scale settings for exported images.
• Image printing and technical report generation.
